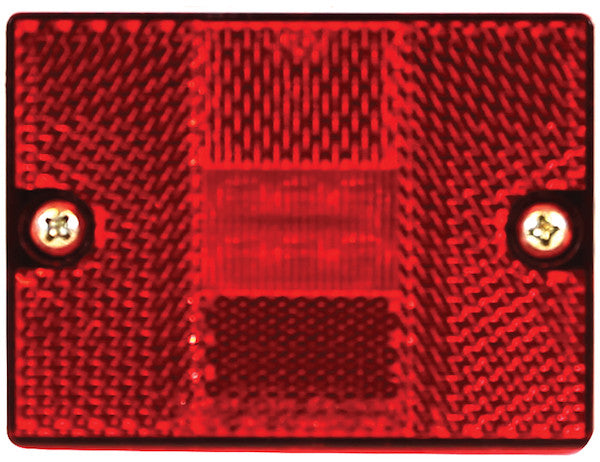

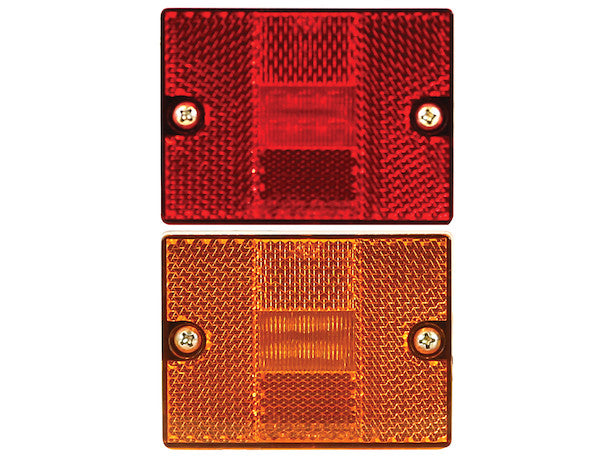

Buyers Products 2.875 Inch Rectangular Marker Clearance Light with Reflex and 6 LEDs is available in your choice of red or amber lens with built-in reflector. Lights feature an internal Reflex optic, which eliminates the need for a separate reflector. They install using an integrated stud mount and are hard-wired with a blunt cut lead and ring terminal. Marker lights are sold in bulk (multiples of 10) and backed with a limited lifetime warranty.
Specifications
| Amp draw at 12 Volts | 0.033 |
|---|---|
| Base / Mount Type | Surface |
| Built-In Switch | No |
| Color | Red |
| Depth | - |
| Hard Wired or Plug | Hard Wired |
| Height | - |
| Housing Material | Plastic |
| Lens Material | Polycarbonate |
| Lens Shape | Rectangular |
| Number of Wires | (2) Wires, (1) w/Stripped Power Wire & (1) w/#10 Ring On Ground |
| Overall Width | 2.875 |
| Plug Included | No |
| Type of Plug | Blunt Cut |
| Voltage | 12 |
| Wattage | 0.40 |
Advanced Technical Overview: The 2.875 Inch Red Rectangular Marker/Clearance Light with Integrated Reflex and 6 LED Array
The Buyers Products 2.875 Inch Red Rectangular Marker/Clearance Light with Reflex and 6 LED array represents a sophisticated solution for vehicular conspicuity, engineered to meet stringent regulatory demands while offering superior operational longevity and energy efficiency. This detailed exposition delves into the technical specifications, material science, optical design, electrical characteristics, and installation methodologies that define this class-leading lighting component.
Precision Engineering and Form Factor

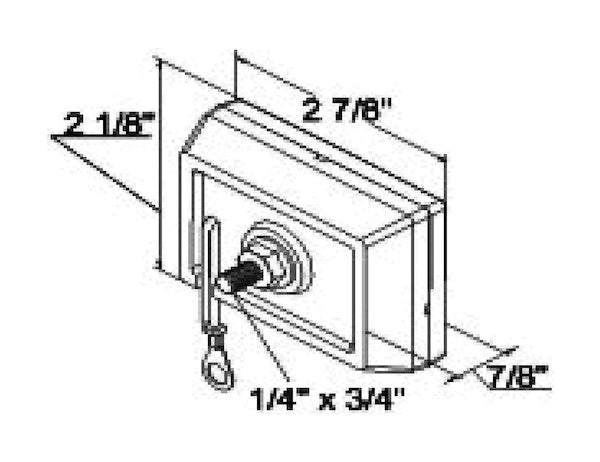

The foundational design of this marker light adheres to a compact, rectangular footprint, measuring an overall width of 2.875 inches. This precise dimension is not arbitrary; it optimizes placement flexibility across a diverse range of vehicle types, from heavy-duty commercial trucks and trailers to utility vehicles and recreational equipment. The rectangular form factor offers distinct advantages in integration, allowing for streamlined installation on flat or slightly curved surfaces without significant protrusion, thereby minimizing aerodynamic drag and aesthetic intrusion. The absence of specified height and depth in the initial specifications suggests a design optimized for minimal vertical and frontal profiles, indicative of a low-profile surface-mount configuration. Such designs are particularly valuable in applications where spatial constraints are critical or where multiple lights must be arrayed in close proximity to satisfy specific lighting zone requirements as mandated by regulatory bodies like the Department of Transportation (DOT) and the Society of Automotive Engineers (SAE).
Illumination Technology: The 6-LED Array and Red Spectrum
At the core of this marker light’s illumination capability is a robust array of six Light Emitting Diodes (LEDs). This multi-LED configuration offers several technical benefits over single-source or incandescent lamp designs. Each LED operates as an independent light emitter, contributing to a more uniform light distribution and inherently greater redundancy. In the unlikely event of a single LED failure, the remaining LEDs continue to function, maintaining a critical level of illumination for safety. LEDs are semiconductor devices that emit light through electroluminescence, a process significantly more efficient than the incandescence of traditional filament bulbs. This efficiency is directly reflected in the remarkably low power consumption: an amp draw of only 0.033 Amps at 12 Volts, equating to a mere 0.40 Watts. This minimal power demand translates into reduced strain on the vehicle's electrical system, decreased fuel consumption, and extended battery life, particularly crucial for vehicles with extensive accessory lighting or those operating in demanding conditions.
The chosen red color for the lens and emitted light is a deliberate design choice dictated by regulatory mandates for rearward-facing and side-facing marker and clearance lights on vehicles in North America and many other regions. Red light possesses specific spectral properties that make it highly visible under various ambient light conditions, particularly at night. Furthermore, the human eye’s sensitivity to different wavelengths means that red light is instinctively associated with cautionary or trailing indications, enhancing road safety by providing clear, unambiguous signaling to other road users. The consistent and stable chromacity output of LEDs ensures that the red light remains within the legally prescribed color coordinates throughout the operational lifespan of the device, unlike incandescent bulbs which can shift color temperature with age or voltage fluctuations.
Integrated Reflex Optic: Passive Safety Enhancement
A defining feature of this marker light is its integrated reflex optic. This sophisticated optical element functions as a retroreflector, an optical device that returns light to its source with minimum scattering. Unlike a simple mirror that reflects light at an angle equal to its incidence, a retroreflector employs a precise arrangement of optical facets (typically trihedral corners or sphere segments) to bounce incoming light directly back towards the observer. The significance of an internal reflex optic is multi-faceted. Firstly, it eliminates the necessity for a separate, often bulky, external reflector unit, thereby streamlining the overall design, reducing component count, and simplifying installation. This integration contributes to a cleaner aesthetic and reduces potential points of failure or damage.
From a safety perspective, the reflex optic provides a critical passive safety mechanism. Even if the active LED illumination system is de-energized or fails (e.g., due to a power outage or electrical fault), the integrated reflex element ensures that the vehicle remains visible when illuminated by the headlights of another approaching vehicle. This dual-mode visibility – active LED illumination and passive retroreflection – significantly enhances vehicle conspicuity under all operational circumstances, far exceeding the safety profile of lights lacking this integrated feature. The design and photometric performance of the reflex optic must conform to stringent standards such as SAE J594 (Reflex Reflectors), ensuring effective retroreflection properties, including specific intensity per unit area (SIA) values across various observation angles and entrance angles.
Robust Material Science and Environmental Resistance
The longevity and reliability of any exterior vehicular lighting component are inherently tied to its material composition and construction quality. For the Buyers Products 2.875 Inch marker light, these aspects are meticulously addressed through the selection of high-performance engineering materials:
-
Lens Material: Polycarbonate
The lens is manufactured from polycarbonate, a thermoplastic polymer renowned for its exceptional properties. Polycarbonate offers unparalleled impact resistance, rendering the lens virtually shatterproof against road debris, minor collisions, and environmental stressors such as hail. Its optical clarity ensures maximal light transmission from the LEDs and efficient retroreflection from the integrated optic. Crucially for exterior applications, polycarbonate exhibits excellent UV stability, meaning it resists yellowing, hazing, and degradation when exposed to prolonged sunlight. This prevents a decrease in light output or an alteration of the prescribed color coordinates over time. Furthermore, polycarbonate maintains its structural integrity and optical performance across a wide range of operating temperatures, from extreme cold to intense heat, making it suitable for global deployment and diverse climatic conditions.
-
Housing Material: Plastic
While the specific grade of plastic for the housing is not detailed, the use of "Plastic" implies a robust engineering polymer selected for its durability, resistance to environmental factors, and compatibility with the lens material and internal electronics. Typical plastics used in high-quality vehicular lighting housings include ABS (Acrylonitrile Butadiene Styrene) for its impact resistance and rigidity, or reinforced polyamides (Nylon) for enhanced mechanical strength and temperature performance. The housing serves to protect the sensitive internal LED circuitry and wiring from moisture, dust, vibration, and chemical exposure (e.g., road salts, cleaning agents, automotive fluids). The robust nature of the housing material, combined with precise manufacturing tolerances and effective sealing mechanisms, contributes to the overall ingress protection (IP) rating, although not explicitly stated, such components are expected to meet at least IP67 or IP68 standards for dust and water resistance.
Electrical System and Installation Interface
The electrical interface of this marker light is designed for direct integration into standard 12-Volt vehicle electrical systems. Operating at 12 Volts is standard for most light- and medium-duty vehicles, ensuring broad compatibility. The extremely low current draw of 0.033 Amps (0.40 Watts) highlights the efficiency of the LED technology, minimizing load on the electrical system and reducing the need for heavy-gauge wiring. The absence of a built-in switch indicates that the light is intended to be controlled externally by the vehicle's existing lighting circuits, typically via a master switch or a designated lighting circuit that activates marker/clearance lights in conjunction with headlamps or taillamps.

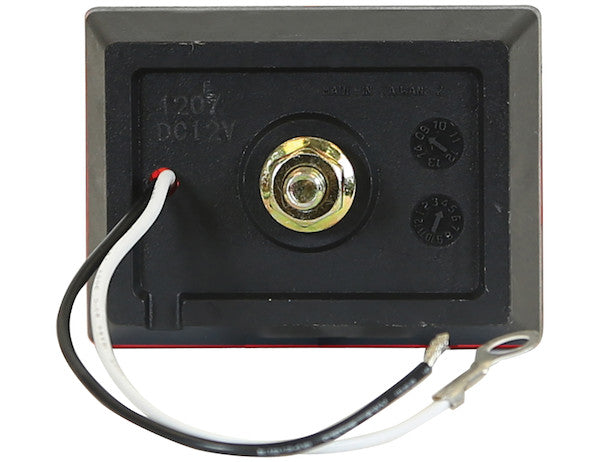

The light features a hard-wired connection with a two-wire system. One wire is a stripped power lead, allowing for direct splicing into the vehicle's 12V DC power circuit. The second wire terminates in a #10 ring terminal for secure grounding. This configuration provides a robust and reliable electrical connection, minimizing resistance and potential for intermittent operation due to vibration or environmental corrosion. The blunt cut lead offers installers flexibility in determining the optimal wire length for their specific application, allowing for custom routing and minimizing excess cabling. The absence of a proprietary plug ensures universal adaptability, as connections can be made using standard automotive-grade connectors (e.g., butt connectors, heat shrink connectors) or soldered joints, promoting secure and weather-resistant installations. Proper insulation and sealing of all electrical connections are paramount to prevent short circuits and moisture ingress, which can compromise both the light's functionality and the vehicle's electrical system.
Mounting Methodology: Integrated Stud Mount for Surface Installation
The installation of the marker light is facilitated by an integrated stud mount, designed for surface applications. This mounting type offers several practical advantages:
- Ease of Installation: Surface mounting typically requires drilling only one or two small pilot holes for the stud and wire passage, simplifying the installation process compared to flush-mount or recessed designs.
- Secure Attachment: The integrated stud provides a robust mechanical anchor, securing the light firmly to the vehicle chassis or body panel. This method inherently offers superior resistance to vibration and impact, crucial for lights subjected to the rigors of vehicular operation.
- Versatility: Surface mount lights can be installed on a wider variety of vehicle surfaces, including those that may not have sufficient depth for recessed fixtures.
Regulatory Compliance and Safety Assurance
For any vehicular lighting product to be legally utilized on public roads, it must comply with a complex framework of national and international regulations. In North America, the primary standards are set forth by the National Highway Traffic Safety Administration (NHTSA) under Federal Motor Vehicle Safety Standard (FMVSS) 108, which references specific SAE standards. For marker and clearance lights, SAE J592 (Lamps, Clearance, Side Marker, and Identification) is the governing standard. This standard specifies critical performance parameters including photometric output (candela values at various angles), chromaticity (color coordinates), and environmental durability (vibration, moisture, temperature cycling, corrosion resistance).
The integrated reflex optic must also meet SAE J594 requirements for retroreflection. Buyers Products' commitment to providing a limited lifetime warranty strongly implies that this product has been designed, tested, and certified to meet or exceed these stringent regulatory benchmarks. Compliance ensures that the light provides adequate visibility to other road users under a wide range of conditions, thereby contributing significantly to overall road safety and preventing potential legal liabilities for vehicle operators and manufacturers. The red color specification directly aligns with regulatory requirements for rear and side marker lights, crucial for delineating the vehicle's dimensions, especially for wide or long vehicles, during nighttime or low-visibility conditions.
Target Applications and Operational Benefits
Given its technical specifications and robust construction, this 2.875 Inch Red Rectangular Marker/Clearance Light is ideally suited for a broad spectrum of heavy-duty and commercial vehicle applications, including but not limited to:
- Commercial Trucking: Tractors, trailers (flatbed, dry van, refrigerated, tanker), and dump trucks where reliable and compliant marker lighting is critical for fleet operation.
- Utility and Service Vehicles: Service trucks, utility vans, municipal vehicles, and emergency support vehicles that require durable lighting for demanding work environments.
- Recreational Vehicles (RVs) and Campers: Providing essential perimeter lighting to enhance safety and compliance for large recreational units.
- Agricultural and Construction Equipment: Although primarily for on-road use, the durability makes them suitable for auxiliary marking on larger off-highway equipment that may occasionally travel on public roads.
The decision to sell these units in bulk (multiples of 10) further underscores their target market of fleet operators, original equipment manufacturers (OEMs), and large-scale vehicle service centers. Bulk purchasing offers significant logistical advantages, including reduced unit cost, simplified inventory management, and consistent component availability for large-scale deployments or routine maintenance programs. This approach caters to the operational demands of businesses that require a continuous supply of reliable, high-performance lighting components.
Conclusion: A Synthesis of Performance, Durability, and Compliance
The Buyers Products 2.875 Inch Red Rectangular Marker/Clearance Light with Reflex and 6 LED is an exemplary manifestation of advanced lighting technology for vehicular safety. Its combination of a high-efficiency 6-LED array, integrated passive retroreflection, and durable material construction (polycarbonate lens, robust plastic housing) results in a lighting solution that offers superior photometric performance, exceptional energy efficiency, and unparalleled longevity. The meticulous attention to electrical specifications, including low amp draw and a secure hard-wired connection, along with a practical surface-mount design, ensures seamless integration and reliable operation within demanding vehicle environments.
Designed and manufactured to meet rigorous regulatory standards for visibility and durability, this marker light provides a critical layer of safety for commercial and recreational vehicles. Backed by a limited lifetime warranty and available in bulk quantities, it represents a strategic investment for fleet managers and vehicle builders seeking a cost-effective, high-performance, and compliant lighting solution that contributes significantly to operational safety and reduced maintenance overheads throughout the vehicle's lifespan.
