5622726 - 2.875 Inch Amber Rectangular Marker/Clearance Light With Reflex With 6 LED

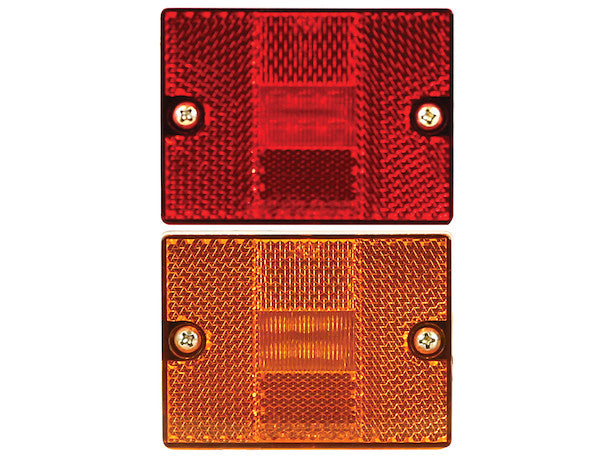

Buyers Products 2.875 Inch Rectangular Marker Clearance Light with Reflex and 6 LEDs is available in your choice of red or amber lens with built-in reflector. Lights feature an internal Reflex optic, which eliminates the need for a separate reflector. They install using an integrated stud mount and are hard-wired with a blunt cut lead and ring terminal. Marker lights are sold in bulk (multiples of 10) and backed with a limited lifetime warranty.

Specifications

Advanced Technical Overview: Buyers Products 2.875 Inch Amber Rectangular Marker/Clearance Light With Reflex With 6 LED

The Buyers Products 2.875 Inch Amber Rectangular Marker/Clearance Light represents a sophisticated integration of advanced LED technology, robust materials science, and intelligent optical design, meticulously engineered to fulfill the critical safety and regulatory requirements for vehicular illumination. This product is specifically designed to function as both a marker light and a clearance light, crucial for enhancing the visibility of various vehicles and their extensions, particularly in low-light conditions or adverse weather. Its amber coloration aligns with industry standards for side and front perimeter visibility, ensuring optimal conspicuity and compliance across a broad spectrum of commercial, utility, and recreational applications.

Precision Engineering and Optimal Dimensions

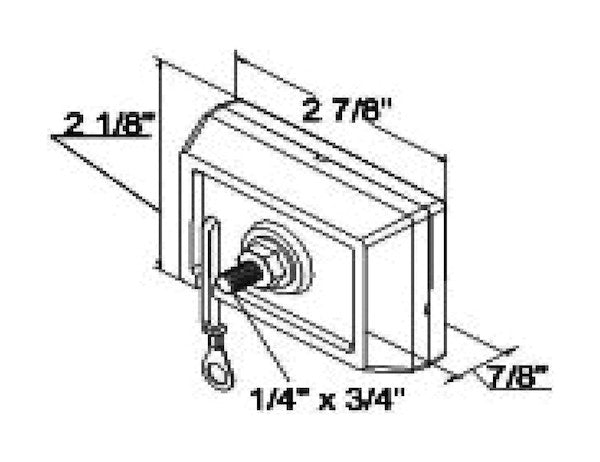

Measuring an overall width of 2.875 inches, this rectangular marker/clearance light offers a compact yet highly effective illumination solution. The precise dimensions are carefully chosen to allow for versatile mounting on a wide array of vehicle types, from heavy-duty commercial trucks and trailers to utility vehicles, agricultural equipment, and recreational vehicles. The rectangular form factor is not merely aesthetic; it is an optimized design choice that facilitates streamlined integration into existing vehicle architectures, offering a clean, professional appearance while maximizing the effective light-emitting surface within its footprint. The surface mount design, coupled with an integrated stud mount, ensures a secure and durable attachment, capable of withstanding the rigorous demands of vehicular operation, including vibrations, impacts, and exposure to environmental stressors.

Illumination Technology: The Power of 6 High-Efficiency LEDs

At the core of this advanced lighting solution are six high-intensity Light Emitting Diodes (LEDs). The selection of LED technology over traditional incandescent bulbs is a strategic engineering decision driven by numerous performance and operational advantages. LEDs are semiconductor devices that convert electrical energy into light with significantly greater efficiency than incandescent filaments, resulting in minimal heat generation and vastly reduced power consumption. This light operates at a nominal 12 Volts, drawing a remarkably low current of just 0.033 Amps, which translates to an approximate power consumption of 0.40 Watts. This extreme energy efficiency has profound implications for vehicle electrical systems. It minimizes the load on the vehicle's alternator and battery, contributing to fuel savings, reducing wear on electrical components, and extending battery life. For fleet operators, this translates directly into lower operating costs and reduced vehicle downtime for maintenance.

Beyond efficiency, the 6 LEDs provide superior luminous output and chromatic stability. Unlike incandescent bulbs that produce light through heat, LEDs generate light almost instantaneously, offering an immediate illumination response. This rapid activation is a critical safety feature, particularly in signaling applications, as it provides trailing drivers with additional reaction time. Furthermore, LEDs are inherently more durable and resistant to shock and vibration compared to fragile incandescent filaments, making them exceptionally well-suited for the demanding environments encountered by commercial and off-road vehicles. The projected lifespan of these LEDs is substantially longer than traditional bulbs, often exceeding tens of thousands of hours, which drastically reduces the frequency and cost of replacements over the vehicle's operational lifetime.

Optical Innovation: The Integrated Reflex Optic

A distinctive and highly beneficial feature of this marker/clearance light is its internal Reflex optic. This cutting-edge optical technology eliminates the necessity for a separate, external reflector, streamlining the design and reducing the potential points of failure or damage. The Reflex optic is an intricately designed optical array molded directly into the lens, comprising a series of precisely angled prisms and facets. These micro-prisms are engineered to efficiently capture and retro-reflect incident light from external sources, such as other vehicle headlights, back towards the source. This passive reflective capability functions independently of the light's electrical power, ensuring that the vehicle remains visible even if the light circuit is off or malfunctioning. This dual functionality – active LED illumination and passive Reflex reflection – significantly enhances safety by providing multiple layers of visibility. The compliance with regulatory standards such as SAE J592 for marker lights and FMVSS 108 for reflex reflectors underscores the robust safety engineering integrated into this product.

Robust Materials for Uncompromised Durability

The selection of materials for the construction of this marker/clearance light is paramount to its longevity and performance under arduous conditions. The lens is fabricated from high-grade Polycarbonate, a thermoplastic polymer renowned for its exceptional properties. Polycarbonate offers superior impact resistance, making the lens highly resilient against road debris, gravel, and minor collisions without shattering or cracking. Its inherent optical clarity ensures maximum light transmission from the LEDs and efficient performance of the Reflex optic. Furthermore, Polycarbonate exhibits excellent UV stability, preventing yellowing, hazing, or degradation from prolonged exposure to sunlight, which is a common issue with lesser plastics. This ensures that the amber color remains vibrant and the optical performance uncompromised throughout the product's lifespan. The housing of the light is constructed from a durable plastic material. This choice provides a robust and lightweight enclosure that protects the internal electronic components from moisture, dust, and corrosive elements. The plastic housing is engineered to withstand extreme temperatures, from freezing winters to scorching summers, ensuring consistent operation across diverse climatic regions. The overall design achieves an ingress protection rating that safeguards against environmental contamination, contributing to the light's impressive reliability and longevity.

Simplified Installation and Electrical Interface

The installation of the Buyers Products 2.875 Inch Marker/Clearance Light is designed for efficiency and reliability. Utilizing an integrated stud mount, the light can be securely affixed to the vehicle's surface with minimal effort. This type of mounting provides a strong mechanical bond, resistant to vibration and external forces, which is essential for lights mounted on the exterior of moving vehicles. The electrical connection is implemented via a hard-wired configuration, which typically offers a more robust and permanent connection compared to plug-and-play alternatives for certain applications. It features a two-wire system: one stripped power wire for direct connection to the vehicle's 12-Volt electrical system, and one wire terminated with a #10 ring terminal for secure grounding. This configuration facilitates a reliable electrical contact, minimizing the risk of intermittent connection issues that can arise from loose or corroded terminals. The blunt cut lead on the power wire allows for custom wire length adjustments during installation, providing flexibility for various wiring harnesses and vehicle layouts. The absence of a built-in switch further indicates its intended integration into existing vehicle lighting circuits controlled by master switches or vehicle control units.

Regulatory Compliance and Safety Assurance

Compliance with applicable industry standards and governmental regulations is non-negotiable for vehicle lighting products. This 2.875-inch amber marker/clearance light is meticulously designed to meet or exceed relevant standards established by organizations such as the Society of Automotive Engineers (SAE) and the Department of Transportation (DOT) in North America. Specifically, as a marker and clearance light, it adheres to SAE J592 requirements, which dictate photometric performance, color, and physical characteristics. The integrated Reflex optic also ensures compliance with reflex reflector standards, typically under FMVSS 108, further enhancing safety by ensuring visibility even when the active LED function is not engaged. The amber color output is precisely calibrated to meet these regulatory mandates, providing a distinct and universally recognized signal for vehicle perimeter identification. This commitment to compliance not only ensures legality for vehicle operation but also significantly contributes to overall road safety by improving the conspicuity of large vehicles, reducing the likelihood of accidents, and enhancing situational awareness for other road users.

Applications and Operational Benefits

The versatility and robust performance of this light make it an ideal choice for a wide array of demanding applications. It is indispensable for commercial trucking fleets, where compliance, durability, and low total cost of ownership (TCO) are paramount. Trailers, whether dry vans, flatbeds, or specialized haulers, require reliable marker and clearance lights to delineate their dimensions and ensure safe passage. Utility vehicles, ranging from service vans to municipal equipment, benefit from the enhanced visibility this light provides in work zones and on public roads. Agricultural machinery, often operating in challenging conditions and varying light levels, relies on such lighting to ensure safety during transport and field operations. Recreational vehicles and boats also utilize similar lights for regulatory compliance and safety. For fleet managers and vehicle original equipment manufacturers (OEMs), the bulk packaging in multiples of 10 offers logistical efficiency and cost-effectiveness for large-scale deployments or regular maintenance programs. The limited lifetime warranty offered by Buyers Products further underscores the manufacturer's confidence in the enduring quality and reliability of this lighting solution, providing peace of mind and demonstrating a commitment to customer satisfaction and product performance.

In summary, the Buyers Products 2.875 Inch Amber Rectangular Marker/Clearance Light With Reflex With 6 LED is not merely a component; it is a meticulously engineered safety device. Its combination of energy-efficient LED technology, sophisticated integrated Reflex optics, durable polycarbonate and plastic construction, and streamlined installation features positions it as a leading solution for enhancing vehicular visibility and ensuring regulatory compliance. Its minimal power consumption, extended operational lifespan, and robust design translate into significant operational savings and enhanced safety for any application requiring dependable perimeter lighting.
