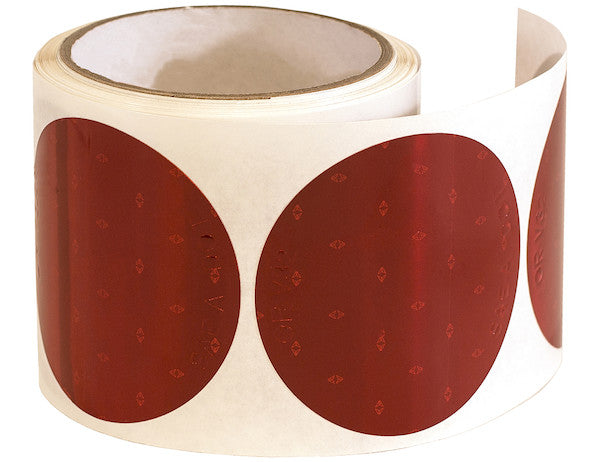

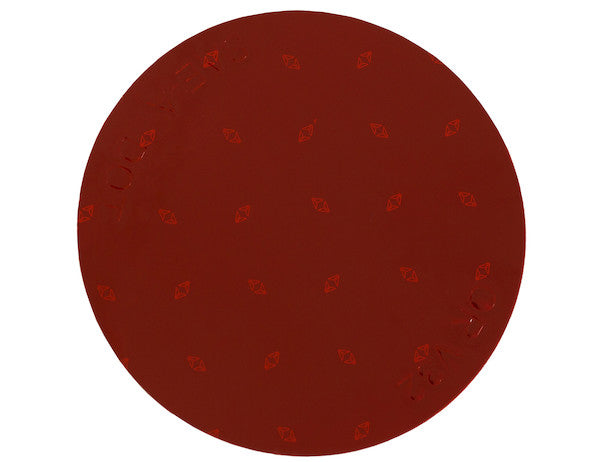

Buyers Products 3 Inch Red Round DOT Stick-On Reflectors are used on trucks and trailers to meet FMVSS/CMVSS 108 regulations. Reflectors have an adhesive backing to easily attach to your trailer or vehicle. They are sold in rolls of 100.
Specifications
| Color | Red |
|---|---|
| Diameter | 3.00 |
| Mounting Style | Stick-On |
| Shape | Round |
Advanced Technical Overview: 3 Inch Red Round DOT Stick-On Reflectors for Enhanced Vehicle Safety and Regulatory Compliance
In the demanding landscape of commercial vehicle operation and general road safety, the efficacy of passive illumination components, particularly reflex reflectors, cannot be overstated. The Buyers Products 3 Inch Red Round DOT Stick-On Reflectors represent a critical safety solution engineered to meet and exceed stringent regulatory mandates, specifically FMVSS/CMVSS 108. These reflectors are designed for universal application across a diverse range of vehicles, including heavy-duty trucks, trailers, recreational vehicles, and utility equipment, ensuring optimal visibility in low-light conditions and thereby significantly mitigating accident risks.
Understanding Regulatory Compliance: FMVSS/CMVSS 108
The core utility of these 3 Inch Red Round DOT Stick-On Reflectors is their adherence to Federal Motor Vehicle Safety Standard (FMVSS) 108 in the United States and Canadian Motor Vehicle Safety Standard (CMVSS) 108 in Canada. These standards, titled "Lamps, Reflective Devices, and Associated Equipment," dictate the requirements for all lighting and reflective devices on motor vehicles and associated equipment to enhance their visibility and minimize collision potential. For reflex reflectors, FMVSS/CMVSS 108 specifies numerous critical parameters:
- Photometric Performance: Reflectors must exhibit a minimum intensity of reflected light across a range of observation and entrance angles. This ensures that light from an approaching vehicle's headlights is effectively returned to the driver, regardless of the angle of approach. The specified candela per lux values are rigorously tested to ensure consistent and reliable retroreflection.
- Color Specification: Red reflectors are specifically mandated for the rear and specific side positions of vehicles and trailers. This color coding is internationally recognized to indicate the rearward direction of travel or potential hazards from the side, contributing to a universal language of road safety.
- Location and Mounting: The standards detail precise requirements for the placement of reflectors on vehicles, including minimum and maximum heights from the ground, horizontal spacing, and proximity to other lighting devices. This strategic placement ensures that the vehicle's full perimeter is adequately marked for visibility.
- Durability and Environmental Resistance: Reflectors must withstand various environmental stressors, including temperature extremes, humidity, vibration, impact, and exposure to cleaning solvents, fuels, and UV radiation, without significant degradation in photometric performance or physical integrity.
- Marking Requirements: Compliant reflectors are required to bear a "DOT" or "DOT-C" (for Canadian compliance) symbol, along with the manufacturer's identification and other codes, indicating that the product has been certified to meet or exceed the relevant safety standards. This marking provides assurance of compliance and traceability.
By incorporating these DOT-certified reflectors, vehicle operators and manufacturers ensure not only legal compliance, avoiding potential fines and legal liabilities, but more importantly, contribute directly to the safety of all road users by making their vehicles highly visible in challenging conditions.
Advanced Optical Engineering: The Principle of Retroreflection
The effectiveness of the 3 Inch Red Round DOT Stick-On Reflectors lies in their sophisticated optical design, which harnesses the principle of retroreflection. Unlike simple mirrors that reflect light at an equal but opposite angle, retroreflectors are engineered to return light directly back to its source, regardless of the angle of incidence. This property is achieved through an internal microstructure, typically a precise arrangement of cube-corner prisms or spherical lens elements.
- Cube-Corner Prisms: Many high-performance reflectors utilize a three-dimensional array of micro-prisms. Each prism acts like three mutually perpendicular mirrors, ensuring that any incoming light ray that enters the prism is reflected internally three times before exiting precisely parallel to its original path, but in the opposite direction. This design maximizes the amount of light returned to the driver's eye.
- Material Science: The integrity of the retroreflective performance is heavily dependent on the material chosen. These reflectors are typically manufactured from high-grade optical plastics such as acrylic (PMMA) or polycarbonate. These materials are selected for their excellent transparency, high refractive index, inherent UV stability, and resistance to environmental degradation. Acrylic offers superior optical clarity and weatherability, while polycarbonate provides exceptional impact resistance. The outer lens of the reflector protects the internal retroreflective elements while maintaining optical transmission properties.
- Color Integration: The red color is integrated into the material or applied as a durable translucent layer, ensuring consistent coloration that meets regulatory chromaticity requirements over the product's lifespan.
The 3-inch diameter and round shape of these reflectors are practical choices. A larger surface area generally translates to increased visibility, providing a more prominent visual cue. The round form factor minimizes the potential for corners to chip or snag, enhancing durability during regular vehicle operation and washing. Its uniform geometry also facilitates consistent photometric performance across its surface.
Adhesive Technology and Installation Methodology
The "Stick-On" mounting style of these reflectors, featuring an advanced adhesive backing, offers significant advantages in terms of installation ease, versatility, and structural integrity. This method eliminates the need for drilling, screws, or other mechanical fasteners, which can compromise the vehicle's structural integrity, invite corrosion, or complicate installation in tight spaces.
- Adhesive Composition: The adhesive used is typically a high-performance, pressure-sensitive acrylic adhesive. These adhesives are formulated for aggressive initial tack and long-term bond strength, designed to adhere reliably to a variety of substrates common in vehicle construction, including painted metals, plastics, and fiberglass. Key characteristics include excellent shear strength, peel adhesion, and resistance to environmental factors like temperature fluctuations, moisture, and common automotive chemicals.
-
Application Best Practices for Optimal Adhesion:
- Surface Preparation: The most critical step for successful adhesive bonding is meticulous surface preparation. The application surface must be thoroughly cleaned to remove all contaminants, including dirt, dust, grease, wax, silicone, and moisture. An isopropyl alcohol (IPA) solution is often recommended for cleaning, followed by drying with a clean, lint-free cloth.
- Temperature Conditions: Adhesive performance is significantly influenced by temperature. Optimal application temperature typically ranges between 60°F to 100°F (15°C to 38°C). Applying in colder conditions can reduce initial tack and overall bond strength, while excessively hot conditions might affect adhesive flow.
- Pressure Application: Once the reflector is positioned, firm and uniform pressure must be applied across its entire surface for several seconds. This pressure ensures intimate contact between the adhesive and the substrate, allowing the adhesive to flow and "wet out" the surface, maximizing bond development.
- Cure Time: While initial tack is immediate, the adhesive requires a specific cure time (often 24-72 hours, depending on conditions) to achieve its maximum bond strength. During this period, the vehicle should ideally avoid exposure to extreme stress, high-pressure washing, or chemical exposure.
-
Benefits of Stick-On Mounting:
- Ease and Speed: Significantly reduces installation time and labor costs.
- Non-Invasive: Preserves the integrity of the vehicle body by avoiding drilling.
- Aesthetics: Provides a clean, flush-mounted appearance without visible fasteners.
- Corrosion Prevention: Eliminates potential entry points for moisture and corrosive agents that often accompany drilled holes.
- Vibration Resistance: The viscoelastic nature of certain adhesives can offer better vibration damping compared to rigid mechanical fasteners, potentially prolonging the reflector's life.
Versatile Applications Across the Transportation Industry
The 3 Inch Red Round DOT Stick-On Reflectors are indispensable for a wide array of vehicles and equipment requiring enhanced passive visibility. Their robust design and regulatory compliance make them suitable for:
- Commercial Trucks and Tractor-Trailers: Essential for meeting rear and side marking requirements on semi-trailers, box trucks, flatbeds, and tankers, especially critical for nighttime highway operations and maneuverability in dockyards.
- Utility Trailers: From small utility trailers for personal use to larger commercial variants, these reflectors ensure compliance and safety when hauling equipment, boats, or recreational vehicles.
- Agricultural Equipment: Tractors, combines, spreaders, and other farm implements often operate on public roads, especially during dawn, dusk, or night. Proper reflective marking is vital for preventing slow-moving vehicle accidents.
- Recreational Vehicles (RVs) and Campers: Enhances the visibility of large recreational vehicles, which are frequently driven in varying light conditions and often have complex profiles.
- Emergency Vehicles and Service Fleets: While typically equipped with active lighting, supplementary passive reflectors provide an always-on visibility component, especially important during power failures or when parked.
- Construction Equipment: Heavy machinery used on or near public roadways benefits from additional reflective markings to alert other drivers to their presence and dimensions.
Long-Term Performance, Durability, and Packaging Efficiency
Designed for longevity, these reflectors are built to endure the harsh operating environments faced by commercial and utility vehicles. Their materials are chosen for their resistance to:
- UV Degradation: Prevents yellowing, hazing, and cracking due to prolonged sun exposure, ensuring consistent optical performance over time.
- Temperature Extremes: Maintains structural and adhesive integrity across a broad temperature range, from freezing winters to scorching summers.
- Chemical Exposure: Resists common road chemicals, cleaning agents, and fuel spills without deteriorating.
- Impact and Abrasion: The robust construction minimizes damage from minor impacts or abrasive contact encountered during routine operation and maintenance.
The packaging of these reflectors in convenient rolls of 100 units is particularly beneficial for fleet managers, trailer manufacturers, and large-scale operators. This bulk packaging streamlines inventory management, reduces waste, and ensures an ample supply for routine maintenance, repairs, or new vehicle builds, translating into operational efficiencies and cost savings.
Maintenance and Inspection for Sustained Safety
While designed for durability, regular inspection and minimal maintenance are recommended to ensure optimal performance of the 3 Inch Red Round DOT Stick-On Reflectors. Periodic cleaning with mild soap and water can remove accumulated dirt, grime, and road film that might obscure the reflective surface, restoring maximum retroreflectivity. Any reflectors exhibiting signs of damage, such as cracks, chips, delamination, or significant fading, should be promptly replaced to maintain compliance and safety standards. This proactive approach ensures that the passive safety system of the vehicle remains fully functional throughout its operational life.
Conclusion
The Buyers Products 3 Inch Red Round DOT Stick-On Reflectors are more than just simple reflective devices; they are precision-engineered safety components critical for regulatory compliance and paramount for enhancing vehicle visibility. Through their adherence to FMVSS/CMVSS 108, their advanced retroreflective optics, durable material construction, and user-friendly adhesive mounting, these reflectors provide a reliable and cost-effective solution for ensuring that trucks, trailers, and other vehicles remain safely visible to other road users, day and night, in all weather conditions. Investing in these high-quality, technically superior reflectors is an investment in safety, compliance, and operational peace of mind for any vehicle operator or fleet manager.
