Specifications
| Amp draw at 12 Volts | 0.060 |
|---|---|
| Base / Mount Type | Surface |
| Built-In Switch | No |
| Color | Red |
| Depth | - |
| Hard Wired or Plug | Plug |
| Height | - |
| Housing Material | Plastic |
| Lens Material | Polycarbonate |
| Lens Shape | Rectangular |
| Overall Width | 3.875 |
| Plug Included | No |
| Type of Plug | Bullet Connectors |
| Voltage | 12 |

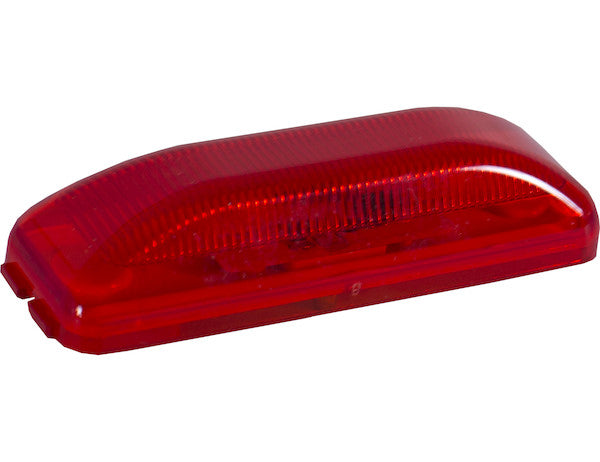

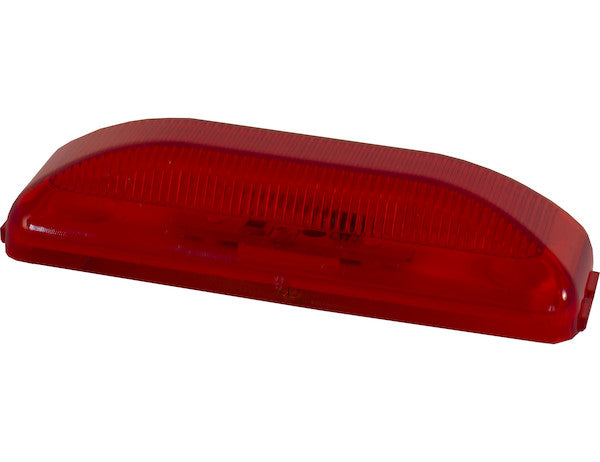

The Buyers Products 3.75 Inch Red Rectangular Marker/Clearance Light with 2 LED represents a sophisticated solution for enhancing the visibility and operational safety of commercial and utility vehicles. Engineered with precision and adhering to stringent regulatory requirements, this lighting unit is specifically designed for trucks, trailers, and other large vehicles operating on public roadways. Its core function as a marker and clearance light is critical for delineating the dimensions of a vehicle, particularly its width and length, thereby significantly reducing the risk of collisions, especially in low-light conditions or adverse weather. This detailed technical description will delve into the specifications, regulatory compliance, technological advantages, and practical implications of integrating this essential safety component into a vehicular lighting system.
Regulatory Compliance: FMVSS/CMVSS 108 Standards
A cornerstone of this product's design is its full compliance with FMVSS 108 (Federal Motor Vehicle Safety Standard 108) in the United States and CMVSS 108 (Canadian Motor Vehicle Safety Standard 108) in Canada. These comprehensive regulations govern all aspects of vehicular lighting, signaling, and reflective devices, specifying requirements for their performance, location, and color. The primary objective of FMVSS/CMVSS 108 is to minimize traffic accidents and fatalities by ensuring that vehicles are adequately visible to other road users and that their operational status (e.g., braking, turning) is clearly communicated.
For marker and clearance lights, these standards dictate specific photometric requirements, including minimum luminous intensity, light distribution patterns, and chromaticity (color accuracy). The red lens color of this particular unit is critical for its designated function. According to FMVSS/CMVSS 108, red lights are exclusively permitted for rearward-facing or side-facing applications towards the rear of the vehicle, serving to indicate the rear extremity or the rear portion of the side profile. This distinction is vital for preventing confusion with amber front-facing or side-front-facing marker lights and white reverse lights, thereby maintaining a clear and universally understood signaling language on the roads.
By complying with these rigorous standards, the Buyers Products 3.75 Inch Red Rectangular Marker/Clearance Light ensures that vehicles equipped with it will meet legal operational requirements, pass inspections, and contribute meaningfully to overall road safety. This commitment to regulatory adherence underscores the product's reliability and suitability for professional applications where safety and compliance are paramount.
Advanced LED Technology: Efficiency and Durability
At the heart of this marker/clearance light is its utilization of Light Emitting Diode (LED) technology, specifically incorporating two high-efficiency LEDs. The adoption of LEDs represents a significant technological advancement over traditional incandescent bulbs, offering a multitude of benefits:
- Energy Efficiency: The specification indicates an exceptionally low amp draw of 0.060 A at 12 Volts. This minimal power consumption translates directly into reduced electrical load on the vehicle's battery and charging system. For large fleets, this can lead to substantial fuel savings over time, as the alternator requires less engine power to generate electricity. Furthermore, it allows for more auxiliary devices to be powered without overtaxing the electrical infrastructure.
- Extended Lifespan: LEDs are semiconductor devices with no filaments or fragile glass components, making them inherently more robust and resistant to vibration and shock – conditions commonly encountered in heavy-duty vehicle operations. This results in an operational lifespan significantly longer than incandescent bulbs, often exceeding 50,000 hours. The prolonged service life minimizes maintenance costs, reduces vehicle downtime for bulb replacements, and ensures consistent visibility.
- Enhanced Durability: Beyond vibration resistance, LEDs perform reliably across a wide range of operating temperatures and are less susceptible to thermal shock. The encapsulated design further protects the internal electronics from moisture, dust, and road debris, contributing to the product's overall ruggedness.
- Instant Illumination: LEDs illuminate almost instantaneously, unlike incandescent bulbs which have a slight delay as the filament heats up. While less critical for a constant-on marker light, this characteristic is beneficial for signaling, providing immediate visual cues to other drivers.
- Consistent Light Output: LED lights maintain a stable light output throughout their lifespan, without the gradual dimming or color shifting often associated with aging incandescent bulbs. The two integrated LEDs are strategically positioned to provide an optimal light distribution pattern, ensuring the entire rectangular lens area is uniformly illuminated to meet photometric requirements.
The choice of a red LED light source is specifically engineered to produce a pure, vibrant red spectrum, which is critical for compliance with the colorimetric specifications of FMVSS/CMVSS 108. The focused emission properties of LEDs also allow for efficient light projection through the polycarbonate lens, maximizing visibility for other road users.
Robust Design and Material Science
The physical construction of the Buyers Products marker/clearance light is a testament to its intended use in demanding environments. Every material choice and design feature contributes to its overall performance, durability, and ease of installation.

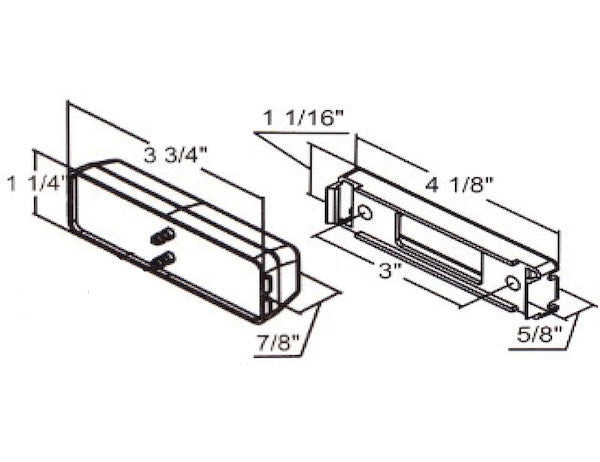

Rectangular Form Factor and Dimensions:
Measuring 3.75 inches (with an overall width of 3.875 inches), this rectangular light offers a compact yet highly visible profile. The precise dimensions are carefully considered for practical mounting on various vehicle body panels, bumper surfaces, or trailer frames. The rectangular shape is a traditional and effective design for marker lights, providing a clear visual outline that effectively communicates the vehicle's boundaries. While specific depth and height are not provided, the "Surface" mount type implies a low-profile design that minimizes protrusion, reducing the risk of damage from impacts or snags during operation.
Housing Material: Plastic
The housing of the light is constructed from high-grade plastic. Modern engineering plastics, such as ABS (Acrylonitrile Butadiene Styrene) or UV-stabilized polycarbonate blends, offer an excellent balance of properties suitable for exterior automotive components. Key advantages of a plastic housing include:
- Corrosion Resistance: Unlike metal housings, plastic is impervious to rust and corrosion, a significant advantage in environments exposed to road salt, chemicals, and moisture. This extends the product's lifespan and maintains its aesthetic integrity.
- Lightweight: Plastic housings contribute to a lighter overall vehicle weight, which can indirectly impact fuel efficiency and payload capacity.
- Impact Resistance: Depending on the specific plastic formulation, the housing can exhibit excellent resistance to impact, protecting the internal LED components from minor collisions or debris strikes.
- Thermal Stability: Engineered plastics can withstand extreme temperature fluctuations without deforming or cracking, ensuring reliable operation in diverse climates.
- Electrical Insulation: Plastic is a natural electrical insulator, enhancing the safety of the electrical components within the housing.
The housing is also designed to provide a robust seal, protecting the internal electronics and LEDs from ingress of water, dust, and other contaminants, ensuring consistent performance in all weather conditions.
Lens Material: Polycarbonate
The lens, the most critical component for light transmission and protection, is made from polycarbonate. This material is widely regarded as the superior choice for automotive lighting applications due to its exceptional properties:
- High Impact Strength: Polycarbonate is virtually unbreakable, offering outstanding resistance to impacts from road debris, gravel, and minor accidents. This dramatically reduces the likelihood of lens cracking or shattering, maintaining the light's functionality and compliance.
- Optical Clarity: Despite its strength, polycarbonate offers excellent optical clarity, ensuring maximum light output and accurate color rendition (red in this case) as required by regulations.
- UV Stability: Automotive-grade polycarbonate is typically treated with UV inhibitors to prevent degradation from prolonged sun exposure. This safeguards against yellowing, hazing, or clouding over time, which would compromise light output and aesthetics.
- Temperature Resistance: Polycarbonate maintains its structural integrity and optical properties across a broad temperature range, from extreme cold to intense heat, without warping or becoming brittle.
- Scratch Resistance: While not as hard as glass, polycarbonate lenses can be further treated with hard coats to improve scratch resistance, maintaining their clear appearance for longer.
The combination of a durable plastic housing and a robust polycarbonate lens ensures that the Buyers Products marker/clearance light can withstand the rigors of heavy-duty use, providing long-term reliability and visibility.
Electrical Integration and Connectivity
The electrical design of this marker light emphasizes ease of installation and reliable connection to a vehicle's 12-volt DC electrical system. The specifications highlight several key features:
Voltage: 12 Volts
Operating at 12 volts, this light is compatible with the vast majority of commercial trucks, trailers, RVs, and other heavy-duty vehicles, which typically utilize a 12V DC electrical architecture. This ensures broad applicability and straightforward integration without the need for additional voltage converters or specialized wiring.
Amp Draw at 12 Volts: 0.060 A
As previously mentioned, the extremely low current draw of 0.060 Amperes is a significant advantage. This minimizes strain on the vehicle's electrical system, reduces heat generation within the wiring, and contributes to the overall energy efficiency of the vehicle. For systems with multiple marker lights, the cumulative draw remains minimal, simplifying electrical load calculations and reducing the likelihood of fuse blowouts or power fluctuations.
Connectivity: Dual Male Bullet Style Connectors
The light features dual male bullet style connections. Bullet connectors are a widely used standard in automotive and trailer wiring due to their simplicity and effectiveness. Key benefits include:
- Easy Plug-and-Play Installation: The male bullet connectors are designed to seamlessly plug into corresponding female receptacles typically integrated within a mounting bracket or wire harness. This "plug-and-play" functionality significantly reduces installation time and complexity, often eliminating the need for cutting, stripping, or crimping wires during the initial setup or replacement.
- Secure Connection: When properly seated, bullet connectors provide a secure mechanical and electrical connection, resistant to incidental vibration and pull-out forces.
- Polarity: While some bullet connectors are non-polar, automotive lighting typically involves a positive and ground connection. The dual male configuration ensures that the correct connections can be made when plugged into a compatible bracket or harness.
It is important to note that the "Plug Included: No" specification clarifies that the actual mating female bullet connectors, which would be part of a vehicle's wiring harness or the associated mounting bracket, are not supplied directly with the light unit. This is a standard practice as these components are often vehicle-specific or integrated into the wiring infrastructure. The "Hard Wired or Plug: Plug" entry confirms that the light is designed for a plug-in connection rather than direct wire splicing.
Mounting Bracket Requirement:
The description explicitly states that a mounting bracket is necessary for initial installation and is sold separately. This is a common design choice, offering several advantages. It allows the light to be replaced easily if damaged without disturbing the mounting infrastructure. Furthermore, it provides flexibility for installers to select a bracket that best suits specific mounting surfaces or wiring configurations. The bracket typically serves not only as a physical anchor but also often houses the female bullet receptacles, providing a sealed and protected point of electrical connection. Customers are directed to the "Accessories" section to ensure they acquire the appropriate mounting hardware for their application.
Versatility in Application and Enhanced Safety
The 3.75 Inch Red Rectangular Marker/Clearance Light is an indispensable safety component for a wide array of vehicles, playing a critical role in preventing accidents by enhancing conspicuity.
Target Vehicles:
- Heavy-Duty Trucks: Semis, dump trucks, utility trucks, and fleet vehicles utilize these lights to clearly mark their extensive length and width, particularly during nighttime operation or adverse weather conditions like fog or heavy rain.
- Commercial Trailers: Flatbeds, box trailers, enclosed trailers, and specialized hauling equipment require multiple marker lights along their sides and rear to delineate their dimensions accurately, as their size can often be underestimated by other drivers.
- Recreational Vehicles (RVs) and Campers: These larger personal vehicles also benefit from enhanced visibility, especially given their increased dimensions compared to standard passenger cars.
- Construction and Agricultural Equipment: While sometimes operating off-road, equipment that traverses public roads must also comply with lighting regulations to ensure safe transit.
Role as Marker and Clearance Light:
- Marker Lights: These lights are positioned along the sides of a vehicle to indicate its presence and overall length. Red marker lights are exclusively used on the rear sides of vehicles.
- Clearance Lights: These are positioned on the outermost edges of a vehicle, typically on the rear and front, to indicate its maximum width and height. Red clearance lights are used on the rear of vehicles.
- Identification Lights: While primarily a marker/clearance light, it can also contribute to an identification light bar (three amber or red lights spaced horizontally on wide vehicles) where applicable, although its primary function is marking perimeter.
By effectively outlining the vehicle's footprint, these lights help other drivers accurately judge the vehicle's size, distance, and closing speed, which is crucial for safe passing, merging, and maneuvering. The vivid red output is particularly effective for rearward visibility, clearly signaling the vehicle's trailing edge and contributing to critical decision-making for following traffic.
Quality Assurance and Warranty
The Buyers Products 3.75 Inch Red Rectangular Marker/Clearance Light is backed by a limited lifetime warranty. This warranty serves as a strong testament to the manufacturer's confidence in the product's quality, durability, and long-term performance. A limited lifetime warranty typically covers defects in materials and workmanship under normal use and service for the practical lifespan of the product. This commitment provides significant peace of mind to purchasers, assuring them of a reliable product and support in the unlikely event of a manufacturing defect. Such a warranty is a hallmark of products designed for professional and demanding applications where longevity and dependability are not just desirable, but essential.
Conclusion
The Buyers Products 3.75 Inch Red Rectangular Marker/Clearance Light with 2 LED is an expertly engineered lighting solution that combines cutting-edge LED technology with robust construction and strict adherence to industry safety standards. Its low power consumption, extended lifespan, and superior resistance to environmental factors make it an economically sound and reliable choice for operators of trucks, trailers, and other large vehicles. The strategic use of a polycarbonate lens and plastic housing ensures exceptional durability and protection against the rigors of commercial use, while the dual male bullet connectors simplify installation and maintenance. By providing clear and compliant visual delineation of vehicle dimensions, this marker light plays a pivotal role in enhancing road safety, reducing accident potential, and ensuring legal operation for a wide range of vehicular applications. Its limited lifetime warranty further reinforces its value proposition as a premium, long-lasting investment in vehicle visibility and operational integrity.
