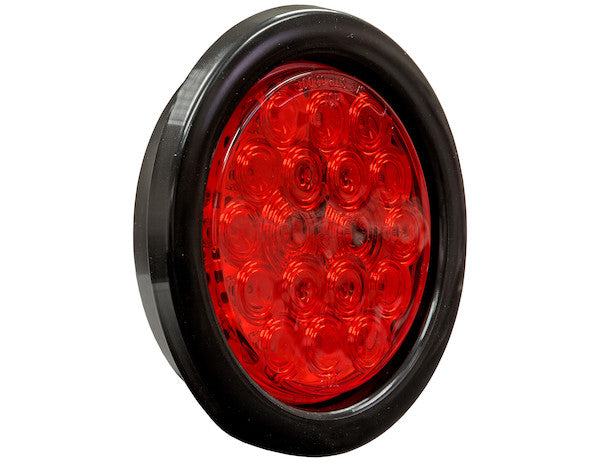

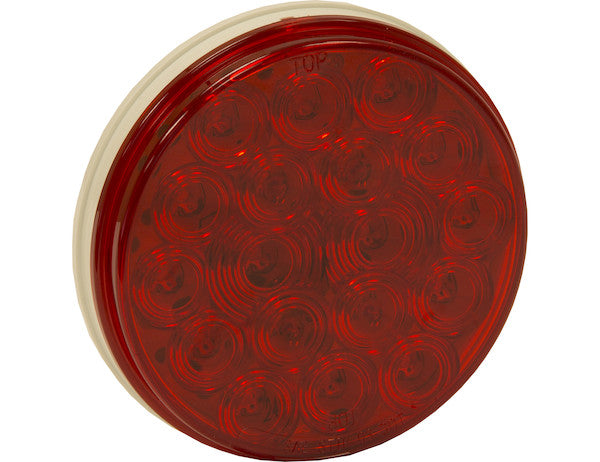

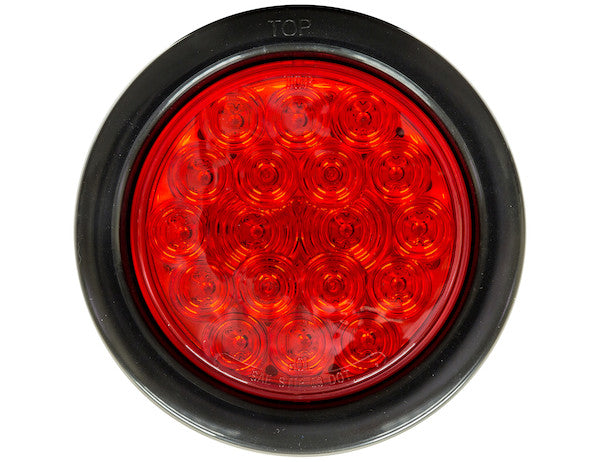

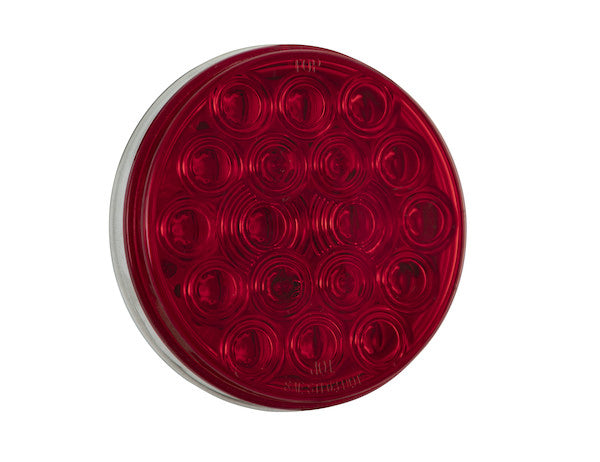

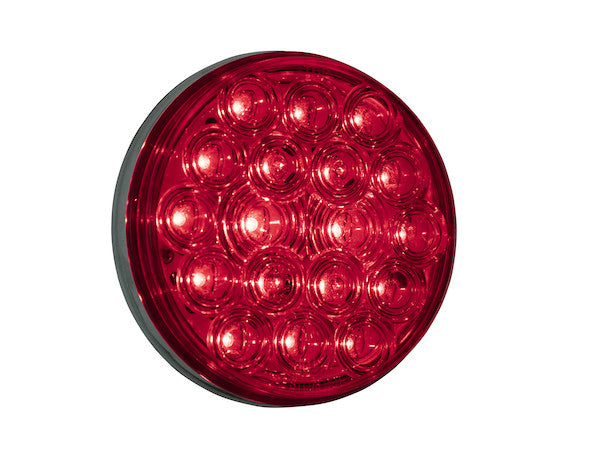

Buyers Products 4 Inch Round Stop/Turn/Tail Light with 18 LEDs is used on trucks and trailers to meet FMVSS/CMVSS 108 regulations. The light has a red lens and uses a PL-3 connection. Black grommets are also available for mounting. Lights are available in bulk (sold in multiples of 10) or individually in a kit that includes a grommet and plug for installation. They are backed with a limited lifetime warranty.
Specifications
| Amp draw at 12 Volts | 0.208 |
|---|---|
| Base / Mount Type | Recessed |
| Built-In Switch | No |
| Color | Red |
| Depth | - |
| Hard Wired or Plug | Plug |
| Height | - |
| Housing Material | Plastic |
| Lens Material | Polycarbonate |
| Lens Shape | Round |
| Number of Wires | 3 |
| Overall Width | - |
| Plug Included | Yes |
| Type of Plug | PL-3 Connection |
| Voltage | 12 |
| Wattage | 2.5 |
Advanced Technical Overview: 4-Inch Red Round LED Stop/Turn/Tail Light System
The Buyers Products 4-inch Red Round Stop/Turn/Tail Light Kit with 18 LEDs, featuring a PL-3 connection and inclusive of a grommet and plug, represents a critical component in modern heavy-duty vehicle and trailer safety systems. Engineered for optimal visibility and enduring performance, this lighting solution is designed to exceed the stringent requirements mandated by both Federal Motor Vehicle Safety Standards (FMVSS) and Canadian Motor Vehicle Safety Standards (CMVSS) 108. This comprehensive description delves into the technical attributes, operational advantages, and compliance specifics that position this LED light as a superior choice for professional applications.

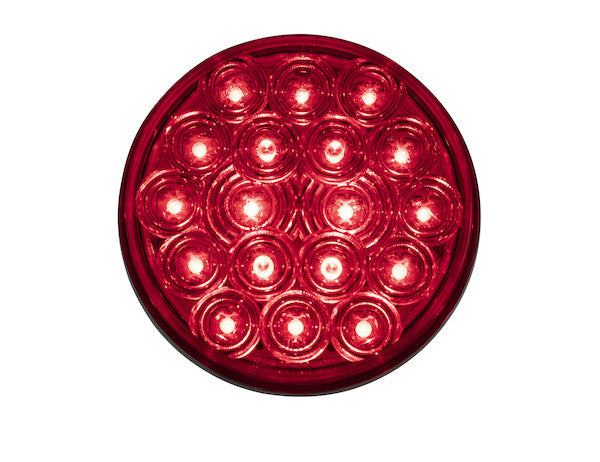

Illumination Technology: The Power of 18 LEDs
At the core of this lighting system lies advanced Light Emitting Diode (LED) technology. Unlike traditional incandescent lamps that rely on a heated filament, LEDs produce light through electroluminescence, converting electrical energy directly into light with minimal heat generation. This inherent efficiency translates into several key operational benefits. The integration of 18 individual LEDs ensures a robust and uniform light output, significantly enhancing visibility for following traffic. Each LED acts as an independent light source, meaning that even if a single diode were to fail, the overall functionality and safety performance of the lamp would remain largely uncompromised, maintaining adequate light output unlike the catastrophic failure of a single filament in an incandescent bulb.
LEDs are distinguished by their rapid illumination capabilities. The instantaneous "on" response of LED brake lights, for instance, provides drivers of following vehicles with up to a 200-millisecond (approximately 18 feet at 60 mph) advantage in reaction time compared to the slower ramp-up of incandescent bulbs. This seemingly small temporal difference can be crucial in preventing rear-end collisions. Furthermore, the spectral purity of red LEDs, especially when encased in a red polycarbonate lens, ensures consistent color fidelity and intensity, critical for unambiguous signaling under diverse environmental conditions.
The selection of 18 LEDs is not arbitrary. It represents a carefully optimized balance between power consumption, light output, and regulatory compliance. Each LED is typically configured with specific optical properties to distribute light effectively across the required angles specified by FMVSS/CMVSS 108, ensuring that the Stop, Turn, and Tail functions are clearly discernible from various viewing perspectives.
Multi-Functionality: Stop, Turn, and Tail Integration
This single 4-inch round unit seamlessly integrates three essential vehicle lighting functions: Stop, Turn, and Tail (also known as running lights). This multi-functional design reduces the number of individual lamps required on a vehicle or trailer, simplifying wiring harnesses, streamlining installation, and reducing potential points of failure. The differentiation between these functions is achieved through varying levels of illumination intensity:
- Tail Light (Running Light) Function: When the vehicle's headlights are on, the LED array illuminates at a reduced intensity, providing continuous rear visibility and delineating the vehicle's presence during low-light conditions or nighttime operation. This lower intensity ensures that the light is perceptible without being distracting or causing glare to following drivers.
- Stop Light (Brake Light) Function: Upon activation of the vehicle's braking system, the LEDs instantly switch to their full, maximum intensity. This bright signal clearly communicates a deceleration or stop maneuver to following traffic, acting as a primary safety warning.
- Turn Signal Function: When the turn signal is activated, the LEDs flash at their maximum intensity, indicating an intended change in direction. The distinct on/off pulsation is designed to capture attention effectively.
The intelligent circuitry within the lamp manages these transitions smoothly and reliably, ensuring compliance with the specific intensity and flash rate requirements for each function as outlined in federal and provincial safety standards.
Regulatory Adherence: FMVSS/CMVSS 108 Compliance
Compliance with FMVSS/CMVSS 108 is paramount for any lighting component used on commercial vehicles and trailers operating in North America. These regulations define detailed requirements for the design, construction, and performance of all lamps, reflective devices, and associated equipment. For stop, turn, and tail lamps, specific criteria include minimum and maximum light intensities, color chromaticity, effective projected luminous area, and angular visibility performance. The Buyers Products 4-inch Red Round LED Light is rigorously tested to meet or exceed these specifications, guaranteeing its legality and safety performance in all applicable jurisdictions.
Meeting FMVSS/CMVSS 108 involves:
- Photometric Testing: Verifying light output intensity at various angles and distances to ensure adequate visibility.
- Chromaticity Testing: Confirming the red color falls within the approved spectrum, preventing confusion with other signals.
- Environmental Endurance Testing: Subjecting the lamp to extreme temperatures, humidity, vibration, and salt spray to ensure long-term reliability in harsh operating environments.
- Durability and Impact Resistance: Testing the lens and housing materials against physical impacts.
By specifying compliance, Buyers Products assures fleet operators and vehicle manufacturers that this lighting solution contributes to the overall safety rating and regulatory conformity of their equipment, minimizing liability and ensuring operational continuity.
Robust Construction and Material Science
The durability and longevity of a vehicle lighting component are directly attributable to its material selection and construction methodology. This product leverages advanced materials to withstand the demanding conditions of commercial vehicle operation:
- Lens Material – Polycarbonate: The choice of polycarbonate for the lens is a critical design decision. Polycarbonate is an exceptionally tough thermoplastic known for its superior impact resistance – significantly higher than acrylic or glass. This makes it highly resistant to shattering from road debris, minor collisions, or vandalism. Furthermore, polycarbonate offers excellent optical clarity, maintaining light transmission efficiency over time. It is also inherently UV stabilized, which prevents yellowing or hazing due to prolonged exposure to sunlight, a common degradation mechanism for lesser plastics. Its wide operational temperature range ensures consistent performance from extreme cold to intense heat.
- Housing Material – High-Grade Plastic: The robust plastic housing provides a lightweight yet strong enclosure for the internal LED array and circuitry. This material is chosen for its resistance to corrosion, which is a significant advantage over metal housings in environments exposed to road salt, chemicals, and moisture. The plastic housing also contributes to the electrical insulation of the unit and aids in heat dissipation, crucial for extending LED lifespan. The sealed design, often meeting IP67 or IP69K ingress protection standards (though not explicitly stated, common for such applications), prevents the intrusion of dust, dirt, and water, protecting the sensitive electronic components from environmental damage.
The combination of these materials, coupled with a sealed construction, ensures the light's resilience against vibration, shock, temperature fluctuations, and chemical exposure, all common stressors in heavy-duty applications.
Integrated Mounting and Electrical Connectivity
Efficient and reliable installation is a hallmark of well-designed vehicle components. This light kit includes essential elements for a complete and secure setup:

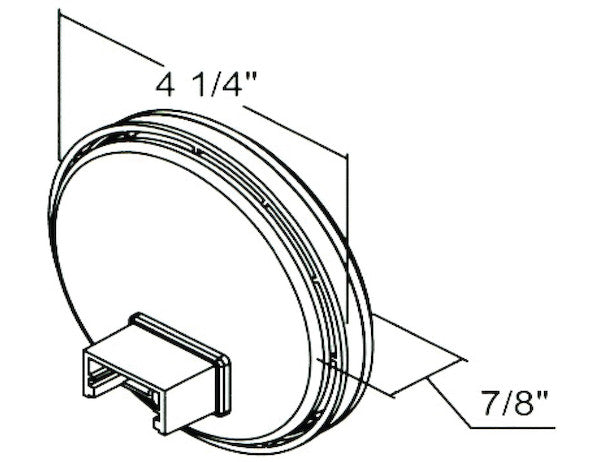

- Recessed Mount Design: The 4-inch round form factor is designed for recessed mounting. This method involves the light fitting snugly into a circular opening in the vehicle's body or trailer frame, with the grommet providing a secure, vibration-dampening, and weather-sealed fit. Recessed mounting offers several advantages: it protects the light from physical impact, presents a clean, flush aesthetic, and helps prevent snagging on external elements.
- Grommet Inclusion: The included black grommet is typically made from high-quality EPDM (Ethylene Propylene Diene Monomer) rubber. EPDM is renowned for its excellent resistance to weathering, ozone, UV radiation, and extreme temperatures, making it ideal for exterior automotive applications. The grommet serves multiple critical functions: it creates a watertight seal around the light and its mounting hole, prevents chafing of wiring against sharp edges, and absorbs road shock and vibrations, thereby protecting the light assembly and extending its operational life.
-

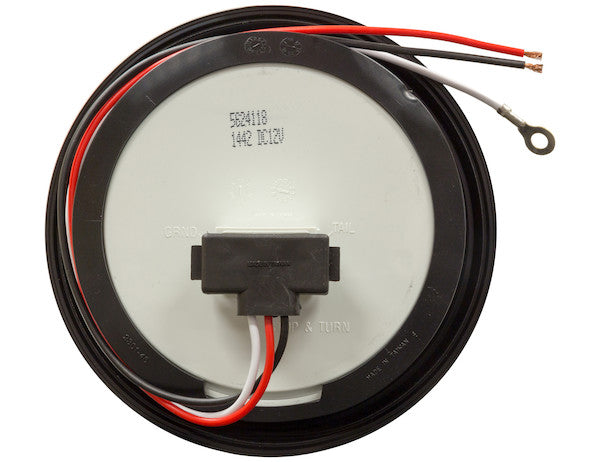

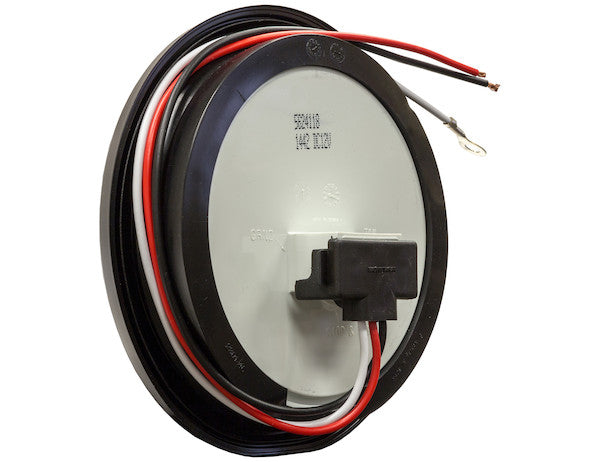

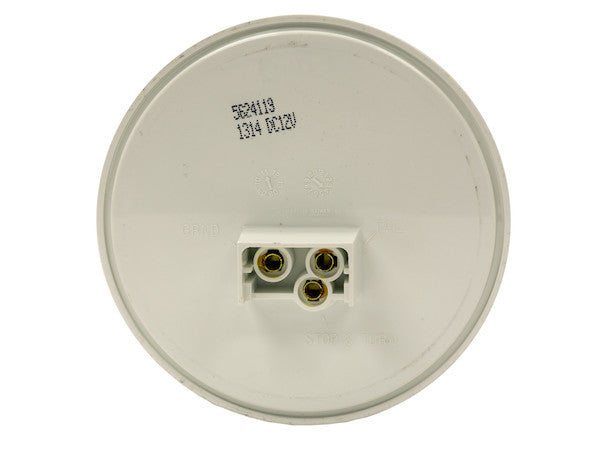

PL-3 Connection (Plug Included): The PL-3 connection is a widely adopted standard in the heavy-duty trucking and trailer industry, specifically designed for reliability and ease of installation. This 3-pin connector allows for quick, positive, and secure electrical interfacing without the need for intricate hardwiring at the point of installation. The three wires typically correspond to:
- Ground (common return path)
- Tail/Running Light (low intensity)
- Stop/Turn Light (high intensity, pulsed for turn)
Electrical Efficiency and System Integration
The electrical specifications of this LED light underscore its efficiency and compatibility with standard vehicle electrical systems:
- Voltage (12 Volts): This light is designed for direct integration into 12-volt DC electrical systems, which is the predominant standard for light-duty trucks, trailers, and a significant portion of the heavy-duty market. Its voltage tolerance is typically engineered to accommodate the minor fluctuations inherent in vehicle electrical systems.
- Amp Draw at 12 Volts (0.208 A): With an exceptionally low current draw of 0.208 Amperes, this LED light offers substantial energy savings compared to incandescent equivalents. A typical incandescent stop/turn/tail lamp can draw 2-3 Amperes or more for its high-intensity function. This low amperage requirement translates directly into reduced strain on the vehicle's alternator and battery, lower parasitic load, and potentially enhanced fuel efficiency. For fleet managers, the cumulative effect of equipping multiple vehicles and trailers with such efficient lighting can lead to considerable operational cost savings over time.
- Wattage (2.5 W): The power consumption of 2.5 Watts further highlights the energy efficiency. Lower wattage means less heat generation, contributing to the extended lifespan of the LEDs and associated electronic components. This also minimizes the risk of overloading existing wiring harnesses or blowing fuses, simplifying electrical system design and maintenance.
These electrical characteristics make the light an ideal upgrade or replacement, requiring minimal modifications to existing vehicle electrical infrastructure.
Broad Application Spectrum and Longevity
The versatility of the 4-inch Red Round Stop/Turn/Tail Light extends its application across a wide array of vehicles and equipment:
- Heavy-Duty Transport: Essential for semi-trailers, box trucks, flatbeds, and refrigerated trailers where compliance and reliability are non-negotiable.
- Utility and Vocational Vehicles: Ideal for utility service trucks, dump trucks, refuse vehicles, and municipal fleets.
- Agricultural Equipment: Suitable for tractors, combines, and agricultural trailers that operate in challenging outdoor conditions.
- Construction Machinery: Used on excavators, loaders, and other heavy equipment for improved site safety.
- Recreational and Marine Trailers: Providing robust lighting for boat trailers, RV trailers, and cargo trailers.
The significant lifespan of LEDs, often rated for 50,000 to 100,000 hours of operation, far surpasses that of incandescent bulbs, drastically reducing the frequency of bulb replacements. This translates directly into reduced maintenance downtime and lower total cost of ownership for fleet operators. The "Limited Lifetime Warranty" provided by Buyers Products further underscores the manufacturer's confidence in the product's design, materials, and manufacturing quality, offering peace of mind to purchasers.
Procurement Options
Understanding diverse customer needs, this product is offered in two primary procurement options:
- Bulk (multiples of 10): This option caters to original equipment manufacturers (OEMs), large fleet operators, and extensive repair facilities that require a consistent supply for new vehicle builds or high-volume maintenance programs. Bulk purchasing offers cost efficiencies and streamlines inventory management.
- Individual Kit (includes grommet and plug): This option is ideal for individual vehicle owners, smaller workshops, or those requiring single-unit replacements. The inclusion of the grommet and plug in the kit ensures that all necessary components for a complete installation or replacement are immediately available, simplifying the purchasing process and guaranteeing proper functionality.
In conclusion, the Buyers Products 4-Inch Red Round Stop/Turn/Tail Light Kit with 18 LEDs stands as a technologically advanced, highly durable, and fully compliant lighting solution. Its integration of efficient LED technology, robust material construction, standardized electrical connections, and adherence to stringent safety regulations makes it an indispensable component for enhancing the safety, reliability, and operational efficiency of commercial vehicles and trailers across various industries. This product embodies a commitment to performance and longevity, delivering exceptional value through reduced maintenance, lower energy consumption, and superior visibility.
