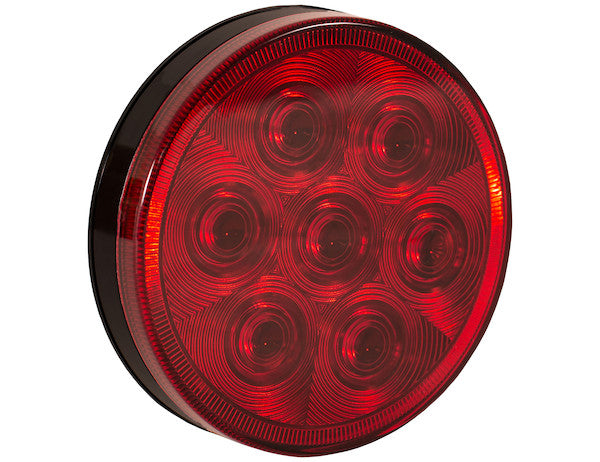

Buyers Products 4 Inch Round Stop/Turn/Tail Light with 7 LEDs is commonly used on trucks and trailers to meet FMVSS/CMVSS 108 regulations. The light has a red lens and uses a PL-3 connection. 4 in. black grommets are also available for mounting. Lights are available in bulk (sold in multiples of 10) or as individual kits that include a grommet and plug. They are backed with a limited lifetime warranty.
Specifications
| Amp draw at 12 Volts | 0.150 |
|---|---|
| Base / Mount Type | Recessed |
| Built-In Switch | No |
| Color | Red |
| Depth | - |
| Hard Wired or Plug | Plug |
| Height | - |
| Housing Material | Plastic |
| Lens Material | Polycarbonate |
| Lens Shape | Round |
| Number of Wires | 3 |
| Overall Width | - |
| Plug Included | No |
| Type of Plug | PL-3 Connection |
| Voltage | 12 |
| Wattage | 1.85 |
Advanced Technical Overview: 4 Inch Red Round Stop/Turn/Tail Light with 7 LEDs
This comprehensive technical description details the design, functionality, and advantages of the 4 Inch Red Round Stop/Turn/Tail Light with 7 LEDs. Engineered for demanding commercial and industrial applications, this unit is a critical safety component for heavy-duty trucks, trailers, and utility vehicles. It provides highly visible, legally compliant signaling for braking, directional changes, and continuous rear presence, all within a robust 4-inch round form factor. The design prioritizes durability, energy efficiency, and uncompromised safety, making it an indispensable asset for fleet operators and vehicle owners.
Precision Engineering and Optoelectronic Design

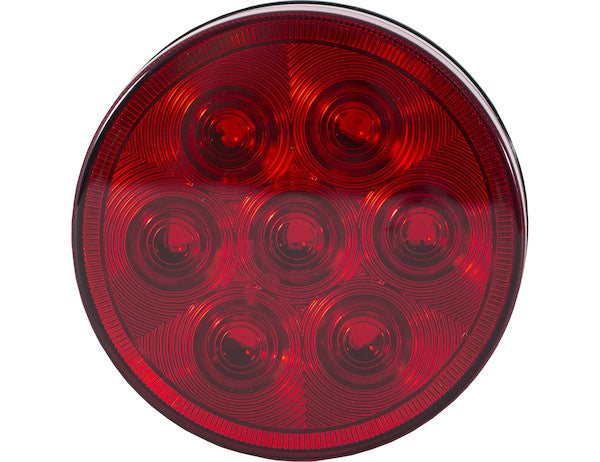

At the core of this lighting unit's performance is its advanced optoelectronic design, featuring seven high-intensity LEDs. Unlike incandescent bulbs, LEDs utilize electroluminescence, offering superior brightness, longevity, and instant illumination. The multi-LED configuration ensures broad, uniform light output and redundancy; should one LED fail, others continue, preserving signaling capability. Instantaneous illumination provides crucial extra reaction time for following drivers. The specific red wavelength meets photometric requirements for optimal conspicuity and regulatory color specifications.
The polycarbonate lens is critical for both optical performance and physical resilience. Renowned for exceptional impact resistance and UV stability, it prevents yellowing and degradation, maintaining color integrity and light output. The precision-molded round lens optimizes light dispersion. The durable plastic housing provides a lightweight, robust enclosure for electronics, offering excellent resistance to corrosion, chemicals, and extreme temperatures, vital for diverse operational conditions.
Electrical Integration and Energy Efficiency
Operating at a standard 12V, this 7-LED light is compatible with most commercial vehicles. Its remarkably low power consumption—0.150A at 12V, totaling 1.85W—is a key differentiator. This significantly reduces the load on the alternator and battery, extending battery life and potentially improving fuel efficiency. For fleets, low-power lights free up electrical capacity or allow more lights without system overload. Reduced heat generation also extends component lifespan.

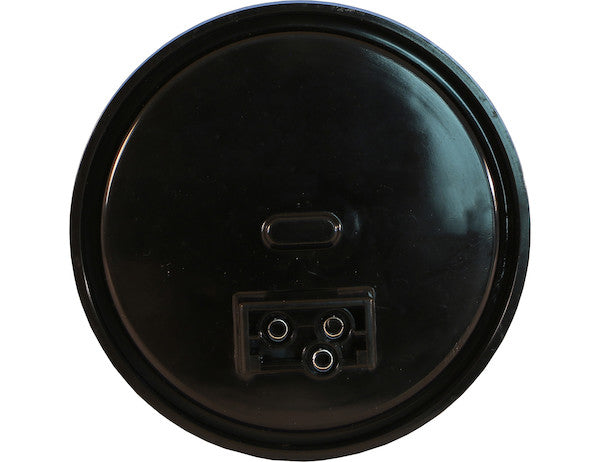

Connectivity utilizes a robust PL-3 connection, an industry standard for heavy-duty vehicle lighting, valued for its secure, weather-resistant interface. The three-pin design ensures reliable electrical contact despite vibration, moisture, or temperature fluctuations. The three wires are dedicated to ground, tail light, and stop/turn signals, enabling independent control. Though offered as 'light only,' it integrates seamlessly with a compatible PL-3 plug and wiring harness, emphasizing modularity and ease of maintenance. Its design relies on the vehicle's existing electrical control system for activation.
Mounting Solutions and Structural Integrity
Designed for recessed mounting, this 4-inch round light offers superior protection and a streamlined aesthetic. Recessing the unit within the vehicle’s body or trailer frame significantly reduces exposure to impacts and environmental damage. While sold without a grommet, it integrates seamlessly with a standard 4-inch black rubber grommet (available separately or in kits). These grommets provide a secure, vibration-dampening interface and a crucial environmental seal, absorbing shocks and protecting circuitry. Properly installed, the grommet forms a watertight seal, preventing contaminants from compromising electrical connections and maintaining operational efficacy.
Regulatory Compliance: FMVSS/CMVSS 108 Standards
Compliance with Federal Motor Vehicle Safety Standard (FMVSS) 108 in the United States and Canadian Motor Vehicle Safety Standard (CMVSS) 108 in Canada is not merely a feature; it is a fundamental requirement for all vehicle lighting components intended for highway use. This 4 Inch Red Round Stop/Turn/Tail Light is meticulously engineered to meet or exceed the stringent specifications outlined in these regulations. FMVSS/CMVSS 108 governs all aspects of vehicle lighting, including photometric performance (light intensity, beam pattern, and distribution), color accuracy, durability, and placement. For a Stop/Turn/Tail light, this means ensuring that the red light emitted is within the specified chromaticity coordinates, that the luminous intensity is sufficient to be clearly visible under varying ambient light conditions (both day and night), and that the flash rate for turn signals is consistent with legal requirements. The 7-LED array and polycarbonate lens are specifically chosen and designed to achieve the required light output distribution, providing a wide and effective signaling area while preventing excessive glare or insufficient illumination at critical viewing angles. By adhering to these standards, the light ensures the vehicle's legal operation on public roads and significantly enhances safety by providing clear, unmistakable signals to other drivers, thereby reducing the risk of accidents and associated liabilities. Manufacturers like Buyers Products invest heavily in testing and validation processes to guarantee that their lighting products not only perform reliably but also fully comply with these critical safety benchmarks.
Multi-Functional Performance and Safety Enhancement
The integrated Stop/Turn/Tail functionality within a single 4-inch unit provides a compact and efficient solution for rear vehicle signaling. Each function is optimized for maximum clarity and safety:
- Stop Light: Upon activation of the vehicle's brakes, the 7 LEDs illuminate with amplified intensity, providing a vivid red signal. The rapid response time of LEDs ensures instant notification to trailing vehicles, allowing for quicker reaction and reducing the likelihood of rear-end collisions. The high luminous output ensures visibility even in bright daylight or adverse weather conditions.
- Turn Signal: When the vehicle's turn signal is engaged, the light flashes rhythmically, indicating a change in direction. The distinct on/off characteristic of LEDs creates a sharp, unmistakable blinking pattern, which is crucial for communicating maneuver intentions clearly to other road users. This synchronized flashing with the vehicle's existing turn signal system ensures harmonious and effective signaling.
- Tail Light: As a continuous running light, the 7 LEDs provide a constant, moderate-intensity red illumination to mark the vehicle's presence, especially during dusk, night, or low-visibility conditions. This consistent rear identification is vital for maintaining safe distances and preventing collisions from the rear. The energy efficiency of the LEDs ensures minimal power draw during prolonged periods of operation as a tail light.
Longevity, Maintenance, and Total Cost of Ownership (TCO)
The selection of a 7-LED Stop/Turn/Tail light represents a strategic investment in longevity and reduced operational costs. Unlike incandescent bulbs with fragile filaments prone to breakage from vibration and thermal shock, LEDs are solid-state devices. This inherent robustness grants them an exceptionally long operational lifespan, often exceeding 50,000 hours, which can translate to many years of continuous service in typical vehicle applications. This extended durability dramatically reduces maintenance requirements and eliminates the need for frequent bulb replacements, a common and costly task for incandescent lighting in commercial fleets. The savings extend beyond the direct cost of replacement bulbs and labor; they encompass reduced vehicle downtime, improved fleet availability, and fewer logistical challenges associated with parts inventory and scheduling repairs. The low power consumption of 1.85W also contributes to a lower total cost of ownership by subtly reducing fuel consumption over the vehicle's lifetime, as the alternator needs to work less to generate power for the lighting system. When considering the initial investment, the superior lifespan, minimal maintenance, and energy efficiency of LED lighting collectively deliver a compelling economic advantage, solidifying its position as the preferred choice for demanding commercial applications.
The 'light only' offering provides flexibility for users with existing compatible grommets and PL-3 plugs or who prefer sourcing these components separately. However, optimal performance is achieved when integrated with a 4-inch black grommet for proper recessed mounting and a corresponding PL-3 plug for secure electrical connection. The limited lifetime warranty from Buyers Products underscores manufacturing confidence and provides substantial assurance against material and workmanship defects, safeguarding the investment and ensuring long-term peace of mind.
Application Versatility and Professional Preference
The 4 Inch Red Round Stop/Turn/Tail Light with 7 LEDs is an ideal lighting solution across a broad spectrum of heavy-duty and commercial vehicles. Its robust construction and adherence to rigorous safety standards make it suitable for:
- Long-Haul Semi-Trailers and Tractor-Trailers: Essential for maintaining visibility and signaling compliance over vast distances and varied environmental conditions.
- Utility and Service Trucks: Provides reliable signaling for vehicles frequently stopping or maneuvering in urban and rural environments.
- Construction and Agricultural Equipment: Designed to withstand the severe vibrations, impacts, and exposure to dirt and moisture common in these sectors.
- Municipal Vehicles: Ideal for snow plows, refuse trucks, and emergency support vehicles requiring dependable and highly visible lighting.
- Recreational and Marine Trailers: Offers durability and weather resistance for personal trailers, boat trailers, and RVs.
Conclusion: The Apex of Commercial Vehicle Signaling
In summary, the 4 Inch Red Round Stop/Turn/Tail Light with 7 LEDs represents the pinnacle of modern commercial vehicle signaling technology. Its sophisticated design combines the inherent advantages of LED illumination—instantaneous response, superior brightness, and exceptional longevity—with robust, application-specific materials like polycarbonate for the lens and durable plastic for the housing. Engineered for minimal power consumption (0.150A at 12V, 1.85W), it significantly reduces electrical system load and contributes to lower operational costs. Adherence to FMVSS/CMVSS 108 standards ensures uncompromising safety and legal compliance across North America, providing peace of mind for operators and fleet managers. The recessed mounting design, compatible with standard 4-inch grommets, offers enhanced protection and vibration dampening, ensuring maximum durability in the harshest environments. With its comprehensive multi-functional capabilities (Stop, Turn, Tail), extended lifespan, and backed by a limited lifetime warranty, this light is not merely a component but a critical investment in vehicle safety, operational efficiency, and long-term reliability. For any professional seeking an advanced, dependable, and high-performance signaling solution, this 7-LED light stands as the definitive choice.
