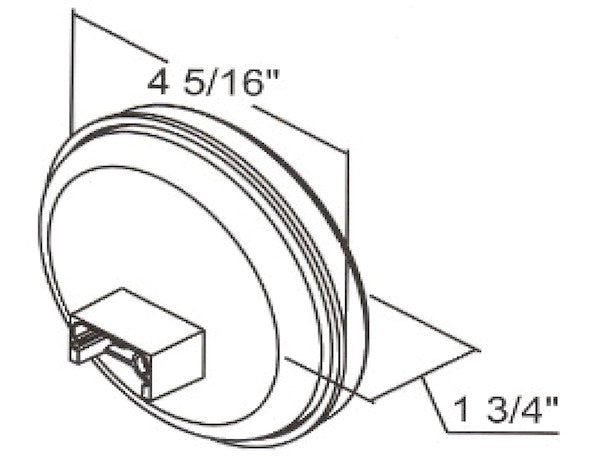

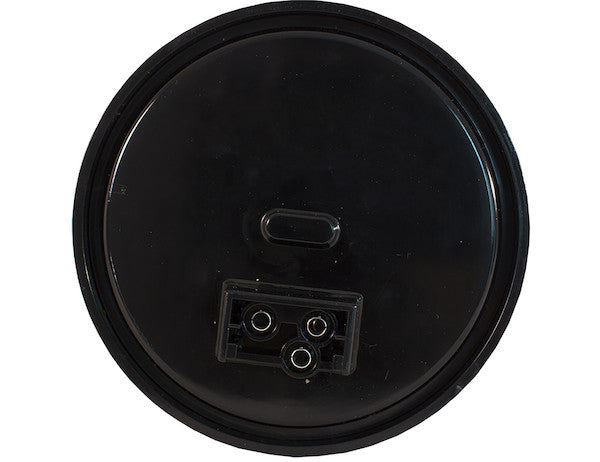

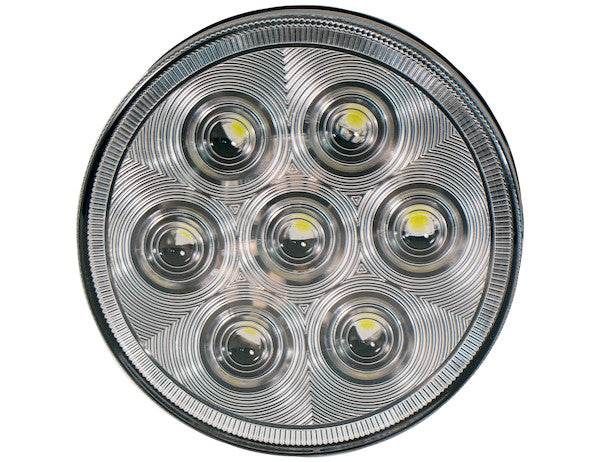

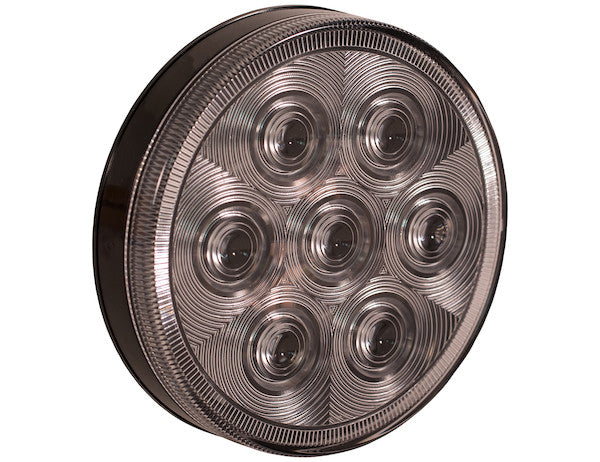

Buyers Products 4 Inch Round Backup Light with 7 LEDs is used on trucks and trailers to meet FMVSS/CMVSS 108 regulations. The light has a clear lens and a PL-2 connection. Lights are sold in multiples of 10 and backed with a limited lifetime warranty.
Specifications
| Amp draw at 12 Volts | 0.150 |
|---|---|
| Base / Mount Type | Recessed |
| Built-In Switch | No |
| Color | Clear |
| Depth | - |
| Hard Wired or Plug | Plug |
| Height | - |
| Housing Material | Plastic |
| Lens Material | Polycarbonate |
| Lens Shape | Round |
| Overall Width | - |
| Plug Included | Yes |
| Type of Plug | STD PL-2 Connection |
| Voltage | 12 |
| Wattage | 1.8 |
Comprehensive Technical Overview: 4 Inch Clear Round Backup Light with 7 LEDs Kit
The Buyers Products 4 Inch Clear Round Backup Light with 7 LEDs Kit represents a sophisticated solution for enhancing safety and operational efficiency on a broad spectrum of commercial vehicles, including trucks and trailers. Engineered to stringent industry standards, this lighting assembly provides superior illumination for reversing maneuvers, critical for preventing accidents and ensuring compliance with vital regulatory mandates. This detailed technical exposition explores the multifaceted aspects of this product, from its advanced LED technology and robust material science to its regulatory adherence, installation mechanics, and long-term operational benefits.
Advanced LED Illumination Technology: The 7-LED Array
At the core of this backup light's exceptional performance is its meticulously designed array of seven Light Emitting Diodes (LEDs). Unlike traditional incandescent bulbs, LED technology offers a multitude of advantages that are particularly pertinent to demanding automotive applications. Each of the seven LEDs is strategically positioned to collectively emit a broad and uniform beam pattern, maximizing visibility across the reversing path. This multi-LED configuration provides inherent redundancy; should one LED fail, the remaining diodes continue to function, maintaining a significant level of illumination and ensuring ongoing compliance and safety. This distributed light source also minimizes hot spots and shadows, delivering a clear, consistent output essential for accurate depth perception and obstacle identification during reversing operations.
The transition from incandescent to LED technology confers substantial benefits in terms of energy efficiency, lifespan, and durability. LEDs convert a far greater percentage of electrical energy into light, minimizing wasted heat. This translates directly to a significantly lower electrical load on the vehicle's charging system, as evidenced by the remarkably low amp draw of 0.150 A at 12 Volts, resulting in a nominal wattage of just 1.8 W. Such low power consumption is crucial for modern vehicle electrical systems, which are increasingly burdened by numerous electronic components. For fleet operators, this efficiency translates into reduced fuel consumption and extended battery life across their entire fleet. Furthermore, LEDs boast an operational lifespan tens of thousands of hours longer than incandescent bulbs, drastically reducing maintenance cycles, replacement costs, and vehicle downtime. Their solid-state construction renders them highly resistant to shock and vibration, factors that frequently cause premature failure in filament-based lighting—a critical advantage for lights mounted on heavy-duty trucks and trailers subjected to constant road vibration and impacts.
The clear lens, in conjunction with the high-intensity LEDs, produces a crisp, white light that cuts through adverse weather conditions such as fog, rain, or snow more effectively than warmer-toned incandescent light. This enhances contrast and object definition, providing drivers with crucial seconds of additional reaction time.
Regulatory Compliance: FMVSS/CMVSS 108 Adherence
Compliance with Federal Motor Vehicle Safety Standard (FMVSS) 108 in the United States and Canada Motor Vehicle Safety Standard (CMVSS) 108 is non-negotiable for all vehicle lighting components, particularly backup lamps. These comprehensive regulations dictate specific performance criteria for lighting devices, including photometric requirements, color, location, and operational reliability. The Buyers Products 4 Inch Clear Round Backup Light is engineered from the ground up to meet and exceed these stringent standards. This ensures that the light emits the required intensity and distribution pattern, illuminating the area to the rear of the vehicle sufficiently to alert other drivers and pedestrians of the vehicle's intent to reverse, while also providing adequate visibility for the driver.
Meeting FMVSS/CMVSS 108 is not merely a legal formality; it is a fundamental aspect of vehicle safety. Non-compliant lighting can lead to substantial fines, vehicle impoundment, and, more critically, an increased risk of accidents. By choosing a product explicitly designed for compliance, operators can mitigate these risks, protect their assets, and ensure the safety of their personnel and the general public. The precise photometric output of the 7-LED array and the clear lens color are calibrated to deliver the luminosity and light spread mandated by these critical safety standards, providing peace of mind and robust operational performance.
Material Science and Robust Construction
Durability and resilience are paramount for lighting components exposed to the harsh operating environments of commercial transportation. This 4-inch backup light incorporates materials selected for their superior mechanical properties and environmental resistance.
The **Housing Material** is engineered from high-grade plastic, chosen for its excellent balance of strength, lightweight properties, and resistance to environmental degradation. Automotive-grade plastics, typically advanced polymers such as ABS or a specialized blend, offer inherent resistance to impact, abrasion, and common road chemicals (e.g., salts, oils, cleaning agents). Crucially, these materials are formulated with UV stabilizers to prevent degradation, yellowing, and cracking caused by prolonged exposure to sunlight, ensuring the aesthetic and structural integrity of the light over its long service life. The design of the housing also contributes to the overall ingress protection, protecting internal electronic components from moisture and dust.
The **Lens Material** is crafted from premium polycarbonate. Polycarbonate is an outstanding choice for automotive lenses due to its exceptional impact strength—it is significantly more resistant to shattering and cracking than conventional acrylic or glass. This characteristic is vital for backup lights, which are often positioned in vulnerable areas on trucks and trailers and are susceptible to impacts from debris, cargo, or minor collisions. Beyond its strength, polycarbonate offers superior optical clarity, ensuring maximum light transmission from the LEDs with minimal distortion. Furthermore, advanced polycarbonate formulations include inherent UV protection, preventing hazing or yellowing that can compromise light output and appearance over time. Some polycarbonate lenses may also feature hard coatings to enhance scratch resistance, preserving clarity even under abrasive conditions.
The recessed mount type inherently offers additional protection for the light assembly by seating it within the vehicle's bodywork or bumper. Combined with robust sealing techniques, these material choices culminate in a product that can withstand extreme temperatures, vibrations, moisture ingress, and chemical exposure, ensuring reliable performance in all weather conditions and operational demands.
Electrical Integration and PL-2 Connection
Efficient and reliable electrical integration is a cornerstone of this backup light's design. Operating at a standard 12 Volts, it is universally compatible with the electrical systems of virtually all commercial trucks and trailers. The minimal current draw of 0.150 A (1.8 W) places negligible strain on the vehicle's electrical system, preventing overload and contributing to the overall longevity of electrical components.
A key feature of this kit is the inclusion of a **STD PL-2 Connection plug**. The PL-2 connection is an industry-standard, two-pin connection specifically designed for automotive lighting applications. It is renowned for its reliability, ease of use, and robust sealing capabilities. The design typically incorporates a durable housing and weather-sealed terminals, preventing moisture and contaminants from reaching the electrical contacts. This "plug-and-play" design significantly simplifies installation, eliminating the need for complex wiring or soldering. The secure, locking mechanism of the PL-2 plug ensures a stable electrical connection that resists dislodgment due to vibration or environmental factors, thereby enhancing the operational reliability of the backup light. The fact that the plug is included in the kit further streamlines the installation process, providing all necessary components for a quick and professional setup.
Installation and Mounting System: The Integrated Kit Advantage
The "Kit" designation for this product signifies its comprehensive nature, including the light unit, a grommet, and the necessary plug. This integrated approach simplifies procurement and installation, ensuring that installers have all critical components readily available.
The **Recessed Mount Type** is a preferred method for many heavy-duty vehicle applications due to its protective and aesthetically pleasing characteristics. When a light is recessed, it sits flush or slightly indented within a panel, bumper, or frame, reducing its exposure to external impacts and snagging. This design minimizes potential damage from side swipes, backing into objects, or flying road debris, thereby extending the life of the light.
The **Included Grommet** plays a pivotal role in the recessed mounting system. Typically made from durable EPDM rubber or a similar elastomer, the grommet serves several critical functions:
- Secure Fit: It creates a tight, vibration-resistant seal between the light housing and the mounting aperture, holding the light firmly in place.
- Vibration Damping: The flexible material of the grommet absorbs and dampens vibrations transmitted from the vehicle chassis, protecting the internal electronics of the light from stress-induced fatigue.
- Environmental Sealing: It acts as a primary barrier against the ingress of water, dust, and road salt into the vehicle's internal compartments and around the wiring harness, maintaining the integrity of the electrical system.
- Wiring Protection: The grommet provides a cushioned passage for the electrical plug and wiring, preventing abrasion against sharp edges of the mounting hole that could lead to short circuits or wire damage.
Operational Benefits and Value Proposition
Investing in the Buyers Products 4 Inch Clear Round Backup Light with 7 LEDs Kit offers a compelling value proposition rooted in enhanced safety, reduced operational costs, and long-term reliability.
Enhanced Safety: Superior illumination during reversing maneuvers drastically improves driver awareness of surrounding obstacles, pedestrians, and other vehicles. This significantly reduces the likelihood of backing accidents, which can result in costly property damage, personal injuries, and increased insurance premiums. The clear, bright light ensures maximum visibility even in challenging conditions like dimly lit loading docks, construction sites, or inclement weather.
Durability and Longevity: The combination of robust polycarbonate lenses, durable plastic housing, vibration-resistant LED technology, and comprehensive sealing ensures an extended operational lifespan. This rugged construction minimizes the need for frequent replacements, contributing to lower maintenance expenditures and less vehicle downtime.
Energy Efficiency: The extremely low current draw of 0.150 A (1.8 W) significantly reduces the load on the vehicle's electrical system, conserving battery life and potentially contributing to marginal fuel savings over the lifetime of a fleet. This is particularly advantageous for vehicles that frequently engage in reversing operations or operate for extended periods.
Regulatory Assurance: Explicit compliance with FMVSS/CMVSS 108 standards provides legal and operational peace of mind, mitigating risks associated with non-compliant equipment and ensuring fleet adherence to safety regulations.
Ease of Installation: The "kit" format, including the light, grommet, and PL-2 plug, streamlines the installation process. This reduces labor time and costs, allowing vehicles to return to service more quickly. The industry-standard 4-inch round size also facilitates straightforward upgrades or replacements.
Limited Lifetime Warranty: Buyers Products backs this light with a limited lifetime warranty. This warranty underscores the manufacturer's confidence in the quality, durability, and reliability of their product. It provides purchasers with substantial protection against manufacturing defects and premature failure, reflecting a commitment to customer satisfaction and product excellence. Such a warranty significantly reduces the long-term total cost of ownership, providing a strong return on investment.
Fleet Management Benefits: For fleet operators, purchasing lights in multiples of 10 offers logistical advantages, simplifying inventory management and ensuring consistent availability for new installations or replacements across a large fleet. This bulk packaging often translates to cost efficiencies and streamlined procurement processes.
Conclusion
The Buyers Products 4 Inch Clear Round Backup Light with 7 LEDs Kit is more than just a lighting component; it is a critical safety and operational asset for trucks and trailers. Its integration of advanced 7-LED technology, robust polycarbonate and plastic construction, precise electrical engineering, and full compliance with FMVSS/CMVSS 108 standards positions it as a premier choice for commercial vehicle applications. Designed for seamless installation with its included grommet and PL-2 plug, and backed by an industry-leading limited lifetime warranty, this backup light delivers unparalleled performance, durability, and value. It represents a strategic investment in vehicle safety, operational efficiency, and long-term cost reduction for any discerning fleet manager or vehicle owner.
