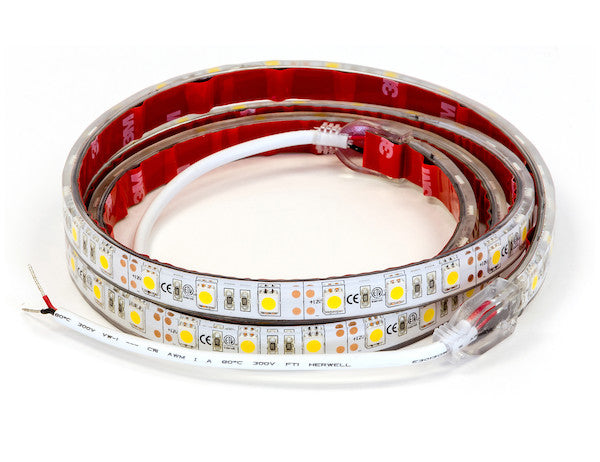

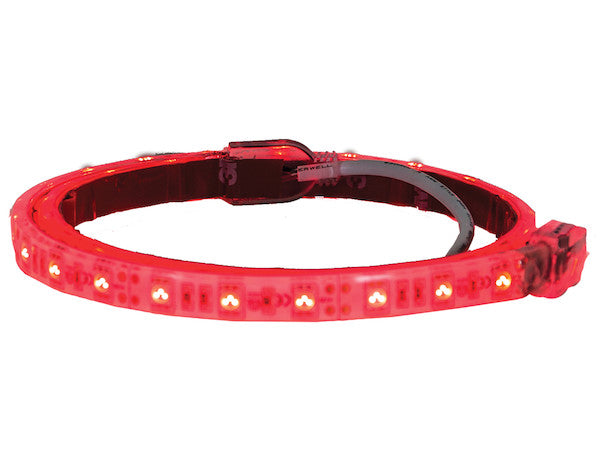

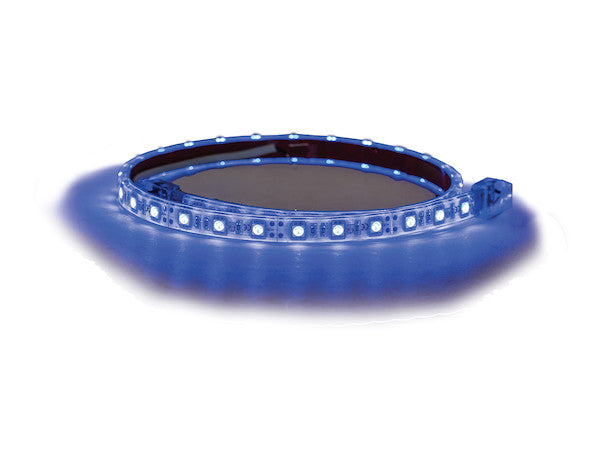

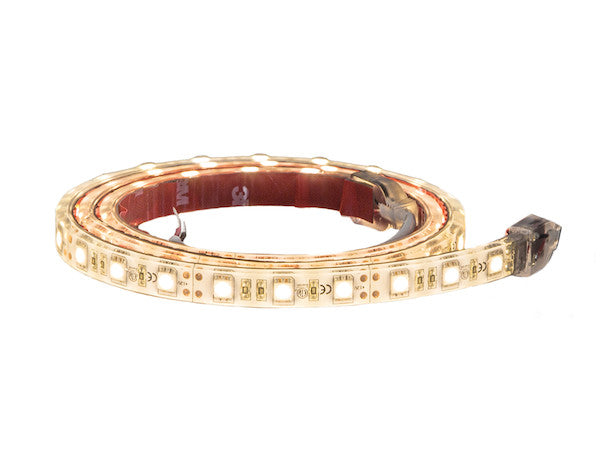

Buyers Products LED Strip Light with 3M??? Adhesive Back is available in various lengths and lens colors to fit a variety of applications. Each strip has a blunt cut connection on both ends and can be cut to length every three LEDs. The 12V light strip is IP67 rated for water and dust resistance and comes in lengths ranging from 18 in. to 132 in. End caps and mounting clips are included. Special lengths and wire connectors are available upon request. The LED strip lights are backed with a 5 year warranty.
Specifications
| Amp draw at 12 Volts | 1.12 |
|---|---|
| Base / Mount Type | Surface |
| Built-In Switch | No |
| Certification | IP67 |
| Color | Clear |
| Color Temperature | 2700 |
| Connector | Blunt Cut |
| Depth | 48.000 |
| Hard Wired or Plug | Hard Wired |
| Height | 0.500 |
| Housing Material | PVC |
| Lead Length | 4.0 |
| Lens Material | PVC |
| Lens Shape | Rectangular |
| Lumens | 940 |
| Mount Type | 3M Tape or Bracket |
| Number of Wires | 2 |
| Overall Width | 0.500 |
| Plug Included | No |
| Type of Plug | Stripped Leads |
| Voltage | 12 |
| Wattage | 13.44 |
Advanced Technical Overview: 48-Inch 72-LED Strip Light with 3M™ Adhesive – Clear and Warm Illumination
The 48-inch 72-LED Strip Light from Buyers Products represents a high-performance, versatile, and robust illumination solution engineered for diverse applications requiring both superior light quality and environmental resilience. This particular variant, featuring a clear lens and a warm white color temperature of 2700K, is meticulously designed to provide a comfortable and inviting ambiance while maintaining exceptional operational integrity in demanding conditions. Its self-adhesive 3M™ backing and optional mounting clips offer unparalleled installation flexibility, making it an ideal choice for a wide array of professional, commercial, industrial, and recreational lighting projects. Backed by an industry-leading 5-year warranty, this LED strip light exemplifies reliability and long-term value.
Precision Illumination: Optical and Electrical Characteristics
At the core of this lighting solution are 72 high-efficiency Light Emitting Diodes (LEDs), strategically spaced across a 48-inch (1219.2 mm) length. These LEDs are specifically selected for their photometric properties, delivering a luminous flux of 940 lumens. This output ensures substantial illumination suitable for task lighting, accent lighting, or general area lighting in confined spaces, contributing to enhanced visibility and operational safety. The selection of a 2700K color temperature for this model provides a "warm white" light, which is comparable to traditional incandescent lighting. This color temperature is highly valued for its ability to create a relaxed, inviting atmosphere, making it particularly suitable for interior applications in vehicles, recreational vehicles (RVs), marine vessels, and residential or hospitality settings where comfort and aesthetic appeal are paramount. The clear lens material, composed of durable PVC, ensures optimal light transmission with minimal chromatic aberration, projecting a consistent and uniform light field without harsh spots or glaring. The rectangular lens shape further aids in distributing light evenly across the intended surface.
Electrically, the strip operates at a standard 12-volt DC input, making it perfectly compatible with most vehicle electrical systems, marine power supplies, and low-voltage commercial or residential setups. With a nominal power consumption of 13.44 watts and an amp draw of 1.12 amperes at 12 volts, this LED strip light demonstrates remarkable energy efficiency. This low power draw minimizes strain on electrical systems, prolongs battery life in mobile applications, and reduces overall energy costs. The hard-wired design, featuring blunt cut ends and stripped leads with a lead length of 4.0 inches, necessitates direct connection to a power source, allowing for robust and customized wiring solutions. The absence of a built-in switch or pre-attached plug provides the flexibility for integration into existing control circuits, enabling users to implement their preferred switching mechanisms, including dimmers, timers, or sensors, for precise light management.
Engineered for Durability and Adaptability: Construction and Environmental Resilience
The physical construction of this 48-inch LED strip light is a testament to its design for longevity and performance in challenging environments. Encased in a robust PVC housing, the strip maintains a slim profile with an overall height and width of 0.500 inches (12.7 mm). This compact dimension allows for discreet installation in tight spaces, minimizing visual intrusion while maximizing functional illumination. The PVC material for both housing and lens offers inherent advantages, including excellent resistance to impact, abrasion, and a wide range of chemical exposures. Furthermore, its inherent flexibility facilitates installation around contours or minor curves, a significant benefit over rigid lighting fixtures.
A critical feature ensuring the product's durability is its IP67 certification. This Ingress Protection rating signifies comprehensive protection against solid particles and liquids. Specifically:
- "6" for solids: Indicates that the enclosure is entirely dust-tight, preventing the ingress of any dust particles that could potentially interfere with the operation of the LEDs or internal circuitry. This level of protection is vital for applications in dusty environments such as construction sites, agricultural settings, manufacturing facilities, and utility vehicle toolboxes.
- "7" for liquids: Denotes protection against the effects of temporary immersion in water, specifically for up to 30 minutes at depths between 15 cm and 1 meter. This makes the strip highly resistant to heavy rain, direct water splashes, wash-downs, and even brief submersion, rendering it ideal for marine applications (e.g., boat interiors, fishing vessels), outdoor utility equipment, and vehicle undercarriages or cargo areas frequently exposed to moisture.
Beyond environmental protection, the strip offers exceptional adaptability through its cut-to-length capability. Users can precisely customize the length of the strip by cutting it at intervals of every three LEDs. This feature is invaluable for achieving a perfect fit in unique or non-standard spaces, minimizing waste, and ensuring a professional finish. Each cutting point is clearly marked, and proper sealing with the included end caps is essential post-cutting to maintain the IP67 rating. The provision of end caps and mounting clips as standard accessories underscores the manufacturer's commitment to facilitating ease of installation and ensuring comprehensive functionality.
Installation Versatility: Mounting and Electrical Integration
Installation of the 48-inch LED strip light is engineered for maximum convenience and reliability, offering dual mounting options to suit various surface types and application requirements. The primary mounting method utilizes a high-strength 3M™ adhesive backing. This industrial-grade adhesive provides a secure, permanent bond to clean, dry, and properly prepared surfaces, including metal, plastic, wood, and painted finishes. The advantages of adhesive mounting include rapid installation without the need for drilling, preserving the integrity of the mounting surface, and providing a clean, low-profile aesthetic. For optimal adhesion, it is crucial to thoroughly clean the surface with an appropriate solvent (e.g., isopropyl alcohol) and ensure it is dry and free of contaminants before application. A minimum ambient temperature of 50°F (10°C) is recommended during installation for best adhesive performance.
In addition to the adhesive backing, the strip light includes mounting clips. These clips provide an alternative or supplementary method of secure attachment, particularly beneficial for surfaces where adhesive might be less effective (e.g., rough textures, porous materials, or environments with extreme temperature fluctuations) or for applications requiring enhanced mechanical security against vibration or impact. Mounting clips also offer the advantage of potential repositioning or easier removal if future modifications are anticipated. The dual mounting approach ensures that the strip can be reliably installed across a spectrum of challenging installation scenarios, affirming its designation as a surface-mount type fixture.
Electrical integration is streamlined through the hard-wired, blunt cut, stripped leads design. This approach provides a flexible and dependable electrical connection suitable for permanent installations. With two distinct wires, positive and negative, the electrical connection is straightforward, requiring basic wiring practices. Users should ensure proper polarity is observed during installation to guarantee correct operation and prevent potential damage. For outdoor or wet environment installations, it is imperative to use appropriate waterproof electrical connectors (e.g., heat-shrink connectors with sealant, gel-filled wire nuts, or junction boxes) to maintain the integrity of the IP67 rating at all connection points. The 4.0-inch lead length offers sufficient flexibility for making connections without undue strain on the strip itself, while also allowing for custom wire extensions to reach distant power sources.
Versatile Applications Across Industries
The robust construction, warm illumination, and flexible installation characteristics of the 48-inch 72-LED Strip Light make it suitable for an expansive range of applications:

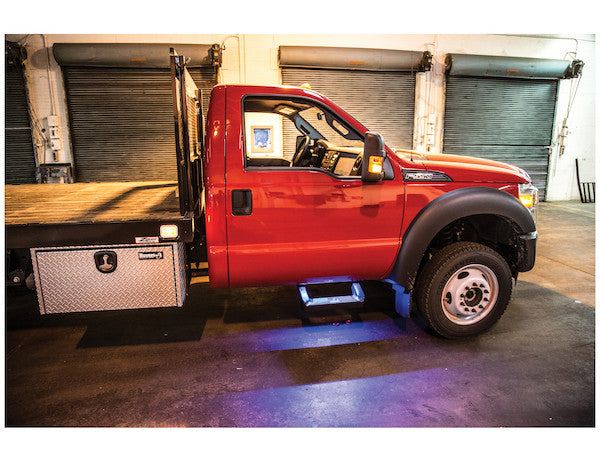

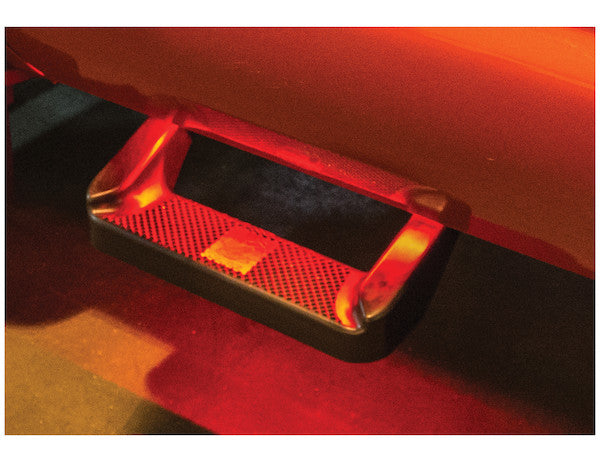

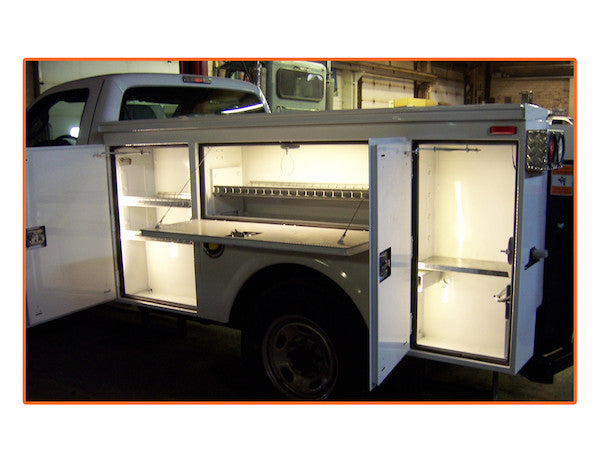

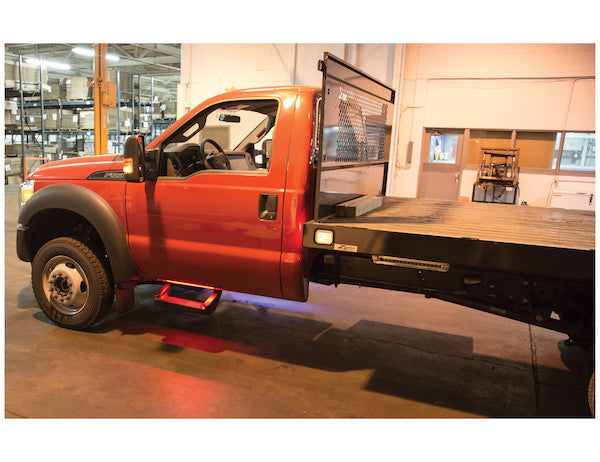

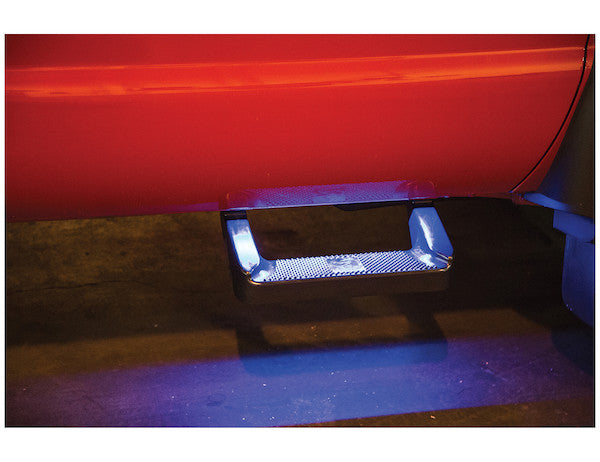

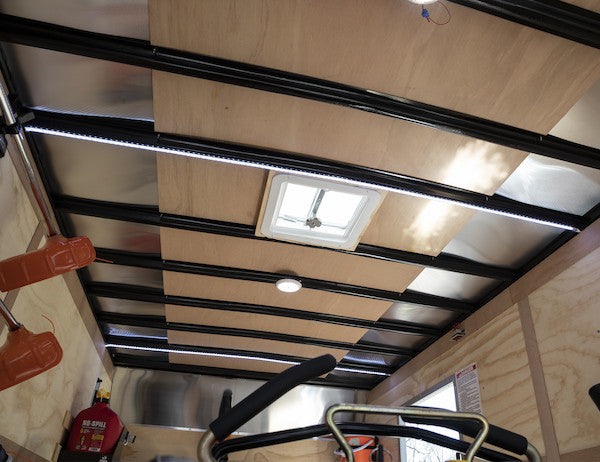

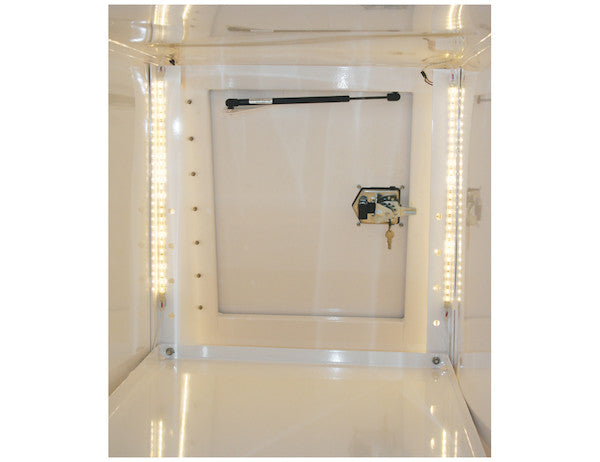

- Commercial Vehicles & Fleet Management: Ideal for interior lighting in cargo vans, delivery trucks, utility vehicles, service bodies, and emergency response vehicles. Provides superior illumination for toolboxes, storage compartments, and work surfaces. The warm light creates a less sterile environment for drivers during breaks or paperwork.
- Marine & Boating: Its IP67 rating makes it perfect for interior cabin lighting, under-gunwale lighting, engine room illumination, storage locker lighting, and indirect deck lighting on boats, yachts, and fishing vessels, withstanding splashes and moisture.
- Recreational Vehicles (RVs) & Campers: Excellent for accent lighting, under-cabinet lighting, awning lighting, and storage bay illumination, enhancing comfort and functionality in mobile living spaces. The 2700K warm white light promotes a home-like ambiance.
- Industrial & Workshop Settings: Suitable for task lighting over workbenches, equipment lighting, shelving illumination, and accent lighting in workshops, garages, and light industrial facilities where dust and occasional moisture are present.
- Retail & Display: Can be used for subtle, warm accent lighting in display cases, shelves, and architectural coves to highlight products or features, creating an inviting retail environment.
- Residential & Architectural: Applicable for under-cabinet kitchen lighting, cove lighting, closet lighting, stairwell illumination, or even outdoor patio/deck accent lighting where discreet, weather-resistant illumination is desired to create a cozy atmosphere.
Longevity, Reliability, and Support
The utilization of LED technology inherently ensures a significantly longer operational lifespan compared to traditional incandescent or fluorescent lighting. LEDs are solid-state devices, inherently resistant to vibration and shock, which are common factors in mobile and industrial applications. Furthermore, they generate less heat, contributing to their extended durability. The 5-year warranty accompanying this LED strip light underscores the manufacturer's confidence in its design, materials, and manufacturing quality. This extensive warranty period provides end-users with peace of mind, assuring reliable performance and protection against manufacturing defects, thereby reducing the total cost of ownership and minimizing downtime in commercial applications. Special lengths and wire connectors are available upon request, offering tailored solutions to meet highly specific project demands.
Technical Considerations and Best Practices for Optimal Performance
For installers and system integrators, several technical best practices are recommended to ensure optimal performance and longevity of the LED strip light:
- Power Supply Sizing: When installing multiple strips, always size the 12V DC power supply or vehicle circuit to comfortably exceed the cumulative amp draw. For example, if ten 48-inch strips are used, the total current draw would be 1.12A * 10 = 11.2A. A power supply rated for at least 15A (with a recommended 20-25% overhead) would be appropriate to prevent overheating and ensure stable operation.
- Wire Gauge Selection: Use appropriate wire gauges for the total current draw and length of the wiring run to prevent voltage drop, which can diminish LED brightness and efficiency. For longer runs, consider slightly heavier gauge wire to minimize resistance.
- Waterproofing Connections: For any cuts made to the strip, or when extending the lead wires, ensure all connections are meticulously waterproofed using marine-grade heat shrink tubing with internal sealant, silicone potting compounds, or weatherproof junction boxes to maintain the IP67 integrity.
- Thermal Management: While LEDs are efficient, prolonged operation in extremely high ambient temperatures can affect lifespan. Ensure adequate air circulation around the strip and avoid enclosing it in completely sealed, non-ventilated compartments, especially if used in high-temperature environments. The PVC housing and adhesive backing facilitate some heat dissipation into the mounting surface.
- Dimming Compatibility: As the strip is hard-wired with no built-in switch, external 12V DC Pulse Width Modulation (PWM) dimmers can be integrated into the circuit to enable brightness control. Ensure any chosen dimmer is compatible with 12V DC LED lighting and can handle the cumulative wattage/amperage of the connected strips.
- Surface Preparation: Prioritize thorough surface cleaning and preparation for adhesive mounting. Any grease, dust, or moisture will significantly compromise the 3M™ adhesive's bonding strength, potentially leading to detachment.
Conclusion
The 48-inch 72-LED Strip Light with 3M™ Adhesive Back – Clear and Warm from Buyers Products stands as a testament to advanced LED lighting engineering. Combining high luminous efficacy, a comforting 2700K warm white light, an uncompromising IP67 environmental protection rating, and highly flexible installation options, it provides a superior lighting solution for a myriad of demanding applications. Its robust PVC construction, customizable length, and easy electrical integration make it a preferred choice for professionals seeking durable, efficient, and aesthetically pleasing illumination. Backed by a comprehensive 5-year warranty, this LED strip light not only meets but exceeds the stringent requirements of modern industrial, commercial, and recreational lighting, delivering consistent performance and exceptional value.
