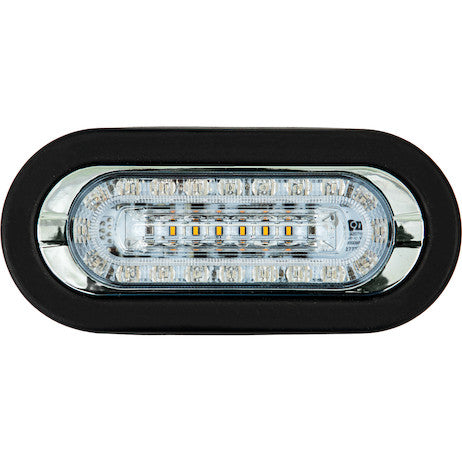

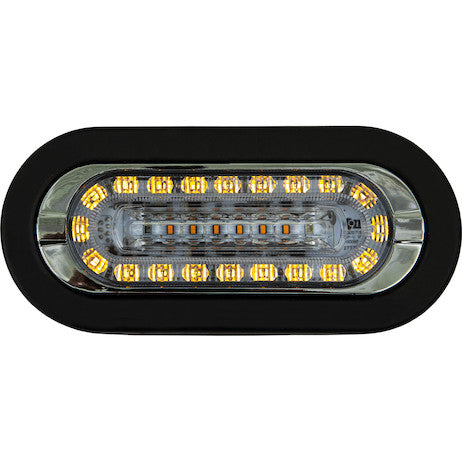

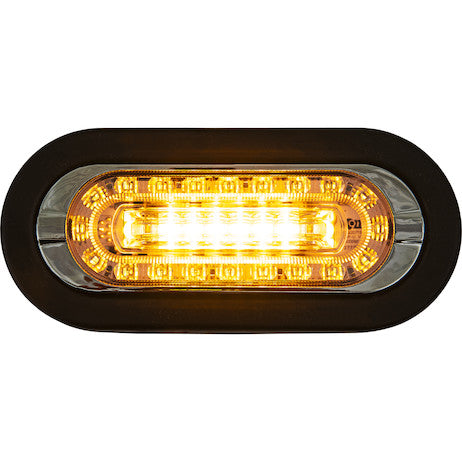

5626026 - Combination 6 Inch LED Amber Marker Light with Amber Strobe Light

Buyers Products Combination 6 Inch Oval Marker with Strobe Light combines a marker light and strobe light into one 6-inch fixture. This versatile, SAE J595-rated light is CA T13 certified and meets FMVSS-108 regulations. It is rated IP69K for extreme dust resistance and waterproofing. The amber strobe features 19 flash patterns; amber/clear features 12 flash patterns; amber/green features 12 flash patterns. All three strobes have synchronous and alternating capabilities when paired with other strobes. Multiple mounting options are included for your convenience. A grommet and mounting hardware are included for surface or recessed mounting. The light has 7-3/4 in. leads with blunt cut ends.

Specifications

Amp draw at 12 Volts	.83
Base / Mount Type	Recessed or Surface
Built-In Switch	No
California Title 13	True
Certification	SAE J595, CA T13, FMVSS-108
Color	Amber
Depth	1
Flash Patterns	19
Hard Wired or Plug	Hard Wired
Height	3 1/4
Housing Material	Plastic
IP Rating	IP67, IP69K
Lead Length	7
Lens Material	Polycarbonate
Lens Shape	Oval
Mount Type	Recessed or Surface
Number of Contacts	5
Number of LEDs	26
Number of Wires	5
Operating Temperature	-30 C to +70 C
Overall Length	7 3/4
Overall Width	2 5/8
Plug Included	No
SAE Classification	SAE J595
Type of Plug	Blunt Cut
Voltage	12-24
Wattage	10

Advanced Technical Overview: Combination 6 Inch LED Amber Marker and Strobe Light

The Buyers Products Combination 6 Inch LED Amber Marker Light with Amber Strobe Light represents a paradigm shift in vehicular safety and signaling technology. Engineered to address the multifaceted demands of modern commercial, utility, and emergency vehicle applications, this singular, robust fixture seamlessly integrates two critical functions: a steady-burn amber marker light and a high-intensity amber strobe warning light. This integrated design not only optimizes valuable mounting real estate but also significantly streamlines installation and maintenance processes, delivering superior performance, unwavering reliability, and comprehensive regulatory compliance in a compact 6-inch oval form factor.

Integrated Functionality and Operational Efficacy

At its core, this product is a testament to intelligent design, combining essential visibility and warning capabilities into one sophisticated unit. The primary function as a marker light adheres strictly to Federal Motor Vehicle Safety Standard (FMVSS-108) requirements, providing consistent, highly visible amber illumination crucial for vehicle delineation and improved situational awareness, particularly during low-light conditions, adverse weather, or nighttime operations. The steady amber output ensures that the vehicle’s dimensions and presence are clearly communicated to other road users, a fundamental aspect of preventative safety.

Complementing the marker light is an advanced amber strobe light, designed to serve as a formidable visual warning signal. Equipped with 26 high-intensity LEDs, this strobe offers exceptional luminosity and an impressive array of 19 distinct flash patterns. This extensive pattern selection allows operators to customize the warning output to suit specific environmental conditions, traffic scenarios, or operational protocols, maximizing conspicuity and minimizing potential hazards. The selection of amber as the exclusive color for the strobe (as specified by the product title and primary specifications) aligns with industry best practices and regulatory guidance for caution, slow-moving vehicles, construction zones, and utility operations across numerous jurisdictions.

A key technical advantage of this combination light is its inherent capability for synchronous and alternating operation when deployed in multi-light configurations. This feature allows for a coordinated visual display across the vehicle, significantly enhancing the overall impact of the warning system. Synchronous flashing ensures all connected strobes flash in unison, creating a powerful, unified signal. Alternating patterns, conversely, involve groups of lights flashing in an offset sequence, generating a dynamic, eye-catching effect that demands immediate attention. Such synchronized operation is critical for establishing a clear, unambiguous warning zone around a vehicle, thereby elevating safety for both vehicle operators and the public.

Advanced LED Technology and Optical Engineering

The reliance on Light Emitting Diode (LED) technology is a cornerstone of this product’s superior performance. Unlike traditional incandescent or halogen lamps, LEDs offer numerous intrinsic advantages:

• Energy Efficiency: Operating at a low current draw of just 0.83 amps at 12 volts and a wattage of 10 watts, these LEDs minimize power consumption, reducing the strain on the vehicle’s electrical system and contributing to fuel efficiency. This is particularly beneficial for vehicles with extensive auxiliary equipment.
• Extended Lifespan: LEDs boast a significantly longer operational life, often exceeding 50,000 hours, dramatically reducing the frequency and cost of replacement and maintenance. This translates into lower total cost of ownership over the product's lifespan.
• Instantaneous Illumination: LEDs achieve full brightness almost instantaneously, offering quicker warning response times compared to the ramp-up period of filament-based bulbs.
• Vibration and Shock Resistance: Lacking fragile filaments, LEDs are inherently more resilient to the constant vibrations and impacts experienced in demanding vehicle environments, ensuring consistent performance in rugged applications.
• Optimal Color Purity: Amber LEDs provide a highly consistent and pure light output, crucial for maintaining regulatory color specifications and maximizing visibility without requiring color filters that can degrade light intensity.

The optical design of the 6-inch oval lens, crafted from high-grade polycarbonate, plays a pivotal role in maximizing the effectiveness of the 26 integrated LEDs. Polycarbonate is chosen for its exceptional properties, including high impact resistance, superior optical clarity, and robust UV stability. This material ensures that the lens remains clear and free from yellowing or degradation over time, maintaining optimal light transmission and pattern integrity even after prolonged exposure to harsh sunlight and environmental contaminants. The oval lens shape is a common and highly effective form factor for vehicle lighting, providing a wide dispersion angle while integrating cleanly into vehicle body panels, whether recessed or surface-mounted.

Uncompromised Durability and Environmental Protection

Designed for the most challenging operational environments, this combination light exhibits an exemplary level of ruggedness and environmental resilience. It carries a dual IP rating of IP67 and IP69K, indicative of its superior protection against ingress of solids and liquids.

• IP67 Rating: The "6" signifies complete protection against dust ingress, meaning no dust can penetrate the enclosure. The "7" denotes protection against temporary immersion in water, specifically up to 1 meter (3.3 feet) for 30 minutes. This level of protection ensures reliable operation in heavy rain, splashes, and even brief submersion scenarios.
• IP69K Rating: This is a significantly higher and more demanding standard, specifically designed for applications requiring protection against high-pressure, high-temperature jet washdowns. The "9K" indicates the ability to withstand close-range spray from high-pressure cleaning nozzles (e.g., 80-100 bar at 80°C from distances as close as 10-15 cm). This level of protection is paramount for vehicles operating in environments where rigorous cleaning and sanitization are routine, such as refuse collection, agricultural machinery, concrete trucks, and certain public utility vehicles. The combination of IP67 and IP69K assures operators that the light will perform flawlessly under extreme conditions, including exposure to dirt, debris, mud, snow, ice, and aggressive washing procedures.

Further enhancing its durability, the housing is constructed from robust plastic, a material selected for its corrosion resistance, lightweight properties, and ability to withstand mechanical stresses. The unit is engineered to operate across a broad temperature spectrum, from an unforgiving -30°C to a scorching +70°C, guaranteeing reliable performance in diverse climates, from arctic winters to desert summers.

Rigorous Regulatory Compliance and Certification

A hallmark of the Buyers Products Combination LED Light is its comprehensive adherence to critical safety and performance standards, making it a reliable and legally compliant choice for a vast array of vehicular applications:

• SAE J595 Certification: This standard, established by the Society of Automotive Engineers (SAE), specifies the minimum photometric, physical, and environmental performance requirements for vehicular signaling and warning lamps. Products certified to SAE J595, such as this combination light, are guaranteed to meet stringent criteria for light output intensity, effective flash rates, flash duration, and overall durability. Compliance ensures the strobe light delivers a sufficiently bright and distinct warning signal that is visible over considerable distances and under various ambient light conditions, thereby enhancing operational safety.
• California Title 13 (CA T13) Certification: The California Title 13 standard is a particularly rigorous set of regulations governing warning lights for emergency and certain service vehicles operating within California. Achieving CA T13 certification signifies that the light not only meets but often exceeds general industry standards for warning lights, particularly concerning intensity, flash patterns, and reliability. This certification is crucial for utility vehicles, construction vehicles, and other non-emergency vehicles that require high-visibility warning lights in California, ensuring they operate within the bounds of state law and provide an exceptionally high level of warning conspicuity. While the general product description mentions amber/clear and amber/green variants also meeting this, the specific amber strobe configuration directly aligns with common requirements for cautionary vehicle marking.
• FMVSS-108 Compliance: The Federal Motor Vehicle Safety Standard 108 dictates the minimum performance requirements for all vehicle lighting equipment, including marker lights, for vehicles sold in the United States. This standard ensures that lighting systems contribute effectively to vehicle safety, improving visibility and communication between vehicles. The marker light component of this combination unit fully complies with FMVSS-108, guaranteeing that it meets the legal requirements for vehicle identification and contributes to overall road safety.

This trifecta of certifications underscores the product's premium quality, engineering integrity, and suitability for demanding professional use, providing end-users with confidence in its performance and legality.

Flexible Mounting and Wiring Solutions

Understanding the diverse installation requirements across different vehicle platforms, the Buyers Products combination light is designed for maximum mounting versatility. It supports both recessed and surface mounting configurations, providing operators with options to best suit their aesthetic preferences, available space, and desired level of protection for the fixture.

• Recessed Mounting: This method typically involves cutting an opening into the vehicle body or bumper, allowing the light to sit flush or nearly flush with the mounting surface. This provides a clean, integrated appearance and offers enhanced physical protection against accidental impacts or snags. A grommet is included to facilitate a secure, watertight seal for recessed installations, preventing moisture and debris ingress into the vehicle body.
• Surface Mounting: This option involves attaching the light directly to the exterior surface of the vehicle using the provided mounting hardware. Surface mounting is often quicker and simpler, requiring fewer modifications to the vehicle. It is ideal for applications where recessed mounting is impractical or where a more prominent light profile is desired.

The light comes equipped with 7-3/4 inch leads with blunt cut ends. This hard-wired design, featuring 5 distinct wires, allows for highly customizable and secure electrical connections. The blunt cut ends provide installers with the flexibility to integrate the light into existing vehicle wiring harnesses or to connect to custom control systems without the constraints of proprietary connectors. The 5-wire configuration typically allows for:

1. Positive Power (main)
2. Ground
3. Marker Light Activation
4. Strobe Light Activation/Pattern Selection
5. Synchronization Wire (for multi-light operations)

This multi-wire setup ensures full control over both marker and strobe functions, including the ability to cycle through the 19 flash patterns and enable synchronous or alternating operations across multiple units.

Operational Applications and Value Proposition

The Combination 6 Inch LED Amber Marker Light with Amber Strobe Light is ideally suited for a wide array of applications where visibility, warning capability, and durability are paramount. This includes:

• Municipal and Utility Fleets: For vehicles engaged in road maintenance, waste management, public works, and utility service, where maintaining high visibility in active work zones is critical.
• Construction and Agricultural Equipment: Heavy machinery, tractors, and specialized equipment often operate in challenging, dusty, and muddy environments, requiring robust lighting that withstands abuse and ensures safety on and off job sites.
• Commercial Transport and Towing: Enhancing the visibility of large commercial vehicles, oversized loads, and tow trucks, particularly during stops on roadways or when performing recovery operations.
• Service and Delivery Vehicles: Providing an added layer of safety for vehicles making frequent stops or operating in congested urban environments.

This product’s comprehensive feature set, robust construction, and industry-leading certifications translate into a compelling value proposition. By integrating two essential lighting functions into one durable, energy-efficient, and highly visible unit, it simplifies purchasing, installation, and maintenance, ultimately reducing operational costs and enhancing the overall safety profile of any equipped vehicle. The ability to meet California Title 13 standards further broadens its applicability and assures compliance in one of the most stringent regulatory environments.

In conclusion, the Buyers Products Combination 6 Inch LED Amber Marker Light with Amber Strobe Light is not merely a lighting accessory; it is a meticulously engineered safety system. Its integration of advanced LED technology, extensive flash patterns, extreme environmental resistance, and comprehensive regulatory compliance positions it as a leading solution for professionals demanding the highest standards of visibility, reliability, and safety performance from their vehicle lighting equipment.
