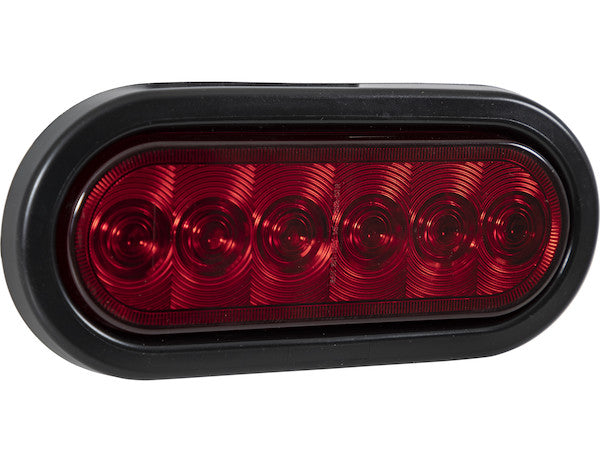

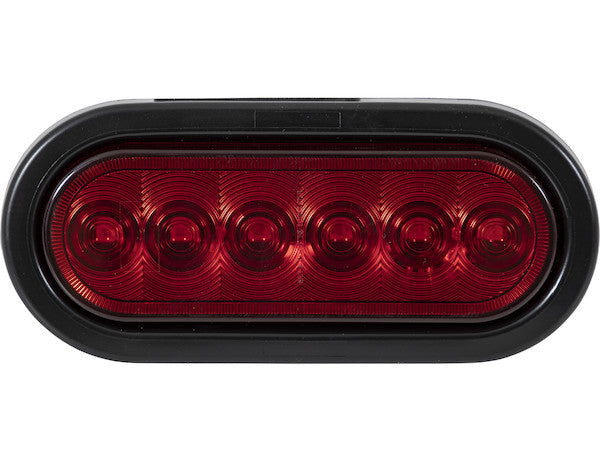

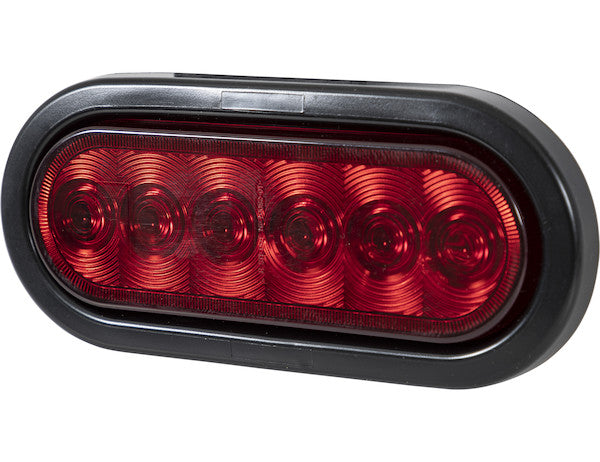

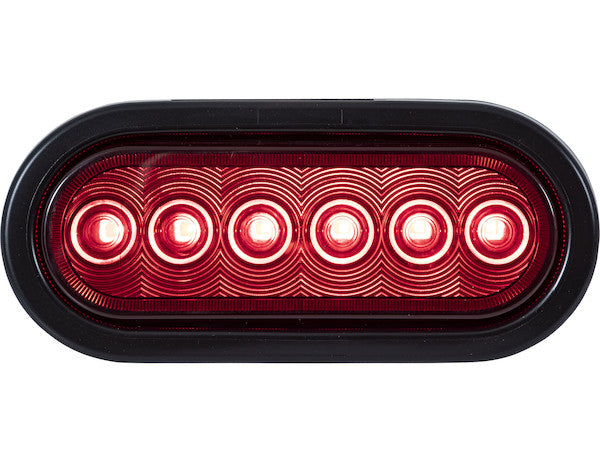

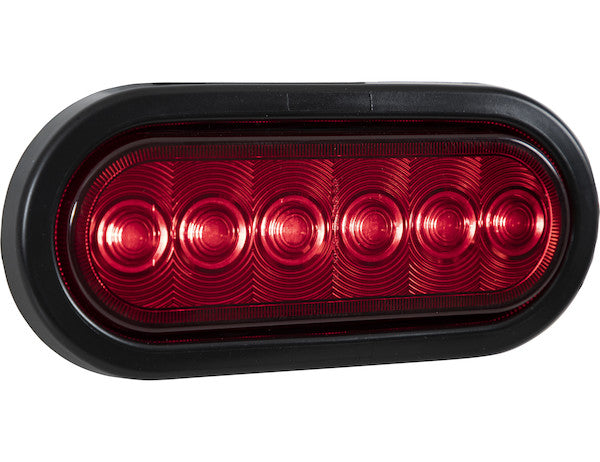

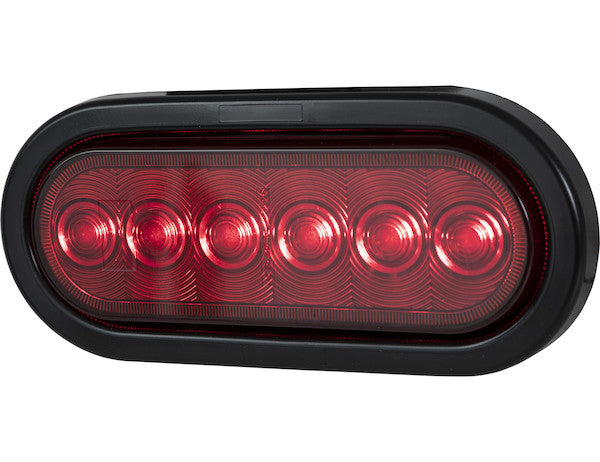

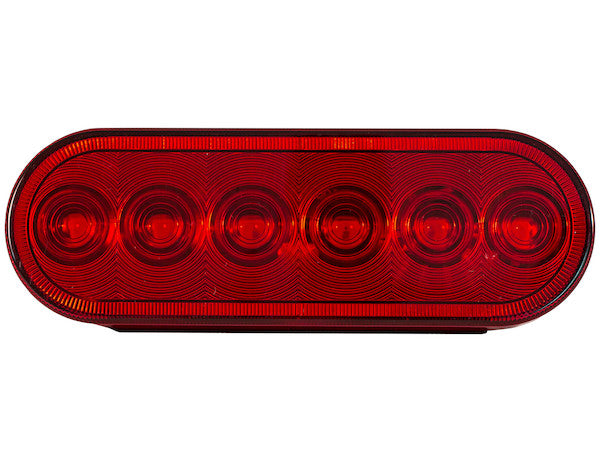

Buyers Products 6 Inch Oval Stop/Turn/Tail Light with 6 LEDs is used on trucks and trailers to meet FMVSS/CMVSS 108 regulations. The light has a red lens and uses a PL-3 connection. Black grommets are also available for mounting. Lights available in bulk (sold in multiples of 10) or as individual kits that include a grommet and plug. They are backed with a limited lifetime warranty.
Specifications
| Amp draw at 12 Volts | 0.150 |
|---|---|
| Base / Mount Type | Recessed |
| Built-In Switch | No |
| Color | Red |
| Depth | - |
| Hard Wired or Plug | Plug |
| Height | 2.25 |
| Housing Material | Plastic |
| Lens Material | Polycarbonate |
| Lens Shape | Oval |
| Number of Wires | 3 |
| Overall Width | 6.38 |
| Plug Included | Yes |
| Type of Plug | PL-3 Connection |
| Voltage | 12 |
| Wattage | 1.85 |
Advanced Engineering and Regulatory Compliance: The 6 Inch Red Oval LED Stop/Turn/Tail Light Kit
The 6 Inch Red Oval Stop/Turn/Tail Light with 6 LEDs Kit represents a pinnacle of contemporary vehicle safety illumination, meticulously engineered for the demanding operational environments of commercial trucks, utility trailers, and heavy-duty equipment. This comprehensive lighting solution is designed not merely to function but to excel, offering superior visibility, enhanced durability, and exceptional energy efficiency, all while adhering strictly to stringent regulatory standards. The inclusion of a robust grommet and a pre-wired PL-3 plug in each kit underscores a commitment to facilitating straightforward installation and ensuring long-term operational integrity.
Unwavering Regulatory Compliance: FMVSS/CMVSS 108
At the core of this product's design philosophy is an absolute adherence to Federal Motor Vehicle Safety Standard (FMVSS) 108 in the United States and Canadian Motor Vehicle Safety Standard (CMVSS) 108. These standards are foundational directives that govern all lighting, reflective devices, and associated equipment on motor vehicles and trailers, prescribing minimum performance requirements for light intensity, beam pattern, color, and mounting locations. The 6 Inch Red Oval LED light has undergone rigorous testing and certification processes to ensure it fully complies with these critical regulations for stop, turn, and tail light functions. This compliance is not merely a legal formality; it is a vital safety assurance, guaranteeing that the light output is sufficiently bright and appropriately distributed to be unambiguously perceived by other road users under a broad spectrum of environmental conditions, thereby significantly reducing the risk of collisions.
Advanced LED Illumination Technology: Six High-Intensity Diodes
The integration of six high-performance Light Emitting Diodes (LEDs) within this unit marks a significant advancement over traditional incandescent lighting. LEDs offer a multitude of technical and operational advantages critical for demanding applications:
- Superior Luminous Efficacy: Unlike incandescent bulbs that convert a significant portion of electrical energy into heat, LEDs are highly efficient, translating more energy directly into light. This results in brighter illumination for equivalent power consumption, or significantly lower power consumption for equivalent brightness.
- Instantaneous Activation: LEDs illuminate almost instantaneously, typically in microseconds, compared to the slower millisecond response time of incandescent filaments. This rapid onset is particularly crucial for stop lights, providing following drivers with earlier warning, which can translate into vital extra reaction distance, enhancing overall road safety.
- Exceptional Longevity: LEDs boast a significantly longer operational lifespan, often exceeding 50,000 hours, which dramatically surpasses the typical 1,000-5,000 hour life of incandescent bulbs. This extended lifespan translates directly into reduced maintenance intervals, fewer bulb replacements, and lower total cost of ownership for fleet operators.
- Enhanced Durability: As solid-state devices, LEDs are inherently more resistant to shock, vibration, and impact compared to fragile incandescent filaments. This robustness makes them ideally suited for the harsh operating conditions encountered by commercial vehicles, where constant vibration and occasional impacts are common.
- Consistent Performance: LEDs maintain a consistent light output and color temperature throughout their operational life, without the dimming or color shifting often observed with aging incandescent bulbs.
Multi-Functional Integration: Stop, Turn, and Tail Signaling
This single, compact unit expertly consolidates three essential safety functions into one streamlined assembly, optimizing both space and wiring complexity:
- Tail Light (Running Light): When the vehicle's headlights or parking lights are activated, the LEDs illuminate at a lower intensity, serving as a constant red marker to indicate the vehicle's presence and width during low-light conditions or at night.
- Stop Light (Brake Light): Upon activation of the vehicle's brake pedal, the LEDs instantly transition to maximum intensity, emitting a brilliant red signal that unambiguously communicates deceleration or stopping intent to trailing vehicles.
- Turn Signal Light: When the vehicle's turn signal lever is engaged, the LEDs flash rhythmically at maximum intensity, providing a clear and unmistakable indication of the driver's intention to change lanes or make a turn. The vibrant red flashing commands attention, crucial for safe maneuvering.
Robust Construction for Enduring Performance
The structural integrity and material selection of the 6 Inch Red Oval LED Light are critical determinants of its long-term reliability in adverse conditions:
- Housing Material (Plastic): The selection of high-grade plastic for the housing offers an optimal balance of durability, weight reduction, and cost-effectiveness. This engineered plastic is formulated to resist common environmental stressors such as UV radiation, road salts, chemicals, and extreme temperature fluctuations, preventing cracking, fading, and brittleness over time. Its inherent resistance to corrosion ensures that internal electronic components remain protected.
- Lens Material (Polycarbonate): The lens is crafted from premium polycarbonate, a thermoplastic polymer renowned for its exceptional properties. Polycarbonate boasts extraordinarily high impact strength, making it virtually shatterproof and highly resistant to stone chips, debris impacts, and accidental damage commonly encountered on roads. Furthermore, it offers excellent optical clarity and UV stability, ensuring that the vibrant red color remains consistent and resistant to yellowing or hazing over the light's extensive lifespan. The precisely molded oval shape and internal optics within the polycarbonate lens are engineered to optimize light dispersion and meet regulatory intensity requirements.
- Sealing Integrity: A robust, hermetic seal between the lens and the housing is fundamental. This seal protects the internal LEDs and circuitry from ingress of moisture, dust, dirt, and other environmental contaminants, which are primary causes of premature light failure. The design ensures resistance to pressure washing and immersion scenarios that vehicles may encounter.
Precise Electrical Specifications for Optimal Integration
The electrical parameters of this lighting unit are meticulously defined to ensure compatibility and efficiency within 12-volt vehicle electrical systems:
- Voltage (12 Volts): Designed for standard 12V DC automotive and trailer electrical systems, ensuring broad compatibility across the majority of commercial and recreational vehicles.
- Amp Draw at 12 Volts (0.150A): This remarkably low current draw of just 150 milliamps (mA) is a testament to the superior efficiency of LED technology. Such low power consumption places minimal strain on the vehicle's electrical system, reduces alternator load, conserves battery life, and allows for more lights to be powered from existing circuits without requiring significant electrical system upgrades.
- Wattage (1.85 Watts): Corresponding to the low amp draw, the power consumption is a mere 1.85 watts. This low wattage contributes significantly to the overall energy efficiency of the vehicle, reducing operational costs, particularly for large fleets.
-
Number of Wires (3): The three-wire configuration is standard for multi-function stop/turn/tail lights. Typically, these wires correspond to:
- Ground connection
- Tail/Running light function (lower intensity)
- Stop/Turn light function (higher intensity, flashing)

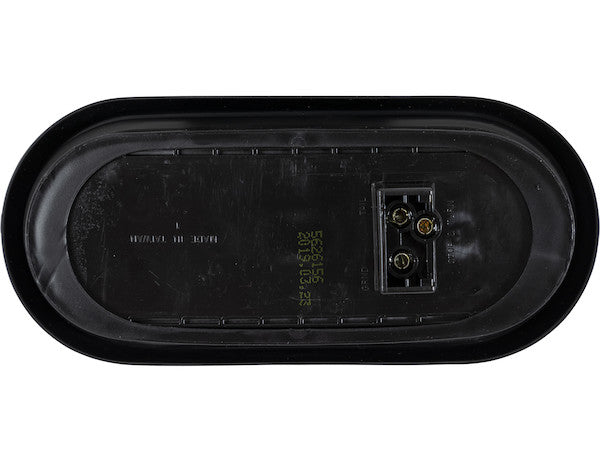

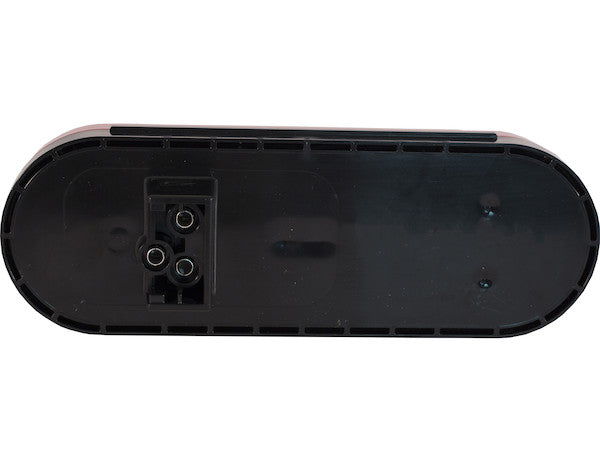

- Type of Plug (PL-3 Connection): The inclusion of a standard PL-3 connection plug is a significant advantage for installation efficiency and reliability. The PL-3 plug, a common industry standard for oval truck and trailer lights, ensures a secure, weather-resistant electrical connection. Its robust design minimizes the risk of corrosion and intermittent contact, which can lead to light failure. The plug-and-play nature eliminates the need for complex hardwiring, soldering, or crimping on site, saving valuable installation time and ensuring a professional, durable connection.
Optimized Dimensions and Mounting for Seamless Integration
The physical attributes of the light are engineered for straightforward and secure mounting:
- Lens Shape (Oval): The popular 6-inch oval form factor is an industry standard, facilitating direct replacement of existing lights and seamless integration into new vehicle designs. Its aerodynamic profile contributes to a sleeker appearance.

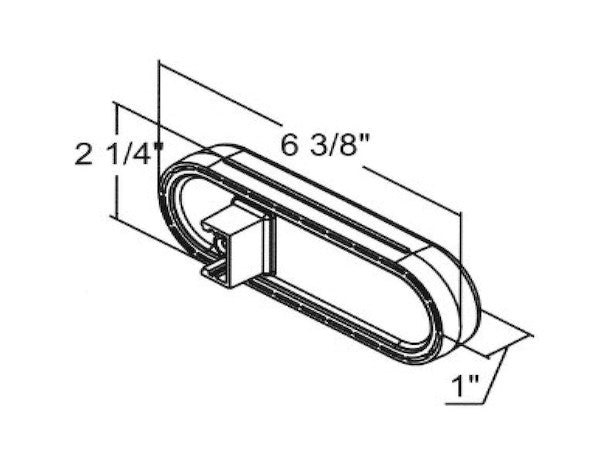

- Overall Width (6.38 inches) and Height (2.25 inches): These precise dimensions are critical for ensuring proper fitment into standard oval light cutouts in vehicle bodies or trailer panels. The slim profile minimizes protrusion, reducing the risk of damage.
- Base / Mount Type (Recessed): The recessed mounting style offers numerous advantages. It protects the light assembly from direct impacts, reducing the likelihood of physical damage during operation. Furthermore, recessed lights provide a more integrated and aesthetically pleasing appearance, creating a flush finish with the vehicle surface.
-
Grommet and Plug Included: Each kit includes a high-quality black grommet and the essential PL-3 plug. The grommet plays a crucial role in the recessed mounting system, providing:
- Secure Fit: It creates a tight, vibration-dampening seal between the light and the mounting aperture.
- Shock Absorption: The rubberized material absorbs road shock and vibration, protecting the light's internal components and extending its lifespan.
- Environmental Seal: It prevents water, dirt, and debris from entering the mounting cavity and potentially damaging wiring or the vehicle body.
Unrivaled Reliability and Long-Term Value
The meticulous design, advanced materials, and precise manufacturing processes culminate in a lighting solution that offers unparalleled reliability. This robust construction ensures consistent performance across a wide array of operational conditions, from frigid winters to scorching summers, and through challenging terrain. The inherent durability of LEDs, combined with the impact-resistant polycarbonate lens and weather-sealed housing, minimizes susceptibility to common failure points. This translates to reduced downtime for vehicle maintenance, improved operational efficiency, and a significant decrease in replacement costs over the lifespan of the vehicle. The confidence in the product's enduring quality is underscored by a limited lifetime warranty, offering peace of mind and affirming the manufacturer's commitment to excellence and customer satisfaction.
Ideal Applications Across Industries
The 6 Inch Red Oval Stop/Turn/Tail Light Kit is an indispensable safety component for a diverse range of vehicles and applications, including:
- Commercial Trucks: Class 8 heavy-duty trucks, medium-duty trucks, vocational trucks, and delivery vehicles.
- Utility Trailers: Enclosed cargo trailers, flatbed trailers, utility trailers, boat trailers, and recreational vehicle (RV) trailers.
- Heavy Equipment: Construction machinery, agricultural vehicles, and specialized off-road equipment that require DOT-compliant lighting for road travel.
- Fleet Vehicles: Any organization managing a fleet where safety, reliability, and reduced maintenance are paramount considerations.
Conclusion
In summary, the 6 Inch Red Oval Stop/Turn/Tail Light with 6 LEDs Kit is not merely a replacement component but a significant upgrade for any vehicle requiring high-performance, regulatory-compliant signaling. Its advanced LED technology, robust material construction, efficient electrical specifications, and thoughtful inclusion of installation components (grommet and PL-3 plug) position it as a superior choice for fleet managers, vehicle builders, and individual owners who prioritize safety, durability, and long-term value. Backed by a limited lifetime warranty, this lighting solution offers an investment in operational excellence and road safety that will yield benefits for years to come.
