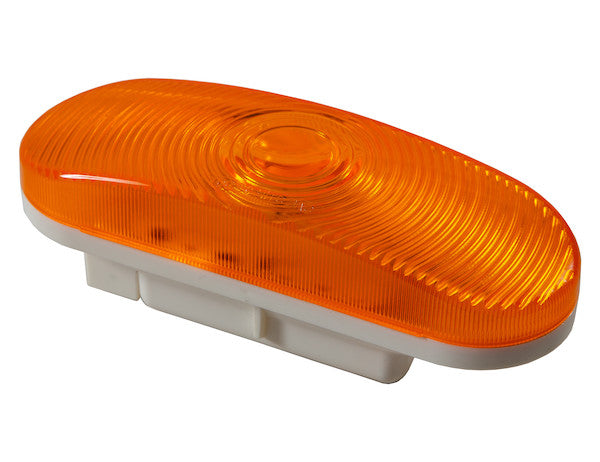

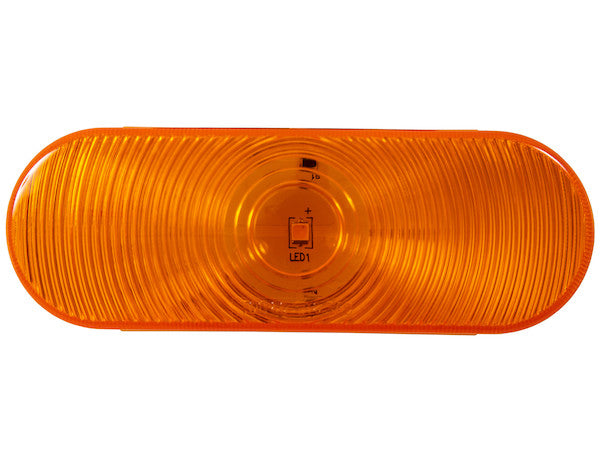

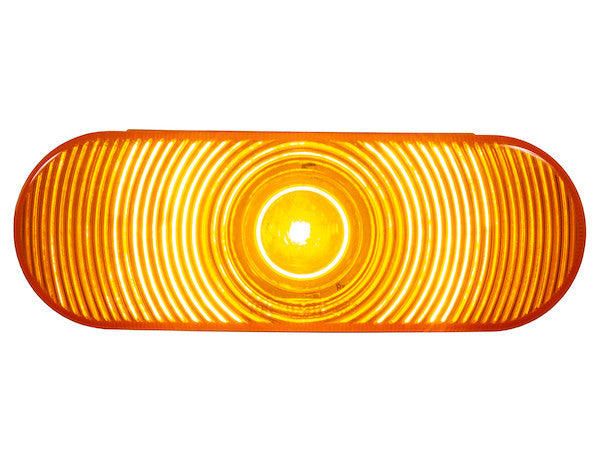

Buyers Products 6 Inch Oval Turn and Park DOT Light with 1 LED is used on trucks and trailers to meet FMVSS/CMVSS 108 regulations. The light features an amber lens and a PL-3 connection. Black grommets are also available for mounting. Lights are sold in multiples of 10 and backed with a limited lifetime warranty.
Specifications
| Amp draw at 12 Volts | 0.009 |
|---|---|
| Base / Mount Type | Recessed |
| Built-In Switch | No |
| Color | Amber |
| Depth | - |
| Hard Wired or Plug | Plug |
| Height | 2.250 |
| Housing Material | Plastic |
| Lens Material | Polycarbonate |
| Lens Shape | Oval |
| Number of Wires | 3 |
| Overall Width | 6.375 |
| Plug Included | No |
| Type of Plug | PL-3 Connection |
| Voltage | 12 |
| Wattage | 1.37 |
Advanced Technical Overview: Buyers Products 6 Inch Oval Turn Signal DOT Light with 1 LED
The Buyers Products 6 Inch Oval Turn Signal DOT Light with 1 LED represents a culmination of advanced lighting technology, robust engineering, and stringent regulatory compliance, meticulously designed for the rigorous demands of commercial trucking and trailer operations. This product is not merely a signal lamp; it is a critical safety component engineered to enhance vehicular visibility, communicate driver intentions unequivocally, and withstand the harsh environmental conditions inherent to heavy-duty applications. Adhering strictly to FMVSS/CMVSS 108 standards, this light ensures optimal performance and legal conformity across North American roadways.
Unparalleled Compliance: FMVSS/CMVSS 108 Standards
At the core of this lighting solution lies its unwavering commitment to regulatory compliance. The Federal Motor Vehicle Safety Standard (FMVSS) 108 in the United States and the Canada Motor Vehicle Safety Standard (CMVSS) 108 are comprehensive regulations governing vehicle lamps, reflective devices, and associated equipment. These standards mandate specific performance criteria for lighting devices to ensure road safety by making vehicles visible and their operational intentions clear to other road users. For turn signals, FMVSS/CMVSS 108 specifies requirements for luminous intensity, effective projected area, color, flash rate, and durability. The Buyers Products 6 Inch Oval Turn Signal DOT Light is engineered from conception to meticulously meet and exceed these exacting requirements.
The amber lens, a critical specification under these regulations for turn signals and some marker lamps, ensures that the emitted light falls within the precise chromaticity coordinates defined by the standards. This specific color is universally recognized as an indicator of a change in direction or a warning, minimizing ambiguity for other drivers. The light’s optical design, which integrates a single high-efficiency LED, is optimized to distribute light effectively, ensuring both a wide viewing angle and sufficient intensity to be perceptible in varying ambient light conditions, from bright daylight to adverse weather. By providing this certified level of performance, the light contributes directly to accident prevention, reducing risks associated with poor visibility and misinterpreted signaling on highways and urban routes.
Advanced LED Illumination Technology: The Power of 1 LED
The integration of a single LED (Light Emitting Diode) is a deliberate design choice that leverages the intrinsic advantages of modern solid-state lighting technology. Unlike traditional incandescent bulbs, which generate light by heating a filament, LEDs produce light through electroluminescence, converting electrical energy into light with significantly greater efficiency. This translates into several profound benefits for heavy-duty applications:
- Energy Efficiency: The light boasts an exceptionally low current draw of 0.009 amps at 12 volts, resulting in a nominal power consumption of 1.37 watts. This minimal power demand significantly reduces the load on the vehicle's electrical system, contributing to fuel efficiency, extending battery life, and freeing up power for other critical onboard systems. For large fleets, the cumulative energy savings can be substantial.
- Extended Lifespan: LEDs are renowned for their remarkable longevity, often rated for tens of thousands of hours of operation. This dramatically surpasses the lifespan of incandescent bulbs, which are prone to filament failure due to vibration and thermal cycling. A longer lifespan means less frequent replacement, reducing maintenance downtime, labor costs, and the total cost of ownership over the vehicle's operational life. The limited lifetime warranty offered by Buyers Products further underscores confidence in this durability.
- Enhanced Durability: As solid-state devices, LEDs lack fragile filaments or glass envelopes, rendering them highly resistant to shock, vibration, and impact – factors that frequently lead to premature failure in incandescent lamps on commercial vehicles. This inherent robustness ensures reliable performance even in the most demanding environments, from rough construction sites to long-haul trucking over varied terrains.
- Instant Illumination: LEDs illuminate instantly, achieving full brightness in microseconds. This rapid response time is a critical safety advantage for turn signals, providing immediate notification to other drivers of an impending maneuver. The instantaneous illumination allows for quicker recognition, thereby reducing reaction times for following vehicles.
- Consistent Performance: LEDs maintain consistent light output and color temperature over their operational life, unlike incandescent bulbs which can dim and shift color as they age. This ensures that the turn signal's effectiveness remains undiminished throughout its service period.
Precision Engineering and Robust Construction
The physical attributes of the Buyers Products 6 Inch Oval Turn Signal DOT Light are meticulously engineered for performance, durability, and seamless integration into a wide array of vehicle designs. The 6-inch oval form factor is a standard in the heavy-duty transportation industry, offering an optimal balance between visual presence and aerodynamic integration.

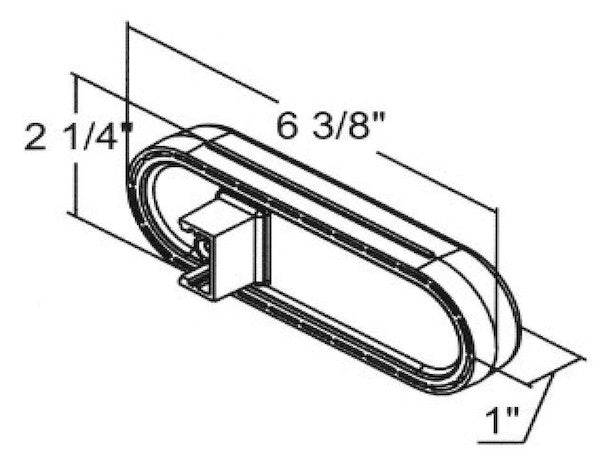

- Dimensions and Form Factor: With an overall width of 6.375 inches and a height of 2.250 inches, this light adheres to the industry-standard 6-inch oval footprint. This standardization is crucial for fleet operators, allowing for simplified procurement, inventory management, and interchangeability with existing recessed lighting cutouts. The oval shape provides a broad illuminated surface area, maximizing visibility from various angles, which is paramount for safety.
-
Housing Material: The light housing is constructed from high-grade plastic. This material choice offers several advantages:
- Corrosion Resistance: Unlike metal housings, plastic is impervious to rust and galvanic corrosion, a common issue in environments exposed to road salt, moisture, and chemical agents. This ensures the structural integrity and aesthetic appeal of the light are maintained over time.
- Weight Reduction: Plastic housings contribute to a lighter overall product weight, which can offer minor benefits in terms of vehicle weight optimization and ease of installation.
- Thermal Management: While LEDs generate less heat than incandescent bulbs, effective thermal management is still vital for longevity. The housing material and internal design facilitate adequate heat dissipation, preserving the LED's operational efficiency and lifespan.
-
Lens Material: The amber lens is fabricated from high-quality polycarbonate. Polycarbonate is a superior material for automotive lighting lenses due to its:
- Impact Resistance: It possesses exceptional impact strength, far surpassing that of acrylic or glass, making it highly resistant to chips, cracks, and shattering from road debris, stones, or minor collisions.
- UV Stability: Modern polycarbonate formulations incorporate UV inhibitors to prevent yellowing, hazing, and degradation when exposed to prolonged sunlight, ensuring the optical clarity and color integrity of the lens are maintained for years.
- Optical Clarity: The material provides excellent light transmission, ensuring that the LED's output is not compromised, and the amber color remains consistent and vibrant as per DOT requirements.
Effortless Installation and Secure Mounting
Designed for recessed mounting, the light integrates flush with the vehicle's bodywork or trailer frame, presenting a streamlined profile that minimizes protrusion and potential for damage. This method of installation is not only aesthetically pleasing but also contributes to reduced aerodynamic drag and better protection for the light assembly.
The availability of black grommets for mounting is a key functional feature. These grommets serve multiple critical roles:
- Vibration Damping: Commercial vehicles are subjected to constant vibration and shock. Grommets act as insulators, absorbing these forces and protecting the light assembly from mechanical stress, which can lead to premature failure of electrical connections or internal components.
- Environmental Sealing: When properly installed, grommets create a watertight and dust-tight seal between the light and the vehicle's surface. This prevents the ingress of moisture, dirt, salt, and other contaminants into the light housing or the vehicle's electrical system, which is crucial for maintaining electrical integrity and preventing corrosion.
- Ease of Installation: Grommets simplify the installation process by providing a snug, friction-fit mounting solution for the light into standard 6-inch oval cutouts. This allows for quick and efficient replacement or initial installation, minimizing labor time.
Electrical Integration: The PL-3 Connection and 12V System Compatibility
The electrical interface of this light is designed for reliability and universal compatibility within standard commercial vehicle electrical architectures. Operating at 12 volts, it is fully compatible with the vast majority of trucks, trailers, and heavy-duty equipment systems.
- Voltage: The 12-volt operating voltage is a standard for auxiliary lighting on most commercial vehicles. This ensures straightforward integration into existing electrical circuits without requiring voltage converters or complex wiring modifications.
-

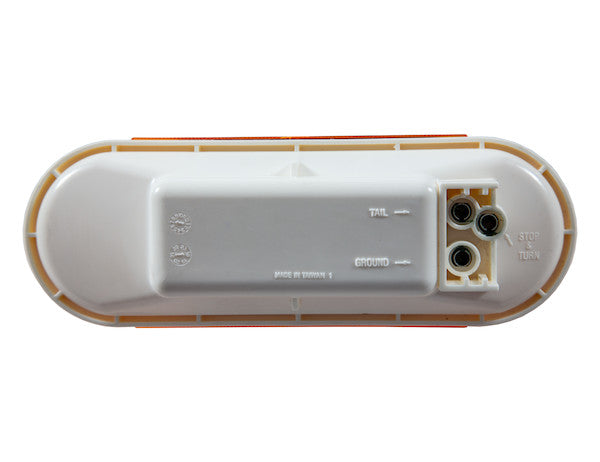

PL-3 Connection: The PL-3 connection type is an industry-recognized standard for multi-function lighting applications, particularly prevalent in heavy-duty and trailer lighting. This connection typically consists of three wires, enabling the dual functionality of this particular lamp:
- Ground (White): Provides the essential electrical return path.
- Park/Marker (Brown/Black): Activates the steady-on function, typically for parking lights or side markers, providing continuous amber illumination for vehicle presence.
- Turn Signal (Yellow/Green): Controls the flashing function, providing intermittent amber illumination to indicate a directional change.
Functional Applications and Operational Advantages
The primary application of the Buyers Products 6 Inch Oval Turn Signal DOT Light is on trucks and trailers, serving as a critical component in their exterior lighting systems. Its dual functionality as both a turn signal and a park light enhances its utility and versatility.
- Turn Signal Functionality: As a primary turn signal, it provides clear, unambiguous indication of the driver's intention to change lanes or make a turn. The amber LED, coupled with the optimized lens design, ensures high visibility, crucial for preventing accidents involving large commercial vehicles. The instant-on nature of the LED technology means that the signal is perceived immediately, allowing other drivers maximum reaction time.
- Park/Marker Light Functionality: When activated as a park light, it provides a steady amber illumination, enhancing the vehicle's conspicuity when parked or stationary, particularly during periods of low light or adverse weather. This continuous illumination also serves as a side marker light on long vehicles, fulfilling regulatory requirements for visibility along the length of the truck or trailer.
For fleet managers and owner-operators, the operational advantages extend beyond mere compliance:
- Reduced Downtime: The exceptional durability and long lifespan of LED lighting minimize the frequency of light replacements and associated maintenance tasks, keeping vehicles on the road and earning revenue.
- Enhanced Safety Record: Reliable and highly visible signaling contributes to a stronger safety record for drivers and fleets, potentially reducing insurance premiums and improving public perception.
- Environmental Responsibility: The low power consumption of LED lights reduces the overall energy footprint of commercial operations, aligning with corporate sustainability initiatives.
Commitment to Quality: Buyers Products and Lifetime Warranty
Buyers Products is a reputable manufacturer known for its commitment to producing high-quality, durable equipment for the work truck and trailer industries. This 6 Inch Oval Turn Signal DOT Light is a testament to that legacy, designed and manufactured with stringent quality control processes to ensure consistent performance and reliability.
The backing of a limited lifetime warranty provides an extraordinary level of assurance to customers. A limited lifetime warranty signifies the manufacturer's profound confidence in the product's design, materials, and workmanship, promising repair or replacement for defects that arise during the product's reasonable lifespan under normal use. This commitment significantly mitigates the risk for purchasers, particularly for fleet operators making bulk investments, by offering long-term protection against manufacturing faults.
The sales model of offering these lights in multiples of 10 further caters to the commercial market. This approach is ideal for fleet maintenance depots, repair shops, and large-scale vehicle manufacturers who require consistent supply for routine replacements, new builds, or extensive upgrades. Purchasing in multiples streamlines logistics, reduces administrative overhead, and ensures a readily available stock for continuous operations.
Conclusion: A Strategic Investment in Safety and Efficiency
In summary, the Buyers Products 6 Inch Oval Turn Signal DOT Light with 1 LED is a superior lighting solution that integrates cutting-edge LED technology, robust construction, and rigorous regulatory compliance into a single, high-performance unit. Its adherence to FMVSS/CMVSS 108 standards guarantees legal operation and optimal safety performance for trucks and trailers across North America. The benefits of its single-LED design – including exceptional energy efficiency (0.009A at 12V, 1.37W), extended lifespan, and superior durability afforded by the plastic housing and polycarbonate lens – translate directly into lower operational costs and reduced maintenance burdens for fleet owners and operators.
The industry-standard 6-inch oval form factor, recessed mounting capability with grommets, and PL-3 plug connection ensure straightforward installation and maintenance. As both a crucial turn signal and a reliable park light, it significantly enhances vehicle visibility and communication, thereby improving overall road safety. Backed by the reputable Buyers Products brand and a comprehensive limited lifetime warranty, and conveniently sold in multiples of 10, this light represents a strategic, long-term investment in the safety, efficiency, and operational integrity of any commercial vehicle fleet. It is an indispensable component for any entity prioritizing robust performance, regulatory adherence, and exceptional value in their vehicle lighting systems.
