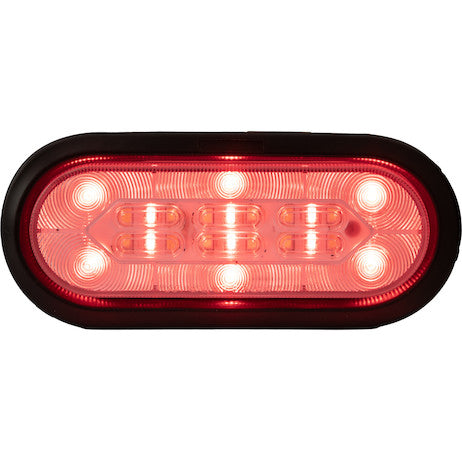

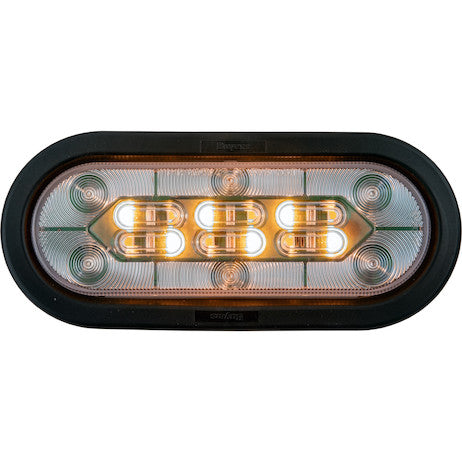

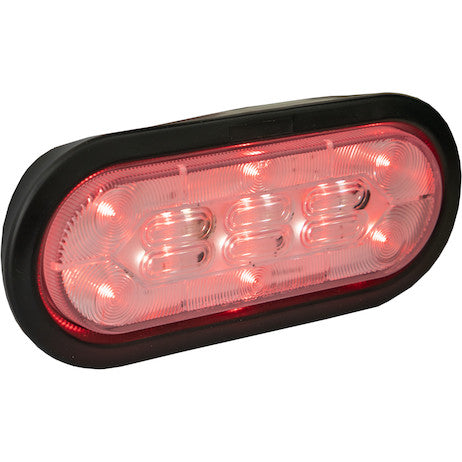

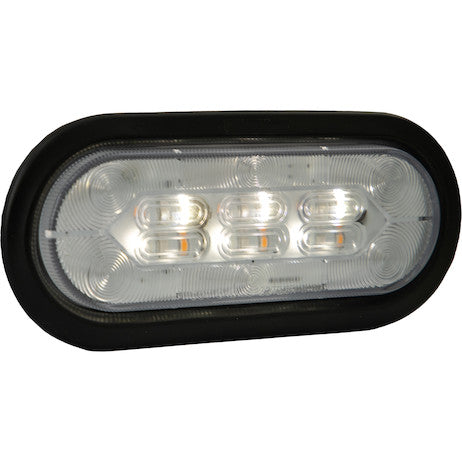

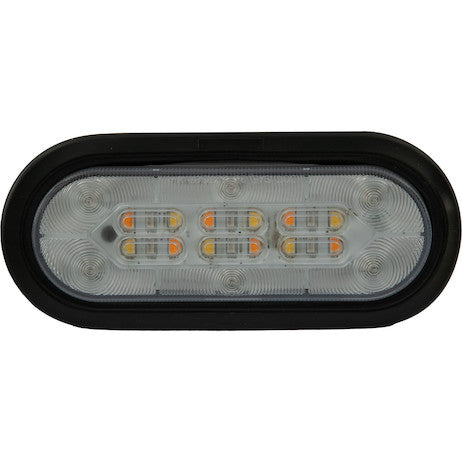

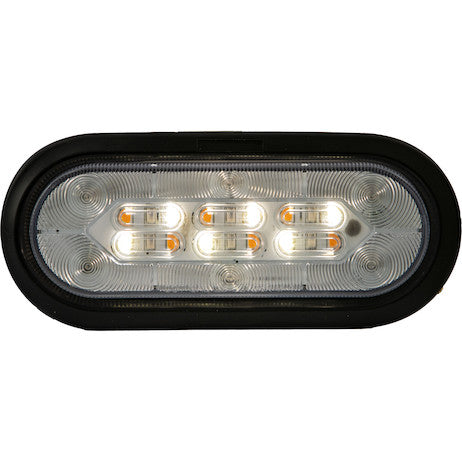

5626424 - Combination LED Stop/Turn/Tail, Backup, and Amber Strobe Light

Buyers Products Combination 6 Inch LED Stop/Turn/Tail, Backup, and Strobe Light packs a DOT stop/turn/tail, DOT backup, and amber warning strobe into a single all-purpose fixture. This versatile light is CA13 certified and rated IP69K for extreme dust resistance and waterproofing. The Stop/Turn/Tail and Backup functions meet FMVSS/CMVSS 108 regulations. The amber strobe features 19 flash patterns and is rated SAE Class 1 J595 Class 1. It also has synchronous and alternating capabilities when paired with other strobes. Multiple mounting options are included for your convenience. A grommet and mounting hardware are included for surface or recessed mounting. The light has 7-3/4 in. leads with blunt cut ends.

Specifications

Advanced Illumination and Warning System: A Comprehensive Technical Overview of the 6-Inch Combination LED Light

In the demanding environment of commercial vehicle operation, safety, visibility, and regulatory compliance are paramount. The 6-Inch Combination LED Stop/Turn/Tail, Backup, and Strobe Light stands as a robust and highly integrated solution designed to meet and exceed these critical requirements. This advanced lighting fixture consolidates multiple essential functions into a single, compact, and highly durable unit, making it an indispensable component for a wide array of heavy-duty vehicles, fleet operations, and specialized equipment. Engineered with 24 high-intensity LEDs, this product delivers superior illumination and signaling capabilities, significantly enhancing operational safety and vehicle presence under diverse conditions.

Integrated Multi-Functionality: The Core of Design Efficiency

The defining characteristic of this lighting solution is its comprehensive multi-functionality. By integrating Stop/Turn/Tail (STT) lighting, backup illumination, and an amber warning strobe, the unit streamlines vehicle lighting systems, reduces installation complexity, and minimizes the physical footprint required. This combination approach is particularly beneficial for vehicles where mounting space is at a premium or where a clean, integrated aesthetic is desired without compromising safety features. Each function is meticulously engineered to perform optimally, ensuring distinct and unambiguous signaling to other road users and personnel.

Stop/Turn/Tail (STT) Illumination: Ensuring Roadway Safety Compliance

The primary Stop/Turn/Tail (STT) function is fundamental to standard vehicle operation and road safety. Utilizing vibrant red LEDs, this component provides clear indication of braking, turning intentions, and overall vehicle presence. The instantaneous illumination characteristic of LEDs, compared to incandescent bulbs, offers a significant safety advantage by reducing reaction time for following drivers. This is critical in preventing rear-end collisions and ensuring smooth traffic flow. The integrated STT light rigorously adheres to FMVSS/CMVSS 108 regulations, which govern the performance and placement of vehicular lighting in the United States and Canada. This compliance guarantees that the light operates within the specified photometric intensities, chromaticity, and durability requirements mandated by federal safety standards, ensuring legal operation and maximum safety for all users.

Backup (Reverse) Illumination: Enhancing Maneuverability and Hazard Awareness

The integrated backup light provides essential white illumination for reversing maneuvers, a common source of accidents in industrial and commercial settings. The powerful LED output ensures a broad and bright field of view behind the vehicle, significantly improving the driver's ability to identify obstacles, pedestrians, and other hazards in low-light conditions or confined spaces. This enhanced visibility is crucial for minimizing property damage and preventing injuries during reversing operations. Like the STT function, the backup light complies with FMVSS/CMVSS 108 standards, affirming its performance and reliability under strenuous operational demands. The strategic placement of this function within the combination unit further reinforces its utility by providing critical illumination precisely where and when it is needed during intricate vehicle movements.

Amber Warning Strobe System: Unrivaled Occupational Safety Signaling

Beyond standard vehicular lighting, this unit incorporates a high-performance amber warning strobe, designed for superior visibility in work zones, emergency situations, and other environments where a strong cautionary presence is required. The amber color is universally recognized as a signal for caution or slow-moving vehicles, enhancing safety protocols for utility crews, construction workers, and first responders. This strobe is rated SAE Class 1 J595 Class 1, signifying its exceptional light output and performance under a wide range of conditions. SAE Class 1 is the highest intensity classification for warning lights, indicating suitability for critical applications where maximum visibility is paramount, even in bright daylight. The inclusion of 19 distinct flash patterns provides extensive customization options, allowing operators to select the most effective pattern for specific operational contexts or regulatory requirements. Furthermore, its synchronous and alternating capabilities enable coordinated flashing when multiple units are installed on a single vehicle or across a fleet, creating a more visually impactful warning signature that commands greater attention from other road users. This feature is particularly valuable for large vehicles or equipment that require 360-degree visibility.

Adding another layer of compliance and safety, the amber strobe light is CA13 certified. California Title 13 (CA13) sets stringent standards for emergency vehicle warning lights and other specialized vehicle lighting in the state of California. Achieving CA13 certification means the strobe meets specific requirements for flash rate, light intensity, and environmental durability, ensuring that it performs effectively and legally in one of the most rigorously regulated jurisdictions. This certification underscores the product's premium quality and its suitability for deployment in demanding public safety and utility applications.

Advanced LED Technology and Optical Engineering

At the heart of this combination light's exceptional performance are its 24 high-intensity Light Emitting Diodes (LEDs). LED technology represents a significant advancement over traditional incandescent or halogen lighting, offering a multitude of benefits essential for commercial and industrial applications:

• Superior Luminous Efficacy: LEDs convert a higher percentage of electrical energy into light, resulting in brighter illumination per watt consumed. This efficiency translates into a lower electrical load on the vehicle's charging system, contributing to fuel economy and reducing strain on alternators and batteries. The unit's nominal 1.1 Amp draw at 12 Volts and 16 Watts power consumption exemplify this efficiency.
• Extended Operational Lifespan: With a projected lifespan often exceeding 50,000 hours, LEDs drastically outlast conventional bulbs. This longevity minimizes maintenance cycles, reduces replacement costs, and significantly increases vehicle uptime, which is critical for fleet operators where operational continuity directly impacts profitability.
• Durability and Vibration Resistance: Unlike fragile incandescent filaments, LEDs are solid-state devices inherently resistant to shock and vibration. This makes them ideally suited for the harsh operating environments of commercial trucks, construction equipment, and utility vehicles where constant jarring and impacts are common.
• Instantaneous Illumination: As noted previously, the immediate full-brightness illumination of LEDs enhances safety by providing quicker warning signals.
• Multi-Voltage Compatibility: Designed to operate within a broad voltage range of 10-33 Volts DC, this light is compatible with both 12V and 24V vehicle electrical systems. This versatility simplifies inventory management for fleets operating a mixed array of vehicles and ensures consistent performance across different platforms without requiring voltage converters.

The optical engineering behind the polycarbonate lens is equally critical. The lens is precisely molded to optimize light dispersion and intensity for each distinct function. For the STT and backup lights, the optics ensure wide-angle visibility and effective illumination range. For the strobe, the lens design maximizes the intensity and clarity of the flash patterns, ensuring the warning signal is unmistakable from significant distances and various viewing angles, even in adverse weather conditions or high ambient light.

Rugged Construction and Uncompromising Environmental Resistance

The operational reliability of commercial vehicle lighting hinges on its ability to withstand extreme environmental conditions. This combination light is engineered with industry-leading durability features:

• IP69K Rating: This is the highest available Ingress Protection rating, signifying complete protection against dust ingress and resistance to high-pressure, high-temperature water jets. Vehicles operating in environments subject to frequent washing, steam cleaning, or exposure to harsh weather, mud, and debris (e.g., agricultural, construction, mining, refuse collection) will benefit immensely from this level of sealing. The IP69K rating ensures the internal components remain protected, preventing premature failure due to environmental contamination or water damage.
• Aluminum Housing: The robust housing is constructed from high-grade aluminum. Aluminum offers several critical advantages:
  • Exceptional Heat Dissipation: LEDs generate heat, and effective thermal management is crucial for their longevity and consistent performance. Aluminum's high thermal conductivity efficiently dissipates heat away from the LED components, preventing overheating and maintaining optimal operating temperatures.
  • Corrosion Resistance: Aluminum is naturally resistant to corrosion, an essential characteristic for lights exposed to road salt, chemicals, and moisture in outdoor environments.
  • Impact and Vibration Resistance: The sturdy aluminum body provides superior structural integrity, protecting the internal electronics from physical impacts and continuous vibration inherent in commercial vehicle operations.
• Polycarbonate Lens: The lens is fabricated from high-impact polycarbonate. This material is renowned for its extreme durability, offering excellent resistance to chipping, cracking, and shattering upon impact. Furthermore, polycarbonate exhibits superior UV stability, preventing yellowing or hazing over time due to sun exposure, thus maintaining optical clarity and light output throughout the product's lifespan. The oval lens shape is a common and highly functional design choice, contributing to efficient light distribution and often aiding in vehicle aerodynamics and aesthetics.

Versatile Mounting and Seamless Electrical Integration

Ease of installation and integration into diverse vehicle architectures are critical considerations for fleet managers and vehicle upfitters. This light offers flexible mounting options to accommodate various applications and preferences:

• Grommet Mount: The inclusion of a grommet allows for a recessed installation, providing a clean, flush appearance while offering an additional layer of shock absorption. This mounting method is often preferred for tail light applications, contributing to a factory-finished look and further protecting the light from external impacts.
• Surface Mount: For applications requiring simpler installation or where a flush mount is not feasible, the light can be surface-mounted using the provided hardware. This method offers adaptability across different vehicle body types and surface contours.

Electrical connection is facilitated by 7-3/4 inch (7.75 inches) blunt cut leads. This hard-wired configuration provides maximum flexibility for integrating the light into existing or custom wiring harnesses. The blunt cut ends allow installers to select appropriate connectors or direct-wire methods suitable for their specific vehicle's electrical system, ensuring a secure and reliable connection. The presence of 7 distinct wires (as indicated in the specifications) confirms individual control over each light function (Stop, Turn, Tail, Backup, Strobe) as well as dedicated wires for synchronization, enabling complex control schemes and full utilization of the unit's capabilities.

Applications and Target Industries

The comprehensive features and robust design of the 6-Inch Combination LED Light make it an ideal solution for an extensive range of commercial and industrial applications:

• Commercial Trucking & Hauling: Enhances visibility and safety for semi-trucks, trailers, delivery vehicles, and vocational trucks.
• Construction Equipment: Essential for excavators, loaders, dozers, and other heavy machinery operating on job sites, providing critical warning signals and operational lighting.
• Utility Vehicles: Perfect for bucket trucks, service vans, and other utility vehicles requiring reliable warning and functional lighting during roadside work or infrastructure maintenance.
• Municipal Fleets: Applicable to snowplows, refuse trucks, street sweepers, and public works vehicles, ensuring safety during municipal operations.
• Agricultural Machinery: Provides necessary illumination and warning signals for tractors, harvesters, and other farm equipment operating in fields and on public roads.
• Emergency Response & Towing: While primarily a Class 1 strobe, its robust nature and multi-functionality can support auxiliary warning needs for some towing and recovery vehicles, complementing primary warning systems.

By consolidating multiple lighting functions into a single, high-performance unit, this product reduces complexity, enhances aesthetics, and most importantly, elevates the safety profile of any vehicle it equips. Its adherence to rigorous industry standards and certifications underscores its commitment to quality, reliability, and regulatory compliance, making it a valuable investment for any operation prioritizing safety and efficiency.

Conclusion

The 6-Inch Combination LED Stop/Turn/Tail, Backup, and Strobe Light with 24 LEDs represents a pinnacle of integrated vehicular lighting technology. Its meticulously engineered design combines critical safety functions—DOT-compliant stop/turn/tail, DOT-compliant backup, and an SAE Class 1 J595 Class 1, CA13 certified amber warning strobe—into a single, highly durable, and efficient unit. Leveraging advanced LED technology, this fixture delivers superior brightness, extended lifespan, and minimal power consumption. Its rugged construction, featuring an IP69K rating, aluminum housing, and polycarbonate lens, ensures unwavering performance in the most challenging environmental conditions. With versatile mounting options and flexible electrical integration, this combination light is an ideal, compliant, and cost-effective solution for enhancing safety and operational efficiency across a broad spectrum of commercial, industrial, and specialized vehicle applications. Investing in this lighting system means investing in unparalleled visibility, regulatory assurance, and long-term reliability for your fleet.
