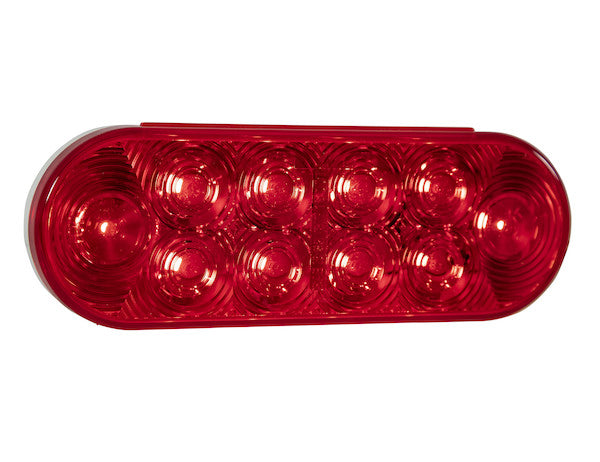

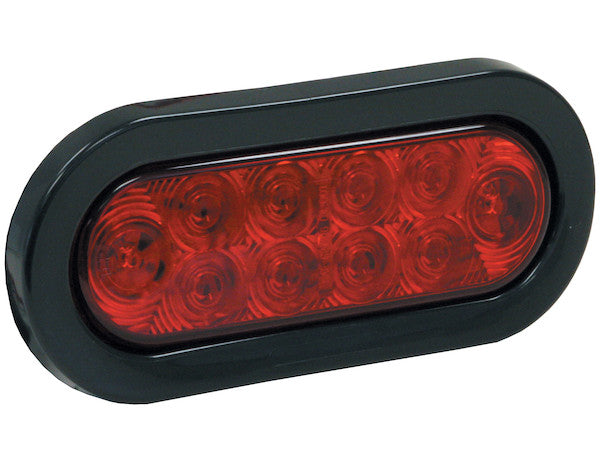

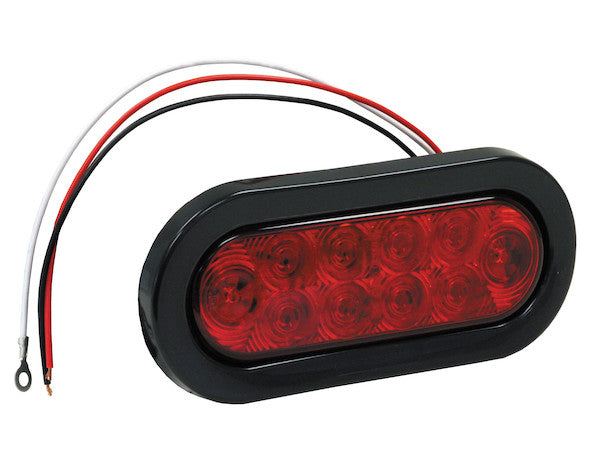

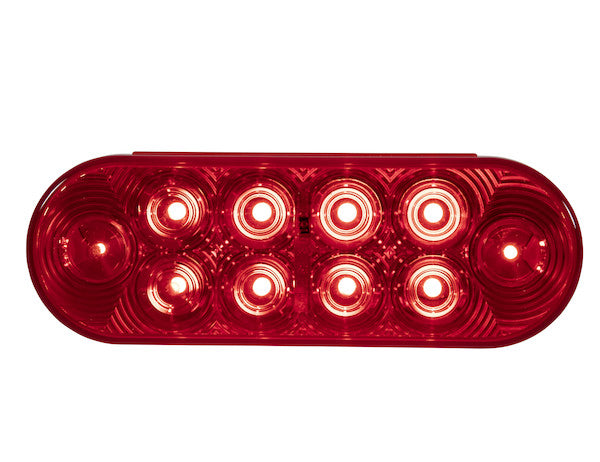

5626510 - 6 Inch Red Oval Stop/Turn/Tail Light with 10 LEDs Kit (PL-3 Connection, Includes Grommet and Plug)

Buyers Products 6 Inch Oval Stop/Turn/Tail Light with 10 LEDs is used on trucks and trailers to meet FMVSS/CMVSS 108 regulations. The light has a red lens and is available with a PL-3 or AMP-style connection. Bulk lights (5626550 & 5626551) are sold in quantities of 10. The 5626510 model is available in retail packaged kits that includes a plug and grommet for installation. Lights are backed with a limited lifetime warranty.

Specifications

6 Inch Red Oval Stop/Turn/Tail Light with 10 LEDs Kit: Advanced Vehicle Safety Illumination

The 6 Inch Red Oval Stop/Turn/Tail Light with 10 LEDs Kit, featuring a robust PL-3 Connection and comprehensive installation accessories including a grommet and plug, represents a sophisticated solution for enhancing vehicle safety and regulatory compliance. Engineered for optimal performance on trucks and trailers, this lighting unit integrates cutting-edge LED technology with durable construction, meticulously designed to meet and exceed the rigorous photometric and functional requirements stipulated by FMVSS/CMVSS 108 standards.

Unwavering Compliance with FMVSS/CMVSS 108

Central to the design philosophy of this 6-inch oval light is its unwavering adherence to Federal Motor Vehicle Safety Standard (FMVSS) 108 and Canadian Motor Vehicle Safety Standard (CMVSS) 108. These standards are paramount, governing all lighting equipment, reflective devices, and associated electrical systems on motor vehicles and trailers. For rear-facing illumination, FMVSS/CMVSS 108 dictates precise requirements for stop lamps, turn signal lamps, and tail lamps, encompassing aspects such as light intensity (candela output), beam distribution, visibility angles, and chromaticity (color purity). The Red Oval Stop/Turn/Tail Light is meticulously calibrated to deliver the specific luminous efficacy and photometric pattern necessary to ensure maximum visibility and unambiguous signaling to following traffic, thereby significantly reducing the risk of rear-end collisions. Compliance is not merely a legal mandate but a fundamental commitment to operational safety, providing vehicle operators with the assurance that their equipment meets the highest standards of roadworthiness.

Advanced LED Technology: Efficiency, Longevity, and Performance

This lighting kit leverages advanced Light Emitting Diode (LED) technology, incorporating 10 high-intensity LEDs to provide superior illumination compared to traditional incandescent bulbs. The benefits of this LED array are manifold:

• Exceptional Energy Efficiency: With an incredibly low amp draw of 0.129 Amps at 12 Volts, corresponding to a wattage of just 1.55 Watts, these LEDs significantly reduce the electrical load on the vehicle's power system. This minimized energy consumption translates into less strain on the alternator and battery, potentially contributing to improved fuel efficiency in fleet applications and extending the overall life of the vehicle's electrical components.
• Extended Lifespan: LEDs are renowned for their remarkable longevity, typically offering an operational lifespan of 50,000 hours or more. This vastly surpasses the lifespan of conventional incandescent bulbs, drastically reducing maintenance cycles and associated costs, which is a critical advantage for commercial vehicle operators and large fleets. Fewer bulb replacements mean more uptime and lower operational expenses.
• Superior Durability: Unlike fragile incandescent filaments, LEDs are solid-state devices inherently resistant to vibration and shock. This robust construction is indispensable for lights subjected to the constant jarring and impact experienced on trucks and trailers traversing diverse road conditions, from smooth highways to unpaved work sites.
• Instant Illumination: LEDs illuminate almost instantaneously, typically in microseconds, providing a faster rise time than incandescent bulbs. This quicker activation translates into crucial milliseconds of extra warning time for drivers following behind, enhancing safety by allowing for more immediate reaction to braking or turning signals.
• Optimal Brightness and Uniformity: The strategic arrangement of 10 LEDs ensures a bright, consistent, and uniform light output across the entire lens surface. This maximizes the visibility of the stop, turn, and tail functions under a wide range of environmental conditions, including bright daylight, dusk, heavy rain, or fog. The inherent red color of the LEDs, combined with the red polycarbonate lens, ensures optimal chromaticity and signal clarity.

Multifunctional Design for Comprehensive Signaling

The designation "Stop/Turn/Tail" precisely defines the versatile functionality of this singular lighting unit. It intelligently integrates three critical signaling capabilities into one compact device:

• Tail Light Function: Provides continuous, low-intensity red illumination to indicate the presence and width of the vehicle from the rear during nighttime or low-visibility conditions. This consistent glow is essential for safe operation.
• Stop Light Function: Activates with a significantly higher intensity upon application of the vehicle's brakes, unequivocally signaling deceleration or stopping to following traffic. The increased brightness ensures the brake signal is unmistakable.
• Turn Signal Function: Emits an intermittent, high-intensity flash, indicating an impending directional change. The rhythmic flashing captures attention and clearly communicates the driver's intention to turn left or right.

This sophisticated integration, managed by precision internal circuitry, ensures that each function operates distinctly and effectively, providing comprehensive and unambiguous visual communication to other road users, thereby contributing to overall road safety.

Robust Construction and Advanced Material Science

The durability and long-term performance of the 6 Inch Red Oval Stop/Turn/Tail Light are underpinned by its meticulously selected materials and construction:

• Housing Material (Plastic): The light's housing is fabricated from high-grade plastic, chosen for its exceptional balance of strength, lightweight properties, and resistance to environmental degradation. This material effectively withstands exposure to harsh weather conditions, road salts, chemicals, and minor physical impacts without succumbing to corrosion, cracking, or warping. The plastic housing also offers excellent thermal stability, ensuring the internal components remain protected across varying temperature extremes.
• Lens Material (Polycarbonate): The lens, which serves as the primary interface for light emission, is crafted from robust polycarbonate. This material is widely regarded as superior for automotive lighting due to its extraordinary impact resistance, far surpassing that of acrylic or glass. This makes the lens highly resilient against impacts from road debris, gravel, and accidental bumps, maintaining its structural integrity and optical clarity over time. Furthermore, polycarbonate offers excellent UV stability, preventing yellowing, hazing, or degradation of light output caused by prolonged exposure to ultraviolet radiation from sunlight. The inherent red coloration of the lens is formulated to precisely meet photometric chromaticity requirements, ensuring the emitted light is always within the specified red spectrum for optimal signaling.
• Recessed Mount Type: The design incorporates a recessed base/mount type. This integration strategy means the light is fitted into a cutout in the vehicle's body, providing several advantages: enhanced protection from accidental damage, a streamlined and aerodynamic aesthetic, and a more secure installation that minimizes protrusion.

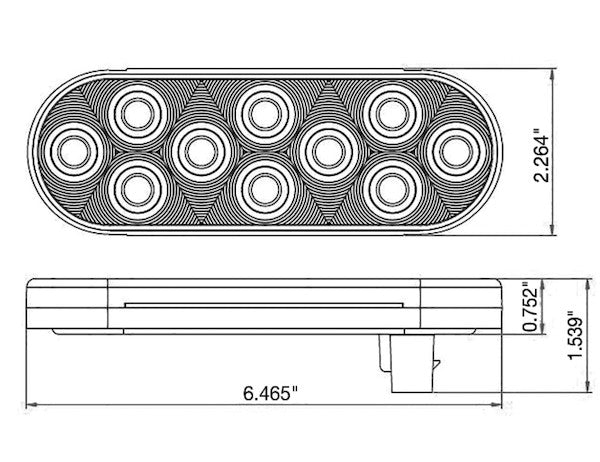

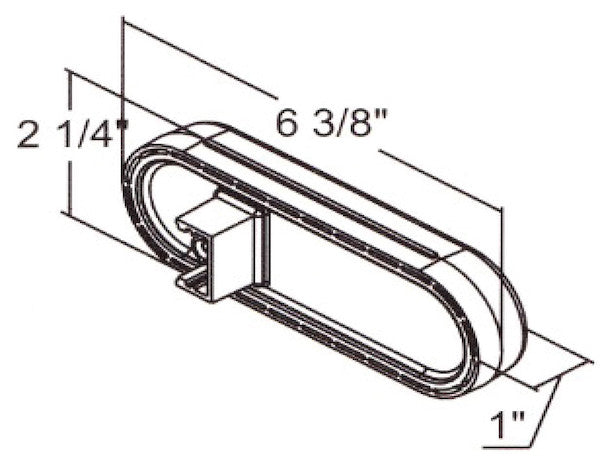

• Physical Dimensions: With an overall width of 6.375 inches and a height of 2.250 inches, the oval form factor is optimally sized for prominent visibility while allowing for versatile integration into various vehicle body designs. The precise dimensions facilitate accurate panel cutting for a snug and secure recessed fit.

Seamless Electrical Integration and PL-3 Connectivity

Electrical connectivity is a critical aspect of vehicle lighting reliability, and this kit excels with its industry-standard PL-3 connection:

• 12-Volt Compatibility: The light is designed for operation on 12-volt DC electrical systems, which is the standard voltage for the vast majority of trucks, trailers, and light-to-medium duty commercial vehicles. This ensures broad compatibility and straightforward integration into existing vehicle electrical architectures.
• 3-Wire Configuration: The unit features a 3-wire electrical configuration. This is standard for stop/turn/tail lights, typically comprising a ground wire, a wire for the tail light function (low intensity), and a wire that carries both the stop and turn signal functions (high intensity). This simplified wiring minimizes installation complexity while ensuring full functionality.
• PL-3 Connection Type: The included PL-3 connection is an industry benchmark for heavy-duty vehicle lighting applications. This 3-prong connection system is renowned for its robust mechanical engagement and superior environmental sealing capabilities. Often incorporating a resilient gasket or O-ring, the PL-3 connection forms a watertight and dust-tight seal, protecting electrical contacts from moisture, corrosive elements, and road contaminants. This secure and sealed connection is crucial for maintaining consistent electrical conductivity and preventing intermittent operation or premature failure, particularly in harsh outdoor and mobile environments.
• Comprehensive Kit Inclusion: This product is offered as a retail-packaged kit (model 5626510), which includes not only the 6-inch LED light but also the essential PL-3 plug and a mounting grommet. This "all-in-one" approach simplifies the procurement process for installers and end-users, ensuring all necessary components for a professional, durable, and compliant installation are readily available. The inclusion of the correct plug guarantees electrical compatibility and a secure connection, eliminating the need to source separate, potentially incompatible, components.

Optimized Installation with Included Grommet

The inclusion of a high-quality grommet is integral to the kit's comprehensive design and facilitates an optimal installation. The grommet serves multiple critical functions:

• Secure Sealing: Crafted from durable, weather-resistant rubber or a similar elastomer, the grommet provides a tight, impenetrable seal between the light housing and the vehicle's body panel. This seal is crucial for preventing the ingress of water, dust, dirt, and other environmental contaminants into the vehicle's interior structure, protecting electrical wiring and preventing corrosion.
• Vibration Dampening: Vehicles, especially trucks and trailers, are subject to constant vibrations and shocks. The flexible material of the grommet acts as a vibration isolator, cushioning the light within its mounting aperture. This dampening effect significantly extends the lifespan of the light by protecting its internal components from fatigue and stress-induced damage.
• Ease of Installation: The grommet is designed for a friction fit, allowing for straightforward "push-in" installation. This simplifies the mounting process, eliminating the need for complex fasteners or adhesives, while still providing a remarkably secure hold.
• Aesthetic Finish: Beyond its functional benefits, the grommet also provides a clean, finished appearance around the perimeter of the recessed light, enhancing the overall aesthetic integration with the vehicle.

Target Applications and Operational Reliability

This 6 Inch Red Oval Stop/Turn/Tail Light is purpose-built for a broad spectrum of heavy-duty and commercial applications where safety and reliability are paramount. Its robust design makes it ideal for:

• Commercial Trucks: Class 8 tractors, medium-duty delivery trucks, dump trucks, and vocational vehicles.
• Trailers: Utility trailers, cargo trailers, boat trailers, RV trailers, flatbed trailers, and specialized hauling equipment.
• Agricultural Equipment: Tractors, harvesters, and implements requiring supplementary rear lighting.
• Construction Vehicles: Excavators, loaders, and other off-road machinery.

The light's ability to withstand extreme operating temperatures, resist moisture and road debris, and endure constant vibration ensures consistent operational reliability. This is vital for maintaining compliance, reducing downtime, and ensuring the safety of drivers, cargo, and the public across diverse operational environments.

Unparalleled Assurance: Limited Lifetime Warranty

The Buyers Products 6 Inch Red Oval Stop/Turn/Tail Light is backed by a limited lifetime warranty. This extraordinary commitment underscores the manufacturer's profound confidence in the engineering, material quality, and manufacturing excellence of this product. A limited lifetime warranty signifies a dedication to providing long-term value and support, offering end-users peace of mind regarding their investment. It is a testament to the light's expected durability and performance over the operational life of the vehicle, reinforcing its position as a premium, reliable safety component. This warranty contributes significantly to a reduced total cost of ownership by minimizing potential replacement expenses and demonstrating the manufacturer's commitment to customer satisfaction and product integrity.

Conclusion

In summary, the 6 Inch Red Oval Stop/Turn/Tail Light with 10 LEDs Kit, featuring a PL-3 Connection and complete with a grommet and plug, represents a leading-edge solution for vehicle safety lighting. Its adherence to FMVSS/CMVSS 108 standards, combined with the inherent advantages of advanced 10-LED technology—including superior energy efficiency (0.129A at 12V, 1.55W), exceptional longevity, and enhanced durability—positions it as an indispensable component for modern trucks and trailers. The robust polycarbonate lens and plastic housing ensure resistance to impact, UV degradation, and environmental stressors, while the recessed mount and comprehensive kit facilitate straightforward, secure installation. Supported by a limited lifetime warranty, this light provides not only critical safety functionality but also long-term reliability and value, making it the definitive choice for discerning fleet managers and vehicle owners prioritizing performance, compliance, and peace of mind.
