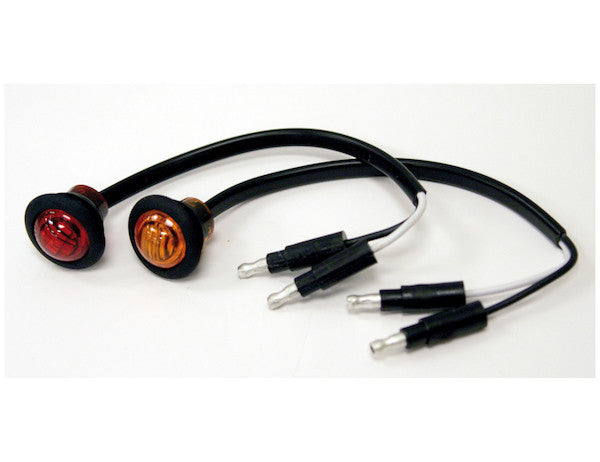

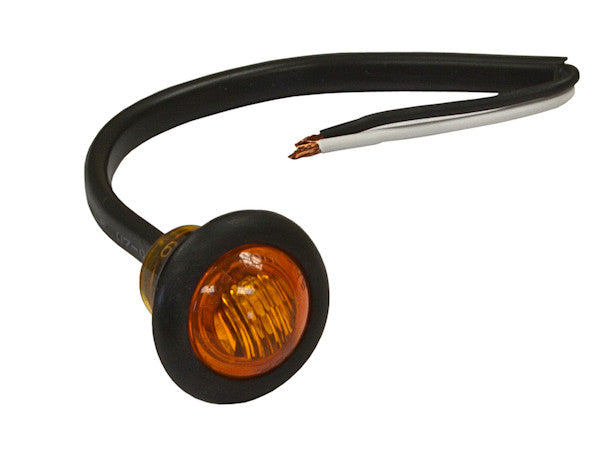

5627523 - .75 Inch Round Marker Clearance Lights - 3 LED Amber With Male Bullets

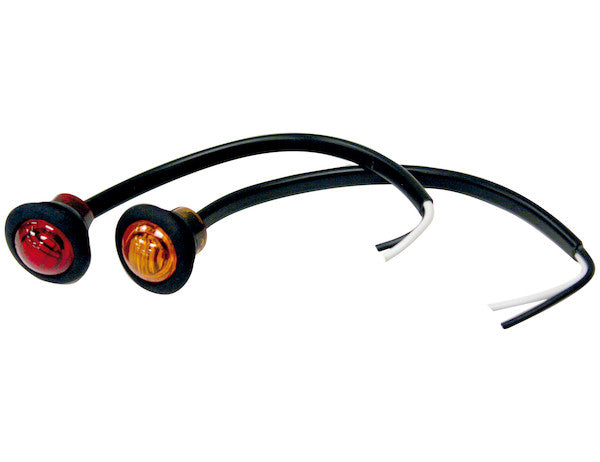

Buyers Products 0.75 Inch Round Marker Clearance Lights with 3 LEDs are used on trucks and trailers to meet FMVSS/CMVSS 108 regulations. The round marker lights are PC rated to produce light at a 90?? angle left and right of center when properly mounted. Lights are available in red or amber and mount with either blunt cut leads or .180 in. male bullet connectors. Lights are available in bulk (sold in multiples of 10) or individually with retail packaging. They are backed with a limited lifetime warranty.

Specifications

Advanced Technical Overview: Buyers Products 0.75 Inch Round Marker Clearance Lights - 3 LED Amber With Male Bullets

The Buyers Products 0.75 Inch Round Marker Clearance Light represents a state-of-the-art solution for enhancing vehicle visibility and ensuring regulatory compliance across a diverse range of commercial and utility applications. Engineered with precision and robust materials, this amber LED light is specifically designed to function as both a marker light and a clearance light, crucial for the safe operation of trucks, trailers, and other large vehicles. Its compact form factor, advanced LED technology, and meticulous adherence to stringent industry standards make it an indispensable component for fleet operators, original equipment manufacturers (OEMs), and individual vehicle owners prioritizing safety and longevity.

Regulatory Compliance: FMVSS/CMVSS 108 Standards and PC Rating

A cornerstone of this product's design is its full compliance with FMVSS/CMVSS 108 regulations. These are federal motor vehicle safety standards in the United States and Canada, respectively, that dictate the requirements for lighting equipment on all vehicles. For marker and clearance lights, these regulations are critical for ensuring that vehicles are adequately visible to other road users, especially during nighttime or adverse weather conditions. Compliance involves specific requirements for light color, intensity, placement, and angle of visibility. The amber color of this light is prescribed for front and side marker/clearance applications, serving as a universal signal for the dimensions and presence of a vehicle.

Crucially, this light is "PC rated." The PC rating (short for "Photometric Category") signifies that the light unit produces an effective light output at a minimum 90-degree angle from both the left and right of its optical center when properly mounted. This wide-angle illumination is paramount for side visibility, allowing other drivers to perceive the vehicle's presence even when approaching from an oblique angle. This broad light dispersion is achieved through sophisticated lens design, often incorporating specialized optics or diffusers to scatter light effectively. For trailers and commercial vehicles, where overall length and width can be substantial, a PC-rated light ensures that the outermost dimensions of the vehicle are clearly delineated, significantly reducing the risk of side-swipe collisions and enhancing overall road safety.

Advanced LED Technology: Efficiency, Durability, and Performance

At the heart of this marker clearance light are three high-efficiency Light Emitting Diodes (LEDs). The adoption of LED technology over traditional incandescent bulbs offers a multitude of technical and operational advantages:

• Superior Energy Efficiency: Operating at 12 Volts, this light exhibits an exceptionally low amp draw of just 0.038A, resulting in a minimal power consumption of 0.46 Watts. This dramatic reduction in power demand, compared to incandescent counterparts, translates directly into decreased strain on the vehicle's electrical system, reduced alternator load, and improved fuel efficiency. For large fleets, these marginal savings per light unit accumulate into significant operational cost reductions over time.
• Extended Lifespan: LEDs are semiconductors, inherently more durable than filament-based incandescent bulbs. They are not susceptible to filament breakage due to vibration or shock, making them ideal for the harsh operating environments of trucks and trailers. The projected operational lifespan of these LEDs far exceeds that of traditional bulbs, often reaching tens of thousands of hours, which drastically reduces maintenance frequency and associated labor costs. This prolonged service life is a key factor in the "limited lifetime warranty" offered, underscoring the manufacturer's confidence in the product's enduring performance.
• Enhanced Durability: Beyond their intrinsic longevity, LEDs are solid-state devices, meaning they have no moving parts or fragile glass envelopes that can break. This makes them highly resistant to impacts, road debris, and thermal shock, ensuring reliable performance in demanding conditions.
• Instant-On Illumination: LEDs illuminate instantly at full brightness, providing immediate visibility, which is a subtle yet critical safety feature, especially in emergency braking situations or signaling maneuvers.
• Consistent Light Output: LED output remains stable over a wide temperature range, ensuring reliable performance in both extreme cold and heat, typical conditions experienced by heavy-duty vehicles.

Material Science and Construction: Engineered for Resilience

The selection of materials for the housing and lens is critical to the light's ability to withstand environmental stressors and maintain optical integrity. Buyers Products has engineered this light with:

• Housing Material (Plastic): The robust plastic housing provides structural integrity and protection for the internal LED components. While the specific type of plastic is not detailed, it is engineered to be weather-resistant, capable of enduring prolonged exposure to UV radiation, moisture, road salt, chemicals, and temperature fluctuations without degradation. This material choice balances durability with manufacturing efficiency, contributing to the product's overall value proposition. The recessed mount design further protects the housing from direct impacts, enhancing its longevity.
• Lens Material (Polycarbonate): The use of polycarbonate for the lens is a deliberate engineering decision based on its superior material properties. Polycarbonate is a thermoplastic polymer renowned for its exceptional impact resistance, often cited as being 250 times stronger than glass and 30 times stronger than acrylic. This resilience is vital for lights exposed to road debris, gravel, and minor collisions. Furthermore, polycarbonate exhibits excellent optical clarity, ensuring maximum light transmission from the LEDs. It is also inherently resistant to yellowing and hazing from UV exposure, maintaining its aesthetic and functional properties over the light's lifespan. The material's high heat resistance also prevents distortion or degradation under continuous operation or intense sunlight. The specific optical properties of the polycarbonate lens are crucial for achieving the PC rating, ensuring uniform light distribution across the required 90-degree angle.

Mounting and Connectivity: Seamless Integration and Reliability

The design of the mounting and connectivity systems focuses on ease of installation, secure attachment, and reliable electrical contact, all critical for commercial vehicle applications:

• Recessed Mount Type: The recessed mounting design provides a sleek, low-profile installation that integrates cleanly into the vehicle's bodywork. This method not only offers an aesthetic advantage by reducing protrusion but also provides significant functional benefits. A recessed light is less susceptible to physical damage from impacts, snags, or pressure washing, thus extending its operational life. It requires a precisely sized cutout in the mounting surface, ensuring a snug fit that minimizes potential ingress points for water or dust.
• Hard-Wired with .180 in. Male Bullet Connectors: The light features a hard-wired connection with two wires, terminating in 0.180 inch male bullet connectors. This wiring configuration is standard for many auxiliary lighting applications in the automotive and trailer industry.
  • Hard-Wired: Ensures a robust and permanent electrical connection, reducing the risk of intermittent faults often associated with removable plugs in high-vibration environments.
  • 2 Wires: Typically, one wire is for power (positive, often black or red) and the other for ground (negative, often white). This straightforward setup simplifies installation and troubleshooting.
  • .180 in. Male Bullet Connectors: These connectors are chosen for their balance of security and modularity. They provide a quick and reliable connection to corresponding female bullet connectors on the vehicle's harness. Their compact size allows for easy routing within tight spaces. While durable, they also facilitate straightforward replacement of the light unit if ever necessary, minimizing downtime for maintenance. The precise diameter ensures a tight, low-resistance electrical contact, vital for consistent light output.

Electrical Specifications and Performance

Detailed electrical specifications affirm the light's compatibility and efficiency:

• Voltage (12 Volts): This light is designed for 12V DC electrical systems, the industry standard for most trucks, trailers, RVs, and light commercial vehicles. This broad compatibility ensures seamless integration without the need for voltage converters or complex wiring modifications.
• Amp Draw at 12 Volts (0.038A): As previously noted, this exceptionally low current draw highlights the high energy efficiency of the LED array. This is particularly advantageous for applications with multiple marker lights, as it collectively reduces the load on the electrical system.
• Wattage (0.46 Watts): The power consumption of less than half a watt is a testament to modern LED technology, delivering ample illumination for regulatory compliance while consuming minimal energy. This directly contributes to the vehicle's overall electrical system health and reduces power drain from the battery, especially when the vehicle is idling or parked.

Application Versatility and Operational Benefits

These 0.75-inch amber LED marker clearance lights are highly versatile, finding application across a wide spectrum of vehicles and industries:

• Commercial Trucks: From long-haul semi-trailers to regional delivery trucks, these lights ensure compliance and enhance the visibility of the vehicle's perimeter, critical for safe maneuvering in various traffic conditions.
• Utility Trailers: Essential for utility, boat, and cargo trailers, providing necessary side and front demarcation, especially important given their often varied dimensions and loads.
• Recreational Vehicles (RVs): Enhancing the safety profile of RVs by clearly marking their extensive length and width, particularly important for driver and passenger safety during travel.
• Specialty Vehicles: Applicable to a range of specialized vehicles requiring additional perimeter lighting.

The choice of amber light is significant as per regulations, clearly distinguishing front and side markers from red rear-facing lights. The compact, round form factor allows for discreet integration while still meeting the photometric requirements, making them suitable for installations where space is at a premium or a minimalist aesthetic is desired.

Quality Assurance and Limited Lifetime Warranty

Buyers Products stands behind the quality and durability of these marker clearance lights with a limited lifetime warranty. This warranty is a strong indicator of the manufacturer's confidence in the product's engineering, material quality, and manufacturing processes. It assures purchasers that the light is designed for long-term reliable operation under typical usage conditions. For commercial operators, this warranty provides peace of mind, knowing that their investment in safety and compliance is protected against manufacturing defects for the operational life of the product, further contributing to a lower total cost of ownership.

Conclusion

The Buyers Products 0.75 Inch Round Marker Clearance Light with 3 Amber LEDs and Male Bullet Connectors is a meticulously engineered lighting solution that excels in performance, durability, and regulatory compliance. Its advanced LED technology offers unparalleled energy efficiency and an extended lifespan, while its robust polycarbonate lens and plastic housing ensure resilience against environmental hazards. The PC rating guarantees wide-angle visibility, a critical safety feature for large vehicles. With its straightforward recessed mounting and reliable bullet connectors, this light offers a seamless integration experience and enduring operational reliability. For any application requiring a compact, high-performance amber marker and clearance light that meets the highest safety standards, this product represents an optimal choice, delivering superior visibility and long-term value.
