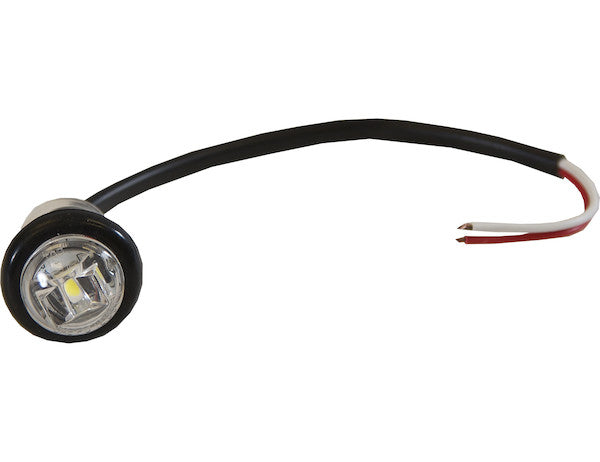

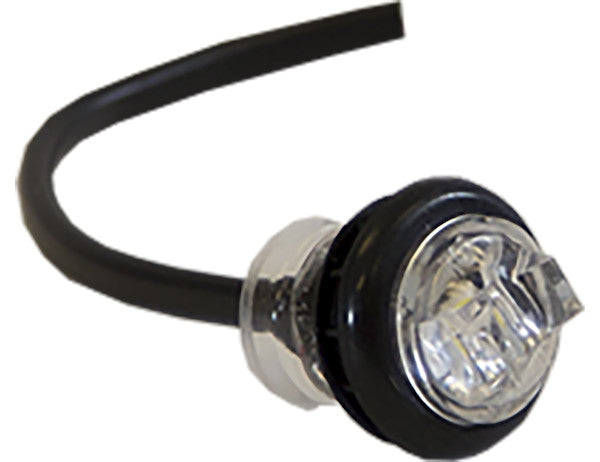

5627532 - 0.75 Inch Round Marker Clearance Lights with 1 LED

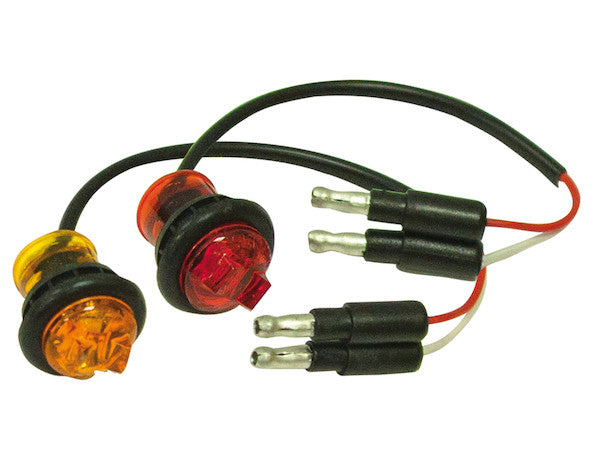

Buyers Products 0.75 Inch Round Marker Clearance Lights with 1 LED are used on trucks and trailers to meet FMVSS/CMVSS 108 regulations. The round marker lights have a single LED and are PC rated to produce a 90?? angle left and right of center when properly mounted. Lights are available in red, clear, or amber with smooth or faceted lenses. They mount with either blunt cut leads or .180 in. male bullet connectors. The clear lights cannot be used as a marker light. Lights are sold in bulk (in multiples of 10) and backed with a limited lifetime warranty.

Specifications

Advanced Technical Overview: Buyers Products 0.75 Inch Round LED Utility Lights - Clear with Stripped Leads

The Buyers Products 0.75 Inch Round LED Light, featuring a single clear LED and stripped leads, represents a highly engineered illumination solution designed for a multitude of utility and auxiliary applications across commercial and heavy-duty vehicles. While part of a product family that includes FMVSS/CMVSS 108 compliant marker and clearance lights, this specific clear variant is distinctively purposed for roles where a white/clear light output is required or permissible, rather than the red or amber hues mandated for exterior marker and clearance functions on vehicles. Its compact form factor, robust construction, and efficient LED technology position it as an optimal choice for discerning fleet operators, original equipment manufacturers (OEMs), and maintenance professionals seeking durable, low-power lighting solutions.

Compliance and Application Nuances

The product line from which this clear light originates is explicitly designed to meet FMVSS (Federal Motor Vehicle Safety Standard) 108 in the United States and CMVSS (Canadian Motor Vehicle Safety Standard) 108 in Canada. These standards govern all aspects of automotive lighting, signaling, and reflective devices, primarily focusing on ensuring vehicle visibility and communication on public roads. However, it is crucial to reiterate the specification that "The clear lights cannot be used as a marker light." This stipulation highlights the specific regulatory requirements for color in vehicle exterior lighting: marker and clearance lights, which indicate the overall width and length of a vehicle, must emit amber light at the front and sides, and red light at the rear and sides. Clear (or white) lights are generally reserved for forward illumination (headlights), backup lights, license plate lights, or internal utility lighting where specific color regulations do not apply or where white light is explicitly permitted.

Therefore, while the underlying design and construction methodologies of this 0.75-inch LED light adhere to the stringent durability and performance expectations set for FMVSS/CMVSS 108 compliant products, its clear output dictates its application as an auxiliary, utility, or task light. Potential applications include, but are not limited to, illuminating toolboxes, interior compartments, steps, engine bays, work areas on service vehicles, or as supplemental courtesy lighting, provided local regulations allow. This distinction is paramount for ensuring both regulatory compliance and optimal operational safety.

Optical Engineering and PC Rating

A significant technical attribute of this light, shared across its colored counterparts, is its PC rating. A PC rating, as defined by FMVSS 108, signifies that a lamp can function as both a clearance and a side marker lamp when properly installed. This is achieved through an engineered optical design that ensures a wide angular visibility. Specifically, a PC rated lamp must provide a minimum of 4 candlepower intensity from 45 degrees left to 45 degrees right of the lamp’s optical axis (a total 90-degree angle), as well as 10 degrees up and 10 degrees down. This broad light dispersion is critical for enhancing vehicle conspicuity from various viewing angles, particularly in complex traffic environments or during turns and lane changes.

For this 0.75-inch round LED, achieving such a wide dispersion from a single LED within a compact lens structure involves sophisticated optical design. The polycarbonate lens material is not merely a protective cover but an integral optical component. Its internal geometry, potentially incorporating fresnel lenses, diffusers, or prisms, is meticulously calculated to refract and scatter the light emitted by the single LED. This manipulation of light ensures that the luminous flux is distributed evenly across the specified 90-degree horizontal and 20-degree vertical viewing angles, preventing hotspots and dead zones in the illumination pattern. The smooth or faceted lens options, while offering aesthetic variations, also play a role in light diffusion characteristics, with faceted lenses typically providing a more uniform spread and reducing glare from a direct point source.

Advanced LED Technology and Efficiency

The integration of a single Light Emitting Diode (LED) as the light source is a cornerstone of this product’s advanced design, offering substantial advantages over traditional incandescent bulbs. LEDs are solid-state semiconductor devices that convert electrical energy directly into light, a process fundamentally more efficient than incandescence, which relies on heating a filament until it glows. This inherent efficiency is demonstrated by the remarkably low power consumption of this unit: an amp draw of only 0.021 Amperes at 12 Volts, equating to a mere 0.25 Watts. Such low power draw significantly reduces the load on a vehicle's electrical system, extending battery life, minimizing strain on alternators, and potentially contributing to marginal fuel economy improvements across an entire fleet.

Beyond efficiency, LEDs offer superior durability and longevity. Unlike incandescent bulbs, which are susceptible to filament breakage from vibration and shock – common occurrences in heavy-duty vehicle operation – LEDs have no moving parts or fragile filaments. This solid-state construction renders them highly resistant to mechanical stress, impacts, and temperature fluctuations, making them exceptionally well-suited for the rigorous environments encountered by trucks and trailers. The projected lifespan of an LED typically far exceeds that of an incandescent bulb, often reaching tens of thousands of hours of operation. This extended operational life dramatically reduces maintenance requirements, bulb replacement frequency, and associated labor costs, leading to a lower total cost of ownership over the vehicle's operational lifespan.

Furthermore, LEDs exhibit faster illumination times compared to incandescent bulbs. They achieve full brightness almost instantaneously, which for signaling applications enhances safety by providing quicker visual cues to other road users. While this clear light is not for signaling, the rapid response can still be beneficial in task lighting, providing immediate illumination without delay.

Robust Construction: Materials and Environmental Resistance

The selection of construction materials for the Buyers Products 0.75 Inch Round LED Light is critical to its performance and resilience in demanding vehicular applications. The housing is constructed from high-grade plastic, chosen for its excellent balance of strength, lightweight properties, and resistance to environmental degradation. Industrial plastics used in automotive lighting are typically engineered for impact resistance, preventing damage from minor collisions or debris. They are also formulated to resist corrosion from road salts, chemicals, and other corrosive agents frequently encountered in transportation environments. UV stabilizers are often incorporated into the plastic compound to prevent material degradation, embrittlement, and color fading when exposed to prolonged sunlight.

The lens, as previously discussed for its optical properties, is made from polycarbonate. Polycarbonate is an outstanding material for automotive lenses due to its exceptional impact strength – it is significantly more resistant to breakage than glass or acrylic. This characteristic is vital for lights exposed to road debris, gravel, or accidental impacts. Beyond its mechanical strength, polycarbonate offers excellent optical clarity, allowing for efficient light transmission. It also possesses inherent UV resistance, preventing yellowing and hazing over time that could compromise light output and appearance. Furthermore, polycarbonate exhibits good temperature stability, maintaining its structural and optical integrity across a wide range of operating temperatures typical of vehicle applications, from extreme cold to intense heat.

The sealed design, while not explicitly detailing an IP (Ingress Protection) rating, is implied by its application on trucks and trailers. Proper sealing prevents the ingress of dust, moisture, and other contaminants into the light assembly, which could otherwise compromise electrical connections, lead to corrosion, or fog the lens. This robust sealing capability ensures consistent performance and longevity even when exposed to harsh weather conditions, pressure washing, or immersion.

Mounting and Electrical Interfacing

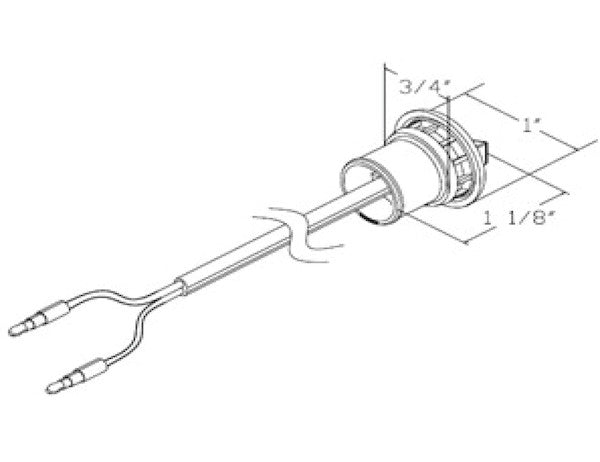

The specified "Recessed" mount type for this light offers several functional and aesthetic advantages. Recessed mounting integrates the light flush or nearly flush with the vehicle's surface, resulting in a clean, low-profile appearance. This design minimizes protrusion, reducing the risk of accidental damage from impact or snagging during vehicle operation or cargo handling. A secure recessed mount also typically involves a rubber grommet or a comparable sealing mechanism, which not only aids in holding the light firmly in place but also provides an additional barrier against moisture and vibration. Installation usually requires a precisely sized cut-out in the mounting surface, ensuring a tight and secure fit that prevents movement and maintains the integrity of the vehicle's bodywork.

Electrical connectivity is facilitated via a "Hard Wired" system with "Blunt Cut" leads, also known as stripped leads. This method of connection provides maximum flexibility for installers to integrate the light into existing vehicle wiring harnesses. The two wires (standard for positive and negative connections in a simple DC circuit) are typically color-coded for ease of identification. Blunt cut leads allow for various termination methods, including soldering for a permanent and highly reliable connection, crimping with appropriate connectors (e.g., butt connectors, spade terminals) for robust mechanical and electrical integrity, or splicing into a harness using weather-pack connectors for environmental sealing. The use of heat-shrink tubing over connections is highly recommended in vehicular environments to protect against moisture, corrosion, and abrasion, thereby ensuring the long-term reliability of the electrical circuit. This hard-wired approach eliminates potential failure points associated with removable plugs or connectors that might vibrate loose or corrode over time, offering a more robust and permanent solution for critical lighting systems.

Electrical Specifications and System Compatibility

Operating at a nominal 12 Volts, this LED utility light is fully compatible with the standard electrical systems found in the vast majority of commercial trucks, trailers, recreational vehicles, and light-duty work vehicles. The extremely low amp draw of 0.021A and wattage of 0.25W are significant technical advantages. In a large fleet application, where numerous such lights might be installed across multiple vehicles, the cumulative power demand remains minimal. This characteristic is particularly beneficial for vehicles with complex electrical systems or those relying on auxiliary battery banks, as it reduces overall energy consumption and extends the operational life of power sources. The minimal electrical load also reduces the thermal stress on wiring and associated components, further enhancing the reliability and longevity of the vehicle's electrical infrastructure.

While not specified, the internal circuitry of LED lights like this typically includes current-limiting resistors and potentially voltage regulation to ensure the LED operates within its optimal electrical parameters, protecting it from minor voltage fluctuations inherent in vehicle electrical systems and contributing to its consistent performance and extended lifespan.

Quality Assurance and Commercial Considerations

The offering of a limited lifetime warranty underscores the manufacturer's profound confidence in the engineering, material quality, and manufacturing precision of these 0.75-inch round LED lights. A lifetime warranty in this context typically covers defects in materials and workmanship for the reasonable lifespan of the product, providing substantial assurance to fleet managers and owner-operators regarding their investment. This commitment to long-term reliability translates directly into reduced downtime for maintenance and associated operational costs, reinforcing the product's value proposition.

Furthermore, the availability of these lights in bulk (multiples of 10) caters directly to the operational models of large fleets, trailer manufacturers, and service centers. Bulk purchasing streamlines procurement processes, ensures consistent supply for large-scale installations or replacements, and often results in cost efficiencies per unit. This commercial strategy is aligned with supporting high-volume usage and providing scalable lighting solutions for the transportation industry.

Conclusion

The Buyers Products 0.75 Inch Round LED Light with a clear lens and stripped leads is a testament to sophisticated design and robust engineering, purpose-built for auxiliary and utility lighting applications on commercial vehicles. Its compact size, combined with the significant advantages of LED technology – including ultra-low power consumption, superior durability against vibration and shock, and an extended operational lifespan – makes it an economically sound choice for fleet operations prioritizing reliability and reduced maintenance. While its clear output precludes its use as an FMVSS/CMVSS 108 compliant marker or clearance lamp, its PC rating ensures exceptional optical performance for broad visibility in its intended utility roles. Constructed with impact-resistant plastic housing and a virtually indestructible polycarbonate lens, and secured with a recessed mount and hard-wired connections, this light is engineered to withstand the harshest environmental and operational conditions. Backed by a limited lifetime warranty and available in bulk, it represents a professional-grade lighting solution that delivers enduring value, consistent performance, and contributes to the overall operational efficiency and safety support for a diverse range of heavy-duty vehicular applications.
