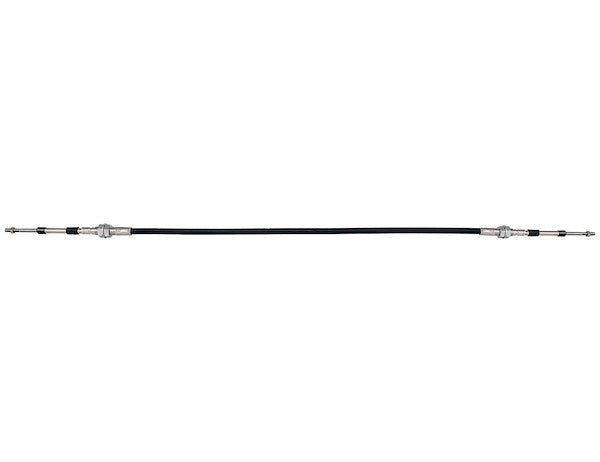

The 6200 Series Universal Mount Control Cable from Buyers Products is a push-pull style cable for heavier duty PTO and hoist applications. With an 10 in. minimum bend radius and a 110-200 lb load range, the cable is a flexible choice for many jobs. All cables include bulkhead nuts and washers for fast and easy connectivity.
Specifications
| Conduit Color | Black |
| End Type | Rod |
| Conduit Diameter (in.) | .51 " |
| Bulkhead Thread Size | 11/16-16 " |
| Cable Diameter (in.) | 0.188 " |
| Total Travel (in.) | 3 " |
| Cable Series | 6200 Series |
| Rod End Thread Size | 5/16-24 " |
| Conduit Material | PVC |
| Cable Core Material | Stainless Steel |
| Cable Length (in.) | 120 " |
Advanced Technical Overview: 120 Inch 6200 Series Universal Mount Control Cable – Precision Engineering for Demanding Applications
The Buyers Products 120 Inch 6200 Series Universal Mount Control Cable represents a pinnacle of mechanical control system engineering, designed for unparalleled reliability and precision in the most arduous industrial and commercial environments. This robust push-pull control cable is specifically developed to meet the rigorous demands of heavy-duty Power Take-Off (PTO) and hoist applications, where dependable, consistent force transmission is not merely a convenience, but a critical operational necessity. Its 120-inch length provides extensive reach, accommodating complex routing requirements within diverse vehicle and equipment architectures, ensuring seamless integration and optimal performance across a wide array of machinery.
At its core, the 6200 Series embodies a commitment to durability and operational efficiency. The push-pull mechanism offers a direct and positive method of force transfer, enabling operators to precisely control auxiliary functions with minimal effort and maximum responsiveness. This system is inherently superior to purely hydraulic or electrical controls in certain contexts, offering mechanical feedback, simplicity in design, and often greater resilience to environmental factors such as extreme temperatures or electromagnetic interference. The "universal mount" designation underscores its versatile design, allowing for broad compatibility and simplified installation across various platforms, thereby reducing inventory complexity and streamlining maintenance procedures for fleet operators and equipment manufacturers alike.
Design Philosophy and Core Engineering Principles
The engineering philosophy behind the 6200 Series Universal Mount Control Cable centers on achieving maximal operational integrity through a combination of superior material selection, precision manufacturing, and thoughtful design. The push-pull configuration is chosen for its inherent mechanical advantages: it provides positive engagement in both directions of travel, ensuring that the connected mechanism is moved definitively to its desired position, whether activating a PTO, engaging a hoist, or manipulating other critical functions. This bilateral action minimizes backlash and play, contributing to a highly responsive and accurate control experience.
The "universal mount" aspect is a key differentiator, signifying a design that anticipates and accommodates a broad spectrum of installation scenarios. This universality is primarily facilitated by the inclusion of standard bulkhead nuts and washers, combined with the robust rod end termination. The 11/16-16" bulkhead thread size is an industry-standard dimension, ensuring compatibility with common panel thicknesses and mounting points found in commercial vehicles and industrial equipment. This standardized mounting hardware significantly reduces custom fabrication requirements, translating into faster installation times and increased operational uptime for equipment. The entire system is engineered for adaptability, allowing the cable to be routed efficiently through chassis frames, cab walls, or machine housings, irrespective of the specific OEM layout, making it a truly versatile solution for both new installations and aftermarket upgrades.
Material Science and Structural Integrity
The exceptional performance characteristics of the 6200 Series cable are directly attributable to its meticulously selected materials and robust construction. Each component is chosen for its specific properties that contribute to the cable's overall durability, functionality, and longevity in demanding applications.
Cable Core Material: Stainless Steel (0.188" Diameter)
The heart of this control cable is its high-grade stainless steel core, measuring 0.188 inches in diameter. Stainless steel is chosen for its superior mechanical properties and inherent resistance to corrosion, which is critical in environments exposed to moisture, road salts, chemicals, and varying temperatures. Specifically, austenitic stainless steel alloys, such as AISI 302 or 304, are commonly employed for cable cores due to their excellent tensile strength, ductility, and fatigue resistance. These properties ensure that the cable can withstand repeated tensile and compressive forces associated with push-pull operations over its extensive service life without yielding, stretching excessively, or succumbing to material fatigue. The cold-drawing process used in manufacturing the stainless steel wire further enhances its mechanical strength and surface finish, reducing internal friction and promoting smoother operation.
Conduit Material: PVC (0.51" Diameter, Black Color)
Encasing the stainless steel core is a robust conduit constructed from high-quality Polyvinyl Chloride (PVC), with an outside diameter of 0.51 inches. The PVC conduit serves multiple critical functions: it provides a low-friction pathway for the cable core, protecting it from external contaminants (dirt, dust, moisture) and physical abrasion. PVC is an ideal material for this application due to its excellent chemical resistance, flexibility, and resistance to UV degradation, particularly with the inclusion of appropriate additives. The black color often indicates the presence of UV stabilizers, enhancing the conduit's longevity when exposed to sunlight. Furthermore, PVC maintains its flexibility across a broad temperature range, ensuring consistent performance from frigid winter conditions to scorching summer heat. The substantial 0.51-inch diameter of the conduit contributes significantly to the cable's overall rigidity and protective capabilities, preventing kinking and ensuring the internal integrity of the control wire even under strenuous operating conditions.
End Type: Rod End (5/16-24" Thread Size)
The cable terminates with a robust rod end, featuring a 5/16-24" thread size. Rod ends are specifically engineered for their ability to accommodate angular misalignment, making them ideal for connecting to levers, pedals, or other actuating mechanisms that may not move in a perfectly linear path. This design minimizes side loading on the cable core and conduit, thereby extending the life of the entire assembly and ensuring smooth, binding-free operation. The 5/16-24" thread is a standard fine-thread dimension, ensuring secure and precise attachment to a wide range of corresponding linkage components, providing a strong, vibration-resistant connection point for effective force transfer.
Bulkhead Thread Size: 11/16-16"
The provision of bulkhead nuts and washers, with a thread size of 11/16-16", facilitates a secure and straightforward mounting of the cable through vehicle chassis or paneling. This robust thread size ensures a strong mechanical connection, resisting vibrations and preventing rotational movement of the conduit at the mounting point. The bulkhead design effectively seals the penetration, protecting the internal components from environmental ingress and maintaining the integrity of the control system.
Performance Characteristics and Operational Dynamics
The 6200 Series Universal Mount Control Cable is engineered to deliver specific performance metrics that ensure its suitability for heavy-duty applications. Understanding these characteristics is crucial for proper application and installation.
Load Range: 110-200 lb
This specified load range denotes the cable's capacity for sustained force transmission. A 110-200 lb load range is indicative of a robust cable designed for medium to heavy-duty actuation requirements. This means the cable can consistently and reliably transmit forces up to 200 pounds in a push-pull manner. This capability is essential for engaging and disengaging clutches, operating large valves, or controlling hydraulic pumps typical in PTO and hoist systems. The range accounts for both the static force required to move a mechanism and the dynamic forces encountered during operation, often with a significant safety factor built into the design to prevent failure under peak stresses.
Total Travel: 3 inches
The total travel of 3 inches defines the effective stroke length of the cable. This specification is critical as it dictates the maximum linear displacement the cable can impart to the connected mechanism. For many PTO engagement levers, hoist control valves, or throttle bodies, a 3-inch travel provides the ideal range for full actuation, ensuring complete engagement or disengagement without over-travel or insufficient movement. Precision in this travel distance ensures that the controlled component operates within its optimal limits, preventing premature wear or functional impairment.
Minimum Bend Radius: 10 inches
The 10-inch minimum bend radius is a crucial design and installation parameter. It specifies the smallest radius an installer can bend the cable without causing internal damage, increasing friction, or compromising the cable's operational longevity. Adhering to this minimum bend radius is paramount; exceeding it can lead to kinking of the core, increased internal friction within the conduit, premature wear of the inner liner, and a significant reduction in the cable's service life and operational smoothness. A larger minimum bend radius, like the 10 inches specified, indicates a cable designed for durability and low-friction operation, allowing for smoother force transmission and reduced operator fatigue over its lifespan.
Operational Efficiency and Friction Management
Beyond the stated specifications, the 6200 Series is designed for high operational efficiency. The combination of a polished stainless steel core and a low-friction PVC conduit liner ensures minimal resistance during cable movement. This translates into less effort required from the operator, reduced wear on the internal components, and more precise control over the actuated mechanism. The meticulous manufacturing processes ensure tight tolerances, which further contribute to smooth, consistent operation without binding or excessive play.
Advanced Applications and Industry Relevance
The 120 Inch 6200 Series Universal Mount Control Cable is an indispensable component in a multitude of heavy-duty industrial and commercial applications, where reliable mechanical control is non-negotiable.
Power Take-Off (PTO) Systems: One of its primary applications is in PTO systems found on vocational trucks, such as dump trucks, refuse vehicles, utility trucks, and fire apparatus. PTOs divert engine power to operate auxiliary equipment like hydraulic pumps for lift gates, plows, cranes, or compactors. The 6200 Series cable provides the critical link for engaging and disengaging these systems, offering positive feedback and robust operation under continuous use.
Hoist Applications: This cable is ideally suited for controlling various hoist mechanisms, including winches, material handling systems on service trucks, and small crane operations. Its 110-200 lb load capacity ensures it can reliably actuate the control valves or clutches associated with lifting and lowering operations, contributing to safe and efficient material handling.
Commercial Vehicle Controls: Beyond PTOs and hoists, the 6200 Series cable finds extensive use in other critical control functions within heavy-duty commercial vehicles. This can include throttle control for industrial engines, clutch engagement mechanisms in specialized transmissions, or even heavy-duty shift linkages where precise, positive engagement is required.
Agricultural and Construction Equipment: Tractors, excavators, skid steers, and other heavy machinery often rely on robust mechanical cables for controlling implements, hydraulic functions, and engine speed. The environmental resilience of the stainless steel core and PVC conduit makes this cable particularly well-suited for the harsh conditions prevalent in agricultural and construction environments, including exposure to dirt, mud, water, and varying temperatures.
Marine and Utility Applications: Given its stainless steel core, the 6200 Series is also a viable solution for marine applications where saltwater corrosion resistance is paramount. Furthermore, in general utility and industrial machinery, wherever a durable, long-reach push-pull control is needed for a load within its specified range, this cable provides an optimal solution.
Installation Best Practices and Longevity
While the 6200 Series cable is designed for "fast and easy connectivity," adherence to best installation practices is crucial to maximize its operational lifespan and ensure peak performance. Proper installation mitigates potential issues such as excessive friction, binding, or premature wear, thereby preserving the cable's integrity and extending its service life.
Routing Considerations: The 120-inch length provides flexibility, but careful routing is essential. Always respect the 10-inch minimum bend radius. Avoid sharp corners, kinks, or tight bends that can damage the conduit or core. Plan the path to be as straight as possible, with smooth, gradual curves. Utilize existing frame openings and avoid routing near sharp edges, moving parts, or extreme heat sources like exhaust manifolds.
Secure Mounting: The included bulkhead nuts and washers should be securely tightened to anchor the conduit firmly at the mounting points. This prevents vibration-induced damage and ensures stable operation. The rod end should be connected to the actuated mechanism using appropriate clevis pins or bolts, ensuring full range of motion without binding at the connection point.
Protection from Abrasion and Pinch Points: While the PVC conduit offers significant protection, it is advisable to use additional protective sleeves or conduits in areas of high abrasion or where the cable might be pinched or crushed. Inspect the entire run for potential interference points after installation and during routine maintenance.
Minimal Maintenance: Due to its robust construction and high-quality materials, the 6200 Series cable is largely maintenance-free. However, periodic inspection of the cable for signs of wear, abrasion, or damage, particularly at the connection points and bulkhead, is recommended. Ensure that all mounting hardware remains tight and that the cable moves freely throughout its 3-inch total travel. Addressing any issues promptly can prevent larger failures and prolong the cable's operational life.
Conclusion
The 120 Inch 6200 Series Universal Mount Control Cable from Buyers Products stands as an exemplary product in the realm of mechanical control systems. Its meticulously engineered design, encompassing a durable stainless steel core, protective PVC conduit, and robust rod end and bulkhead terminations, delivers unparalleled reliability and performance. With a significant 110-200 lb load range, a practical 3-inch total travel, and a critical 10-inch minimum bend radius, this cable is precisely tailored for the demanding requirements of heavy-duty PTO and hoist applications, as well as a broad spectrum of commercial, agricultural, and construction machinery. Its "universal mount" design simplifies integration, while the overall construction emphasizes longevity and operational consistency in harsh environments.
For fleet managers, equipment manufacturers, and maintenance professionals, choosing the 6200 Series means investing in a control solution that minimizes downtime, enhances operator control, and ensures the safe and efficient operation of vital auxiliary functions. Buyers Products' commitment to quality and engineering excellence is clearly evident in every aspect of this heavy-duty control cable, making it a superior choice for any application requiring precise, robust, and reliable mechanical force transmission over an extended length.
