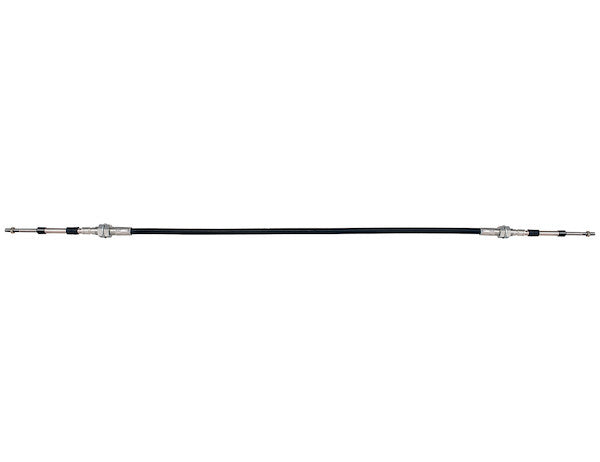

6203BBU144 - 144 Inch 6200 Series Universal Mount Control Cable

The 6200 Series Universal Mount Control Cable from Buyers Products is a push-pull style cable for heavier duty PTO and hoist applications. With an 10 in. minimum bend radius and a 110-200 lb load range, the cable is a flexible choice for many jobs. All cables include bulkhead nuts and washers for fast and easy connectivity.

Specifications

The 144-inch 6200 Series Universal Mount Control Cable represents a pinnacle of mechanical control system engineering, specifically designed by Buyers Products to meet the rigorous demands of heavy-duty industrial and mobile applications. This push-pull style cable system is engineered for precision, durability, and reliability, making it an indispensable component for critical functions such as Power Take-Off (PTO) engagement/disengagement and hoist control mechanisms. Its robust construction and meticulously selected materials ensure consistent performance across diverse operating environments and demanding duty cycles.

At the core of this control cable's design is the push-pull mechanical principle, a highly effective method for transmitting force and motion over a distance. Unlike traditional cable-and-pulley systems or purely hydraulic/pneumatic controls, the push-pull cable offers a direct, responsive, and tactile control experience. The internal wire core is designed to both transmit tensile force (pulling) and compressive force (pushing) efficiently through a protective outer conduit. This bidirectional force transmission is crucial for applications requiring positive engagement and disengagement, or precise modulation of a controlled element. The inherent simplicity of the push-pull design contributes to its reliability, reducing the number of potential failure points associated with more complex systems. Its mechanical nature also provides a degree of feedback to the operator, allowing for more intuitive and controlled actuation, particularly beneficial in applications where fine control is necessary.

The 6200 Series designation by Buyers Products signifies a commitment to heavy-duty performance. This series is engineered to withstand significant operational stresses, characterized by a substantial load range of 110 to 200 pounds. This specified load range is a critical parameter, indicating the continuous working force that the cable can reliably transmit without undergoing premature fatigue or permanent deformation. The engineering for this capacity involves a careful balance of core wire diameter, material tensile strength, and conduit rigidity, ensuring that the cable maintains its structural integrity and operational precision under continuous loading. For PTO and hoist applications, which frequently involve engaging heavy machinery or lifting substantial loads, this load rating is paramount for both operational efficiency and safety. The cable is designed to provide robust control, preventing slippage or unwanted disengagement even when subjected to the dynamic forces inherent in these demanding operations.

One of the defining features contributing to the cable's versatility and ease of installation is its universal mount design. This implies that the cable system is engineered with flexible mounting options, typically featuring a standardized bulkhead fitting that allows for secure attachment through a panel or bracket. The inclusion of bulkhead nuts and washers with every cable streamlines the installation process, ensuring a stable and secure connection point. The bulkhead thread size of 11/16-16 inches is a common industrial standard, facilitating compatibility with a wide array of existing mounting hardware and application requirements. This standardization simplifies integration into diverse vehicle chassis, equipment frames, or control panels, minimizing the need for custom fabrication and reducing installation time and complexity. The secure fastening provided by the bulkhead assembly ensures that the cable remains firmly anchored, preventing unwanted movement or dislodgement that could compromise control efficacy or cable longevity.

The cable's impressive length of 144 inches (equivalent to 12 feet) offers substantial flexibility in routing, accommodating installations on larger vehicles, extensive machinery, or applications where the control point is situated a considerable distance from the actuated mechanism. This generous length is particularly advantageous in commercial trucks, construction equipment, agricultural machinery, and marine vessels, where engine compartments, chassis structures, and control cabins can be widely separated. Careful consideration of routing paths is essential for maximizing cable performance and lifespan, particularly regarding the minimum bend radius. The 144-inch length provides the necessary allowance for navigating complex structural layouts while adhering to the specified bend radius requirements, thus preventing undue stress on the cable core and conduit.

Material selection is a cornerstone of the 6200 Series' robust performance. The outer conduit, which provides critical protection and acts as a reaction member for the push-pull action, is constructed from durable PVC (Polyvinyl Chloride). PVC is an excellent choice for this application due to its combination of flexibility, chemical resistance, and environmental stability. The black color of the conduit is not merely aesthetic; it often indicates the incorporation of UV inhibitors, enhancing the material's resistance to degradation from prolonged exposure to sunlight. With a conduit diameter of 0.51 inches, the PVC sheathing offers substantial mechanical protection to the internal core against abrasion, impacts, and contaminants such such as dirt, dust, and moisture. The smooth internal bore of the conduit, often enhanced with an internal liner or lubrication, facilitates low-friction movement of the core wire, ensuring smooth and consistent operation throughout the cable's service life. PVC also exhibits good resistance to common automotive and industrial fluids, including oils, greases, and mild solvents, which is crucial in demanding operational environments.

The operational heart of the control cable is its core material, which is precision-engineered from stainless steel. Stainless steel is chosen for its superior corrosion resistance, high tensile strength, and excellent fatigue life. In environments exposed to moisture, road salts, chemicals, or varying temperatures, stainless steel significantly outperforms carbon steel alternatives by resisting rust and degradation, thereby preserving the cable's strength and smooth operation over time. The cable diameter of 0.188 inches refers to the multi-strand core, which is typically constructed from multiple smaller wires braided or twisted together to form a highly flexible yet strong assembly. This stranded construction is critical for achieving the specified minimum bend radius of 10 inches without inducing permanent kinking or stressing individual wire strands beyond their elastic limits. The use of stainless steel also contributes to the consistent force transmission across the cable's length, ensuring that the intended control action is accurately and reliably translated from the input to the output.

The minimum bend radius of 10 inches is a crucial specification for proper installation and long-term performance. This parameter defines the tightest curve the cable can form without damaging its internal core or outer conduit, or significantly increasing the friction within the system. Exceeding this limit can lead to increased operational effort, premature wear, kinking of the core wire, or even catastrophic failure. When routing the 144-inch cable, installers must meticulously adhere to this guideline to ensure optimal flexibility, smooth operation, and extended cable life. Proper routing also minimizes stress concentrations at the points of connection, further enhancing the overall durability of the control system. The flexibility implied by this bend radius, combined with the significant length, allows for complex routing paths within confined or structurally intricate machinery, enabling effective control system integration where direct linear connections are not feasible.

The total travel of the cable is specified as 3 inches. This refers to the maximum linear displacement that the cable core can achieve from its fully retracted to its fully extended position. For control applications, the total travel directly dictates the range of motion or actuation distance available for the controlled component. For PTO systems, this 3-inch travel is typically sufficient to fully engage and disengage clutches or gearboxes. For hoist applications, it provides the necessary stroke for activating braking mechanisms, directional valves, or other critical operational elements. This precise travel distance is a key design consideration, ensuring that the cable provides adequate throw for the intended function without excessive movement that could lead to imprecise control or mechanical binding. The engineering of the cable system, from its core construction to its end fittings, is optimized to deliver this consistent and reliable 3-inch travel over its entire operational lifespan.

The end type of the cable is a rod end, featuring a 5/16-24 inch rod end thread size. Rod ends are mechanical articulating joints that are highly effective for connecting the control cable to levers, pedals, or actuated mechanisms. They provide a sturdy, pivotable connection that can accommodate minor misalignments in the control linkage, reducing side loads on the cable and ensuring smooth, bind-free operation. The 5/16-24 thread size is a standard fine-pitch thread, commonly used in industrial and automotive applications for its strength and precise adjustability. This standardization facilitates easy integration with various control levers, bell cranks, or other mechanical interfaces. The robust construction of the rod end, often made from hardened steel, ensures it can withstand the repetitive push-pull forces and dynamic stresses associated with heavy-duty operations. The ability to precisely adjust the linkage length via the threaded rod end is crucial for fine-tuning the control system, ensuring accurate engagement and disengagement points, and compensating for wear over time.

Applications for the 144-inch 6200 Series Universal Mount Control Cable extend far beyond just PTOs and hoists, although these represent its primary and most demanding use cases. In the context of PTOs, which are essential for powering auxiliary equipment on commercial vehicles (e.g., dump trucks, refuse vehicles, utility trucks) and agricultural machinery (e.g., tractors operating balers, sprayers), the cable provides a direct and reliable means of engaging and disengaging the power transfer. Its heavy-duty load range ensures positive engagement even against stiff clutch mechanisms or hydraulic pump demands. For hoist systems, common in cranes, winches, and lifting equipment, this cable facilitates precise control over brake release, motor engagement, or directional valve actuation. The mechanical linkage offers a tactile feel that operators often prefer for critical lifting operations, contributing to enhanced safety and operational control. Beyond these, the cable is well-suited for throttle control on industrial engines, transmission shifting in heavy equipment, remote valve actuation in process control, and any other heavy-duty application requiring robust, reliable, and precise mechanical push-pull control over a considerable distance.

The commitment of Buyers Products to quality is reflected in the engineering and manufacturing standards applied to the 6200 Series cable. Each component, from the stainless steel core to the PVC conduit and the robust end fittings, undergoes stringent material selection and manufacturing processes to ensure it meets the specified performance criteria. This dedication translates into a product that offers exceptional longevity and minimizes the need for premature replacement, reducing downtime and maintenance costs for end-users. The cable is designed to provide consistent performance over thousands of operational cycles, maintaining its smooth action and specified travel without significant degradation. Regular inspection and adherence to recommended maintenance practices, such as ensuring proper routing and preventing external damage, will further extend the service life of this already durable control cable.

In conclusion, the 144-inch 6200 Series Universal Mount Control Cable from Buyers Products is a meticulously engineered solution for demanding mechanical control applications. Its integration of a heavy-duty push-pull design, robust stainless steel core, protective PVC conduit, and standardized mounting hardware, all specified to exacting dimensions and performance parameters (110-200 lb load range, 10-inch minimum bend radius, 3-inch travel), establishes it as a superior choice. This cable is specifically tailored to provide reliable, precise, and durable control for critical functions such as PTO activation and hoist operations across a wide spectrum of heavy-duty vehicles and industrial machinery, ensuring operational efficiency and safety in the most challenging environments.
