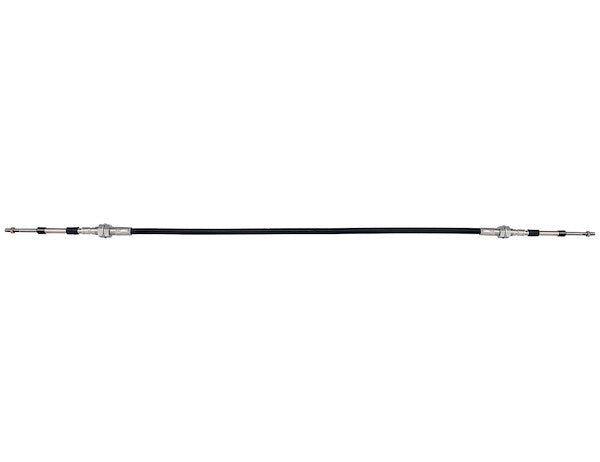

6203BBU216 - 216 Inch 6200 Series Universal Mount Control Cable

The 6200 Series Universal Mount Control Cable from Buyers Products is a push-pull style cable for heavier duty PTO and hoist applications. With an 10 in. minimum bend radius and a 110-200 lb load range, the cable is a flexible choice for many jobs. All cables include bulkhead nuts and washers for fast and easy connectivity.

Specifications

Advanced Technical Overview: 216-Inch 6200 Series Universal Mount Control Cable

The 216-inch 6200 Series Universal Mount Control Cable, manufactured by Buyers Products, represents a robust and highly engineered solution for demanding mechanical control applications. Designed specifically for heavy-duty operational environments, this push-pull style cable excels in power take-off (PTO) and hoist systems where reliability, precision, and durability are paramount. Its universal mount design facilitates broad compatibility across a spectrum of industrial, commercial, and agricultural machinery, making it an invaluable component for system integrators and maintenance professionals.

Core Design and Engineering Principles

At the heart of the 6200 Series control cable is a meticulous design philosophy focused on delivering optimal performance under strenuous conditions. The push-pull mechanism, a fundamental aspect of its operation, allows for precise bidirectional control, translating linear input force into corresponding linear output motion. This capability is critical for engaging and disengaging PTO units, controlling hoist mechanisms, and managing other critical functions that require positive engagement and disengagement.

The cable’s impressive 216-inch (18-foot) length offers significant versatility in routing, enabling installations in vehicles and machinery where control points are geographically separated from the actuated components. This extended length, coupled with a minimum bend radius of 10 inches, underscores its flexibility, allowing for complex routing paths while minimizing the risk of kinking, binding, or premature wear. The ability to accommodate tight bends without compromising operational efficiency or cable integrity is a key advantage in space-constrained applications, reducing installation complexity and improving overall system design.

Performance Characteristics and Load Capacity

A defining characteristic of the 6200 Series cable is its substantial load range, specified between 110 and 200 pounds. This impressive capacity positions it firmly within the heavy-duty category, suitable for applications involving significant mechanical resistance or requiring substantial force transmission. The design ensures consistent and reliable performance across this load spectrum, maintaining smooth operation and minimizing hysteresis. This robust load-bearing capability is directly attributable to the selection of high-grade materials and precision manufacturing processes.

The total travel of the cable is 3 inches, providing sufficient displacement for the typical engagement and disengagement cycles of PTOs, hoist brake releases, or other actuated systems. This travel distance is optimized to provide definitive control without excessive operator input, striking a balance between responsive actuation and controlled movement. The precise 3-inch travel ensures that the full range of motion required by the controlled mechanism can be achieved reliably and repeatedly.

Material Science and Construction

Cable Core: Stainless Steel for Maximum Durability

The integrity and longevity of any control cable are heavily dependent on its core material. For the 6200 Series, the cable core is constructed from high-grade stainless steel. This material choice is deliberate and offers several critical advantages:

• Corrosion Resistance: Stainless steel provides exceptional resistance to rust and corrosion, vital in environments exposed to moisture, road salts, chemicals, or abrasive contaminants. This extends the operational life of the cable, particularly in outdoor, marine, or industrial settings.
• High Tensile Strength: Stainless steel exhibits superior tensile strength, enabling the cable to withstand significant pulling and pushing forces without stretching, breaking, or deforming. This directly contributes to the 110-200 lb load range.
• Fatigue Resistance: The material’s inherent resistance to fatigue ensures consistent performance over millions of operational cycles, crucial for systems that undergo frequent actuation.
• Smooth Operation: The polished surface of stainless steel, combined with appropriate lubrication within the conduit, ensures minimal friction, contributing to the cable’s smooth push-pull action.

Conduit System: PVC for Protection and Flexibility

The cable core is housed within a robust conduit system, integral to protecting the core and guiding its movement. The conduit material selected for the 6200 Series is PVC (Polyvinyl Chloride), a widely recognized polymer for its protective qualities and adaptability:

• External Protection: The black PVC conduit acts as a primary barrier, shielding the stainless steel core from physical abrasion, impact damage, dust, dirt, and moisture ingress.
• Flexibility: PVC’s inherent flexibility complements the cable’s 10-inch minimum bend radius, allowing for smooth bending without kinking or compromising the internal cable's movement.
• Chemical Resistance: PVC offers good resistance to various chemicals, oils, and greases commonly encountered in automotive and industrial applications, further enhancing the cable’s durability.
• Thermal Stability: While PVC has limitations at extreme temperatures, it provides adequate performance across typical operational temperature ranges for most heavy-duty applications.
• Low Friction Liner: Internally, the conduit is often lined with a low-friction polymer, facilitating the smooth glide of the stainless steel core and reducing operational effort.

The conduit diameter is specified at 0.51 inches, providing a robust housing that balances protection with flexibility, while the cable diameter is 0.188 inches. This precise sizing ensures optimal clearance and minimizes internal friction, contributing to the cable’s smooth operation and extended lifespan.

Connectivity and Installation

Ease of installation and secure connectivity are critical considerations in product design. The 6200 Series addresses these aspects through thoughtful engineering:

• Bulkhead Nuts and Washers: Each cable is supplied with pre-installed bulkhead nuts and washers. These components are essential for securely mounting the cable conduit to chassis walls, control panels, or mounting brackets. The 11/16-16 inch bulkhead thread size provides a robust and standardized connection point, ensuring a strong mechanical interface that resists vibration and tension. The washers help distribute the clamping force, preventing damage to the mounting surface and enhancing the stability of the connection.
• Rod End Termination: The cable features a rod end type termination. This design typically involves a threaded rod or clevis-style end, which can be directly attached to levers, pedals, or other mechanical linkages. The rod end thread size of 5/16-24 inches is a standard imperial thread, facilitating compatibility with a wide array of existing hardware and attachment points. This standardization simplifies integration into diverse mechanical systems, reducing the need for custom adapters and streamlining installation.
• Universal Mount: The "Universal Mount" designation signifies that the cable is designed with common mounting dimensions and termination styles to be adaptable to a broad range of equipment. This reduces complexity for users by offering a versatile solution that can be applied across different makes and models of machinery, without requiring highly specialized components.

Applications and Operational Context

The 216-inch 6200 Series Universal Mount Control Cable is engineered for demanding applications where precise and reliable control is non-negotiable. Its primary applications include:

• Power Take-Off (PTO) Systems: In commercial trucks, agricultural tractors, and industrial equipment, PTO systems transfer engine power to auxiliary equipment (e.g., hydraulic pumps, generators, compressors). The 6200 Series cable provides the robust push-pull action necessary to engage and disengage these critical systems reliably, even under high vibration and heavy usage.
• Hoist and Winch Control: For truck-mounted hoists, cranes, and industrial winches, these cables are instrumental in controlling braking mechanisms, clutch engagement, or directional control. The high load range and durability ensure that hoist operations remain safe and precise.
• Throttle Control: In certain heavy equipment applications, these cables can serve as primary or secondary throttle controls, offering direct mechanical linkage to engine fuel systems.
• Clutch and Gear Shifting: For specialized machinery, these cables can be employed for remote clutch actuation or in rudimentary gear shifting mechanisms, especially where hydraulic or electronic systems are not feasible or desired.
• Auxiliary Equipment Control: Beyond PTOs and hoists, the cable can control a myriad of other auxiliary functions on vehicles and machinery, such as dump body locks, snowplow angling mechanisms, or sprayer boom controls.

Maintenance and Longevity

While designed for minimal maintenance, a few considerations can extend the operational life of the 6200 Series control cable:

• Periodic Inspection: Regularly inspect the cable conduit for signs of abrasion, cracking, or kinking. Check the rod ends and bulkhead connections for looseness, corrosion, or wear.
• Lubrication: Although stainless steel cores in PVC conduits are often designed for low-friction operation, periodic lubrication of the exposed rod ends and internal core (if accessible and recommended by the manufacturer) with a suitable lubricant can further enhance smoothness and reduce wear.
• Proper Routing: Ensure that the cable remains routed according to its original installation, avoiding sharp bends below the 10-inch minimum radius or points of high friction with other components.
• Environmental Protection: While robust, protecting the cable from excessive exposure to harsh chemicals, extreme temperatures, or direct impact can prevent premature degradation.

Technical Specifications in Detail

• Cable Series: 6200 Series - Denotes a specific product line known for its heavy-duty construction and universal application.
• Cable Length (in.): 216" - Precisely 18 feet, offering extensive reach for diverse installation requirements.
• Total Travel (in.): 3" - Optimized displacement for positive engagement and disengagement of controlled mechanisms.
• Minimum Bend Radius: 10" - Crucial for flexible routing without compromising cable integrity or operational smoothness.
• Load Range: 110-200 lb - Confirms its suitability for heavy-duty applications requiring substantial force transmission.
• Conduit Diameter (in.): 0.51" - External diameter of the protective housing, ensuring robust shielding.
• Cable Diameter (in.): 0.188" - Diameter of the internal stainless steel core, balanced for strength and flexibility.
• Conduit Material: PVC - Provides excellent protection against environmental factors and abrasion.
• Conduit Color: Black - Standard color, offering UV resistance and a professional aesthetic.
• Cable Core Material: Stainless Steel - Chosen for superior corrosion resistance, high tensile strength, and fatigue resistance.
• End Type: Rod - Facilitates direct mechanical attachment to control linkages.
• Rod End Thread Size: 5/16-24" - Standard imperial thread for broad compatibility with existing hardware.
• Bulkhead Thread Size: 11/16-16" - Standard thread for secure and stable mounting of the conduit.

Conclusion

The 216-inch 6200 Series Universal Mount Control Cable from Buyers Products stands as a testament to advanced mechanical control engineering. Its combination of a robust stainless steel core, protective PVC conduit, optimized travel, significant load capacity, and universal mounting features makes it an ideal choice for the most demanding PTO and hoist applications. By adhering to rigorous material selection and manufacturing standards, this cable ensures unparalleled reliability, longevity, and precise control, serving as a critical component in maintaining the operational efficiency and safety of heavy-duty machinery across various industries.
