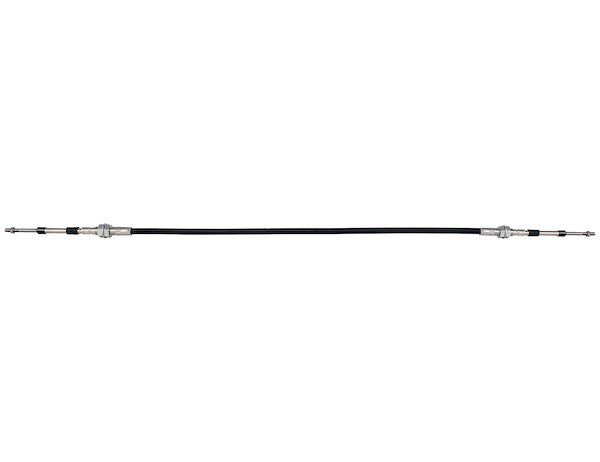

The 6200 Series Universal Mount Control Cable from Buyers Products is a push-pull style cable for heavier duty PTO and hoist applications. With an 10 in. minimum bend radius and a 110-200 lb load range, the cable is a flexible choice for many jobs. All cables include bulkhead nuts and washers for fast and easy connectivity.
Specifications
| Conduit Diameter (in.) | .51 " |
| Rod End Thread Size | 5/16-24 " |
| Bulkhead Thread Size | 11/16-16 " |
| End Type | Rod |
| Cable Length (in.) | 240 " |
| Cable Diameter (in.) | 0.188 " |
| Cable Core Material | Stainless Steel |
| Conduit Color | Black |
| Cable Series | 6200 Series |
| Total Travel (in.) | 3 " |
| Conduit Material | PVC |
Advanced Technical Overview: 240 Inch 6200 Series Universal Mount Control Cable
Introduction to Precision Control Systems
The 240 Inch 6200 Series Universal Mount Control Cable represents a critical component in the domain of heavy-duty mechanical power transmission and operational control. Engineered by Buyers Products, this push-pull style control cable is meticulously designed for applications demanding robust, reliable, and precise actuation, particularly within Power Take-Off (PTO) and hydraulic hoist systems. Its universal mounting capability, coupled with its substantial length and load capacity, positions it as an indispensable solution for complex industrial and commercial vehicle installations where direct mechanical linkage is impractical or undesirable. This detailed technical description will delve into the design principles, material science, performance characteristics, and application suitability of the 6200 Series cable, emphasizing its advantages in demanding operational environments.Design and Construction Principles
The fundamental design of the 6200 Series control cable revolves around a robust push-pull mechanism, which facilitates the transmission of linear motion over extended distances while accommodating angular misalignments inherent in complex machinery layouts. This mechanism comprises a central, solid wire core encased within a flexible yet rigid conduit. The interaction between these two primary components enables both tensile (pull) and compressive (push) force transmission, ensuring bidirectional control of the connected apparatus.Cable Core: The Heart of Actuation
The core of the 6200 Series cable is fabricated from high-grade stainless steel, specifically chosen for its superior mechanical properties. Stainless steel, particularly types such as 302 or 304, offers an exceptional combination of high tensile strength, excellent fatigue resistance, and remarkable corrosion resistance. The cable diameter of 0.188 inches (approximately 4.78 mm) is precisely engineered to provide the necessary stiffness for push functionality while maintaining flexibility for routing. The selection of stainless steel is paramount for applications exposed to varying environmental conditions, including moisture, road salts, chemicals, and extreme temperatures, thereby ensuring long-term operational integrity and minimizing the risk of premature failure due to material degradation. The total travel of 3 inches signifies the effective linear displacement the cable can impart, a critical parameter for accurate engagement and disengagement of PTOs or precise positioning of hoist mechanisms.Conduit System: Protection and Guidance
Encapsulating the stainless steel core is a high-performance conduit system. The conduit, with an outer diameter of 0.51 inches (approximately 12.95 mm), serves multiple critical functions: it protects the inner core from external damage, ingress of contaminants (dust, dirt, moisture), and abrasion, while also providing the necessary structural integrity to support the push action of the core. The conduit material is specified as PVC (Polyvinyl Chloride), a widely recognized polymer in industrial applications for its excellent balance of flexibility, durability, and chemical resistance. The black coloration of the conduit typically indicates UV stabilization, enhancing its resistance to degradation from prolonged exposure to sunlight, an important consideration for exterior mounting or applications in open-air environments. The internal structure of the conduit often includes a low-friction liner, such as HDPE (High-Density Polyethylene) or PTFE (Polytetrafluoroethylene), though not explicitly stated, is standard in high-quality control cables. This liner significantly reduces the frictional forces between the moving core and the stationary conduit, thereby improving transmission efficiency, minimizing operational effort, and extending the service life of the cable by reducing wear on both components.Performance Characteristics and Engineering Parameters
The 6200 Series cable’s performance is defined by several key engineering parameters, each contributing to its suitability for heavy-duty applications.Load Range and Mechanical Advantage
With a specified load range of 110-200 lbs (approximately 490-890 Newtons), this cable is explicitly designed for higher force transmission requirements than typical light-duty control cables. This range indicates the optimal operational window for reliable and efficient force transfer, ensuring that the cable can effectively actuate heavy mechanisms such as PTO engagement clutches or hydraulic valve spools without experiencing excessive deformation or premature fatigue. The robust construction of the stainless steel core and the supportive conduit system are critical in achieving and sustaining this load capacity.Minimum Bend Radius: Flexibility and Installation Versatility
A minimum bend radius of 10 inches (approximately 254 mm) is a crucial specification for installation planning. This parameter dictates the tightest curve the cable can successfully navigate without exceeding its elastic limit, causing permanent deformation, or significantly increasing internal friction. A relatively generous bend radius, as seen in the 6200 Series, suggests a design balance between flexibility for routing through complex chassis or machinery spaces and stiffness required for efficient push-pull operation. Adhering to this minimum bend radius during installation is paramount to preventing kinking, ensuring smooth operation, and preserving the cable's longevity. Exceeding this limit can lead to increased operational effort, reduced cable life, and potential failure.Cable Length and Universal Mounting
The impressive 240-inch (20-foot or 6.096-meter) length of this cable provides extensive reach, accommodating installations on large vehicles or complex industrial setups where the control point is significantly separated from the actuation point. This extended length, combined with the "Universal Mount" designation, underscores its adaptability. Universal mounting typically implies a design that facilitates installation across a wide array of vehicle types and machinery, often achieved through standardized end fittings and the inclusion of versatile mounting hardware.Connectivity and Installation
Ease of installation and secure connectivity are pivotal for any industrial control component. The 6200 Series addresses these requirements through its standardized end fittings and included hardware.Rod End Termination
The cable features a "Rod End" type termination, specifically with a 5/16-24 thread size. Rod ends, also known as spherical plain bearings or heim joints, are a highly effective mechanism for connecting control cables to levers, linkages, or other mechanical components. They allow for a degree of angular misalignment, reducing stress on the cable assembly during articulation and ensuring smooth, bind-free operation. The 5/16-24 thread size is a common standard in mechanical linkages, facilitating compatibility with a broad range of existing or commercially available accessories and components. This standardized threading simplifies component selection and replacement.Bulkhead Mounting System
For securing the conduit to a panel, chassis, or mounting bracket, the 6200 Series includes bulkhead nuts and washers. The bulkhead thread size is 11/16-16, another common industrial standard for control cable mounts. Bulkhead fittings provide a robust, sealed pass-through point for the cable, protecting it from sharp edges and providing a stable anchor. The inclusion of these components ensures "fast and easy connectivity," minimizing installation time and eliminating the need for sourcing additional, often specialized, mounting hardware. Proper tightening of the bulkhead nuts ensures a secure, vibration-resistant mount, which is critical for maintaining consistent cable performance in dynamic environments.Applications and Operational Context
The specific design and performance characteristics of the 240 Inch 6200 Series Universal Mount Control Cable make it ideally suited for a range of demanding applications:Power Take-Off (PTO) Systems
In heavy-duty trucks and industrial equipment, PTO systems transmit engine power to auxiliary equipment such as hydraulic pumps, air compressors, or winches. The engagement and disengagement of a PTO often require a significant mechanical force, which the 6200 Series cable is engineered to deliver. Its robust construction ensures reliable operation of the PTO clutch mechanism, even under frequent cycling and high loads, contributing to the efficient operation of ancillary equipment.Hydraulic Hoist Applications
Hydraulic hoist systems, prevalent in dump trucks, wreckers, and material handling equipment, rely on precise control for lifting and lowering operations. The 6200 Series cable can be employed to actuate hydraulic control valves, allowing operators to modulate the flow of hydraulic fluid and thereby control the speed and direction of the hoist. The cable’s consistent push-pull capability and load range ensure smooth and accurate control of these critical safety-sensitive systems.Other Heavy-Duty Remote Control
Beyond PTOs and hoists, the 6200 Series cable is versatile enough for various other heavy-duty remote control applications in agriculture, construction, marine, and municipal equipment. Examples include controlling throttle mechanisms, transmission shifters, choke controls, or other auxiliary functions where a durable, long-distance mechanical linkage is required. Its stainless steel core and PVC conduit make it suitable for outdoor and harsh operating conditions, where corrosion and abrasion resistance are paramount.Advantages and Value Proposition
The 240 Inch 6200 Series Universal Mount Control Cable offers several compelling advantages that contribute to its overall value proposition: * Durability and Longevity: The combination of a stainless steel core and a robust PVC conduit ensures exceptional resistance to corrosion, abrasion, and environmental degradation, leading to extended service life and reduced maintenance frequency. * Reliable Performance: Engineered for a specific load range and with a well-defined travel, the cable provides consistent and dependable force transmission, critical for the safe and efficient operation of heavy machinery. * Installation Efficiency: The inclusion of bulkhead nuts and washers, along with standardized rod end and bulkhead thread sizes, simplifies and expedites the installation process, reducing labor costs and equipment downtime. * Versatility: Its universal mounting capability and substantial length make it adaptable to a wide array of heavy-duty vehicles and industrial machinery, offering a flexible solution for various remote control needs. * Operational Flexibility: The 10-inch minimum bend radius allows for intricate routing within confined spaces, optimizing component placement and minimizing interference with other systems. * Cost-Effectiveness: By providing a durable, reliable, and easily installed solution, the 6200 Series cable helps minimize operational disruptions and replacement costs over the lifespan of the equipment.Quality Assurance and Compliance
Buyers Products is renowned for its commitment to engineering excellence and product quality. The 6200 Series Universal Mount Control Cable is manufactured under stringent quality control protocols, ensuring that each unit meets the specified performance criteria and material standards. Adherence to industry standards for mechanical cables ensures compatibility, safety, and reliability in demanding operational environments.Conclusion
The 240 Inch 6200 Series Universal Mount Control Cable from Buyers Products stands as a testament to advanced engineering in mechanical control systems. Its carefully selected materials, precision manufacturing, and robust design elements – including a stainless steel core, PVC conduit, and standardized end fittings – collectively deliver a high-performance, durable, and reliable solution for heavy-duty PTO and hydraulic hoist applications. With its substantial length, impressive load capacity, and ease of installation, this cable provides an optimal balance of strength, flexibility, and operational efficiency, making it an essential component for system integrators and equipment operators seeking uncompromising quality and performance in their control linkages. The 6200 Series cable is not merely a component; it is a critical enabler of precise and reliable operation in the most demanding industrial and commercial environments.
