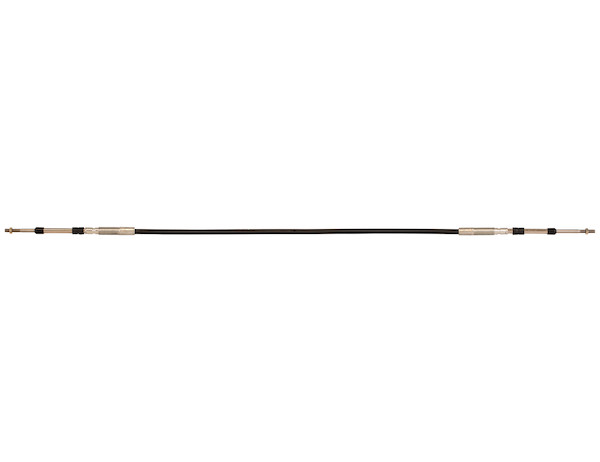

6203CCU204 - 204 Inch 6200 Series Control Cable with Clamp Mount

The 6200 Series Control Cable with Clamp Mount from Buyers Products is a universal mount, push-pull style cable for heavier duty PTO and hoist applications. With a 10 in. minimum bend radius and a 110-200 lb load range, the cable is the flexible choice for many jobs. All cables have a clamp mount at both ends to secure them in place. It's available in lengths from 3 ft to 20 ft to fit your exact need.

Specifications

Advanced Technical Overview: The 204 Inch 6200 Series Control Cable with Clamp Mount

The Buyers Products 6200 Series Control Cable with Clamp Mount, specifically the 204-inch variant, represents a pinnacle of mechanical control system engineering, meticulously designed for robust and reliable operation in the most demanding heavy-duty applications. This precision-engineered push-pull style cable system provides direct, tactile control over critical functions such as Power Take-Off (PTO) engagement and disengagement, as well as hoist activation in diverse industrial and commercial machinery. The 204-inch (17-foot) length of this particular model offers extensive reach, accommodating complex routing requirements within large vehicles and equipment, ensuring optimal performance across a broad spectrum of operational scenarios. Its universal mount design, coupled with integral clamp mounts at both terminal ends, underscores its adaptability and ease of integration into existing or new control architectures, solidifying its position as a preferred solution for engineers and operators prioritizing durability, responsiveness, and consistent force transmission in critical control linkages.

Core Functionality: The Push-Pull Mechanism and Its Advantages

At the heart of the 6200 Series control cable's efficacy is its fundamental push-pull operating principle. This mechanical advantage allows for both tensile (pull) and compressive (push) force transmission along a flexible conduit, enabling operators to remotely actuate levers, valves, or linkages with minimal effort and maximal precision. Unlike hydraulic or electrical control systems, which can be susceptible to fluid leaks, pressure fluctuations, or electrical failures, a mechanical push-pull cable offers inherent simplicity and robustness. It eliminates the need for complex power sources, pumps, solenoids, or wiring harnesses, thereby reducing system complexity, potential points of failure, and overall maintenance requirements. The direct mechanical linkage ensures instantaneous response, critical for safety and operational efficiency in applications like PTO engagement for hydraulic pumps or salt spreaders, where rapid and reliable activation is paramount. This directness also provides a tangible feedback mechanism to the operator, allowing for more intuitive and controlled manipulation of the connected equipment. The uniform force transmission throughout its 3-inch total travel ensures consistent and predictable actuation, a vital characteristic for precision-critical operations, minimizing hysteresis and ensuring repeatable performance.

Engineered for Heavy-Duty Applications: PTO and Hoist Systems

The 6200 Series control cable is specifically engineered to excel in heavy-duty Power Take-Off (PTO) and hoist applications, environments characterized by significant mechanical loads, continuous operation, and often harsh environmental conditions. In PTO systems, these cables are indispensable for engaging and disengaging auxiliary equipment from a vehicle's engine, such as hydraulic pumps for dump bodies, snow plows, or cranes; air compressors for pneumatic brakes or tools; and various driven accessories for municipal, agricultural, or construction vehicles. The cable's robust construction and substantial 110-200 lb load range ensure it can withstand the significant forces required to operate PTO clutches and linkages, providing reliable power transfer when needed without fatigue or failure. For hoist applications, particularly in truck-mounted or small industrial hoisting mechanisms, precise and dependable control is critical for both safety and operational efficiency. The 6200 Series cable facilitates smooth and consistent activation of hoist braking or lifting mechanisms, offering operators the necessary control authority to safely maneuver loads. The selection of high-grade materials and rigorous manufacturing processes ensures that these cables can endure repetitive cycles of high-stress operation, resisting wear, stretching, and fatigue that would compromise less robust alternatives. This dedication to heavy-duty performance translates directly into enhanced uptime, reduced maintenance intervals, and improved safety across a diverse array of demanding commercial and industrial scenarios.

Detailed Technical Specifications and Engineering Rationale

The performance and longevity of the 204-inch 6200 Series Control Cable are directly attributable to its meticulously chosen technical specifications:

• **Cable Length (204 inches / 17 feet):** The 204-inch (17-foot) length is a critical specification, providing substantial reach for complex routing within large chassis or machinery. This extended length accommodates scenarios where the control point is significantly distant from the actuated mechanism, minimizing the need for multiple cable segments and ensuring a continuous, integrated control path. Precision in length selection is paramount to avoid excessive slack, which can introduce lag and reduce responsiveness, or insufficient length, which can lead to undue tension and premature cable failure.
• **Cable Series (6200 Series):** The "6200 Series" designation signifies adherence to a specific set of design parameters, material standards, and performance benchmarks established by Buyers Products. This series is engineered for enhanced durability and higher load capacities compared to lighter-duty alternatives, reflecting a commitment to reliability and sustained performance in industrial environments where failure is not an option.
• **Load Range (110-200 lb):** With a specified load range of 110-200 pounds, this cable is purpose-built for applications requiring substantial force transmission. This capacity ensures that the cable can reliably actuate mechanisms that demand significant effort, such as robust PTO clutches, heavy hoist braking systems, or large valve operations, without exceeding its operational limits or experiencing undue strain. This range provides a clear and conservative operational envelope for system designers, ensuring a margin of safety.
• **Minimum Bend Radius (10 inches):** The 10-inch minimum bend radius is a crucial engineering parameter for installation flexibility and cable longevity. It defines the tightest curve the cable can successfully navigate without inducing excessive stress, kinking the internal core, or prematurely wearing the conduit. Adhering to this specification during installation is vital to maintain smooth operation, prevent increased internal friction, and maximize the operational lifespan of the cable. Exceeding this limit can compromise the integrity of both the core and conduit, leading to erratic operation, accelerated wear, and eventual premature failure.
• **Cable Core Material (Stainless Steel):** The selection of stainless steel for the cable core is a deliberate engineering choice driven by its superior mechanical properties and environmental resilience. Stainless steel offers exceptional tensile strength, remarkable resistance to fatigue under cyclic loading, and, critically, outstanding corrosion resistance. This makes the 6200 Series cable ideally suited for outdoor applications, marine environments, or settings exposed to moisture, chemicals, or road salts, where carbon steel alternatives would rapidly degrade. The inherent smoothness of stainless steel also contributes significantly to reduced friction within the conduit, ensuring effortless push-pull action and consistent response.
• **Conduit Material (PVC) and Color (Black):** The outer conduit, constructed from high-quality PVC (Polyvinyl Chloride) in black, provides crucial protection for the stainless steel core. PVC is selected for its excellent abrasion resistance, inherent flexibility, and chemical inertness, safeguarding the internal components from physical damage, ingress of dirt and moisture, and exposure to oils, greases, and other common industrial fluids. The black pigmentation of the PVC conduit further enhances its UV stability, preventing material degradation, cracking, and embrittlement when exposed to prolonged solar radiation, thereby significantly extending the cable's service life in outdoor applications.
• **Cable Diameter (0.188 in.) and Conduit Diameter (0.51 in.):** The precise cable core diameter of 0.188 inches, combined with a robust conduit diameter of 0.51 inches, represents an optimized balance between strength, flexibility, and protective encapsulation. The larger conduit diameter provides ample clearance for the core, minimizing friction and ensuring smooth travel, while its substantial wall thickness contributes to the overall rigidity and crush resistance of the assembly, safeguarding it against external forces.
• **Total Travel (3 inches):** A total travel of 3 inches signifies the maximum linear displacement achievable by the cable's rod end. This parameter is critical for matching the cable's output motion to the required stroke of the actuated mechanism. Whether engaging a clutch, opening a valve, or shifting a linkage, the 3-inch travel provides sufficient range for most heavy-duty control applications, ensuring full engagement or disengagement of the controlled component.

End Configuration: Rod End and Clamp Mount System

The terminal ends of the 6200 Series control cable are meticulously designed for secure, precise, and robust connectivity. Featuring a "Rod End" type at both terminations, these cables offer a high degree of adaptability for interfacing with various control levers, pedals, and mechanical linkages. The Rod End Thread Size of 5/16-24 ensures compatibility with a broad range of standard industrial components, providing a secure, threaded connection that can be finely adjusted for optimal control throw and alignment. This standardized threading facilitates ease of installation and replacement, simplifying maintenance procedures and reducing downtime. Complementing the rod ends, the integral "Clamp Mount" system at both ends is a defining feature of the 6200 Series. These robust clamps are engineered to provide an exceptionally secure attachment point, anchoring the conduit firmly to the equipment chassis or mounting bracket. The "Bulkhead Thread Size" of 11/16-16 on the clamp mounts is designed for high-strength, vibration-resistant fastening, preventing unwanted movement or detachment even under continuous vibration and dynamic loading conditions typical of heavy machinery. The clamp mount design distributes compressive forces evenly around the conduit, mitigating stress concentrations and enhancing the overall integrity of the cable assembly. This dual-end clamp mounting strategy ensures that the entire cable system remains stable and precisely positioned throughout its operational lifespan, guaranteeing consistent control performance and preventing operational creep or accidental disengagement, which are critical safety considerations in PTO and hoist applications.

Environmental Durability and Longevity

The comprehensive material selection and construction of the 6200 Series control cable are specifically geared towards maximizing environmental durability and ensuring an extended service life in challenging operational environments. The stainless steel core offers unparalleled resistance to rust and corrosion, making it impervious to the corrosive effects of moisture, salt spray, road chemicals, and industrial effluents commonly encountered in construction, agricultural, municipal, and marine settings. The robust PVC conduit provides a formidable barrier against physical abrasion, impacts, and chemical degradation, maintaining its flexibility and protective qualities across a wide range of temperatures. Furthermore, the black PVC formulation includes high-grade UV inhibitors that prevent material embrittlement and discoloration from prolonged exposure to solar radiation, a common failure mode for lesser-quality cables in outdoor applications. This synergistic combination of a corrosion-resistant core, a protective and chemically stable conduit, and secure, vibration-resistant clamp mounts results in a control cable assembly that is not merely functional but inherently resilient, capable of performing reliably under adverse conditions where other control methods might fail.

Installation Considerations and Performance Optimization

For optimal performance and to maximize the lifespan of the 204-inch 6200 Series control cable, adherence to best installation practices is essential. While the cable boasts a robust 10-inch minimum bend radius, installers should always strive for the largest possible radii when routing the cable to minimize internal friction and wear over time. Proper securing of the conduit using the integrated clamp mounts, combined with appropriate intermediate supports along longer runs, is crucial to prevent whipping, chafing, or kinking under dynamic loads and vibrations. All connections, particularly the rod end threads, should be properly torqued to manufacturer specifications to ensure a secure, precise, and backlash-free mechanical linkage. Regular inspection for conduit damage, fraying, or excessive friction can further extend the operational life, though the inherent durability and low-friction design of the 6200 Series typically translate to minimal routine maintenance requirements, allowing operators to focus on productive tasks.

Conclusion

The 204-inch 6200 Series Control Cable with Clamp Mount from Buyers Products stands as an exemplary solution for professional-grade mechanical control requirements. Its meticulously engineered design, encompassing a robust stainless steel core, a protective and UV-stabilized PVC conduit, and precision rod ends with secure, vibration-resistant clamp mounts, ensures superior strength, exceptional environmental resistance, and reliable push-pull force transmission within its 110-200 lb load range. Ideal for the arduous demands of heavy-duty PTO and hoist applications, this 17-foot cable offers unparalleled durability, precise 3-inch total travel, and significant installation flexibility with its 10-inch minimum bend radius. Choosing the 6200 Series signifies an investment in long-term operational efficiency, reduced maintenance, and unwavering control integrity for the most critical industrial and commercial machinery, providing a dependable link in your control system architecture.
