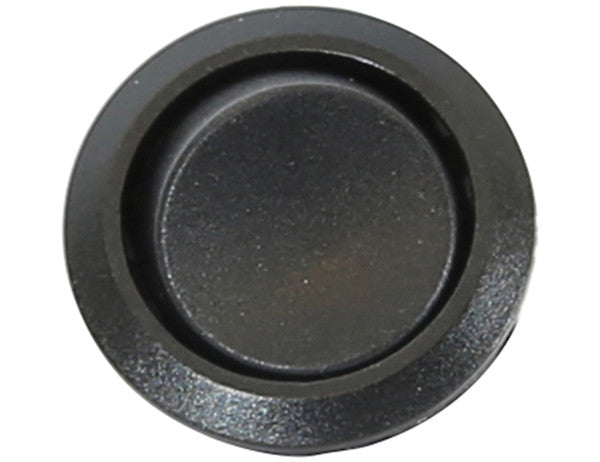

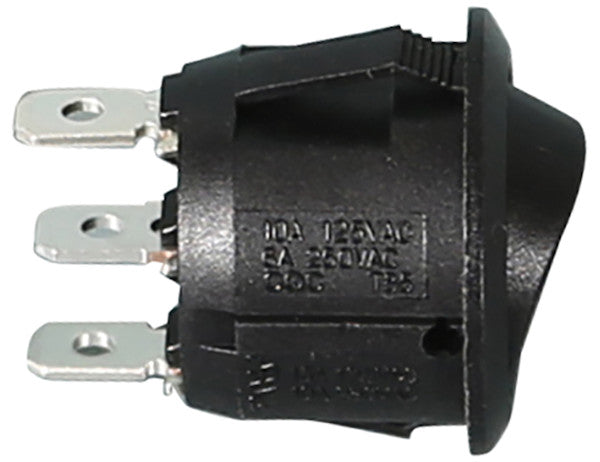

Each of these Mini Round Rocker Switches from Buyers Products features a distinct rocker switch engagement, depending on your needs and preferences. Choose among a simple ON-OFF, a backlit ON-OFF, an ON-OFF-ON function and a momentary-ON switch. Each switch is easy to install in your truck dash or mount to the console in a hole measuring 3/4 in. in diameter.
Specifications
| Color | Black |
|---|---|
| Continuous Current Rating | - |
| Finish | Plain |
| Material | Plastic |
| Mount Style | Panel |
| Number of Functions | 1 |
| Pre-fused (y/n) | No |
| Pre-Wired (y/n) | No |
| Surge Current Rating | - |
| Switch Style | Rocker |
Advanced Technical Overview: On/Off/On Mini Round Rocker Switch
The On/Off/On Mini Round Rocker Switch, presented in a sleek black finish, represents a versatile and essential component for a myriad of electrical control applications. This specific variant, characterized by its triple-position functionality, is engineered to provide precise, tactile control over two distinct circuits or two modes of a single circuit, with a definitive central 'Off' state. Its compact design, robust construction, and straightforward installation make it an ideal choice for demanding environments found in automotive, marine, industrial, and specialized vehicle sectors.
Core Functionality: The On/Off/On Mechanism
At the heart of this switch's utility is its On/Off/On configuration, which distinguishes it from simpler ON-OFF or momentary switches. This three-position functionality typically corresponds to a Double Pole, Double Throw (DPDT) or Single Pole, Double Throw (SPDT) switch with a center-off detent. In an On/Off/On switch, the rocker can be latched into three stable positions: one 'On' state, a central 'Off' state, and a second 'On' state. Each 'On' state activates a different circuit path or configuration.
- Position 1 (On): Engages a primary circuit or function, providing continuous power until manually disengaged.
- Position 2 (Off): Disengages all connected circuits, providing a safe, neutral state. This central detent ensures that both connected functions are positively isolated.
- Position 3 (On): Engages a secondary, distinct circuit or function, also providing continuous power until manually disengaged.
This design is particularly advantageous in applications requiring directional control (e.g., motor forward/reverse), selection between two power sources, or activation of two different operational modes (e.g., low speed/off/high speed, or auxiliary light set 1/off/auxiliary light set 2). The distinct tactile feedback for each position ensures operators can confidently confirm the switch's state without visual confirmation, a critical safety feature in low-light or high-vibration conditions.
Engineered Design and Construction
The Mini Round Rocker Switch is meticulously designed to balance compact form with high functionality and durability. Its dimensions, specifically the requirement for a 3/4 inch (approximately 19.05 mm) diameter mounting hole, facilitate easy integration into standard panel cutouts across a wide range of equipment and vehicle dashboards. This standardized mounting dimension significantly simplifies design and installation processes, reducing the need for custom tooling or extensive modifications.
Material Science and Durability
Constructed from high-grade plastic, the switch body offers a multitude of benefits essential for its intended applications. The chosen plastic material, typically a robust thermoplastic such as nylon or polycarbonate, provides excellent electrical insulation, crucial for preventing short circuits and ensuring user safety. Furthermore, these materials are selected for their inherent resistance to impact, abrasion, and a wide range of chemicals, including oils, fuels, and common cleaning agents. This chemical resistance ensures longevity and reliable operation even in harsh environmental conditions where exposure to various substances is common.
The plain black finish is not merely aesthetic; it provides a neutral, professional appearance that seamlessly integrates into most control panels and interior designs. The color black also offers UV stability, minimizing degradation and discoloration over time when exposed to sunlight, a common concern for vehicle-mounted components.
Rocker Mechanism and Ergonomics
The rocker switch style offers superior ergonomics compared to push-button or toggle switches for certain applications. The broad surface area of the rocker allows for comfortable finger or thumb actuation, even when wearing gloves. The rocking motion provides a clear visual and tactile indication of the switch's state, enhancing operational efficiency and reducing errors. The internal mechanism typically employs a spring-loaded system combined with detents to ensure crisp, positive engagement and retention in each of the three stable positions.
Electrical and Performance Characteristics
While specific continuous and surge current ratings are listed as '-', it is imperative to understand the typical performance parameters expected from such industrial-grade components. Mini round rocker switches designed for automotive and heavy-duty applications are generally rated to handle continuous currents ranging from 10A to 20A at 12V DC or 24V DC. Surge current ratings, which account for the momentary high current drawn by inductive loads (e.g., motors, solenoids) during startup, are typically significantly higher than continuous ratings, ensuring the switch can withstand these transient events without damage.
Internal Contact System
The reliability and lifespan of any electrical switch are heavily dependent on its internal contact system. High-quality mini rocker switches, like this model, are engineered with robust contact materials, often silver alloy compounds. Silver alloys are chosen for their excellent electrical conductivity, resistance to arc erosion, and low contact resistance, which minimizes heat generation and voltage drop across the switch. This design ensures consistent performance and reduces the risk of premature failure due to pitting or carbon buildup over thousands of operational cycles.
Dielectric Strength and Insulation
For safety and performance, the dielectric strength of the switch's insulating materials is critical. This refers to the maximum electric field that the material can withstand without electrical breakdown. Combined with high insulation resistance, these properties prevent leakage currents and ensure the switch safely isolates live conductors, protecting both the operator and connected equipment. The plastic material itself, along with internal barriers, contributes to these essential safety measures.
Thermal Management and Environmental Robustness
Operating temperature range is a significant consideration for components used in vehicles and outdoor equipment. This switch is designed to perform reliably across a broad temperature spectrum, typically ranging from sub-zero to elevated temperatures. Such resilience is achieved through careful material selection for both the housing and internal components, preventing degradation of mechanical or electrical properties due to thermal expansion/contraction or extreme cold/heat. Although not explicitly specified, an ingress protection (IP) rating, common for these types of switches, often denotes resistance to dust and moisture, further enhancing its suitability for exposed applications.
Installation and Integration Excellence
The panel mount style and the precise 3/4 inch mounting hole requirement facilitate a straightforward snap-in installation process. This design eliminates the need for additional mounting hardware, streamlining assembly and reducing labor costs. The switch is securely held in place by integrated retention clips or fins, which engage with the edges of the panel cutout, providing a tight and stable fit that resists vibration and accidental dislodgement.
Non-Pre-Wired and Non-Pre-Fused Design
The designation of "Pre-wired (y/n): No" and "Pre-fused (y/n): No" provides significant advantages for professional installers and system integrators. This non-integrated approach offers maximum flexibility, allowing wiring harnesses and fusing to be customized precisely to the specific application's current draw, voltage requirements, and safety standards. Installers can select the appropriate wire gauge and circuit protection devices (fuses, circuit breakers) that match the connected load, ensuring optimal performance and compliance with relevant electrical codes. Common terminal types, such as standard spade or quick-connect terminals, are typically employed, ensuring secure and reliable electrical connections that are easily serviceable.
Diverse Application Spectrum
The On/Off/On Mini Round Rocker Switch is a cornerstone component across an extensive range of applications due to its robust design and versatile functionality:
- Automotive and Heavy-Duty Vehicles: Indispensable for controlling auxiliary lighting (e.g., fog lights/driving lights), directional control for small motors (e.g., power windows, winches, snow plow angling), fan speed selection, heater controls, and specialized equipment activation. Its ability to manage two distinct 'On' states with a definitive 'Off' makes it superior for functions like high beam/low beam selection for custom light setups or activating different siren tones.
- Marine Applications: Crucial for boat systems, including bilge pump control (manual/off/auto configurations), navigation lights (anchor light/off/running lights), accessory power for radios or depth sounders, and trim tab control. Its resistance to environmental factors is paramount in the corrosive marine environment.
- Industrial and Commercial Equipment: Found in control panels for manufacturing machinery, HVAC systems, agricultural equipment, and construction vehicles. It provides intuitive control for various motor functions, process selectors, and mode switching.
- Recreational Vehicles (RVs) and Powersports: Used for controlling interior/exterior lighting, water pump functions, awning extend/retract, and accessory power outlets.
- Custom Projects and DIY: Its ease of installation and clear functionality make it a popular choice for hobbyists and custom builders designing control systems for various electronic projects.
Strategic Advantages and Value Proposition
This Mini Round Rocker Switch delivers significant value through a combination of engineering excellence and practical design. Its compact footprint minimizes panel space requirements, allowing for more components or a cleaner aesthetic. The durable plastic construction ensures a long operational life, even under frequent use and challenging conditions, translating into reduced maintenance and replacement costs. The intuitive rocker action improves user experience and operational safety, while the non-pre-wired nature empowers integrators with maximum flexibility for tailored electrical systems.
In essence, this On/Off/On Mini Round Rocker Switch offers a reliable, efficient, and user-friendly solution for complex electrical control needs. Its technical specifications, robust material composition, and ergonomic design coalesce to create a product that not only meets but often exceeds the demanding requirements of professional applications, ensuring dependable performance for critical systems over an extended service life.
