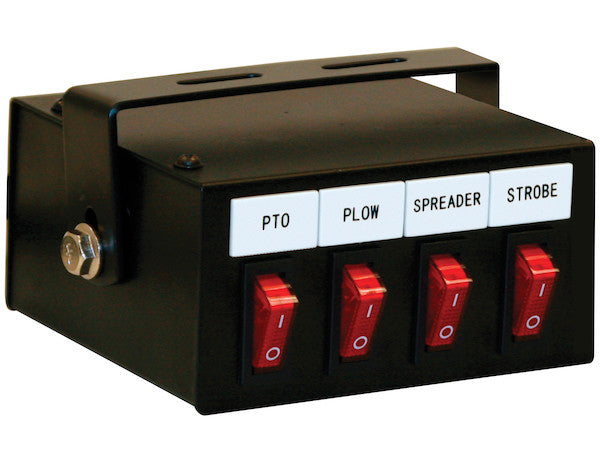

Pre-Wired Switch Boxes from Buyers Products offer simple control of your truck's high powered auxiliary electric devices. Available in a 4 or 6 function button layout, they can be easily installed under your dash and labeled for each use with the included labels. Featuring a higher amp relay, concealed wiring, and one dedicated fuse per switch, the 3 or 5 switches run up to 20A. There is one 40A switch per box. The rocker switches are back-lit in the ON position.
Specifications
| Color | Black |
|---|---|
| Continuous Current Rating | - |
| Finish | Plain |
| For Use With | - |
| Fuses Pre-Installed (y/n) | Yes |
| Height | 2.25 |
| Length | 4.25 |
| Material | Aluminum |
| Maximum Functions per Button | 1 |
| Mount Style | Dash |
| Number of Functions | 4 |
| Number of Momentary Switches | 0 |
| Number of On/Off Switches | 4 |
| Pre-fused (y/n) | Yes |
| Pre-Wired (y/n) | Yes |
| Prewired (y/n) | Yes |
| Programmable (y/n) | No |
| Switch Style | Rocker |
| Width | 3.88 |
Advanced Control and Protection for Auxiliary Vehicle Systems: The 4 Function Backlit Pre-Wired Switch Box
In the demanding environments of commercial, utility, recreational, and emergency vehicles, the efficient and reliable management of auxiliary electrical devices is paramount. The 4 Function Backlit Pre-Wired Switch Box, engineered by Buyers Products, represents a meticulously designed solution that integrates centralized control, robust overcurrent protection, and user-friendly operation into a compact, durable unit. This technical exposition delves into the multifaceted features and benefits of this control module, highlighting its advanced electrical architecture, intuitive human-machine interface, and rugged construction, all of which contribute to enhanced operational safety, system longevity, and ease of installation.
Integrated Pre-Wired Architecture: Streamlined Deployment and Reliability
The hallmark of this switch box lies in its pre-wired configuration. This design philosophy eliminates the complexity traditionally associated with installing multiple auxiliary switches and relays, significantly reducing installation time and labor costs. By providing a complete, ready-to-mount assembly, the pre-wired unit mitigates the risk of common wiring errors, ensuring electrical integrity and optimal performance from the outset. Technicians and vehicle upfitters benefit from a plug-and-play solution that expedites vehicle integration, allowing for faster deployment of specialized equipment. The internal wiring is carefully routed and concealed within the robust aluminum enclosure, protecting it from environmental exposure, abrasion, and accidental damage, thereby extending the operational lifespan of the entire system.
The pre-wired nature extends to the integration of critical components such as fuses and a main relay, which are factory-installed and pre-connected. This meticulous pre-assembly guarantees that each circuit is correctly protected and routed, adhering to high standards of electrical safety and performance. This not only simplifies the electrical connection process to the vehicle's power source and the auxiliary devices but also ensures that the system is optimized for current handling and fault protection without the need for intricate custom wiring harnesses.
Comprehensive Overcurrent Protection: Fused and Circuit Breaker Design
Safety and system reliability are at the core of the 4 Function Switch Box's design, evidenced by its comprehensive overcurrent protection strategy. Each of the four functions is equipped with its own dedicated fuse. This granular level of protection is crucial; in the event of an overcurrent condition or short circuit in one auxiliary device, only that specific circuit's fuse will trip, isolating the fault and preventing it from affecting other operational systems or the main vehicle electrical network. This isolation minimizes downtime, simplifies troubleshooting, and prevents potential damage to costly auxiliary equipment or the vehicle's primary electrical components.
The integration of a circuit breaker further enhances the system's resilience. While individual fuses provide single-use protection, the circuit breaker offers a resettable safeguard, likely acting as a primary input protection device for the entire switch box or specifically for the high-amperage circuit. This dual-layer protection scheme provides superior fault tolerance and ease of recovery. In transient overload situations that might typically blow a fuse, a resettable circuit breaker allows for immediate restoration of power once the fault is cleared, without the need for fuse replacement, thereby enhancing operational continuity in critical applications.
Advanced Power Management with High-Amp Relays and Diverse Current Ratings
Effective power management for high-demand auxiliary devices is achieved through the incorporation of a higher amp relay and strategically assigned current ratings for each switch. Relays serve as electrically operated switches that allow a low-current control signal from the rocker switch to activate a high-current circuit, thereby protecting the delicate switch contacts from arcing and premature failure. This design significantly extends the life of the rocker switches and ensures reliable power delivery to demanding loads.
Specifically, the 4 Function Switch Box features three switches rated for up to 20 Amperes and one dedicated switch engineered for a robust 40 Amperes. This differentiated current capability provides exceptional versatility, allowing operators to connect a wide array of auxiliary devices with varying power requirements. The 20A circuits are ideal for typical auxiliary lighting (work lights, beacon lights), smaller pumps, communication radios, or heating elements. The substantial 40A circuit is specifically designed to handle higher current draw devices such as powerful winches, air compressors, large hydraulic pump motors, or high-intensity emergency light bars. This thoughtful allocation of current capacities ensures that each device operates within its safe electrical parameters, maximizing efficiency and minimizing the risk of overload.
Ergonomic User Interface: Backlit Rocker Switches and Custom Labeling
The human-machine interface of the 4 Function Switch Box prioritizes user-friendliness and operational clarity. It incorporates four robust rocker switches, chosen for their tactile feedback, durability, and widespread acceptance in professional vehicle applications. Rocker switches offer a definitive ON/OFF position, preventing accidental activation or deactivation, which is crucial for safety and operational consistency.
A significant ergonomic feature is the backlighting of each rocker switch when it is in the "ON" position. This illumination provides immediate visual confirmation of the operational status of each connected device, which is invaluable in low-light conditions, during nighttime operations, or in environments with fluctuating visibility. This feature enhances operational safety by allowing the operator to quickly discern active systems without diverting undue attention from primary tasks. Furthermore, the inclusion of labels allows for custom identification of each switch's function, ensuring that operators can intuitively control specific auxiliary devices without confusion. This customization enhances efficiency and reduces the learning curve for new users or when operating different vehicles within a fleet.
Robust Construction and Optimal Mounting
Durability is a non-negotiable requirement for equipment subjected to the rigors of vehicle operation. The 4 Function Switch Box is constructed from high-grade aluminum, a material renowned for its exceptional strength-to-weight ratio, excellent corrosion resistance, and effective heat dissipation properties. The aluminum housing provides a sturdy enclosure that protects the internal electrical components from physical impact, vibrations, and environmental ingress, including dust and moisture. The plain black finish is both aesthetically discreet and functional, resisting scratches and maintaining a professional appearance even after prolonged use in demanding environments.
Designed for "Dash" mounting, the compact dimensions of 2.25 inches in height, 4.25 inches in length, and 3.88 inches in width ensure that the unit can be seamlessly integrated into various vehicle dashboards without obstructing critical controls or consuming excessive space. The under-dash mounting style places the controls within easy reach of the operator, promoting ergonomic efficiency and minimizing distraction. The inherent stability of an aluminum enclosure further ensures that the switch box remains securely fastened, capable of withstanding the continuous vibrations and shocks encountered during vehicle operation.
Versatile Applications Across Industries
The inherent flexibility and robust design of the 4 Function Backlit Pre-Wired Switch Box make it an indispensable asset across a diverse spectrum of industries and vehicle types. In commercial trucking, it facilitates the control of auxiliary lighting for cargo areas, PTO-driven equipment, and various warning systems. For municipal and utility fleets, such as snow plows, street sweepers, and service vehicles, it provides reliable control over specialized equipment like salt spreaders, hydraulic systems, and additional warning lights, crucial for public safety and operational efficiency.
Emergency service vehicles, including ambulances, fire trucks, and police cruisers, benefit from its ability to manage light bars, sirens, floodlights, and communication systems with precision and reliability. The 40A circuit is particularly advantageous for high-draw emergency equipment. Off-road enthusiasts and overlanders can leverage this switch box to control auxiliary driving lights, winches, air compressors for tire inflation, and various recovery equipment. Recreational vehicle (RV) and marine applications also find significant utility, managing everything from interior and exterior lighting to water pumps, accessory chargers, and other comfort or navigational systems. Its non-programmable, direct ON/OFF switch functionality ensures simplicity and reliability for essential functions across all these applications.
Technical Considerations and Operational Advantages
The "Number of On/Off Switches: 4" specification indicates that all four functions are designed for continuous operation, making them suitable for devices that require sustained power rather than momentary activation. This characteristic is critical for applications like steady work lights, constant-on pumps, or continuous-duty fans. The pre-installed fuses and pre-wired nature underscore a commitment to turnkey solutions, minimizing installation complexity and ensuring that the electrical system is both safe and functional immediately upon connection.
The choice of a black, plain finish aligns with the utilitarian demands of most heavy-duty vehicle interiors, providing a discreet and professional appearance that withstands the rigors of daily use without showing excessive wear. The compact size, coupled with the dash-mount style, allows for flexible installation in cabins where space is at a premium, without compromising accessibility or visibility for the operator.
Conclusion: An Essential Component for Enhanced Vehicle Functionality
The 4 Function Backlit Pre-Wired Switch Box with Fused Circuits, Integrated Relay, and Circuit Breaker from Buyers Products stands as a testament to thoughtful engineering aimed at solving complex auxiliary power management challenges. It masterfully combines convenience, safety, and durability, offering a centralized control solution that is both easy to install and exceptionally reliable in operation. With its robust aluminum construction, individual circuit fusing, high-amperage relay, resettable circuit breaker, and intuitive backlit rocker switches, this switch box empowers operators to efficiently control a diverse range of high-powered auxiliary devices. It is an indispensable component for any vehicle requiring enhanced functionality, streamlined operation, and uncompromising electrical protection, ultimately contributing to safer, more productive, and more versatile mobile work and recreational platforms.
