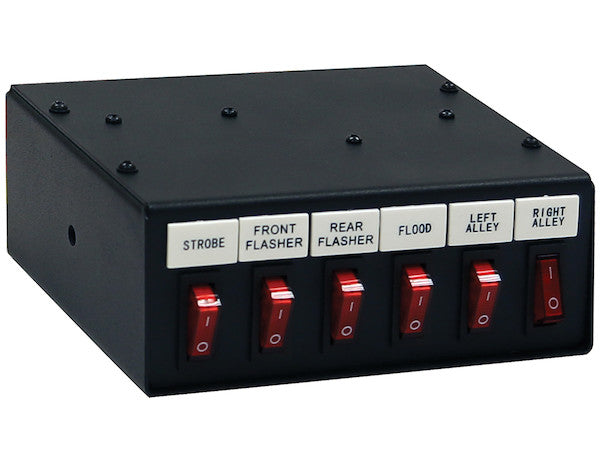

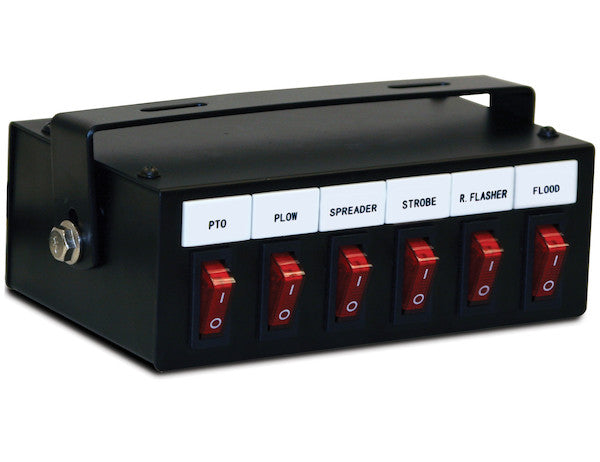

6391106 - 6 Function Backlit Pre-Wired Switch Box Fused With Relay And Circuit Breaker

Pre-Wired Switch Boxes from Buyers Products offer simple control of your truck's high powered auxiliary electric devices. Available in a 4 or 6 function button layout, they can be easily installed under your dash and labeled for each use with the included labels. Featuring a higher amp relay, concealed wiring, and one dedicated fuse per switch, the 3 or 5 switches run up to 20A. There is one 40A switch per box. The rocker switches are back-lit in the ON position.

Specifications

Advanced Control and Protection: The Buyers Products 6-Function Backlit Pre-Wired Switch Box

In the demanding operational environments of commercial, municipal, and utility vehicles, the efficient and reliable management of auxiliary electrical systems is paramount. The Buyers Products 6-Function Backlit Pre-Wired Switch Box represents a sophisticated solution engineered to meet these stringent requirements. This comprehensive power distribution and control unit is designed to simplify the integration and operation of various high-current auxiliary devices, ensuring optimal performance, enhanced safety, and streamlined installation processes.

Built upon a foundation of robust engineering and user-centric design, this switch box offers a centralized control interface for up to six distinct electrical functions. Its pre-wired configuration significantly reduces installation complexity and potential for wiring errors, a critical advantage for fleet managers and vehicle upfitters focused on minimizing downtime and maximizing productivity. The incorporation of individual fusing, a high-capacity relay, and an integrated circuit breaker exemplifies a multi-layered approach to electrical protection, safeguarding both the vehicle's primary electrical system and the connected auxiliary equipment.

Core Functionality and Design Principles

The 6-Function Backlit Pre-Wired Switch Box is meticulously designed to serve as the nerve center for managing supplementary electrical loads in a vehicle. With six discrete ON/OFF rocker switches, each capable of controlling a dedicated function, operators gain precise command over their auxiliary devices. This specific model features five circuits rated for up to 20 amperes (A) and one high-power circuit rated for up to 40A, accommodating a wide spectrum of electrical accessories from auxiliary lighting and warning beacons to hydraulic pump motors, air compressors, and specialized diagnostic equipment.

The underlying design philosophy emphasizes immediate operational readiness and long-term durability. The "Pre-Wired" aspect is not merely a convenience; it's a strategic engineering decision that ensures consistent, factory-grade connections, proper wire sizing, and reduced labor costs during vehicle customization. All internal wiring is concealed within the robust aluminum enclosure, protecting it from physical damage, environmental exposure, and electromagnetic interference (EMI), thereby preserving signal integrity and system longevity. This systematic approach to wiring eliminates the need for complex, time-consuming custom harness fabrication, allowing for a rapid and professional deployment.

Advanced Circuit Protection: Fusing, Relays, and Circuit Breakers

Electrical system integrity and operator safety are core tenets of the Buyers Products design. This switch box integrates a comprehensive array of circuit protection mechanisms:

Dedicated Fusing for Individual Circuits

Each of the six output circuits is protected by its own dedicated fuse. This granular level of protection is superior to a single, shared fuse for multiple accessories. In the event of an overcurrent condition or a short circuit on any individual circuit, only that specific circuit's fuse will blow, isolating the fault and allowing the remaining five functions to continue operating uninterrupted. This prevents cascading failures and maintains essential operational capabilities. The fuses are pre-installed, ensuring correct type and rating are in place upon receipt, typically automotive blade fuses known for their reliability and ease of replacement. The five 20A circuits are safeguarded by appropriate fuses, while the dedicated 40A circuit, typically reserved for higher-draw applications like winches or larger pumps, is similarly protected by a fuse rated for its specific load profile.

High-Capacity Relay Integration

The "higher amp relay" mentioned in the description is a critical component for managing high-current loads efficiently and safely. A relay acts as an electrically operated switch, allowing a low-current control signal from the rocker switch to switch a much higher-current circuit. This architecture protects the physical rocker switches from direct exposure to heavy loads, which can cause premature wear, overheating, or failure. By routing high amperage through a robust, purpose-built relay, the longevity of the control switches is significantly extended, and the risk of electrical arcing or component degradation is substantially reduced. The relay ensures that the heavy current required by devices such as powerful floodlights or hydraulic solenoids is handled away from the driver's interface, enhancing both safety and system reliability.

Integrated Circuit Breaker for System-Level Protection

Beyond individual fuses and relays, the title explicitly states "Fused With Relay And Circuit Breaker." This indicates a primary circuit breaker providing overarching protection for the entire switch box assembly. While individual fuses protect specific output lines, a main circuit breaker offers resettable protection against severe overcurrents or short circuits occurring at the input to the switch box or within its internal distribution framework. Unlike a fuse, which must be replaced after tripping, a circuit breaker can be manually reset after the fault condition has been addressed. This feature is particularly valuable in field operations where immediate restoration of power, without the need for spare fuses, can be critical. The circuit breaker acts as a robust first line of defense, preventing potential damage to the vehicle's main electrical system from an issue within the auxiliary control box itself, contributing to overall system safety and uptime.

Operational Interface: Backlit Rocker Switches and User Experience

The human-machine interface (HMI) of the switch box is designed for intuitive operation and clear feedback. The selection of rocker switches offers a familiar and tactile control method, providing positive engagement feedback to the operator. This robust switch style is inherently durable and well-suited for repetitive use in challenging environments.

A key feature enhancing usability, especially during low-light conditions or night operations, is the backlighting of the rocker switches. When a switch is actuated to the "ON" position, its corresponding backlight illuminates, providing immediate visual confirmation of the circuit's status. This eliminates guesswork and allows operators to quickly ascertain which auxiliary devices are active, improving operational efficiency and safety in environments where visibility may be compromised. The consistent black color and plain finish of the switch box ensure it integrates seamlessly into various vehicle interiors, maintaining a professional aesthetic.

To further enhance clarity and customization, the switch box includes a comprehensive set of labels. These adhesive labels allow operators or upfitters to clearly mark each switch with its specific function (e.g., "Work Lights," "Amber Strobe," "Pump," "Auxiliary Power"). This labeling capability is crucial for reducing operational errors, streamlining training for new personnel, and maintaining organizational standards across a fleet of vehicles. The ability to customize labels ensures that the interface remains intuitive regardless of the specific auxiliary devices connected, maximizing the utility of each of the six functions.

Installation and Integration

The "Pre-Wired" nature of this switch box from Buyers Products dramatically simplifies the installation process. All necessary internal connections, including those to the fuses and relay, are factory-terminated and tested. This eliminates complex point-to-point wiring by the installer, significantly reducing labor time and the potential for electrical errors. Installers only need to connect the main power input, ground, and the six output wires to their respective auxiliary devices.

Designed for "Dash Mount" installation, the compact dimensions (Height: 2.25", Length: 6.13", Width: 3.88") allow for flexible and ergonomic placement within the vehicle cabin. The black finish and robust aluminum construction ensure that the unit is both aesthetically pleasing and durable enough to withstand the rigors of commercial vehicle operation. The concealed wiring within the box not only offers aesthetic benefits but also provides superior protection against abrasion, moisture, and vibration, which are common challenges in mobile applications. This contributes to a cleaner, safer, and more reliable electrical installation, reducing the likelihood of future maintenance issues.

Material and Durability Considerations

The enclosure of the 6-Function Switch Box is constructed from high-quality aluminum. Aluminum is chosen for its advantageous properties in automotive and heavy-duty applications, including:

• Corrosion Resistance: Naturally resistant to rust and corrosion, a critical factor in vehicles exposed to varied weather conditions, road salts, and industrial environments.
• Strength-to-Weight Ratio: Provides excellent structural integrity and protection for internal components without adding excessive weight to the vehicle.
• Heat Dissipation: Aluminum is an effective conductor of heat, helping to dissipate any operational heat generated by the internal electrical components, thus contributing to component longevity.
• Electromagnetic Shielding: The metallic enclosure provides a degree of shielding against electromagnetic interference (EMI) and radio frequency interference (RFI), protecting sensitive vehicle electronics from potential disruption caused by the switch box or connected devices.

The plain finish on the aluminum body further enhances its ruggedness, resisting scratches and minor impacts, ensuring the unit maintains its professional appearance and protective qualities over an extended service life.

Applications and Target Vehicles

The Buyers Products 6-Function Backlit Pre-Wired Switch Box is ideally suited for a broad array of applications requiring centralized control of multiple auxiliary electrical systems. Its robust design and high current capabilities make it indispensable for:

• Commercial Trucks: Managing work lights, beacon lights, strobes, auxiliary power outlets, liftgate controls, and air horn systems.
• Utility and Service Vehicles: Controlling specialized equipment such as utility body lighting, pumps for fluid transfer, power inverters, and communication radios.
• Emergency Vehicles (Fire/EMS/Police): Operating emergency lighting, sirens, communication equipment, and specific rescue tools. While not designed for siren/light controllers, it can manage supplementary systems.
• Construction and Agricultural Equipment: Activating additional work lights, hydraulic power units, spreading mechanisms, or specialized sensors.
• Recreational and Off-Road Vehicles: Controlling light bars, winches, air compressors for tire inflation, and additional battery management systems.

The ability to manage five circuits at 20A and one at 40A means it can handle a diverse range of power requirements, from standard LED lighting to more power-hungry accessories. This versatility, combined with its comprehensive protection features, ensures that vehicle operators can safely and efficiently power their critical auxiliary equipment without compromising the vehicle's primary electrical architecture.

Technical Specifications Elaboration

The detailed specifications provided underscore the product's robust design and functionality:

• Number of Functions: 6 & Number of On/Off Switches: 6 & Number of Momentary Switches: 0: Clearly indicates six dedicated, latching (ON/OFF) control points, suitable for continuous operation of auxiliary devices.
• Mount Style: Dash: Confirms the unit's ergonomic design for in-cab installation, ensuring controls are within easy reach of the operator.
• Pre-fused (y/n): Yes & Fuses Pre-Installed (y/n): Yes: Highlights the immediate readiness for installation and the inherent safety provided by factory-installed individual circuit protection.
• Pre-Wired (y/n): Yes & Prewired (y/n): Yes: Reinforces the significant advantage in terms of reduced installation time, complexity, and potential wiring errors.
• Switch Style: Rocker: Denotes a durable, reliable, and user-friendly switch mechanism.
• Backlit: Yes (in ON position): Crucial for operational visibility in varied lighting conditions, enhancing safety and ease of use.
• Material: Aluminum & Finish: Plain & Color: Black: These attributes confirm the use of high-grade materials for durability, corrosion resistance, and a professional aesthetic that blends with most vehicle interiors.
• Height: 2.25", Length: 6.13", Width: 3.88": Compact dimensions facilitate versatile mounting options within limited dashboard space, without sacrificing control accessibility.
• Continuous Current Rating: - : While a specific number is not provided, the individual switch ratings (5x20A, 1x40A) and the presence of a relay and circuit breaker imply a robust total continuous current handling capability, designed for sustained operation of multiple auxiliary loads.
• Programmable (y/n): No: Indicates a straightforward, non-programmable, hard-wired control system, which often simplifies troubleshooting and maintenance for standard on/off functions.

Conclusion

The Buyers Products 6-Function Backlit Pre-Wired Switch Box Fused With Relay And Circuit Breaker is an indispensable component for professionals seeking to optimize the electrical management of their work vehicles. Its design is a testament to the commitment to reliability, safety, and ease of installation. By integrating individual circuit fuses, a powerful relay for high-current loads, and a resettable circuit breaker for comprehensive system protection, this unit minimizes electrical risks and maximizes operational uptime. The user-friendly backlit rocker switches and customizable labeling further enhance usability, ensuring operators can manage their auxiliary devices with confidence and precision. For any application demanding robust, centralized control of auxiliary electrical systems, this pre-engineered solution offers unparalleled value, reducing complexity and increasing the overall efficiency and safety of vehicle operations.
