6451010 - Universal Air Drain Valve

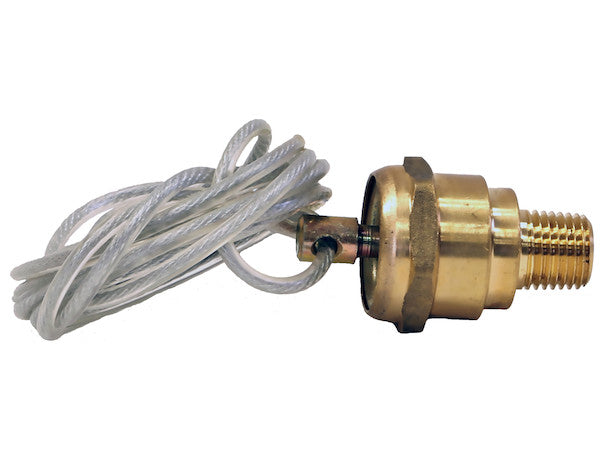

Buyers Products Universal Air Drain Valve includes a 1/4 in. NPTF male thread and 5 ft vinyl-coated cable. The cable has an uncrimped end for adjustable length and includes a clip to secure. It automatically self-closes for easy operation.

Specifications

The Crucial Role and Advanced Features of the Universal Air Drain Valve

In the realm of pneumatic systems, particularly those found in commercial vehicles, industrial machinery, and various heavy-duty applications, the integrity and longevity of components are paramount. A critical, yet often overlooked, aspect of maintaining these systems is the diligent removal of moisture and contaminants. The Buyers Products Universal Air Drain Valve stands as an indispensable component designed specifically to address this necessity, offering a robust, reliable, and user-friendly solution for automated and manual condensate drainage from air tanks and reservoirs. This comprehensive description delves into the technical intricacies, operational benefits, and diverse applications of this essential pneumatic device.

Understanding the Imperative of Air System Drainage

Compressed air, while a versatile and powerful energy source, inherently contains atmospheric moisture. As air is compressed, its temperature rises, and then cools rapidly upon entering the receiver tank. This cooling causes water vapor to condense into liquid water, which, if not regularly removed, can lead to severe operational issues and premature system failure. Furthermore, the compression process can introduce oil aerosols from the compressor and particulate matter from the ambient air, exacerbating the contamination problem. Accumulation of these elements can lead to:

• Corrosion: Water is the primary catalyst for rust and corrosion within air tanks, pipelines, and downstream components such as valves, cylinders, and air tools. This significantly reduces the lifespan of expensive equipment.
• Freezing: In cold environments, accumulated water can freeze within the air system, leading to blockages in lines, valves, and filters. This can cause complete system shutdown, especially critical in air brake systems where safety is directly compromised.
• Reduced Efficiency: Contaminants can foul pneumatic tools and actuators, leading to sluggish operation, increased wear, and higher energy consumption.
• Component Failure: Water and oil can wash away lubrication in cylinders and motors, accelerate seal degradation, and cause sensitive control valves to malfunction.
• Safety Hazards: For air brake systems, contaminated air can lead to sluggish brake response, increased stopping distances, and potential system failure, posing significant risks to vehicle occupants and others on the road.

The Universal Air Drain Valve is engineered precisely to mitigate these risks, providing a straightforward and effective mechanism for routine condensate removal.

Detailed Technical Specifications and Features

1. Universal Application and Standardized Connection

The "Universal" designation of this air drain valve is derived primarily from its adoption of industry-standard connection specifications. Featuring a 1/4 inch NPTF male thread, this valve is designed for broad compatibility with a vast array of air tanks, receivers, and auxiliary air systems across different vehicle types and industrial setups. NPTF (National Pipe Taper Fuel) threads are a specialized type of NPT thread designed to create a mechanical seal without the need for additional sealant, though the use of PTFE tape or liquid sealant is still common practice for added security in high-pressure pneumatic applications. The taper design ensures an interference fit, where the flanks of the male and female threads physically deform to create a leak-tight seal when properly torqued. This robust sealing method is crucial for maintaining pressure within the air system and preventing costly air leaks.

2. Efficient Single Port Design

The valve incorporates a single port design, which is the standard configuration for drain valves. This simplicity ensures a direct, unobstructed pathway for condensate and contaminants to exit the air tank. The 0.250-inch port size represents an optimal balance, large enough to allow the efficient discharge of accumulated moisture, oil, and particulates, yet compact enough to integrate seamlessly into various tank designs without compromising structural integrity or requiring excessive modification.

3. Robust Manual Actuation with Vinyl-Coated Cable

One of the standout features of the Buyers Products Universal Air Drain Valve is its sophisticated yet user-friendly manual actuation system. It includes a 5 ft vinyl-coated cable, offering several distinct advantages:

• Remote Operation: The extended cable length allows the valve to be operated from a convenient, easily accessible location, eliminating the need for technicians or operators to reach into confined or awkward spaces to drain air tanks. This is particularly beneficial on large commercial vehicles or industrial equipment where air tanks may be mounted in less accessible areas.
• Durability and Protection: The vinyl coating protects the steel cable from corrosion, abrasion, and exposure to environmental elements, including road salts, chemicals, and extreme temperatures. This ensures smooth operation and extended lifespan of the actuation mechanism.
• Adjustable Length: The cable features an uncrimped end, providing crucial flexibility for installation. This allows the installer to precisely cut the cable to the exact required length for a tailored fit in any application. This customization capability minimizes excess cable slack, preventing entanglement and ensuring a clean, professional installation.
• Secure Attachment: An included clip facilitates the securement of the cable, ensuring it remains in its intended position and does not interfere with other components or create a snagging hazard. This attention to detail underscores the valve's practical design for real-world applications.

The manual cable actuation offers a direct and reliable method for initiating the draining process, providing operators with full control over when and how long the valve remains open.

4. Automatic Self-Closing Mechanism for System Integrity

The valve's design incorporates an automatic self-closing mechanism, a critical feature that ensures the air system's integrity after each drainage cycle. This is typically achieved through an internal spring-return mechanism. Once the manual pulling force on the cable is released, the spring rapidly returns the valve's sealing element to its closed position. This swift closure prevents any prolonged escape of compressed air, thereby maintaining system pressure, conserving energy, and eliminating the need for manual closure. The "Open/Close" valve action perfectly describes this discrete state transition, ensuring quick and decisive sealing. This feature is fundamental for operational efficiency and safety, as it prevents accidental pressure loss that could impact vehicle braking or industrial process controls.

5. Valve Actuation by Pressure (System Environment)

While the primary trigger for *opening* the drain valve is the manual pull on the cable, the specification "Valve Actuation: Pressure" refers to the operational environment in which the valve functions. This indicates that the valve is designed to operate effectively *within* a pressurized air system, capable of withstanding and containing the internal system pressure until manually actuated. The "N" for "Spring to Neutral / Deadman Control" reinforces that this is not a momentary switch requiring constant force to maintain an open state. Instead, once opened (by pulling the cable), it stays open as long as the cable is held, and immediately self-closes upon release, designed to perform reliably under the constant pressure of the air system it serves.

6. Robust Construction for Durability

While specific materials are not detailed, Buyers Products is renowned for manufacturing durable components for demanding environments. An air drain valve designed for universal application in commercial and heavy-duty settings would typically feature construction from materials such as corrosion-resistant brass or stainless steel for the valve body and internal components. High-grade elastomeric seals (e.g., NBR or Viton) would ensure a leak-proof seal and provide resistance to oil, water, and temperature fluctuations. Such material selection guarantees longevity, resistance to the corrosive effects of condensate, and reliable performance across a wide range of operating temperatures and pressures commonly encountered in pneumatic systems.

Versatile Applications

The Universal Air Drain Valve's robust design and universal compatibility make it suitable for a broad spectrum of applications:

• Commercial Vehicles: Indispensable for air brake systems in heavy-duty trucks, buses, trailers, and RVs. Regular drainage is vital for brake system reliability and safety. It is also used on auxiliary air tanks for air ride suspensions, air horns, and other pneumatic accessories.
• Industrial Compressed Air Systems: Essential for draining condensate from air receivers, primary and secondary filters, air dryers, and other pressure vessels in manufacturing plants, workshops, and facilities utilizing compressed air for tools and processes.
• Agricultural Equipment: Used on tractors and other farm machinery equipped with air systems for brakes, auxiliary functions, or pneumatic implements.
• Construction and Off-Road Equipment: Applicable to excavators, bulldozers, loaders, and similar heavy machinery that rely on compressed air for various functions, ensuring operational integrity in harsh environments.
• Marine Applications: Suitable for air systems on boats and ships, where moisture content can be particularly high due to humid environments.

Installation, Operation, and Maintenance Best Practices

Installation:

Installation of the Universal Air Drain Valve is straightforward. The 1/4 inch NPTF male thread is designed for direct threading into a corresponding female port on the air tank or receiver. It is recommended to use an appropriate thread sealant (such as PTFE tape or a liquid pipe sealant compatible with pneumatic systems) to ensure a complete, leak-free seal and to aid in proper torquing. The cable should be routed carefully to avoid kinks, sharp bends, or contact with moving parts or high-heat sources. The uncrimped end allows for precise length adjustment, and once cut to size, a suitable crimp fitting (not included but easily obtainable) would typically be applied to secure the cable to a pull handle or actuation lever, while the provided clip helps secure the cable's path.

Operation:

Operating the valve is simple: a pull on the cable opens the valve, allowing accumulated moisture, oil, and rust particles to discharge. Releasing the cable automatically closes the valve. It is crucial to perform this operation regularly, ideally at the end of each shift or daily for continuously operating systems, and more frequently in high-humidity or cold-weather conditions to prevent freezing.

Maintenance:

Beyond routine draining, periodic inspection of the valve and cable assembly is recommended. Check the cable for signs of fraying or damage, and ensure the valve's sealing mechanism operates smoothly. Any signs of air leakage from the valve in its closed position indicate a need for inspection or replacement. Given its role in system protection, this valve serves as a proactive maintenance tool, significantly extending the life of downstream pneumatic components.

Economic and Operational Benefits

Investing in a high-quality air drain valve like the Buyers Products Universal Air Drain Valve yields significant long-term benefits:

• Enhanced System Reliability: By consistently removing corrosive elements, the valve ensures consistent performance of pneumatic systems, reducing unexpected failures.
• Extended Equipment Lifespan: Protection against corrosion and contamination directly translates to a longer operational life for expensive air tanks, lines, valves, and tools.
• Reduced Maintenance Costs: Fewer breakdowns and less wear on components mean reduced labor costs for repairs and lower expenses for replacement parts.
• Improved Operational Efficiency: Clean, dry air ensures pneumatic tools and machinery operate at peak performance, contributing to higher productivity and lower energy consumption.
• Increased Safety: For critical applications like air brakes, reliable moisture removal directly contributes to vehicle safety and compliance with regulations.

Conclusion

The Buyers Products Universal Air Drain Valve is more than just a simple component; it is a vital guardian of pneumatic system health. Its meticulously engineered features, including the robust 1/4 inch NPTF male thread, the versatile 5 ft vinyl-coated cable with adjustable length, and the critical automatic self-closing mechanism, combine to deliver a solution that is both highly effective and exceptionally user-friendly. Designed for universal applicability and built to withstand the rigors of demanding environments, this air drain valve stands as an essential investment for anyone operating or maintaining commercial vehicles, industrial air compressors, or heavy-duty pneumatic equipment. By ensuring consistent removal of harmful condensate, it protects capital investments, enhances operational safety, and guarantees peak performance across the entire air system for years to come.
