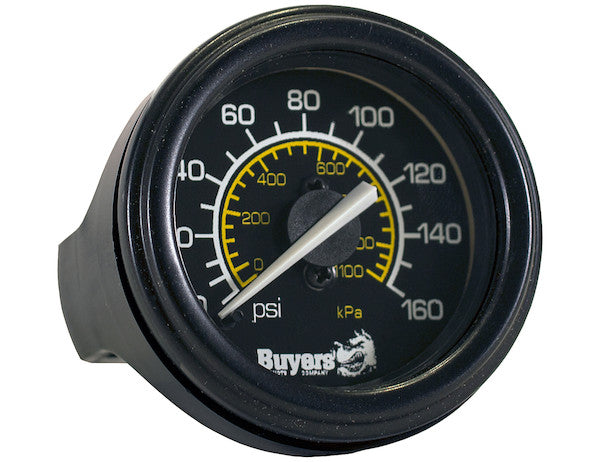

Buyers Products Pressure Gauge reads pressure ratings up to 160 PSI. The gauge is 12V and has a bright backlight to illuminate readings. Each gauge has a 2 in. dial and a 1/8 in. NPT male port. It is comparable to Parker?? #AM-2.0-150MMPM gauge.
Specifications
| For Use With | - |
|---|
Advanced Technical Overview: Precision Pressure Measurement System
This document provides an in-depth technical description of the Buyers Products Pressure Gauge, a critical component engineered for accurate and reliable pressure monitoring across a diverse range of industrial, mobile, and commercial applications. Leveraging robust design principles and precision manufacturing, this gauge offers exceptional performance characteristics, ensuring operational safety and efficiency in demanding environments.
Core Functional Specifications and Design Philosophy
The Buyers Products Pressure Gauge is meticulously designed to provide precise pressure readings up to a maximum of 160 PSI (pounds per square inch). This operational range makes it suitable for numerous hydraulic, pneumatic, and fluid power systems where monitoring pressures within this specific band is paramount. The gauge's electrical architecture is standardized for 12V DC power systems, rendering it highly compatible with most vehicular, mobile equipment, and low-voltage industrial control setups. A key feature is the integrated bright backlight, which significantly enhances visibility of the pressure readings in low-light conditions, ensuring continuous readability and reducing operator error during night-time operations or in poorly lit mechanical compartments. This commitment to visibility underscores a fundamental design philosophy centered on user-centric functionality and safety.
Mechanical and Interface Design
Each gauge incorporates a 2-inch (approximately 50.8 mm) diameter dial. This dial size is a judicious balance, providing sufficient scale for clear numerical and graphical representation of pressure values without occupying excessive panel space. The dial’s design prioritizes readability, often featuring clear markings, crisp numerals, and a responsive needle mechanism for instantaneous pressure indication. The mechanical interface for pressure input is standardized to a 1/8 inch NPT (National Pipe Taper) male port. The NPT standard is widely recognized and adopted in North America for sealing tapered threads, ensuring a robust, leak-free connection when properly installed with compatible female NPT fittings. The male configuration of the port facilitates direct integration into manifold blocks, existing piping, or specialized pressure taps, offering versatility in installation and system integration.
Comparative Analysis and Industry Equivalence
A significant benchmark for this product is its stated comparability to the Parker #AM-2.0-150MMPM gauge. This comparison is not merely indicative of similar form factor or basic functionality but suggests an alignment in key performance metrics, material quality, and operational reliability. Parker Hannifin is a globally recognized leader in motion and control technologies, and their AM series gauges are known for their quality and durability. By referencing this specific Parker model, Buyers Products communicates that their gauge meets or exceeds certain industry-accepted standards for accuracy, longevity, and resistance to environmental factors. Users familiar with the Parker AM-2.0-150MMPM can expect a similar level of performance and interchangeability, which simplifies procurement and maintenance for existing systems utilizing such components. This comparability often extends to factors like accuracy class, vibration resistance, temperature compensation, and overall operational lifespan, although specific detailed technical specifications would be required for a direct, exhaustive comparison.
Technical Principles of Pressure Measurement
The operation of this pressure gauge is founded on well-established mechanical principles, typically involving a Bourdon tube, diaphragm, or bellows mechanism. In a Bourdon tube gauge, for instance, a C-shaped tube, flattened elliptically, is connected to the pressure source. As pressure increases, the tube tends to straighten, and this deformation is mechanically transmitted via a linkage system to a geared sector and pinion, which rotates the indicator needle across the calibrated dial. The precision of the gear train, the material properties of the Bourdon tube (e.g., brass, stainless steel for different media), and the accuracy of the calibration process are critical determinants of the gauge's overall performance. For the 160 PSI range, a Bourdon tube mechanism is a common and reliable choice, offering good linearity and repeatability within its operational limits.
Electrical System Integration and Backlighting
The 12V DC power requirement for the backlight simplifies integration into common automotive, marine, and industrial mobile applications. The backlight typically utilizes LED technology, known for its high efficiency, long lifespan, and consistent illumination. The "bright" characteristic implies sufficient luminosity to ensure clear visibility even in completely dark environments, without causing glare or eye strain. Proper electrical installation necessitates attention to polarity and ensuring the 12V supply is stable and protected against overcurrent through an appropriately sized fuse. The low power consumption of an LED backlight also minimizes demands on the electrical system, making it suitable for battery-powered applications.
Materials and Construction for Durability
While not explicitly detailed, the operational context of a pressure gauge typically demands robust construction materials. The casing would likely be made from durable plastics, steel, or stainless steel to protect the internal mechanisms from physical impact, dust, and moisture. The dial face is generally protected by a clear, impact-resistant lens, such as polycarbonate or glass. Internal components like the Bourdon tube and movement gears are selected based on the media compatibility, pressure range, and desired accuracy. For general-purpose applications up to 160 PSI, brass or phosphor bronze Bourdon tubes are common, offering good corrosion resistance for non-aggressive fluids like hydraulic oil, air, or water. Gasket materials are crucial for maintaining the integrity of the enclosure against environmental ingress and for sealing the pressure connection. Environmental sealing, often rated to an IP (Ingress Protection) standard, is an important consideration for gauges exposed to harsh conditions.
Installation Best Practices and Considerations
Proper installation is paramount for both the accuracy and longevity of the pressure gauge. When connecting the 1/8 inch NPT male port, it is crucial to use appropriate thread sealant (e.g., PTFE tape or pipe dope) to ensure a leak-free seal. Overtightening should be avoided as it can deform the housing or internal mechanism, leading to inaccurate readings or premature failure. The gauge should be mounted in a location that is free from excessive vibration, direct sunlight (which can degrade materials over time), and extreme temperature fluctuations beyond its specified operating range. For applications with significant pressure pulsations, an optional snubber or restrictor can be installed upstream of the gauge to dampen fluctuations, protect the internal mechanism, and provide a more stable reading. The electrical connection for the backlight should be routed away from sharp edges and heat sources, secured, and properly terminated to prevent short circuits or wire damage. Regular calibration checks, though not always required for all applications, can ensure sustained accuracy over the gauge's operational life.
Applications and Use Cases
The Buyers Products Pressure Gauge is versatile and finds application in a multitude of sectors:
- Mobile Hydraulics: Essential for monitoring hydraulic system pressure in construction equipment (excavators, loaders), agricultural machinery (tractors, sprayers), and utility vehicles, ensuring optimal performance and preventing overload conditions.
- Pneumatic Systems: Used in industrial compressed air systems, air brakes on trucks, and pneumatic tools to monitor line pressure, ensuring efficient operation and preventing damage to air-driven components.
- Fluid Transfer Systems: Employed in pumping stations, water treatment facilities, and fuel transfer systems to monitor line pressure, crucial for flow control and leak detection.
- HVAC Systems: Integrated into heating, ventilation, and air conditioning units for monitoring refrigerant or water pressure in closed loops, facilitating diagnostics and maintenance.
- Engine Monitoring: Can be used for engine oil pressure monitoring in certain applications, providing critical information on engine health.
- Specialized OEM Equipment: Custom integration into original equipment manufactured products where reliable 160 PSI pressure indication is required.
Maintenance and Calibration
While pressure gauges are generally robust, a few maintenance considerations are noteworthy. Periodic visual inspection for physical damage, clarity of the dial, and integrity of the connections is recommended. If the gauge is exposed to harsh environments, routine cleaning of the lens may be necessary to maintain readability. For critical applications, or if there is suspicion of inaccuracy, the gauge should be recalibrated against a known standard. Calibration typically involves comparing the gauge's readings against a master gauge or a deadweight tester at several points across its range. While this specific gauge does not detail field adjustability, professional calibration services can ascertain its accuracy and recommend replacement if it falls outside acceptable tolerances. The long-term stability of the Bourdon tube and the integrity of the mechanical linkage are key to maintaining accuracy over time.
Safety Considerations
Operating within the specified pressure range of 160 PSI is crucial. Exceeding this limit, even momentarily, can permanently deform the Bourdon tube, leading to inaccurate readings or catastrophic failure. Users should always ensure that the gauge's pressure rating is appropriate for the maximum expected system pressure, preferably with a safety margin. Compatibility with the fluid medium is also vital; incompatible fluids can corrode internal components, leading to failure. For instance, gauges designed for air or water may not be suitable for corrosive chemicals or high-temperature steam. Proper installation techniques, including the use of correct sealants and appropriate torque, mitigate the risk of leaks and system failures. The electrical connections for the backlight must be insulated and secured to prevent electrical shorts, which could pose fire hazards or damage the vehicle's electrical system. Adherence to manufacturer guidelines and industry safety standards is paramount for safe operation.
Conclusion
The Buyers Products Pressure Gauge stands as a reliable and technically sound instrument for a broad spectrum of pressure monitoring needs. Its specified 160 PSI range, 12V backlit operation, 2-inch dial, and 1/8 inch NPT male port are carefully selected specifications that cater to practicality, ease of integration, and operational efficiency. The explicit comparability to a renowned industry standard like the Parker #AM-2.0-150MMPM further reinforces its standing as a high-quality, dependable component. Engineers, technicians, and system integrators can confidently deploy this gauge, understanding its technical underpinnings and recognizing its value in ensuring the safe, efficient, and well-monitored operation of their hydraulic, pneumatic, and fluid systems.
