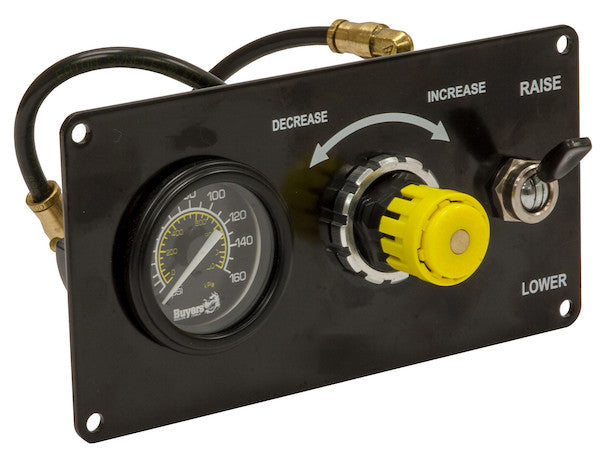

Buyers Products Lift Axle Control Assembly with Toggle Air Valve provides in-cab controls for air suspension and lift axle. Each unit comes pre-plumbed and assembled, and includes fittings/DOT tubing and a mounting plate. The steel mounting plate is powder coated for corrosion resistance. The assembly is single acting. Individual components are also available.
Specifications
| Feathering | No |
|---|---|
| Number of Ports | 2 |
| Port Size | 0.250 |
| Port Type | Brass Push Lock Fittings |
| Rated Pressure | 300 |
| Spring to Neutral / Deadman Control (y/n) | N |
| Valve Action | Single Acting |
| Valve Actuation | Manual Toggle |
| Valve Primary Application | Raise/Lower Lift Axle |
Advanced Technical Overview: Buyers Products Lift Axle Control Assembly with Toggle Air Valve
The Buyers Products Lift Axle Control Assembly with Toggle Air Valve represents a critical component in the sophisticated pneumatic systems of modern heavy-duty commercial vehicles. Engineered for precision and durability, this assembly provides operators with direct, reliable control over auxiliary air suspension systems and lift axles directly from the vehicle’s cab. Its integrated design, combining a robust toggle air valve with all necessary pre-plumbed components, streamlines installation and ensures optimal performance in the demanding operational environments faced by commercial trucking, construction, and specialized vocational fleets.
System Functionality and Operational Imperatives
The core function of this assembly is to manage the pneumatic actuation of a lift axle. Lift axles, also known as drop axles or tag axles, are supplemental axles on heavy-duty vehicles designed to be raised or lowered to the ground as needed. Their strategic deployment offers a multitude of benefits, including enhanced fuel efficiency by reducing rolling resistance when not under maximum load, minimized tire wear, improved maneuverability, and compliance with varying weight restrictions across jurisdictions. The ability to precisely control the raise and lower functions of these axles from the driver's seat is paramount for operational efficiency, safety, and regulatory adherence. The Buyers Products assembly facilitates this control through a rugged, single-acting toggle air valve, offering clear, unambiguous feedback to the operator.
Integrated Design for Simplified Deployment
A hallmark of this Lift Axle Control Assembly is its comprehensive, pre-plumbed, and factory-assembled configuration. This design philosophy significantly reduces installation complexity and time, which translates directly into lower labor costs and faster vehicle turnaround times for fleet maintenance operations. By arriving as a ready-to-mount unit, the potential for installation errors is substantially mitigated, ensuring that all pneumatic connections are correctly routed and sealed according to engineering specifications. The inclusion of high-quality fittings and DOT-compliant tubing further underscores the commitment to reliability and safety. The components are not merely present but are optimally arranged and secured on a robust steel mounting plate, providing a solid foundation for the entire control unit. This powder-coated steel plate offers exceptional resistance to corrosion, a critical consideration given the exposure to moisture, road salts, and environmental contaminants inherent in heavy-duty vehicle operation.
Technical Specifications: In-Depth Analysis
Understanding the detailed specifications of the Lift Axle Control Assembly is essential for appreciating its design intent and performance characteristics:
Feathering: No
Feathering refers to the ability of a pneumatic valve to provide modulated, proportional control over airflow, allowing for gradual pressure adjustments. The absence of feathering in this assembly indicates that the valve operates on a distinct ON/OFF principle. For lift axle applications, which typically require full engagement or disengagement, a non-feathering valve offers a more direct, reliable, and easily reproducible action. This design choice simplifies the control mechanism, reducing potential points of failure and ensuring rapid and decisive actuation of the lift axle, which is often crucial for responding to changing load conditions or terrain.
Number of Ports: 2
The assembly features a two-port configuration. In the context of a single-acting valve designed for raise/lower functions, these two ports typically serve as the primary supply port for compressed air and the exhaust port. One port connects to the main air supply from the vehicle's pneumatic system, while the other connects to the lift axle's air bag or actuator. When the toggle is actuated, air is directed to pressurize the lift axle’s air bags to lower the axle, or air is exhausted from the bags to raise the axle, depending on the specific plumbing configuration and desired control logic (e.g., air-to-raise or air-to-lower).
Port Size: 0.250 inches
A port size of 0.250 inches (1/4 inch) is a standard dimension within heavy-duty vehicle pneumatic systems. This size is carefully selected to balance sufficient airflow capacity for rapid axle actuation with the need for compact design and compatibility with readily available DOT-compliant air lines. It ensures adequate air volume can pass through the valve to quickly inflate or deflate the lift axle's air springs, minimizing operational delays and maintaining consistent response times across various environmental conditions.
Port Type: Brass Push Lock Fittings
The utilization of brass push lock fittings for the ports provides several significant advantages. Brass is a material renowned for its excellent corrosion resistance, superior strength, and chemical compatibility, making it ideal for pneumatic systems exposed to moisture and potential contaminants. Push lock fittings, also known as push-to-connect or instant fittings, offer unparalleled ease and speed of installation. They allow for a secure, airtight connection by simply pushing the tubing into the fitting, without the need for tools or sealants. This design not only simplifies initial assembly but also facilitates maintenance and potential future modifications, all while ensuring robust sealing against the rated pressure.
Rated Pressure: 300 PSI
A rated pressure of 300 PSI (pounds per square inch) signifies the maximum continuous operating pressure the valve can safely and reliably withstand. This rating is critical for ensuring the longevity and integrity of the pneumatic system. Heavy-duty commercial vehicle air systems typically operate within a range of 100-150 PSI. The 300 PSI rating provides a substantial safety margin, accommodating potential pressure spikes or variations within the vehicle's air system, thereby enhancing durability and reducing the risk of premature failure. This over-specification ensures the control assembly remains robust even under strenuous operating conditions.
Spring to Neutral / Deadman Control: No
A "spring to neutral" or "deadman" control mechanism implies that a valve or switch will automatically return to a neutral or OFF position when the operator releases it, preventing unintended continuous operation. The absence of this feature in the Buyers Products assembly means the toggle valve will remain in its actuated position (either ON or OFF for the air flow) until manually toggled back by the operator. This design is deliberate for lift axle control, where the operator typically desires a sustained "raised" or "lowered" state without continuous engagement. This latching action simplifies operation and eliminates the need for constant manual pressure, allowing the driver to focus on other critical tasks.
Valve Action: Single Acting
A single-acting valve controls the flow of pressure to a single working port. In the context of a lift axle, this means the valve primarily controls the inflation or deflation of the air spring system for that axle. It effectively serves as a conduit for either supplying compressed air to lower the axle or exhausting air to raise it. While dual-acting valves might manage both pressure application and release through separate ports for a more complex hydraulic or pneumatic cylinder, a single-acting valve is perfectly suited for the straightforward raise/lower function of a lift axle, often working in conjunction with a spring-return mechanism or simple exhaust.
Valve Actuation: Manual Toggle
Manual toggle actuation provides a direct, tactile, and highly reliable method of control. The mechanical nature of a toggle switch offers clear physical feedback to the operator, confirming the state of the valve. Unlike electronic switches that can be susceptible to electrical failures, electromagnetic interference, or software glitches, a mechanical toggle provides consistent performance in harsh environments. Its simplicity translates to high durability and minimal maintenance, making it an ideal choice for safety-critical applications like lift axle control where unambiguous action is required.
Valve Primary Application: Raise/Lower Lift Axle
This explicit designation confirms the assembly's optimized design for its core purpose. Every aspect, from the non-feathering action to the robust fittings and single-acting mechanism, is tailored to efficiently and reliably manage the raising and lowering of auxiliary axles. This specialized focus ensures that the product delivers superior performance for this specific, demanding application, rather than being a generic air valve adapted for various uses. It is designed to withstand the cyclic demands and environmental stresses inherent in lift axle operation on commercial vehicles.
Material Science and Engineering Excellence
The construction of the Lift Axle Control Assembly reflects a commitment to engineering excellence and material science. The use of a steel mounting plate, followed by a professional powder coating, provides a multi-layered defense against environmental degradation. Steel offers inherent structural rigidity and strength, capable of withstanding constant vibration and operational stresses within a vehicle cab. The powder coating, a dry finishing process, creates a hard finish that is tougher than conventional paint. It is resistant to chipping, scratching, fading, and wear, ensuring the aesthetic and protective qualities are maintained over extended periods, even in corrosive atmospheres.
The selection of brass for the push lock fittings is equally strategic. Brass, an alloy of copper and zinc, possesses excellent machining properties, enabling precise manufacturing for leak-free connections. Its inherent corrosion resistance makes it superior to steel or aluminum in many pneumatic applications, especially where moisture is present in the air supply, preventing rust and ensuring long-term functional integrity. The seals within the push lock fittings are typically made from high-grade elastomers, selected for their resistance to air pressure, temperature variations, and compatibility with compressed air, further guaranteeing a secure and durable seal.
Installation and Integration within Vehicle Pneumatic Systems
The pre-plumbed and assembled nature of this control unit drastically simplifies the integration process. Typically, installation involves:
- Mounting: Securing the powder-coated steel plate to a suitable, flat surface within the vehicle cab, usually near the driver, utilizing pre-drilled holes.
- Air Supply Connection: Tapping into the vehicle’s existing primary air reservoir or a dedicated auxiliary air line, connecting to one of the 0.250-inch brass push lock ports using the supplied DOT tubing.
- Lift Axle Actuator Connection: Connecting the remaining port to the pneumatic line leading to the lift axle’s air springs or control manifold, again using the provided DOT tubing.
- Testing: Verifying system integrity and functionality, ensuring proper raise/lower operation and leak-free connections.
The inclusion of DOT-compliant tubing is non-negotiable for safety and regulatory compliance in commercial vehicle applications. Department of Transportation (DOT) standards ensure that air brake and auxiliary air lines meet stringent requirements for pressure resistance, temperature range, and material durability, thereby guaranteeing reliable performance under all operating conditions and preventing critical failures.
Applications and Industry Impact
The Buyers Products Lift Axle Control Assembly finds indispensable application across a broad spectrum of heavy-duty vehicles, including:
- Over-the-Road (OTR) Trucks: Enhancing fuel efficiency and tire longevity for long-haul operations by raising axles when the trailer is empty or partially loaded.
- Construction Vehicles: Dump trucks, concrete mixers, and specialized heavy haulers that frequently operate with varying loads and often need to lift axles for improved maneuverability on job sites or to meet bridge weight formulas.
- Refuse Trucks: Managing weight distribution and maneuverability in dense urban environments.
- Vocational Vehicles: Any vehicle where adaptable load carrying capacity and maneuverability are critical, such as logging trucks, tankers, or tow trucks.
The ability to precisely and effortlessly manage lift axles contributes significantly to the operational economics and safety profile of these vehicles. It empowers operators to adapt quickly to changing road conditions, load configurations, and legal requirements, optimizing performance while minimizing wear and tear on expensive components.
Conclusion
The Buyers Products Lift Axle Control Assembly with Toggle Air Valve is more than just a component; it is an integrated, technically superior solution designed to meet the rigorous demands of the commercial vehicle industry. Its pre-plumbed, durable construction, combined with meticulous attention to pneumatic specifications, ensures ease of installation, unparalleled reliability, and precise control over lift axle operations. For fleet managers, vehicle manufacturers, and owner-operators seeking an uncompromising solution for in-cab lift axle management, this assembly offers a professional-grade product that delivers consistent, high-performance functionality, contributing to enhanced operational efficiency, safety, and longevity of heavy-duty vehicle assets.
