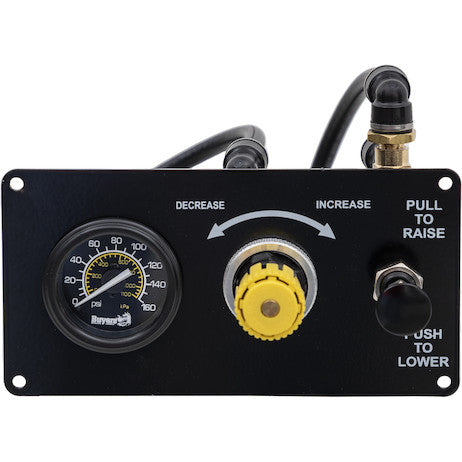

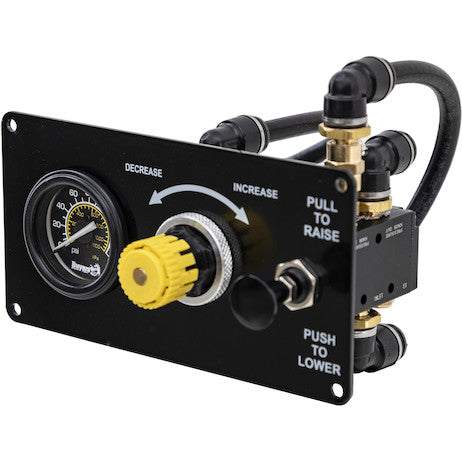

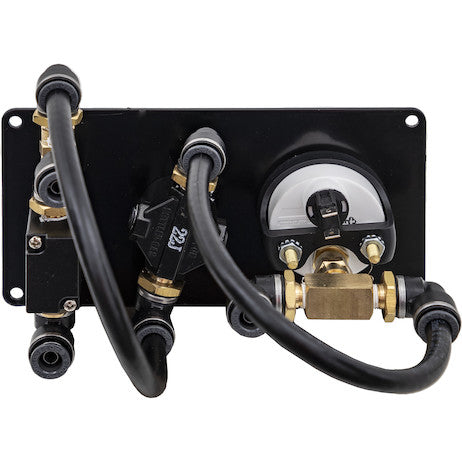

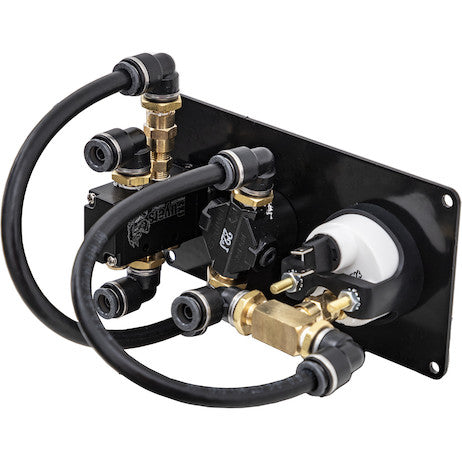

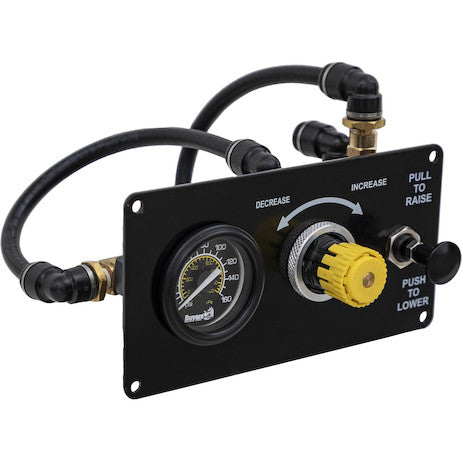

Buyers Products Lift Axle Control Assembly with Push-Pull Air Valve provides in-cab controls for air suspension and lift axle. Each unit comes pre-plumbed and assembled and includes fittings/DOT tubing and a mounting plate. The steel mounting plate is powder coated for corrosion resistance. The assembly is available in single or double acting versions. Individual components are also available.
Specifications
| Feathering | No |
|---|---|
| Number of Ports | 3 |
| Port Size | 0.375 |
| Port Type | Brass Push Lock Fittings |
| Rated Pressure | 300 |
| Spring to Neutral / Deadman Control (y/n) | N |
| Valve Action | Double Acting |
| Valve Actuation | Manual Push/Pull |
| Valve Primary Application | Raise/Lower Lift Axle |
Advanced Pneumatic Control for Commercial Lift Axle Systems
The Buyers Products Lift Axle Control Assembly with Push-Pull Air Valve, specifically designed for double-acting applications, represents a critical component in optimizing the operational efficiency and compliance of heavy-duty commercial vehicles. This meticulously engineered system provides robust, in-cab pneumatic control for air suspension and lift axle mechanisms, offering fleet operators and vehicle manufacturers a reliable solution for managing axle configuration based on load, road conditions, and regulatory requirements. Its integrated design, featuring pre-plumbed components and a durable mounting plate, significantly streamlines installation and ensures enduring performance in demanding environments.
Understanding Double-Acting Pneumatic Control
Central to the functionality of this assembly is its "double-acting" valve action. In the context of lift axles and air suspension systems, a double-acting control mechanism signifies that positive air pressure is actively used to both raise and lower the axle. Unlike single-acting systems, which typically rely on air pressure for one direction (e.g., lifting) and springs or gravity for the return stroke (e.g., lowering), a double-acting system provides enhanced control and responsiveness in both operational states. This translates to more precise manipulation of the lift axle, ensuring rapid and predictable deployment or retraction, crucial for navigating varied operational scenarios from highway cruising to urban maneuvering or off-road conditions. The ability to apply positive pressure for both functions minimizes potential for unintended axle movement and maximizes control authority for the operator, contributing to overall vehicle stability and safety.
Precision Through Push-Pull Actuation
The manual push-pull air valve serves as the primary interface for the operator, offering a straightforward and intuitive method for lift axle control. This actuation method is chosen for its mechanical simplicity, durability, and reliability, particularly in environments where electronic controls might be susceptible to moisture, vibration, or extreme temperatures. The push-pull mechanism provides clear tactile feedback, ensuring the operator knows the valve's current state. The specification of "Feathering: No" and "Spring to Neutral / Deadman Control: N" are deliberate design choices. The absence of feathering indicates that the valve operates as a direct on/off switch for air flow, supplying full pressure to either raise or lower the axle without allowing for partial or modulated flow. While some applications benefit from feathering for gradual adjustments, lift axle operations typically require distinct "up" or "down" states, making a non-feathering valve efficient and effective. Similarly, the lack of a spring-to-neutral or deadman control means the valve will maintain its selected position (pushed in or pulled out) without continuous operator engagement, reducing fatigue during extended periods where the axle position needs to remain constant.
Integrated Design and Enhanced Durability
One of the significant advantages of the Buyers Products Lift Axle Control Assembly is its "pre-plumbed and assembled" nature. This factory integration eliminates the need for complex, time-consuming on-site assembly, drastically reducing installation labor costs and vehicle downtime. Pre-assembly also mitigates common issues such as incorrect plumbing connections or improper torqueing of fittings, which can lead to air leaks and system inefficiency. Each unit arrives ready for installation, inclusive of all necessary fittings and DOT-compliant tubing. The robust steel mounting plate, finished with a high-quality powder coating, underscores the assembly's commitment to durability. Powder coating provides superior resistance to corrosion, chipping, and abrasion compared to conventional liquid paint, an essential characteristic for components exposed to the rigorous conditions within a commercial vehicle's cab, where moisture, dust, and mechanical stresses are commonplace. This protective layer ensures the mounting plate maintains its structural integrity and aesthetic appeal over the long service life of the vehicle.
Technical Specifications: A Closer Look
The technical specifications of this lift axle control assembly highlight its robust engineering and operational compatibility. With three ports, the valve is configured for a typical double-acting pneumatic circuit: one port for supply air, and two ports for directing air to either side of a double-acting air bag or actuator to achieve both extension and retraction. The 0.375-inch port size is a standard dimension for pneumatic systems in heavy-duty vehicles, ensuring ample airflow for rapid axle movement and compatibility with existing vehicle air systems. The inclusion of brass push-lock fittings for all connections offers both convenience and reliability. Brass, known for its corrosion resistance and mechanical strength, ensures long-term integrity, while the push-lock design allows for quick, tool-free hose connections that form a secure, leak-proof seal under pressure. This significantly simplifies both initial installation and future maintenance. The remarkable 300 PSI rated pressure capacity provides a substantial safety margin, far exceeding the typical operating pressures of 100-125 PSI found in commercial vehicle air systems. This high pressure rating ensures the valve assembly can withstand unexpected pressure spikes and continuous operation without compromise, contributing to exceptional longevity and reduced failure rates. The explicitly stated "Valve Primary Application: Raise/Lower Lift Axle" confirms its dedicated design for this specific, critical function, ensuring optimized performance and reliability for the intended use case.
Applications and Operational Benefits in Commercial Fleets
The Buyers Products Lift Axle Control Assembly is indispensable across a broad spectrum of commercial vehicle applications, including but not limited to heavy-duty trucks, trailers, dump trucks, refuse vehicles, concrete mixers, and specialized vocational equipment. Its implementation yields a multitude of operational and economic advantages:
- Enhanced Maneuverability: By allowing the operator to raise lift axles when traversing tight turns or confined spaces, tire scrubbing and associated wear are significantly reduced. This extends tire life and prevents damage to road surfaces.
- Improved Fuel Efficiency: When operating with partial or no load, raising unused lift axles reduces rolling resistance. This minimizes friction and drag, leading to tangible improvements in fuel economy.
- Optimized Weight Distribution and Compliance: Lift axles play a crucial role in distributing weight appropriately to comply with federal, state, and local bridge and axle weight regulations. This control assembly provides the precision necessary for operators to manage axle configuration quickly and effectively, avoiding costly fines and ensuring legal operation.
- Reduced Component Wear: Lifting axles when not required reduces wear on tires, brakes, suspension components, and even the driveline, extending the service life of expensive vehicle parts.
- Increased Traction: In certain low-traction conditions, raising a lift axle can transfer more weight to the drive axles, improving traction and vehicle control.
- Operator Convenience and Safety: The intuitive in-cab control allows operators to make real-time adjustments without leaving the vehicle, enhancing safety and reducing operational downtime.
Installation, Maintenance, and Systemic Integration
While the Buyers Products Lift Axle Control Assembly arrives pre-assembled and pre-plumbed, proper installation and integration into the vehicle's pneumatic system are paramount for optimal performance and safety. Technicians should ensure the mounting plate is securely fastened within the cab, typically within easy reach of the operator. Connection to the vehicle's main air supply and the lift axle's pneumatic cylinders or air bags must adhere to all DOT regulations and manufacturer guidelines, utilizing the provided DOT tubing and brass push-lock fittings for reliable, leak-free connections. A clean air supply, free from moisture and contaminants, is essential for the longevity of any pneumatic valve. Regular inspection of air lines and fittings for wear, kinks, or leaks should be part of routine vehicle maintenance to ensure sustained operational integrity. The robust construction and minimal moving parts of the push-pull valve design inherently reduce maintenance requirements, but periodic checks for smooth operation and freedom of movement are advisable. The availability of individual components for repair further supports long-term serviceability and lifecycle management.
Commitment to Quality and Reliability
Buyers Products is renowned for its commitment to manufacturing high-quality, durable equipment for the commercial vehicle industry. This Lift Axle Control Assembly embodies that commitment, providing a solution that is not only highly functional but also built to withstand the rigorous demands of heavy-duty applications. The selection of materials, such as powder-coated steel for the mounting plate and brass for the fittings, along with a high-pressure rating, are deliberate choices aimed at maximizing product longevity and minimizing failure points. For fleet managers and vehicle builders, choosing this assembly means investing in a proven product that enhances vehicle versatility, extends tire and suspension life, and supports compliance with weight regulations, all while offering straightforward, reliable control. The product’s design philosophy prioritizes ease of installation, robust performance, and sustained operational efficacy, making it an intelligent choice for modern commercial fleets seeking to optimize their lift axle management systems.
