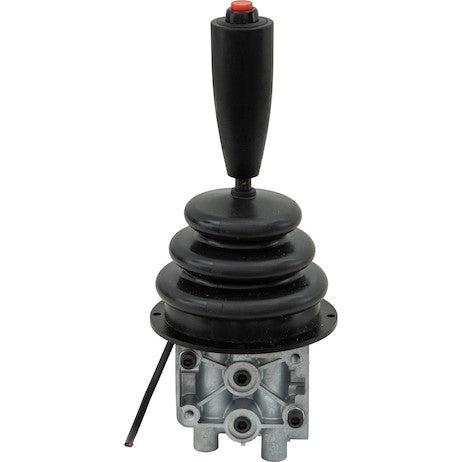

Buyers Products Single and Dual Axis Air Control Valves are available in a variety of handle configurations: Proportional, Feathering, and Stackable. Used in many applications, such as hook lift/cable lift hoists, dump bodies, and snow plows. Single or dual axis options available with varying handle configurations and knob styles. An LED light or push button on/off switch on top of the handle offers additional functionality.
Specifications
| Depth (in.) | 4.7 |
|---|---|
| Feathering | Yes |
| Height (in.) | 10 |
| Port Type | 1/8 NPT female |
| Spring to Neutral / Deadman Control (y/n) | Yes |
| Valve Action | Double Acting |
| Valve Actuation | Single axis lever control, 55deg offset handle |
| Valve Primary Application | Plow / Hoist Control - Stackable |
| Width (in.) | 1.4 |

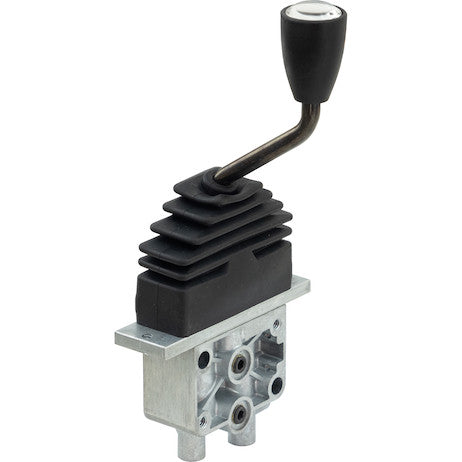

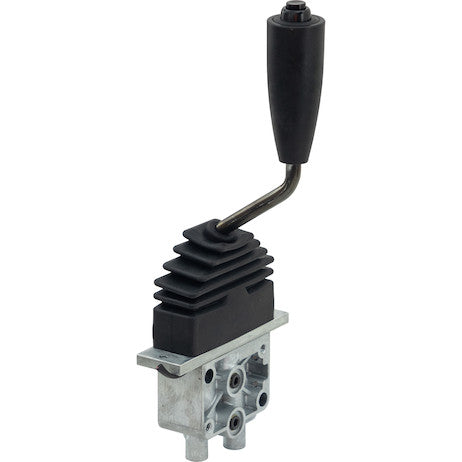

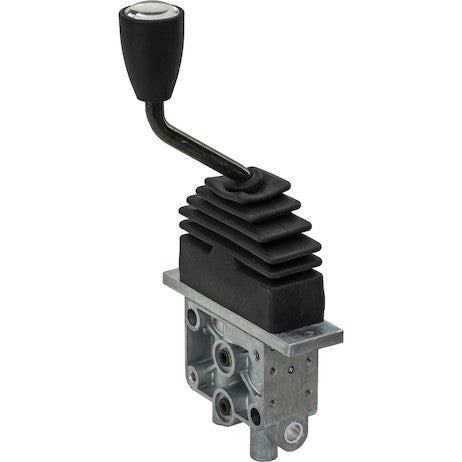

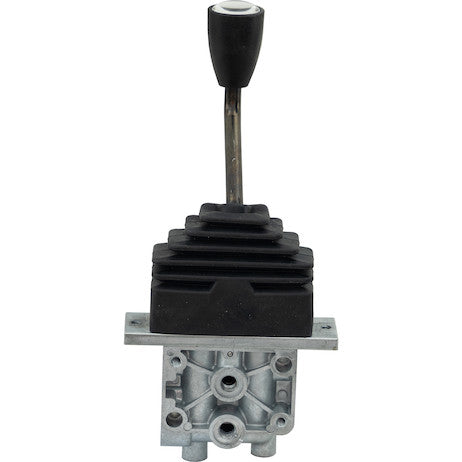

Precision Pneumatic Control: The Single Axis Air Control Valve with 55-Degree Handle Offset
The Buyers Products Single Axis Air Control Valve, featuring a meticulously engineered 55-degree handle offset, represents a pinnacle in pneumatic control technology, specifically designed for applications demanding precise, reliable, and ergonomic operation. This valve is not merely a component but a critical interface between operator intent and machine execution, engineered to optimize performance in demanding environments. Addressing the intricate control requirements of heavy-duty equipment, this unit offers unparalleled functionality, integrating advanced features such as feathering control, robust spring-to-neutral (deadman) safety, and double-acting valve action, all within a compact, stackable form factor. Its design philosophy centers on maximizing operator efficiency, enhancing safety protocols, and extending the operational lifespan of connected hydraulic or pneumatic systems.
Fundamental Principles of Single Axis Control
The single-axis control mechanism provides a straightforward and intuitive method for operating pneumatic actuators. This specialization allows for highly granular control over a particular function, reducing operator cognitive load and minimizing potential for error. The single axis translates to precise modulation of air flow along a single plane of motion, typically governing the extension or retraction of a cylinder, or the rotation of a motor in one direction. This direct correlation between handle movement and actuator response is critical in applications where nuanced adjustments are paramount, such as positioning a snow plow blade or lifting a hook. The simplicity of single-axis control ensures operators can focus entirely on the task, achieving optimal results with minimal training and maximum confidence.

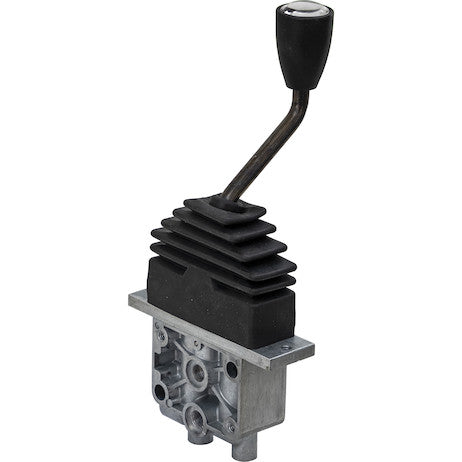

Ergonomic Superiority: The 55-Degree Handle Offset
A defining characteristic of this air control valve is its meticulously designed 55-degree handle offset. This ergonomic consideration is a significant advancement in operator comfort and control efficiency. The 55-degree angle is strategically chosen to align with the natural resting position of the human arm and wrist during operation. This optimized posture significantly reduces strain and fatigue over extended periods, a common challenge in demanding industrial applications. By minimizing musculoskeletal stress, the offset handle enhances operator alertness and precision, directly contributing to improved productivity and reduced risk of repetitive strain injuries. Furthermore, the handle's specific angle often provides enhanced visibility of the surrounding control panel, allowing operators to maintain situational awareness without awkward body adjustments. This thoughtful ergonomic integration underscores a commitment to operator well-being and operational excellence.
Unrivaled Precision with Feathering Control
The inclusion of feathering capability signifies this valve's advanced control characteristics, enabling precise modulation of air flow to an actuator. Feathering refers to the capacity for gradual and incremental control over the speed and force of an actuator's movement, rather than a simple on/off operation. When an operator moves the handle, air flow is progressively increased or decreased in proportion to handle displacement. This enables extremely smooth and controlled movements, eliminating abrupt jerks, sudden starts, and harsh stops. The benefits are profound: it significantly reduces mechanical shock to machinery, extending the lifespan of components like hydraulic cylinders and hoses. It also minimizes stress on structural elements, preventing premature wear. More importantly, feathering provides unparalleled control over delicate operations, such as gently placing a load or precisely positioning a plow blade. This level of precision translates directly into safer operations, higher quality work, and greater overall operational efficiency.
Paramount Safety: Spring-to-Neutral / Deadman Control
Safety is a non-negotiable aspect of heavy equipment operation, and the integrated spring-to-neutral, or "deadman" control, embodies a critical safety protocol. A deadman control ensures that the actuated function immediately ceases or returns to a safe, neutral state the moment the operator releases the control lever. This is achieved through an internal spring mechanism that automatically biases the handle back to its central position when no force is applied. The implications for operational safety are profound: in the event of operator incapacitation or unintentional release, connected equipment will promptly and safely stop moving, preventing potential accidents, damage, or injury. This feature is particularly vital in applications involving lifting, articulation, or heavy load manipulation, where uncontrolled movement can have severe consequences. By requiring continuous, intentional engagement from the operator, the deadman control system significantly mitigates risks, ensuring equipment only operates under conscious direction.
Optimized Actuation: Double Acting Valve Action
The designation of this unit as a "double-acting" valve refers to its capability to control double-acting pneumatic cylinders or motors. Unlike single-acting cylinders, which rely on a spring return, double-acting cylinders require pressurized air to move the piston in both extension and retraction directions. The Buyers Products Single Axis Air Control Valve is expertly designed to manage this bidirectional air flow. Moving the handle in one direction directs air pressure to one cylinder port, causing extension; moving it in the opposite direction redirects air to the other port, causing retraction. This provides complete, powered control over the actuator's movement in both directions, offering superior force, speed, and precision. This comprehensive control is indispensable for applications where loads must be actively pushed and pulled, or positioned with high accuracy throughout their entire range of motion. Examples include hydraulic cylinders for dump beds, plow blades, or hook lift systems. The double-acting capability ensures operators have full command over their equipment, regardless of direction or resistive forces.

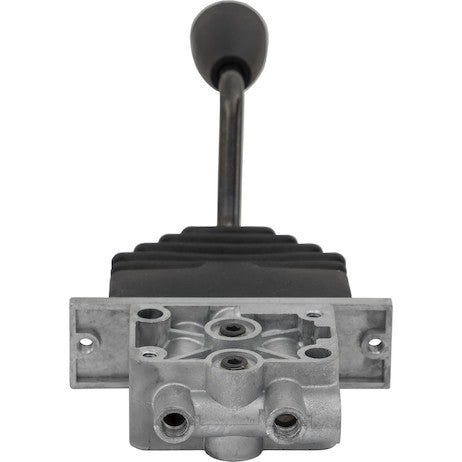

Seamless Integration: 1/8 NPT Female Port Type
The 1/8 NPT female port type signifies the valve's adherence to widely recognized industry standards for pneumatic connections. NPT (National Pipe Taper) threads are common in North America, known for their tapered design that creates a liquid and gas-tight seal. The 1/8 inch size is suitable for a wide range of control applications, providing adequate airflow without requiring excessively large tubing. The female threading ensures compatibility with standard male NPT fittings, facilitating straightforward integration into existing pneumatic circuits. This standardization simplifies system design, installation, and maintenance, as components are readily available and interconnection methods are well-established. Robust threading ensures a secure, leak-free connection, crucial for maintaining system pressure and efficiency, particularly in vibratory or mobile environments. This choice of port type underscores the valve's design for practical, reliable, and universally compatible integration into professional pneumatic systems.
Compact and Adaptable: Dimensions and Stackability
With dimensions of 4.7 inches in depth, 10 inches in height, and a remarkably slender 1.4 inches in width, this air control valve is engineered for maximum space efficiency within vehicle cabs and equipment control panels. The compact footprint (1.4 in. width) is particularly advantageous, allowing for multiple valves to be installed side-by-side without consuming excessive dashboard real estate. This attribute directly supports the "Stackable" primary application, enabling complex multi-function control systems to be built in a modular fashion. Stackability allows operators to consolidate numerous control inputs into a single, cohesive panel, improving ergonomics and operational flow. The relatively low depth minimizes intrusion into cab space, maintaining legroom, while the height provides sufficient leverage for comfortable lever manipulation. This thoughtful design ensures system designers have maximum flexibility in creating efficient, organized, and accessible control interfaces, even for machinery with many pneumatic functions.
Versatile Applications: Plow/Hoist Control and Beyond
The Buyers Products Single Axis Air Control Valve is explicitly designated for "Plow / Hoist Control," highlighting its utility in demanding municipal, construction, and agricultural sectors. For snow plows, precise control is paramount. The single-axis feathering capability allows operators to gently raise, lower, angle, and tilt the plow blade with immense accuracy, navigating obstacles and adapting to terrain without causing damage. The deadman control further enhances safety, stabilizing the blade if the operator's hand leaves the control. For hook lift and cable lift hoists, controlled lifting and lowering of heavy containers or materials is critical. Feathering enables smooth starts and stops, preventing dangerous swinging or jarring movements, while the deadman feature ensures a suspended load immediately ceases movement upon release, offering an indispensable layer of safety. In dump body applications, the valve allows for gradual raising and lowering of the bed, preventing sudden impacts and ensuring even material discharge. Beyond these, its robust design and precise control suit various other heavy-duty pneumatic needs, including auxiliary equipment or material handling systems where single-axis, feathering, and deadman control are beneficial.
Enhanced Operator Interface: LED and Push Button Functionality
Further augmenting its utility and operator-centric design, this air control valve offers optional features like an integrated LED light or a push-button on/off switch on the handle top. An LED light serves as a clear visual indicator of valve status, system activation, or other critical operational feedback. In low-light conditions, typical of early morning snow plowing, a visible LED ensures operators quickly ascertain the controlled function's state without diverting attention. This improves situational awareness and operational safety. Alternatively, a push-button on/off switch provides additional auxiliary functionality directly at the operator's fingertips. This button can be configured for various purposes, such as engaging a specific mode, activating an additional hydraulic circuit, overriding a safety interlock, or controlling an auxiliary electrical component. By integrating these functions into the control handle, the valve streamlines the operator interface, reducing the need for separate dashboard switches and enhancing overall ergonomic flow.
Robust Construction and Long-Term Reliability
Engineered for rigorous demands, the Buyers Products Single Axis Air Control Valve is constructed from high-quality, durable materials designed to withstand harsh operating conditions. Its robust internal mechanisms are built for longevity, ensuring consistent performance over an extended service life. The valve's resistance to wear, corrosion, and environmental factors like dust and moisture is critical for equipment exposed to elements. The simplicity of the single-axis design, combined with quality manufacturing, minimizes potential points of failure, contributing to high reliability and reduced maintenance. When maintenance is required, the modular design and standard port types facilitate straightforward servicing, minimizing downtime. This focus on durability and ease of service translates directly into lower total cost of ownership for fleet managers and operators.
Conclusion: The Definitive Choice for Precision and Safety
In conclusion, the Buyers Products Single Axis Air Control Valve with its 55-Degree Handle Offset stands as a premier solution for demanding pneumatic control applications. Its meticulous design integrates a comprehensive suite of features: precise single-axis control, an ergonomically optimized 55-degree offset handle for operator comfort and efficiency, advanced feathering capability for smooth and controlled actuation, and essential spring-to-neutral (deadman) safety for paramount operational security. The double-acting valve action ensures complete control over bidirectional movement, while the standard 1/8 NPT female port type guarantees seamless integration. Furthermore, its compact, stackable dimensions and optional LED/push-button functionalities enhance its versatility and operator interface. Whether deployed in snow plows, hook lift systems, or dump bodies, this valve provides an unparalleled combination of precision, safety, and reliability, making it the definitive choice for professionals seeking to optimize their heavy-duty equipment control systems. It represents an investment in superior performance, operator well-being, and long-term operational efficiency.
