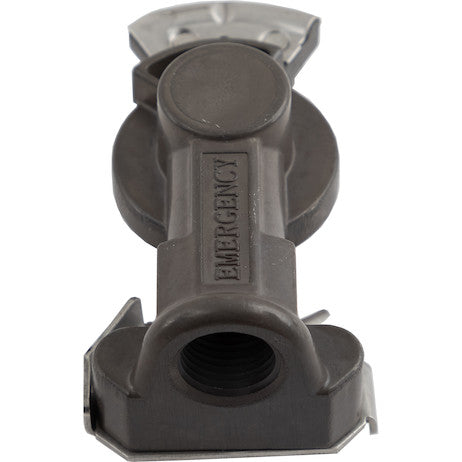

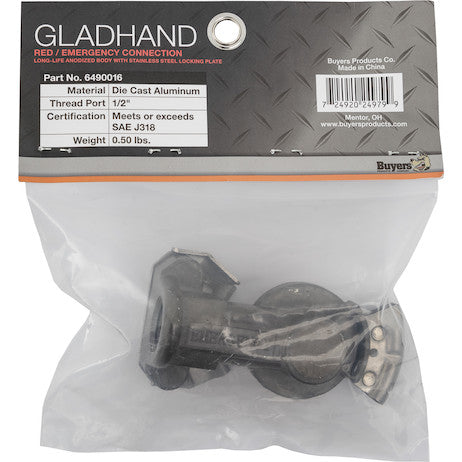

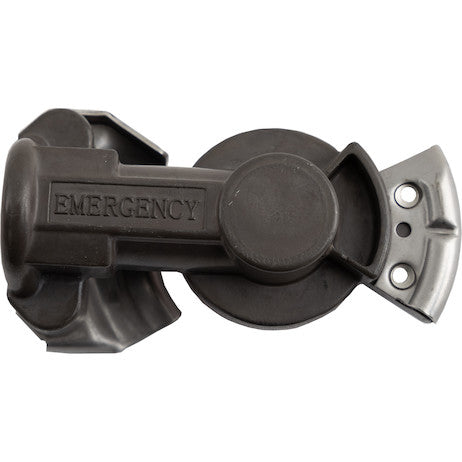

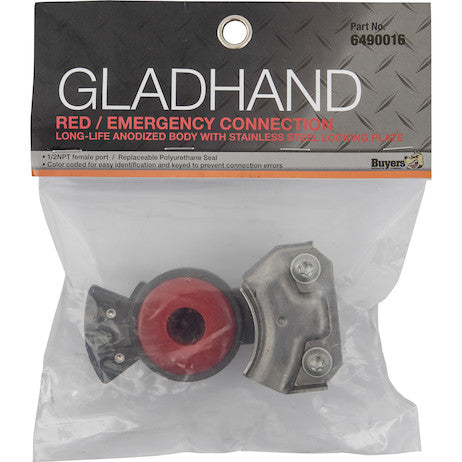

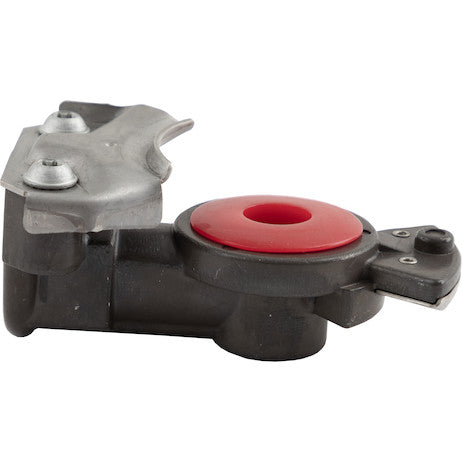

6490016 - Gladhand Red / Emergency Connection - Long-Life Anodized Body w/ Stainless Steel Locking Plate

Buyers Products Gladhand Connectors for Air Brake Systems allow for quick and secure coupling and uncoupling of your truck's air lines. The male and female connector lock together with a twisting motion, forming an airtight seal when connected. Designed to withstand harsh operating conditions, our Gladhands are offered in durable polyurethane or cast aluminum construction. Several connectors also feature polyurethane seals to prevent air leakage. Color-coded to ensure correct connections: red for the emergency brake line; blue for the service brake line.

Specifications

In the complex ecosystem of heavy-duty commercial vehicle operation, the integrity and reliability of every component are paramount, particularly when it pertains to the braking system. The Gladhand Red / Emergency Connection with its Long-Life Anodized Body and Stainless Steel Locking Plate represents a critical advancement in air brake line connectivity, specifically engineered to ensure the unfailing performance of the emergency braking circuit. This product is not merely a connector; it is a meticulously designed safety device, crucial for the secure and dependable operation of trailers and semi-trailers, embodying a synthesis of advanced material science, precision engineering, and adherence to stringent regulatory standards.

Air brake systems, the industry standard for heavy-duty vehicles, rely on compressed air to actuate brakes. Unlike hydraulic systems, air brakes provide a robust and fault-tolerant mechanism, with distinct lines for service braking and emergency braking. The gladhand connector serves as the crucial interface between the tractor's air lines and the trailer's air lines. Its design facilitates rapid coupling and uncoupling, a necessity in the dynamic logistics environment, while simultaneously guaranteeing an airtight seal essential for maintaining system pressure. The distinct color-coding—red for the emergency line and blue for the service line—is an industry-mandated safety feature, preventing misconnections that could lead to catastrophic brake failures.

The Indispensable Role of the Emergency Brake Line

The red gladhand connection is dedicated solely to the emergency brake line, a system integral to vehicle safety in various scenarios. This line is typically pressurized by the tractor's air system, which releases the trailer's spring brakes. Should there be a loss of air pressure in this line—either intentionally by the driver via the trailer air supply valve, or unintentionally due to a hose rupture, detachment, or other system failure—the spring brakes on the trailer are automatically applied. This fundamental safety mechanism prevents runaway trailers and ensures that a parked trailer remains securely immobilized. Given this critical function, the reliability of the emergency gladhand is non-negotiable. Any compromise in its connection integrity or material durability could lead to an unintended application of trailer brakes, causing traffic hazards, or, conversely, a failure to apply when needed, resulting in dangerous uncontrolled movements. This Gladhand Red / Emergency Connection is thus engineered to provide unwavering performance under the most challenging conditions, directly safeguarding personnel, cargo, and public infrastructure.

Advanced Material Science: The Long-Life Anodized Aluminum Body

The foundation of this gladhand's superior performance and longevity lies in its construction, specifically its Long-Life Anodized Aluminum Body. Aluminum, chosen for its exceptional strength-to-weight ratio and inherent corrosion resistance, forms the core material. However, bare aluminum, while robust, can still be susceptible to certain forms of wear and environmental degradation over extended periods in harsh operating environments. To address this, the body undergoes a sophisticated electrochemical passivation process known as anodization.

Understanding Anodization

Anodization involves immersing the aluminum component into an electrolytic bath, where it acts as the anode, and applying an electric current. This process intentionally grows a dense, uniform, and extremely hard layer of aluminum oxide (Al₂O₃) on the surface. Unlike coatings that are applied to the surface, the anodic layer is an integral part of the aluminum substrate, meaning it cannot chip, peel, or flake off. The thickness and porosity of this layer can be precisely controlled, enhancing specific properties. For this gladhand, a dense, hard anodized finish is employed, optimizing it for extreme durability.

Benefits of Anodized Aluminum for Gladhand Connectors

• Enhanced Corrosion Resistance: The primary advantage of anodization is its dramatic improvement in corrosion resistance. The naturally occurring oxide layer on aluminum provides some protection, but the anodized layer is significantly thicker, harder, and more chemically stable. This provides robust defense against road salts, moisture, industrial pollutants, exhaust fumes, and various chemicals commonly encountered on highways and industrial sites, preventing material degradation and ensuring seal integrity over the product's lifespan.
• Superior Wear Resistance: The aluminum oxide layer is substantially harder than raw aluminum. This increased surface hardness provides exceptional resistance to abrasive wear, scratches, and minor impacts that are common during the coupling, uncoupling, and general operation of gladhand connectors. This directly contributes to the "Long-Life" attribute, reducing the frequency of replacements and associated maintenance costs.
• Improved Aesthetic and UV Stability: While primarily a functional enhancement, the anodized finish also provides a consistent, high-quality appearance that resists fading and discoloration from prolonged exposure to ultraviolet (UV) radiation, maintaining the critical red color coding for easy identification throughout its service life.
• Dielectric Properties: The aluminum oxide layer is electrically insulating, which can offer minor benefits in preventing galvanic corrosion when dissimilar metals are in contact, although the primary benefit is robust environmental protection.
• Lightweight Advantage: Retaining the inherent lightweight properties of aluminum, this anodized gladhand contributes to minimal unsprung weight for the vehicle. While seemingly minor for a single component, the cumulative effect across a fleet and considering fuel efficiency and operational dynamics is significant.

The integration of an anodized aluminum body ensures that the Gladhand Red / Emergency Connection maintains its structural integrity and functional performance for an extended period, significantly reducing maintenance intervals and enhancing operational reliability even in the most demanding climatic and environmental conditions.

The Robustness of a Stainless Steel Locking Plate

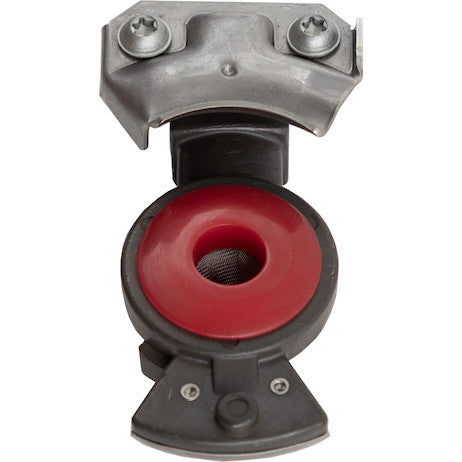

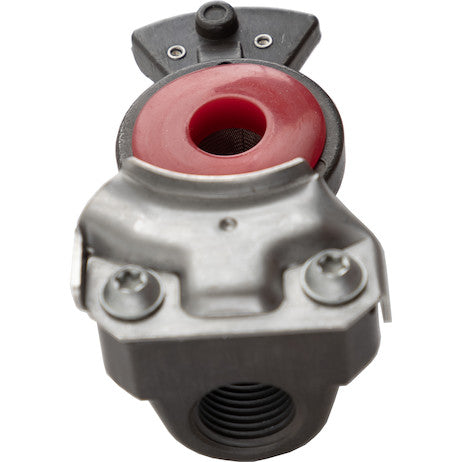

Complementing the durability of the anodized body is the inclusion of a Stainless Steel Locking Plate. This component plays a pivotal role in the mechanical security of the connection, ensuring that once coupled, the gladhand remains firmly in place despite dynamic forces encountered during transit. The locking plate is the interface that secures the male and female gladhand connectors together, resisting tensile forces and preventing inadvertent disconnection.

Why Stainless Steel?

Stainless steel is an alloy renowned for its exceptional properties, making it an ideal choice for a critical load-bearing component like the locking plate:

• High Strength and Durability: Stainless steel offers superior tensile strength and yield strength compared to many other metals. This enables the locking plate to withstand the continuous vibrations, jolts, and torsional stresses inherent in heavy-duty trucking without deforming or failing.
• Outstanding Corrosion Resistance: While the anodized aluminum body protects against environmental corrosion, stainless steel adds another layer of defense, especially important for a part that experiences friction and potential surface wear. Stainless steel resists rust and staining in aggressive environments, including exposure to road salts, moisture, and various chemicals, maintaining its mechanical integrity and aesthetic over time.
• Wear and Fatigue Resistance: The locking mechanism involves repeated engagement and disengagement, leading to localized wear. Stainless steel's hardness and fatigue resistance ensure that the locking plate retains its precise dimensions and functionality over thousands of coupling cycles, preventing loosening or premature failure.
• Dimensional Stability: Under varying temperatures and mechanical loads, stainless steel maintains its dimensional stability, crucial for ensuring the tight tolerances required for a secure and consistent connection.

The synergistic combination of the long-life anodized aluminum body and the stainless steel locking plate fundamentally elevates the durability and reliability of this emergency gladhand, providing a connection that is not only secure but also built to endure the rigorous demands of continuous commercial operation.

Precision Engineering for Airtight and Secure Connections

The functional efficacy of any air brake gladhand hinges on its ability to form an immediate, secure, and airtight seal upon connection. This Gladhand Red / Emergency Connection is meticulously engineered to achieve these critical objectives through several key design features:

• Twisting Lock Mechanism: The male and female gladhand connectors are designed to interlock with a simple yet highly effective twisting motion. This mechanism achieves two primary goals simultaneously: it creates a positive mechanical lock, preventing accidental separation due to vibration or tugging, and it compresses an internal sealing gasket (typically a high-performance polymer) to form an impermeable barrier against air leakage. The ease of this action ensures quick hook-ups and detachments, optimizing operational efficiency without compromising safety.
• Optimized Sealing Surfaces: The interior surfaces are precisely machined to mate perfectly, ensuring even compression of the sealing element. This uniform pressure distribution is vital for preventing minute air leaks that could lead to pressure drops in the emergency line, potentially triggering unwanted trailer brake applications or delaying their release.
• 1/2 NPT Pipe Thread Size: The industry-standard 1/2 NPT (National Pipe Taper) thread size specified for this gladhand ensures universal compatibility with existing air brake lines. NPT threads are designed to create a leak-free seal by the tapered flanks of the male and female threads compressing against each other, often supplemented by thread sealant. This robust connection point securely attaches the gladhand to the air hose, forming an integral part of the overall leak-proof system.
• Straight Fitting Shape: The straightforward, straight-fitting design offers maximum versatility and ease of installation in most trailer configurations, ensuring direct and efficient airflow paths with minimal turbulence or pressure loss.

Every aspect of this gladhand’s design, from the material selection to the mechanical interlock and thread specification, is optimized to guarantee an airtight seal and an unyielding connection, directly contributing to the safety and efficiency of the air brake system.

Adherence to D.O.T. FMVSS 571.106 Air Brake Performance Regulations

A cornerstone of this product's credibility and its promise of safety is its full compliance with D.O.T. FMVSS (Federal Motor Vehicle Safety Standard) 571.106 Air Brake Performance Regulations. This federal standard specifies the performance and equipment requirements for motor vehicle air brake hoses and air brake hose assemblies. For components like gladhand connectors, meeting FMVSS 106 signifies that the product has undergone rigorous testing and meets the demanding safety benchmarks established by the National Highway Traffic Safety Administration (NHTSA).

Key Aspects of FMVSS 106 Compliance for Gladhand Connectors:

• Pressure and Burst Resistance: Gladhand connectors, as critical components of the air brake system, must withstand specified internal air pressures without leaking or bursting. This standard ensures that the connector can handle the operational pressures of a typical air brake system, as well as transient pressure spikes, providing a substantial safety margin.
• Pull-Apart Resistance: The standard mandates specific force requirements that a gladhand connection must withstand before separating. This ensures that the twisting lock mechanism and the structural integrity of the materials (anodized aluminum and stainless steel) are robust enough to resist accidental disengagement during normal vehicle operation, vibration, or minor snagging.
• Extreme Temperature Performance: Air brake components must function reliably across a wide range of environmental temperatures. FMVSS 106 includes tests to ensure the gladhand maintains its sealing properties and structural integrity under both extreme cold and extreme heat, preventing material embrittlement or softening that could compromise performance.
• Ozone Resistance: The rubber or polymer sealing elements within gladhands can degrade over time due to ozone exposure, leading to cracking and air leaks. While this product focuses on an anodized aluminum body, the internal seals (which are critical for its operation) must comply with ozone resistance requirements to ensure long-term sealing performance.
• Leakage Performance: Fundamentally, FMVSS 106 requires that air brake components, including gladhands, exhibit minimal to zero air leakage under specified pressures. Any significant leakage can deplete the vehicle's air reservoirs, reduce brake effectiveness, and potentially trigger emergency brake applications.
• Material Compatibility and Durability: The standard implicitly requires that materials used are compatible with the operating environment and resistant to typical degradation mechanisms, aligning perfectly with the choice of anodized aluminum and stainless steel for enhanced longevity.

By meeting D.O.T. FMVSS 571.106, this Gladhand Red / Emergency Connection provides fleets and owner-operators with verifiable assurance of its safety, reliability, and regulatory compliance. This certification is not merely a label; it is a testament to the product's engineering quality and its fitness for purpose in critical braking applications, mitigating risks and contributing to safer roadways.

Durability, Longevity, and Total Cost of Ownership

The "Long-Life" designation of this gladhand is not merely a marketing term; it is an outcome of intentional design and material selection aimed at providing superior durability and, consequently, a reduced total cost of ownership for fleet operators. In the demanding world of commercial transportation, where every minute of downtime translates to lost revenue, the reliability of components like gladhands directly impacts operational efficiency and profitability.

• Reduced Maintenance and Replacement Cycles: The combination of an anodized aluminum body and a stainless steel locking plate significantly extends the service life of the gladhand. This means fewer instances of component failure, fewer replacements, and a substantial reduction in labor costs associated with inspection and repair.
• Resistance to Environmental Degradation: The inherent resistance of anodized aluminum to corrosion from road chemicals, moisture, and UV exposure, coupled with the rust-proof properties of stainless steel, ensures that the gladhand performs optimally in diverse and harsh climatic conditions, from freezing winters to scorching summers. This resilience prevents premature wear and tear that can lead to air leaks or catastrophic disconnection.
• Protection Against Mechanical Wear: The hardened surface of the anodized aluminum and the robust nature of the stainless steel locking plate provide exceptional resistance to the continuous mechanical stresses, vibrations, and accidental impacts that gladhands are subjected to. This prevents deformation, cracking, or loss of sealing integrity over time.
• Consistent Performance: A long-life gladhand ensures consistent, reliable connections over its entire lifespan. This predictability is crucial for maintaining vehicle uptime and preventing unforeseen issues that could lead to costly roadside breakdowns or, worse, safety incidents.
• Enhanced Resale Value: Vehicles equipped with high-quality, durable components often maintain better operational histories and can command higher resale values, offering a long-term return on the initial investment.

Investing in the Gladhand Red / Emergency Connection with its Long-Life Anodized Body and Stainless Steel Locking Plate is a strategic decision for any fleet aiming to optimize its operational budget, enhance safety records, and minimize the unseen costs associated with component failures and premature replacements.

Installation Best Practices and Routine Inspection

While the design of this gladhand prioritizes ease of use and robustness, proper installation and diligent routine inspection are critical to maximizing its long-life potential and ensuring continuous safety.

• Installation: When connecting the gladhand to the air brake hose, it is imperative to use the correct thread sealant (e.g., PTFE tape or liquid thread sealant specifically rated for air brake systems) on the 1/2 NPT threads to ensure a leak-free connection. Torque specifications provided by hose and gladhand manufacturers should be strictly followed to prevent overtightening, which can damage threads, or undertightening, which can lead to leaks. All connections should be tested with a soap solution or leak detection spray under system pressure to confirm airtight integrity before vehicle operation.
• Routine Inspection: Drivers and maintenance personnel should regularly inspect gladhands for signs of wear, damage, or degradation. This includes checking for cracks in the body, deformation of the locking plate, corrosion, and the condition of the internal seal (ensuring it is pliable and free from tears or hardening). The connection should be checked for secure seating and absence of play. Any sign of air leakage (audible hiss, bubble formation with soap solution) or damage necessitates immediate replacement. Particular attention should be paid to the emergency gladhand given its safety-critical function.

By adhering to these best practices, operators can ensure that the inherent durability and long-life features of this Gladhand Red / Emergency Connection are fully realized, providing maximum safety and operational reliability.

Conclusion: Uncompromising Safety and Durability for Emergency Air Brake Connections

The Gladhand Red / Emergency Connection with its Long-Life Anodized Body and Stainless Steel Locking Plate stands as a testament to engineering excellence dedicated to the highest standards of safety and operational reliability in the commercial trucking industry. Designed specifically for the critical emergency brake line, its distinctive red color-coding adheres to universal safety protocols, minimizing the risk of misconnection.

Its construction leverages advanced material science: an anodized aluminum body provides exceptional resistance to corrosion, wear, and environmental degradation, significantly extending its service life. This is synergistically combined with a robust stainless steel locking plate, ensuring unparalleled connection security and resistance to the dynamic forces of heavy-duty operation. Precision engineering guarantees an airtight seal upon coupling, vital for maintaining brake system pressure and preventing dangerous failures. Furthermore, the product’s full compliance with D.O.T. FMVSS 571.106 Air Brake Performance Regulations provides unequivocal assurance of its safety and adherence to federal mandates. This gladhand is more than a mere component; it is a critical safety investment, offering fleets and owner-operators the peace of mind that comes from knowing their emergency brake connections are fortified by a product engineered for uncompromising performance, durability, and ultimate safety. Choosing this Gladhand Red / Emergency Connection means choosing reliability that endures, safeguarding assets, and most importantly, lives, across countless miles of rigorous service.
