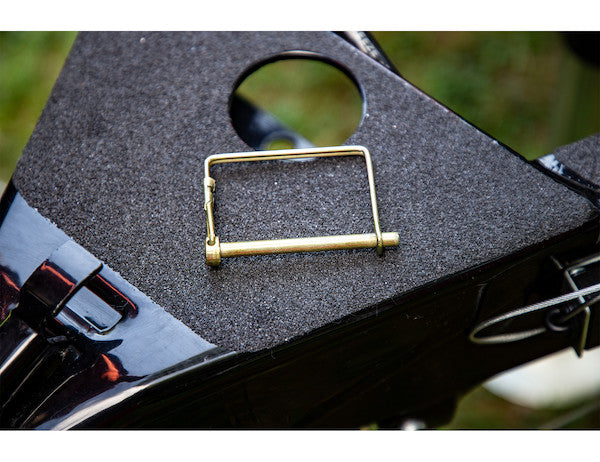

Buyers Products Snapper Pins are used as a convenient way to fasten accessories on truck equipment. Snapper lock pins join the benefits of a pin and cotter combination in a single assembly. Simply pull the wire loop over the pin to lock it in place. It quickly releases for easy removal. Snapper pins are yellow zinc-plated for corrosion resistance.
Specifications
| Clearance (in.) | 1-1/2 |
|---|---|
| Pin Dia (in.) | 1/4 |
| Usable Length (in.) | 1-3/4 |
The Snapper Pin, precisely engineered with a 1/4-inch diameter and a 1-3/4-inch usable length, exemplifies a robust and versatile fastening solution optimized for the rigorous demands of industrial and commercial environments, particularly within the truck equipment sector. Supplied as a conveniently packaged pair under SKU 66050 from Buyers Products, this component signifies a strategic advancement in quick-release fastener technology. Its design ingeniously consolidates the critical functionalities of a traditional clevis pin and its associated cotter pin into a singular, integrated assembly. This inherent unification simplifies logistical management, drastically minimizes the potential for foreign object debris (FOD) in sensitive operational zones, and substantially streamlines the efficiency of fastening and unfastening procedures. The main pin body is typically manufactured from high-grade, cold-headed carbon steel (e.g., SAE 1018 or 1035), selected for its superior balance of tensile strength, shear strength, and ductility, ensuring reliable performance under significant operational stresses. Precision manufacturing processes guarantee the 1/4-inch (6.35 mm) nominal diameter adheres to exacting dimensional tolerances, crucial for a precise fit. The specified usable length of 1-3/4 inches (44.45 mm) defines the maximum effective grip range, representing the cumulative thickness of components the pin can securely fasten between its robust head and the locking mechanism. This parameter is vital for correct application matching. The pin head is ergonomically designed for ease of handling and acts as a definitive stop, distributing load effectively across the fastened component.
The defining characteristic of the Snapper Pin’s advanced functionality resides in its integrated spring wire retainer. This vital component is expertly formed from high-tensile spring steel wire (e.g., ASTM A228 music wire), which has undergone specific heat treatment processes to impart exceptional elasticity, resilience, and resistance to cyclic fatigue. The wire is skillfully bent and coiled around the pin body, creating a self-tensioning loop that forms the nucleus of its quick-release mechanism. Upon full insertion of the pin, the operator pulls the free end of the wire loop over the exposed distal end of the pin. This action causes the spring-loaded wire to resiliently seat into a precisely machined circumferential groove or against a distinctive shoulder on the pin’s shaft. The inherent spring tension subsequently generates a continuous, positive locking force, effectively preventing accidental dislodgement from vibration, impact, or inadvertent tensile forces. This single-action engagement and disengagement process offers a profound operational advantage, dramatically reducing time and manual effort compared to multi-component systems. Crucially, the integrated design eliminates the risk of losing separate cotter pins or washers, enhancing reliability, mitigating potential foreign object damage (FOD) hazards, and minimizing costly operational delays. The design also facilitates ergonomic operation, even when wearing protective gloves, a common requirement in many industrial and outdoor environments.
To ensure exceptional durability and sustained performance in challenging environments, the Snapper Pin's material specifications include a robust corrosion protection system. The carbon steel pin body, inherently susceptible to rust, undergoes a meticulous yellow zinc-plating process. This electrolytic deposition, typically specified to industry standards such as ASTM B633 Type II, involves coating the steel with a uniform layer of zinc. Following this, a chromate conversion coating is applied; the "yellow" designation refers to the characteristic iridescent gold or yellow hue, historically utilizing hexavalent chromium (Cr6+) but increasingly employing environmentally compliant trivalent chromium (Cr3+) for comparable or superior corrosion resistance. The protective efficacy of yellow zinc plating operates through a dual mechanism: barrier protection and galvanic (sacrificial) protection. As a physical barrier, the zinc coating isolates the underlying steel from direct contact with corrosive elements. More critically, zinc is electrochemically more active than steel. In the presence of an electrolyte, the zinc layer preferentially corrodes, sacrificing itself to protect the steel substrate. This sacrificial action remains effective even if the zinc coating sustains minor scratches. Yellow zinc plating typically offers significantly enhanced corrosion resistance compared to clear zinc, often providing several hundred hours of salt spray resistance (e.g., 96 to 240 hours to white corrosion and 240 to 500 hours to red corrosion) when tested in accordance with ASTM B117 standards. This superior protection is crucial for truck equipment, which frequently endures severe exposure to adverse weather, road grime, and de-icing agents. The zinc coating also contributes to a smoother, low-friction surface, aiding in easier insertion/removal and mitigating galling, ensuring functional and structural integrity throughout its operational lifespan.
The inherent design and robust specifications of the 1/4-inch diameter, 1-3/4-inch usable length Snapper Pin position it as an indispensable fastening solution across an extensive array of applications, with a notable emphasis on the truck equipment industry. Its versatility extends to critical areas such as:
- **Trailer Hitches and Towing Systems:** Essential for securing hitch pins, receiver locks, and various towing accessories, facilitating rapid hook-up and unhooking procedures.
- **Agricultural and Farming Equipment:** Employed for attaching diverse implements to tractors, securing PTO shafts, and locking adjustable components, offering resilience against field contaminants.
- **Construction and Heavy Machinery:** Utilized on light-to-medium construction equipment for securing quick-attach implements, adjusting blade angles, and locking safety guards, enduring high vibration and shock loads.
- **Utility and Material Handling Vehicles:** Integrated into forklifts, hand trucks, and specialized utility carts for securing attachments, restraining loads, and locking adjustable platforms.
- **Fleet Maintenance and Commercial Service Vehicles:** Crucial for securely fastening toolboxes, equipment racks, and various accessory mounts, optimizing operational security and accessibility.
- **General Industrial and Commercial Use:** Valuable in jigs, temporary scaffolding, shelving systems, and machinery guards, requiring rapid, secure, and tool-free connections.
The Snapper Pin’s design prioritizes operational simplicity and intuitive use. The installation procedure is exceptionally straightforward:
- **Preparation:** Verify that the mating holes are clean, free of obstructions, and accurately aligned. The aperture diameter should comfortably accommodate the 1/4-inch pin, conforming to standard industry tolerances.
- **Insertion:** Insert the main pin body through the aligned holes until the head is flush and the distal end exposes the locking groove.

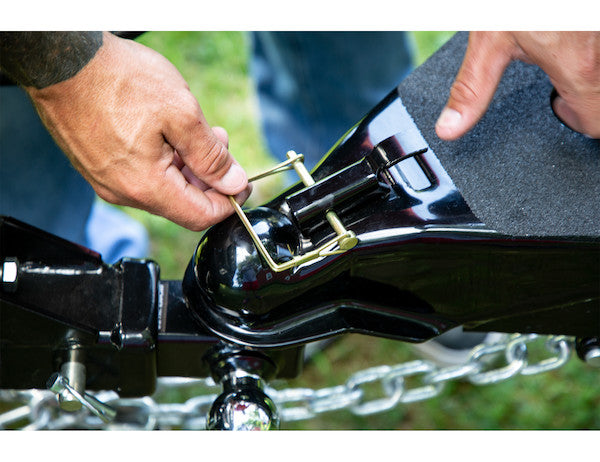

- **Locking:** Grasp the spring wire loop and pull it firmly over the exposed pin end until it resiliently snaps into its designated locked position. A distinct 'snap' or tactile sensation confirms secure lock, always visually confirmed.
- **Pin Body Structural Integrity:** Examine the 1/4-inch diameter pin body for bending, deformation, excessive wear, or severe scoring. Any substantial reduction in diameter or permanent bending mandates immediate replacement.
- **Corrosion Resistance Assessment:** Scrutinize yellow zinc plating for red rust or widespread white corrosion. While superficial discoloration is normal, extensive rust or pitting signifies a compromised protective layer, necessitating replacement, especially in safety-critical applications.
- **Spring Wire Retainer Evaluation:** Inspect the spring wire for permanent deformation, cracks, or reduced tension. The loop should exhibit strong elastic return. If compromised, the pin must be replaced without delay.
- **Locking Mechanism Functionality:** Periodically test to confirm secure engagement with a positive snap and fluid release. Difficulty in operation or an insecure lock indicates wear, fatigue, or damage.
