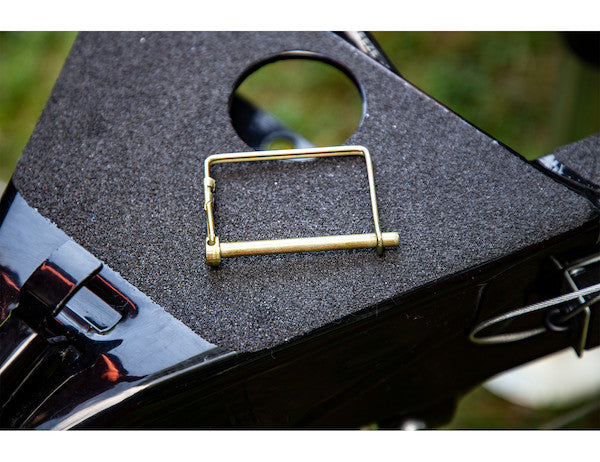

Buyers Products Snapper Pins are used as a convenient way to fasten accessories on truck equipment. Snapper lock pins join the benefits of a pin and cotter combination in a single assembly. Simply pull the wire loop over the pin to lock it in place. It quickly releases for easy removal. Snapper pins are yellow zinc-plated for corrosion resistance.
Specifications
| Clearance (in.) | 1-5/8 |
|---|---|
| Pin Dia (in.) | 5/16 |
| Usable Length (in.) | 2-1/2 |
Advanced Technical Overview: The Buyers Products Snapper Pin – Engineered for Reliability and Efficiency
The Buyers Products Snapper Pin, specified here with a 5/16-inch diameter and a 2-1/2-inch usable length (part number 66053, offered as a packaged pair), represents a critical advancement in fastening technology for demanding industrial and mobile applications. This component is not merely a pin; it is an integrated engineering solution designed to provide superior security, operational efficiency, and extended service life in environments where conventional fastening methods often fall short. Our detailed technical analysis delves into the material science, design principles, manufacturing processes, and diverse applications that underscore the Snapper Pin's indispensable role in modern equipment.
Precision Engineering and Design Philosophy
At the core of the Snapper Pin's effectiveness is a meticulous design philosophy that marries simplicity with robust functionality. The single-assembly design elegantly merges the functions of a traditional clevis pin and a separate cotter pin, thereby eliminating the common pitfalls associated with multi-component fastening systems, such as lost parts, cumbersome assembly, and reduced operational speed. The 5/16-inch diameter is a carefully selected dimension, providing an optimal balance between shear strength for load-bearing applications and a compact profile for universal compatibility with standard drilling and component mounting points found across a wide spectrum of truck equipment and industrial machinery. This diameter ensures that the pin can withstand significant shear forces while minimizing the need for oversized or specialized tooling.
The 2-1/2-inch usable length is another critical parameter. This dimension dictates the maximum material thickness that the pin can effectively secure, providing ample engagement through multiple layers of material or structural components. Proper usable length is crucial for ensuring that the locking mechanism engages fully and securely, preventing any slop or play that could lead to wear, fatigue, or catastrophic failure under dynamic loading conditions. The design considers typical flange thicknesses, mounting bracket dimensions, and the need for components to be securely joined without excessive protrusion or insufficient engagement.
Robust Material Selection and Advanced Manufacturing
The Snapper Pin’s foundational strength derives from its core material. Typically manufactured from high-grade carbon steel or an equivalent alloy steel, the pin body undergoes precise cold-heading or machining processes to achieve its final dimensions and structural integrity. Cold-heading, a widely utilized manufacturing technique, enhances the material's grain structure, thereby improving its tensile strength, yield strength, and fatigue resistance without requiring extensive post-processing heat treatment for the body itself. This method also allows for the efficient production of high volumes of consistently dimensioned pins.
The integral wire loop, which constitutes the locking mechanism, is fabricated from high-tensile spring steel, often music wire or a specialized spring alloy. This material is selected for its exceptional elastic properties, allowing it to deform and return to its original shape reliably over countless cycles without plastic deformation or fatigue. The spring steel undergoes specific heat treatment processes, including hardening and tempering, to achieve the optimal balance of hardness, toughness, and elasticity. The loop is meticulously formed and integrated with the pin body, ensuring a secure attachment that withstands vibration, impact, and repeated manipulation. The attachment point itself is designed to resist stress concentrations, providing a durable connection that will not fail under operational stress.
Superior Corrosion Resistance: Yellow Zinc Plating
A hallmark of the Buyers Products Snapper Pin is its yellow zinc-plated finish, an advanced electroplating process specifically chosen for its multifaceted benefits in demanding environments. This coating offers significantly enhanced corrosion resistance compared to bare steel, which is prone to rust and degradation when exposed to moisture, road salts, chemicals, and industrial pollutants common in truck equipment applications. The yellow zinc plating functions as a sacrificial coating; should the protective layer be scratched or compromised, the zinc will corrode preferentially to the underlying steel, thereby protecting the base metal from oxidation. Furthermore, the chromate conversion layer applied over the zinc (which gives it its characteristic yellow iridescence) provides an additional barrier against corrosion and helps to seal the zinc layer, preventing white rust and enhancing the overall durability of the finish.
The yellow chromate finish not only provides superior corrosion protection but also offers several practical advantages:
- Enhanced Visibility: The distinct yellow hue aids in quick identification and inspection, ensuring proper component selection and verifying secure engagement, particularly in low-light conditions or complex assemblies.
- Aesthetic Durability: It maintains a clean, professional appearance over time, resisting the dulling and pitting that can occur with less robust finishes.
- Surface Hardness: While not a primary hardening treatment, the zinc layer provides a degree of surface hardness that resists minor abrasions and wear, contributing to the pin's longevity.
- Environmental Resilience: The plating is designed to withstand a wide range of operational temperatures and humidity levels, making it suitable for year-round outdoor use in diverse climates.
Functional Mechanics and Operational Advantages

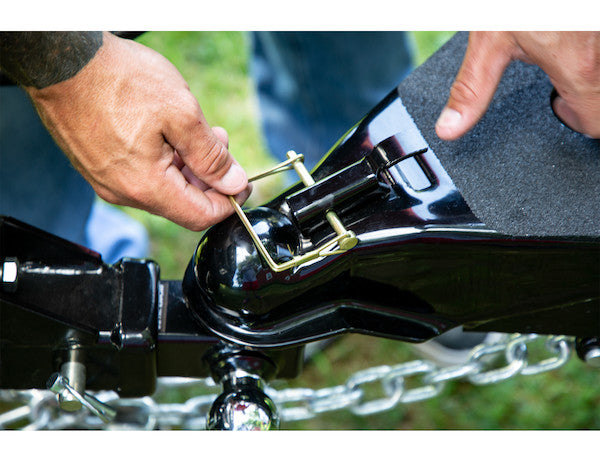

The operational mechanism of the Snapper Pin is brilliantly simple yet incredibly effective. To secure an accessory, the pin is inserted through the aligned holes of the components, and the wire loop is then pulled over the end of the pin, snapping into a precisely engineered groove or notch. This action creates a positive lock, holding the pin firmly in place. The inherent spring tension of the wire loop ensures continuous pressure, effectively counteracting vibrations and preventing accidental disengagement, a common issue with loose-fitting cotter pins or retaining clips.
The advantages of this integrated locking mechanism are profound:
- Rapid Deployment and Removal: The tool-free, single-action operation drastically reduces the time required for attachment and detachment of components, significantly improving efficiency in tasks such as trailer hitching, equipment adjustments, or attachment changes.
- Enhanced Safety: The positive locking action minimizes the risk of component separation, contributing to safer operation of machinery and vehicles. The intuitive design also reduces the chance of improper installation.
- Vibration Resistance: The spring-loaded loop maintains constant tension, making the Snapper Pin exceptionally resistant to loosening or disengagement caused by dynamic loads, road vibrations, or operational shocks. This is a critical factor for truck equipment that operates in constantly changing and often harsh environments.
- Reduced Loss of Components: Unlike separate cotter pins that can be dropped, lost, or misplaced during handling, the Snapper Pin's integrated design ensures that the locking mechanism is always attached to the pin body, streamlining operations and reducing inventory management issues.
- Ergonomic Design: The wire loop is designed for easy manipulation, even when wearing work gloves, making it user-friendly in various field conditions.
Diverse Applications Across Industries
While explicitly designed for fastening accessories on truck equipment, the engineering robustness and operational benefits of the Buyers Products Snapper Pin extend its utility across a broad spectrum of industrial and commercial applications.
In the realm of truck equipment, its applications are extensive:
- Trailer Hitches and Towing Accessories: Securing receiver hitches, ball mounts, and pintle hooks, ensuring safe and reliable towing operations.
- Agricultural Equipment: Fastening implements to tractors, securing PTO shafts, adjusting plows, cultivators, and harvesters.
- Construction Machinery: Locking pins for articulating arms, securing attachments on skid steers, excavators, and loaders, and for scaffolding assembly.
- Municipal Vehicles: Securing plows, salt spreaders, broom attachments, and various utility implements on municipal trucks.
- Cargo Management Systems: Used in securing ramps, gates, and internal cargo dividers on utility trucks and trailers.
- Recreational Vehicles (RVs) and Marine Applications: Securing various components where quick-release functionality and corrosion resistance are paramount.
- Material Handling: Fastening components on forklifts, carts, and conveyor systems.
Quality Assurance and Performance Standards
Buyers Products maintains rigorous quality assurance protocols to ensure that each Snapper Pin meets stringent performance and dimensional standards. This includes:
- Material Certification: Verification of raw material composition to ensure compliance with specified mechanical properties.
- Dimensional Accuracy: Precise measurements of pin diameter, usable length, and loop dimensions to guarantee consistent fit and function.
- Load Testing: Shear strength testing to confirm the pin's ability to withstand specified loads without failure.
- Corrosion Resistance Testing: Salt spray testing (e.g., ASTM B117) to validate the yellow zinc plating's protective capabilities over extended periods of exposure.
- Cyclic Testing: Repeated engagement and disengagement of the locking mechanism to ensure the longevity and reliability of the spring steel loop.
Elaborated Technical Specifications
Let's revisit the core specifications with a deeper technical context:
- Pin Diameter (5/16 in.): This fractional dimension translates to approximately 7.94 mm. It is a common and highly standardized diameter within mechanical fastening, offering excellent compatibility with pre-drilled holes in steel plates, brackets, and tubular structures ranging from 5/16" to 3/8" (depending on tolerance requirements). The selected diameter provides a robust shear strength suitable for applications encountering moderate to heavy loads, such as securing trailer hitches or agricultural implements.
- Usable Length (2-1/2 in.): This measurement, equivalent to 63.5 mm, refers to the effective length of the pin that can pass through the components being joined, from the underside of the pin head to the point where the locking mechanism fully engages. A 2-1/2 inch usable length is versatile, accommodating stacked components, varying material thicknesses, and scenarios where a slight gap might exist between joined parts. This length is critical for ensuring that the locking loop can snap securely into place with sufficient overlap to prevent accidental release.
- Clearance (1-5/8 in.): This specification, approximately 41.28 mm, is vital for installation planning. It defines the minimum radial or axial space required around the head of the pin for the wire loop to be manipulated effectively during engagement and disengagement. In applications with confined spaces or adjacent components, understanding this clearance dimension is crucial to prevent interference and ensure ease of operation. It dictates the accessibility needed for the user to pull the wire loop over the pin without obstruction, highlighting the practical ergonomic consideration integrated into the design.
- Packaged Pair (66053): The offering as a "packaged pair of 66053" indicates that the individual part number for a single Snapper Pin is 66053, and this particular SKU includes two such pins. This packaging strategy is convenient for consumers, as many applications require more than one pin (e.g., securing both sides of a hitch or two separate accessories), and it streamlines inventory management for distributors and end-users alike.
Conclusion
The Buyers Products Snapper Pin, with its 5/16-inch diameter and 2-1/2-inch usable length, is a meticulously engineered fastening solution that offers unparalleled advantages in efficiency, safety, and longevity. Its sophisticated design, incorporating high-grade materials and a robust yellow zinc-plated finish, ensures exceptional performance and corrosion resistance in the most demanding environments. From heavy-duty truck equipment to intricate industrial assemblies, this Snapper Pin delivers reliable, quick-release functionality, significantly enhancing operational productivity and reducing the total cost of ownership. It stands as a testament to precision engineering, providing a superior alternative to traditional fastening methods and reinforcing Buyers Products' commitment to delivering high-quality, durable, and user-centric solutions for the professional market.
