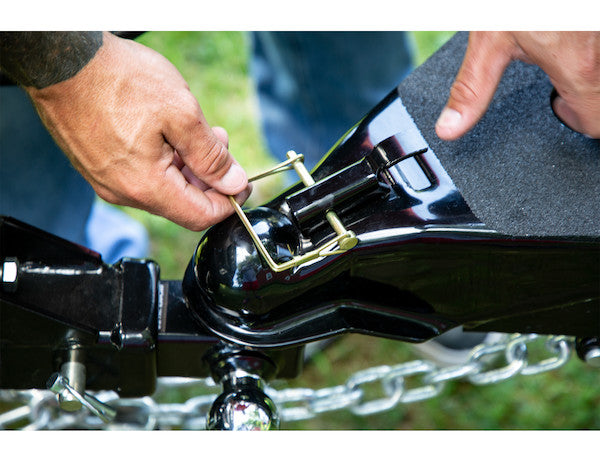

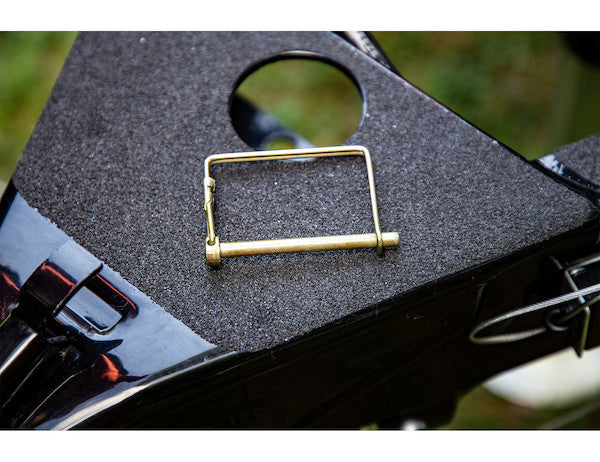

Buyers Products Snapper Pins are used as a convenient way to fasten accessories on truck equipment. Snapper lock pins join the benefits of a pin and cotter combination in a single assembly. Simply pull the wire loop over the pin to lock it in place. It quickly releases for easy removal. Snapper pins are yellow zinc-plated for corrosion resistance.
Specifications
| Clearance (in.) | 1-3/4 |
|---|---|
| Pin Dia (in.) | 1/4 |
| Usable Length (in.) | 2-1/2 |
The Snapper Pin, specifically the 1/4 inch diameter by 2-1/2 inch usable length variant, supplied as a packaged pair of the 66063 model, represents a sophisticated advancement in fastening technology for demanding industrial and commercial applications. Engineered by Buyers Products, this specialized pin is not merely a component but a comprehensive solution designed to streamline the attachment and detachment of accessories on diverse truck equipment and other machinery, marrying the robust security of a traditional clevis pin with the rapid deployability of an integrated cotter mechanism. Its design philosophy centers on maximizing operational efficiency, ensuring reliable performance, and significantly reducing the time and effort associated with frequently adjusted or removed components.
At its core, the Snapper Pin system transcends the conventional two-part clevis pin and cotter pin assembly by integrating both functions into a singular, self-contained unit. This innovative design eliminates the common frustrations of misplaced or lost cotter pins, simplifying inventory management and accelerating field operations. The primary mechanism involves a precision-machined pin body crafted from high-strength steel, paired with an ingeniously designed spring-loaded wire loop. This loop acts as the locking device, providing a positive engagement that secures the pin within its mating bore. To fasten, the user simply inserts the pin through the aligned holes of the components to be joined and then pulls the wire loop over the end of the pin, allowing it to snap into a specially designed groove or recess. This action creates a secure, vibration-resistant lock. Disengagement is equally swift, requiring only a simple pull on the wire loop to release the lock, enabling quick and tool-free removal.
The technical specifications of this Snapper Pin are critical to understanding its application envelope and performance characteristics. With a nominal pin diameter of 1/4 inch (0.250 inches), this fastener is designed for applications requiring moderate shear strength and precision fit. The diameter ensures compatibility with standard bore sizes found in agricultural equipment, construction machinery, trailers, and various truck accessories. The usable length of 2-1/2 inches (2.500 inches) refers to the effective grip length of the pin, which is the maximum thickness of material it can securely fasten. This dimension is crucial for ensuring that the pin passes completely through the assembly, allowing the locking mechanism to engage effectively without excessive protrusion that could snag or become damaged. Precise adherence to these dimensions during manufacturing guarantees optimal fit, minimizing play and enhancing the stability of the connected components.
A key specification often overlooked, yet vital for the Snapper Pin’s functionality, is the "Clearance" dimension, listed at 1-3/4 inches (1.750 inches). This specification typically refers to the necessary spatial envelope required for the entire pin assembly, including the head and the operational range of the wire loop mechanism, to function without obstruction. It ensures that sufficient space is available around the pin's head for the user to comfortably manipulate the wire loop for locking and unlocking, and that the loop itself does not foul against adjacent structures or components when engaged. Understanding this clearance is paramount during the design and integration phase of any equipment utilizing these pins, preventing interference issues and guaranteeing unimpeded operation.
Material selection and surface treatment are paramount to the Snapper Pin's durability and longevity. The pin body is typically manufactured from a robust grade of carbon steel, selected for its excellent balance of tensile strength, yield strength, and ductility. Common choices include low to medium carbon steels, which can be heat-treated to achieve desired mechanical properties, enhancing their resistance to shear forces and bending moments. The wire loop, a critical component of the locking mechanism, is fabricated from high-grade spring steel. This material is specifically chosen for its superior elastic properties, allowing it to deform and return to its original shape reliably over countless cycles of engagement and disengagement without succumbing to fatigue or permanent deformation.
To further enhance its resistance to environmental degradation, the Snapper Pin undergoes a yellow zinc-plating process. This electroplated coating serves multiple critical functions. Firstly, it provides a highly effective barrier against corrosion, particularly rust, which is a common adversary in outdoor and industrially exposed applications. The zinc acts as a sacrificial anode, corroding preferentially to the underlying steel substrate, thereby protecting the pin even if the coating is scratched or compromised in small areas. Secondly, the yellow chromate conversion coating applied over the zinc layer further enhances corrosion protection, provides an attractive aesthetic finish, and offers increased resistance to white rust formation. This specific plating conforms to stringent industry standards, such as ASTM B633 Type II, Class 3, ensuring a consistent level of quality and performance in harsh operating conditions. The yellow chromate also offers a degree of lubricity, which can aid in the smooth operation of the wire loop and reduce wear on mating surfaces.
Performance metrics are a cornerstone of the Snapper Pin's value proposition. While specific load ratings can vary based on manufacturing tolerances and steel grade, these pins are engineered for applications involving moderate to heavy shear loads. The 1/4-inch diameter is capable of withstanding significant lateral forces, making it suitable for securing implements, tow hitches, and various articulated components where dynamic forces are present. The integrated spring mechanism provides excellent resistance to vibration-induced disengagement, a crucial advantage in mobile equipment where constant movement and impact forces can challenge the integrity of traditional fastening methods. The design ensures a positive lock that remains secure even under challenging operational conditions, reducing the risk of accidental detachment and enhancing overall safety.
The operational integrity of the Snapper Pin is also reflected in its remarkable durability and extended fatigue life. The robust construction and protective plating contribute to a component that can withstand repetitive use, exposure to dirt, moisture, and temperature fluctuations without significant degradation. Regular inspection for signs of wear on the pin shaft or the wire loop is recommended, particularly in high-cycle applications, to ensure continued optimal performance. However, due to the high-quality materials and manufacturing processes employed, these pins are designed for an exceptionally long service life under normal operating parameters, minimizing the need for frequent replacement and reducing maintenance overheads.
The versatility of the Snapper Pin extends far beyond its primary application in truck equipment. Its rapid attachment/detachment capability and robust design make it an indispensable component across a multitude of industries. In agricultural machinery, they are extensively used for securing PTO shafts, hitch pins for implements, and adjusting various settings on planters, cultivators, and harvesting equipment. The ease of removal and re-attachment is critical for quick changes in field conditions or between different tasks. In construction, these pins find application in securing temporary scaffolding components, attaching accessories to compact utility loaders, or fastening safety guards on machinery. Marine environments, while demanding, also benefit from zinc-plated pins for securing boat covers, deck fittings, and trailer components, provided they are not subjected to constant saltwater immersion, which typically requires stainless steel. Recreational vehicles, trailers, and utility carts also frequently employ Snapper Pins for securing ramps, gates, and removable accessories.
Strategically, the adoption of Snapper Pins like the Buyers Products 66063 packaged pair offers significant operational and economic advantages. Foremost is the dramatic improvement in operational efficiency. The tool-free, single-unit design drastically cuts down the time required for assembly and disassembly cycles. This translates directly into reduced labor costs and increased productivity, particularly in scenarios where equipment configurations need to be changed frequently. Furthermore, the integrated design minimizes the possibility of lost parts, which can lead to downtime and the expense of procuring replacements. For fleet managers and maintenance personnel, this means simplified inventory, reduced spare parts overhead, and fewer delays due to missing components. The inherent safety enhancement from a consistently secured connection, less prone to human error in assembly, also contributes to a safer working environment, mitigating risks associated with unsecured attachments.
Installation of the Snapper Pin is remarkably straightforward. Users simply align the holes in the components to be joined, insert the pin body, and then pivot the spring-loaded wire loop over the end of the pin until it seats securely in its designated groove. Removal is equally intuitive: a firm pull on the wire loop disengages it from the groove, allowing the pin to be withdrawn. While designed for minimal maintenance, a periodic visual inspection is prudent, especially for pins in high-stress or corrosive environments. Users should check for any signs of bending or deformation on the pin shaft, excessive wear on the locking groove, or fatigue cracking in the spring wire. The yellow zinc plating, while durable, can degrade over time; however, for the typical lifecycle of these components, re-plating is rarely a cost-effective or practical consideration given their robust initial construction.
In conclusion, the Buyers Products Snapper Pin, represented by the 1/4 inch diameter x 2-1/2 inch usable length (packaged pair of 66063), embodies a superior engineering solution for robust, efficient, and reliable fastening. Its technical superiority lies in the seamless integration of a durable pin and a high-performance, spring-loaded locking mechanism, meticulously designed for rapid, tool-free operation. The selection of high-grade steel for its core structure, complemented by a protective yellow zinc-plated finish, ensures exceptional mechanical strength and prolonged resistance to corrosion across diverse and challenging environments. With precise dimensional control, including the vital 1-3/4 inch clearance for unhindered functionality, this Snapper Pin delivers consistent performance, reducing operational downtime and enhancing safety across a broad spectrum of applications, from heavy-duty truck equipment and agricultural machinery to industrial setups and recreational uses. It stands as a testament to intelligent design, offering a strategic investment in operational efficiency, longevity, and fastening integrity.
