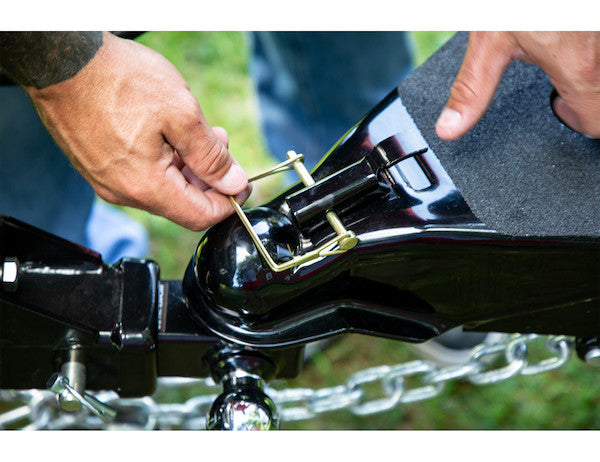

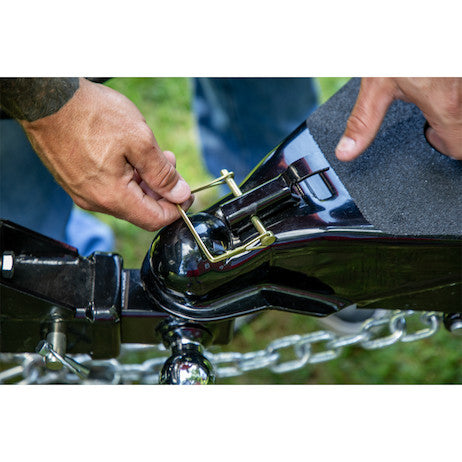

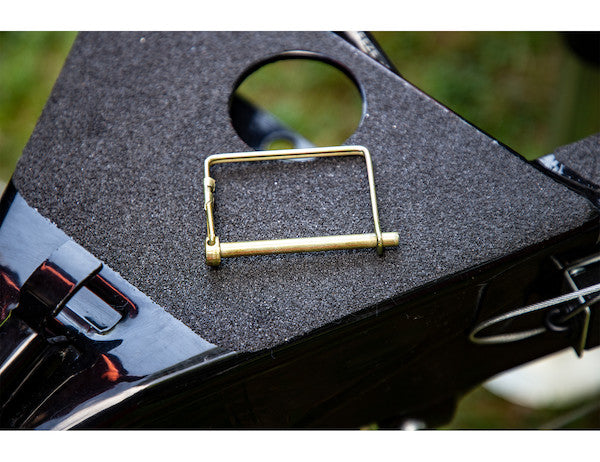

Buyers Products Snapper Pins are used as a convenient way to fasten accessories on truck equipment. Snapper lock pins join the benefits of a pin and cotter combination in a single assembly. Simply pull the wire loop over the pin to lock it in place. It quickly releases for easy removal. Snapper pins are yellow zinc-plated for corrosion resistance.
Specifications
| Clearance (in.) | 1-1/2 |
|---|---|
| Pin Dia (in.) | 1/4 |
| Usable Length (in.) | 3 |
The Snapper Pin, meticulously engineered with a 1/4-inch diameter and a 3-inch usable length, and finished with a robust yellow zinc plating, represents a pinnacle of efficient and secure fastening solutions. Designed to integrate the functionality of a traditional clevis pin and cotter assembly into a single, self-contained unit, this component offers unparalleled convenience and reliability across a myriad of industrial and commercial applications. Its inherent design addresses common challenges associated with multi-part fastening systems, such as component loss, cumbersome installation, and compromised security.
At its core, the Snapper Pin is a precision-manufactured fastener distinguished by its integrated spring-loaded wire loop mechanism. This mechanism allows for swift and positive locking, providing a secure connection that withstands vibration and dynamic loads, yet can be disengaged with minimal effort and without the need for additional tools. The operational simplicity—simply pull the wire loop over the pin to lock it in place, and quickly release for removal—translates directly into significant time savings and enhanced operational efficiency in environments where frequent accessory changes or rapid deployment are critical.
Technical Specifications and Material Science
The specific dimensions of this Snapper Pin are critical to its performance and versatility. A 1/4-inch (6.35 mm) diameter shaft ensures compatibility with a broad range of pre-drilled holes and mounting points in standard industrial equipment and truck accessories. This diameter provides a judicious balance between shear strength—the critical resistance of the pin to forces that attempt to shear or cut it perpendicularly to its axis—and the spatial requirements for installation. A 1/4-inch diameter is widely adopted for its robust load-bearing capacity in typical light to medium-duty applications, ensuring structural integrity without excessive bulk. Typically constructed from high-strength low or medium carbon steel, the material is optimized through cold-forming processes to achieve specific mechanical properties, including excellent tensile strength and fatigue resistance, paramount for components subjected to repeated stress cycles.
The 3-inch (76.2 mm) usable length signifies the effective grip range or maximum thickness of material the pin can securely fasten. This dimension is crucial for engineers to ensure the pin adequately spans components, providing full engagement and maximizing connection integrity. Precise manufacturing tolerances for both diameter and length guarantee a consistent fit, minimizing play and enhancing assembly stability.
The specified 1-1/2 inches (38.1 mm) clearance for a snapper pin generally indicates the spatial envelope required for the locking mechanism. This may represent the maximum protrusion of the wire loop in its locked position, or the minimum space needed beyond the secured material for unimpeded loop manipulation. Understanding this clearance is vital for design integration, preventing adjacent components from obstructing the pin's operation and preserving its quick-release functionality.
The Significance of Yellow Zinc Plating
A standout feature of this Snapper Pin is its yellow zinc-plated finish. This surface treatment is not merely aesthetic; it confers substantial functional benefits indispensable for applications exposed to various environmental stressors. Yellow zinc plating involves electrodepositing a thin zinc layer onto a steel substrate, followed by a chromate conversion coating that imparts its characteristic yellow, iridescent appearance. This chromate layer acts as a passivation layer, significantly enhancing the zinc's protective properties.
Corrosion Resistance
The primary advantage of yellow zinc plating is its exceptional corrosion resistance. Zinc functions as a sacrificial anode, preferentially corroding over the underlying steel when exposed to corrosive agents like moisture, humidity, and mild chemicals. This electrochemical protection mechanism effectively shields the steel from rust and degradation, substantially extending the fastener's lifespan. The yellow chromate layer further enhances this protection by sealing the zinc surface, slowing zinc corrosion and providing additional barrier protection against environmental aggressors. This renders the Snapper Pin highly suitable for outdoor applications, non-saltwater or brackish marine environments (where direct saltwater immersion is limited), and industrial settings prone to high humidity, precipitation, road salts, and mild chemical exposure, significantly prolonging the service life of equipment and reducing premature component failure.
Enhanced Durability and Surface Protection
While corrosion resistance is paramount, the zinc plating also contributes to increased surface hardness and offers a degree of abrasion resistance. This protects the underlying steel from minor scratches and wear during installation and operational use, thereby enhancing the pin's overall durability and ensuring its mechanical integrity is maintained over prolonged service periods.
Aesthetic and Operational Identification
Beyond its protective qualities, the distinctive yellow hue of the plating serves as a clear visual indicator. This aids in easy identification of zinc-plated components within complex assemblies, benefiting inventory management, maintenance protocols, and quality control by ensuring correct corrosion-resistant fasteners are utilized in specified applications.
Environmental Compliance
Modern yellow zinc plating processes have evolved to address environmental concerns. Historically utilizing hexavalent chromium, contemporary methods often employ trivalent chromium passivates or other eco-friendly alternatives to achieve comparable corrosion performance and aesthetics, aligning with stringent environmental regulations such as RoHS and ELV directives. Buyers Products ensures its manufacturing processes adhere to current environmental standards, delivering a high-performance yet responsible fastening solution.
Advanced Applications and Versatility
The utility of this 1/4in diameter, 3in usable length Snapper Pin extends broadly across numerous sectors:
- Agricultural Machinery: Facilitates rapid attachment and detachment of implements, and adjustment of components on tractors, cultivators, planters, and harvesters. The quick-release mechanism is invaluable for efficient field operations.
- Construction Equipment: Essential for scaffolding assemblies, temporary shoring, attaching equipment to skid steers and excavators, and securing safety barriers. Its durability excels under harsh conditions.
- Trailers and Towing: Crucial for securing hitch receivers, trailer gates, utility ramps, and various accessories on diverse trailer types. The yellow zinc plating provides vital protection against road salt and inclement weather.
- Municipal and Fleet Maintenance: Used extensively by public works departments and commercial fleets for securing various components on utility vehicles, snowplows, roadside equipment, and maintenance trailers, where reliability and quick component swaps are essential.
- Industrial and Manufacturing: Employed in jigs, fixtures, temporary assembly lines, conveying systems, and maintenance, where swift setup and breakdown are essential.
- Recreational Vehicles (RVs) and Outdoor Gear: Ideal for fastening components on awnings, tent poles, utility racks, and other outdoor equipment requiring secure, easily adjustable connections.
Engineering Design and Performance Attributes
The Snapper Pin's design embodies functional engineering, featuring robust construction that ensures high shear strength capable of withstanding considerable transverse forces. The spring mechanism of the wire loop is precisely calibrated to provide sufficient tension for secure locking, effectively preventing accidental disengagement due to vibration or shock, yet remaining effortless for manual operation. This critical balance between security and ease of use is a hallmark design consideration, distinguishing snapper pins from more cumbersome fastening methods.
Comparative Advantages
Compared to a traditional clevis pin and cotter pin assembly, the Snapper Pin offers several distinct advantages:
- Single-Piece Design: Mitigates the risk of losing separate cotter pins, R-clips, or other retainers, simplifying inventory and reducing operational downtime.
- Speed of Operation: Significantly faster to install and remove, reducing labor costs and improving workflow efficiency.
- Tool-Free Operation: Requires no specialized tools for engagement or disengagement, enhancing user convenience and safety.
- Positive Locking: The spring-loaded loop provides a clear, tactile, and visual indication of secure engagement, instilling greater confidence in fastening integrity.
Manufacturing Excellence and Quality Assurance
Buyers Products is dedicated to manufacturing fasteners that adhere to stringent quality standards. The production process for these Snapper Pins includes precision cold heading for the pin shaft, optimizing material grain flow for maximum strength and durability. Wire loop components are typically formed from high-carbon spring steel, meticulously heat-treated to achieve optimal spring characteristics for reliable long-term performance. Following forming, pins undergo thorough cleaning and preparation before electroplating, ensuring optimal adhesion and consistency of the yellow zinc coating. Each production batch is subjected to rigorous quality control inspections, encompassing dimensional checks, coating thickness verification, and salt spray testing (adhering to ASTM B117 standards) to validate corrosion resistance performance.
Economic and Safety Benefits
Investing in high-quality Snapper Pins like the 1/4in x 3in Yellow Zinc Plated model yields substantial economic and safety benefits. Economically, rapid installation and removal translate to reduced labor hours for tasks involving frequent adjustments or component changes. The single-piece design simplifies inventory management and reduces replacement frequency due to enhanced durability. From a safety perspective, the positive locking mechanism significantly reduces the risk of unintended detachment of critical components, preventing equipment failure, potential accidents, and costly downtime. The corrosion-resistant coating also ensures the fastener's integrity is maintained even in challenging environments, further contributing to long-term operational safety.
Conclusion
The Snapper Pin, with its 1/4-inch diameter, 3-inch usable length, and yellow zinc-plated finish, exemplifies intelligent fastening design. It surpasses conventional pins by offering a seamless blend of robust mechanical performance, unparalleled ease of use, and superior environmental protection. Its technical specifications are precisely calibrated for broad compatibility and dependable service, while the advanced yellow zinc plating ensures sustained corrosion resistance and longevity. For professionals seeking an efficient, secure, and durable fastening solution across agricultural, construction, automotive, and general industrial applications, this Snapper Pin from Buyers Products represents an optimal choice, delivering consistent performance and value throughout its extensive service life.
