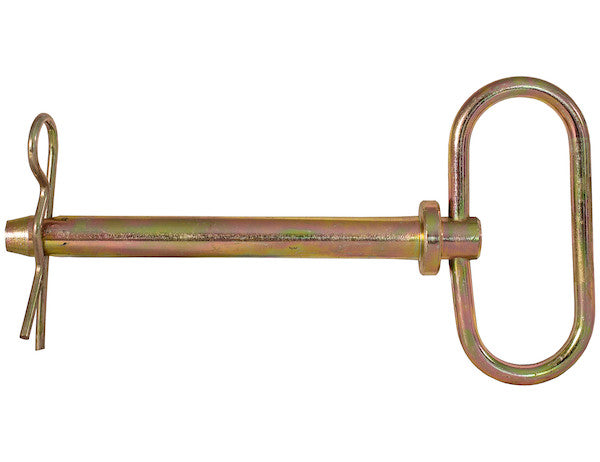

Buyers Products Hitch Pins come complete with a spring wire handle and cotter pin. Forged from 1040 steel, they are yellow zinc-plated for corrosion protection. Choose from a variety of sizes.
Specifications
| Pin Dia. (in.) | 1/2 |
|---|---|
| Usable Length (in.) | 4-1/4 |
Advanced Engineering and Material Science: The Yellow Zinc Plated Hitch Pin
In the demanding environments of towing, agricultural operations, and industrial applications, the integrity and reliability of every component are paramount. The Buyers Products Yellow Zinc Plated Hitch Pin, with its precise dimensions of 1/2 inch diameter and 4-1/4 inch usable length, represents a pinnacle of functional design and material science. This comprehensive technical overview delves into the engineering principles, material specifications, and surface treatments that collectively contribute to the superior performance and extended service life of this critical fastening component.
Material Foundation: Forged 1040 Carbon Steel for Unyielding Strength
The core strength and structural integrity of this hitch pin are derived from its construction using 1040 medium carbon steel, a material specifically chosen for its exceptional mechanical properties and suitability for high-stress applications. ASTM A29/A29M details the standard specification for general requirements for steel bars, carbon and alloy, hot-wrought. 1040 steel typically contains 0.37-0.44% carbon, 0.60-0.90% manganese, and trace amounts of other elements. This carbon content positions 1040 steel to achieve a favorable balance between strength, hardness, and ductility after appropriate thermal and mechanical processing.
The manufacturing process of forging is critical to the superior performance of these hitch pins. Forging is a metal forming process that involves applying compressive forces to shape metal, in this case, 1040 steel. Unlike casting or machining from bar stock, forging strategically aligns the grain structure of the steel. This grain flow follows the contours of the pin, significantly enhancing its strength, toughness, and fatigue resistance. This directional grain structure is particularly beneficial in applications where the component is subjected to dynamic loads, shear stress, and bending moments, precisely the conditions experienced by a hitch pin. Forged components exhibit a higher resistance to impact and shock loading, and their internal porosity is minimized, resulting in a denser, more uniform material free from the internal defects often associated with cast parts. Typical mechanical properties for forged 1040 steel include a tensile strength ranging from 85,000 to 105,000 psi (586 to 724 MPa) and a yield strength from 50,000 to 70,000 psi (345 to 483 MPa), along with an elongation of 18-25%. These properties ensure that the pin can withstand significant forces without permanent deformation or catastrophic failure, providing an essential margin of safety in critical applications.
Advanced Corrosion Protection: The Yellow Zinc Plating System
Beyond its robust steel core, the Buyers Products hitch pin is distinguished by its yellow zinc plating, a sophisticated surface treatment designed to provide advanced corrosion protection. This multi-layer coating system is engineered to extend the operational lifespan of the pin significantly, particularly in outdoor and harsh environments where exposure to moisture, road salts, chemicals, and abrasive elements is common.
The yellow zinc plating process begins with electroplating, where a thin, uniform layer of pure zinc is electrolytically deposited onto the prepared surface of the 1040 steel pin. Zinc serves as a sacrificial coating, meaning it corrodes preferentially to the underlying steel, thereby protecting the base metal through galvanic action. If the coating is scratched or compromised, the surrounding zinc will continue to protect the exposed steel.
Following the zinc deposition, a crucial secondary process known as chromate conversion coating is applied. This creates the characteristic yellow finish, which is not merely aesthetic but serves a vital functional purpose. The chromate layer reacts with the zinc to form a complex, passive film that significantly enhances the zinc's inherent corrosion resistance. This chromate layer acts as a barrier, further inhibiting the oxidation of zinc and providing self-healing properties. Should a minor scratch occur, the chromate layer can reactivate and reseal, maintaining a degree of protection. The yellow chromate also offers improved adhesion for subsequent coatings if desired, though typically not required for hitch pins, and provides a distinct visual indicator of the plating quality.
The synergistic combination of zinc electroplating and yellow chromate conversion provides superior resistance to white rust (zinc oxidation) and red rust (steel corrosion) compared to unplated or clear zinc-plated fasteners. This advanced protection is crucial for applications where component integrity must be maintained over extended periods, minimizing maintenance requirements and ensuring consistent operational reliability. Typical salt spray resistance, tested according to ASTM B117 standards, can range from 96 to 168 hours to white rust and over 200 hours to red rust, depending on the thickness and quality of the plating, far exceeding the performance of simpler coatings.
Precision Dimensions: 1/2 Inch Diameter and 4-1/4 Inch Usable Length
The specific dimensions of this hitch pin – a 1/2-inch diameter and a 4-1/4-inch usable length – are not arbitrary; they are engineered to ensure optimal fit, load-bearing capability, and compatibility across a wide range of towing and equipment applications. Adherence to these precise specifications is critical for both safety and functional performance.
Pin Diameter: The 1/2 Inch Standard
The 1/2-inch diameter of this hitch pin is a common standard, particularly for lighter to medium-duty applications. The diameter of a hitch pin directly correlates with its shear strength and bending resistance, which are critical mechanical properties. Shear strength is the ability of the pin to withstand forces acting parallel to its cross-section, which is the primary mode of failure for a hitch pin under load. Bending resistance refers to the pin's capacity to resist deformation when subjected to lateral forces. For a given material, a larger diameter translates to significantly higher shear and bending resistance, proportional to the square and cube of the diameter, respectively. This 1/2-inch diameter is meticulously manufactured to tight tolerances to ensure a secure yet manageable fit within standard receiver tubes, trailer couplers, and various implement attachment points, minimizing play and excessive wear while allowing for easy insertion and removal. The selection of 1040 forged steel, coupled with this diameter, ensures the pin can reliably support the specified load ratings for compatible towing and agricultural systems.
Usable Length: The 4-1/4 Inch Imperative
The term "usable length" is a critical specification for hitch pins, referring to the effective shaft length that passes through the components being fastened, from the underside of the pin head to the point where the retaining mechanism (cotter pin) can be installed. For this pin, the 4-1/4 inch usable length is designed to accommodate specific thicknesses of hitch receiver tubes, ball mounts, clevises, or agricultural implements. An appropriately sized usable length is crucial for several reasons:
- Full Engagement: It ensures that the pin fully traverses all components of the hitch system, providing complete engagement and preventing the pin from being inadvertently pulled out or dislodged.
- Minimized Play: An optimal usable length prevents excessive lateral movement or "slop" between the connected components, which can lead to premature wear of the pin and the receiving holes, and can contribute to instability in dynamic towing situations.
- Secure Retention: It allows ample space beyond the outermost component for the cotter pin or retaining clip to be securely inserted and engaged, guaranteeing that the hitch pin remains in place under vibrations, shocks, and fluctuating loads.
Insufficient usable length means the cotter pin cannot be properly installed, compromising safety. Excessive usable length, while not directly unsafe, can lead to the pin protruding unnecessarily, increasing the risk of snagging or aesthetic inconvenience, though it does not compromise the pin's mechanical integrity as long as the cotter is properly installed. The 4-1/4 inch usable length offered by this product is a carefully considered dimension, optimizing compatibility with a broad spectrum of common towing and equipment configurations, ensuring robust and reliable connections.
Integrated Retention System: Spring Wire Handle and Cotter Pin
The operational effectiveness and security of the Buyers Products hitch pin are further enhanced by its integrated retention system, comprising a spring wire handle and a cotter pin. This combination ensures ease of manipulation and absolute security during operation.
The Spring Wire Handle
The spring wire handle is an integral part of the hitch pin's design, engineered for ergonomic handling and efficient operation. Typically constructed from galvanized or similarly coated spring steel, the handle offers durability and corrosion resistance commensurate with the pin itself. Its design allows for a firm, comfortable grip, facilitating easy insertion and removal of the pin, even when wearing gloves or operating in challenging conditions. The spring action ensures that the handle returns to a closed position, minimizing protrusion and potential snagging. This feature is particularly valuable in repetitive tasks or when frequent attachment and detachment of implements are required, streamlining the user experience while maintaining robust structural integrity.
The Cotter Pin Mechanism
Complementing the handle is the included cotter pin. While the term "cotter pin" can refer to a split pin, in the context of hitch pins with a spring wire handle, it most often implies an R-clip, hairpin clip, or a similar spring steel retaining clip. This clip is designed to pass through a pre-drilled hole near the end of the hitch pin's usable length. Once inserted, its spring tension securely locks the pin in place, preventing accidental disengagement due to vibration, road shock, or dynamic forces during towing or equipment operation. The ease of inserting and removing this type of cotter pin, often without tools, makes it highly practical for field applications. The material of the cotter pin itself is selected for its spring properties and corrosion resistance, ensuring it maintains its retaining force throughout its service life. The reliability of this retaining mechanism is paramount; without it, even the strongest hitch pin is vulnerable to loss, potentially leading to catastrophic equipment detachment.
Versatility and Application Spectrum
The specific attributes of the Yellow Zinc Plated Hitch Pin – its robust 1040 forged steel construction, superior yellow zinc plating, and precise 1/2 inch diameter by 4-1/4 inch usable length – render it exceptionally versatile across a multitude of heavy-duty and light-duty applications. Its design is tailored to meet the rigorous demands of various industries and individual users.
- Agricultural Equipment: Farmers rely on dependable hitch pins for securing various implements to tractors, such as disc harrows, cultivators, plows, seeders, sprayers, and trailers. The pin's strength and corrosion resistance are vital for continuous outdoor exposure and heavy operational stresses.
- Trailer Hitches: This pin is ideal for securing ball mounts into receiver hitches on utility trailers, boat trailers, enclosed cargo trailers, and even some smaller RVs. Its robust construction ensures a secure connection, preventing separation during transport. The 1/2-inch diameter is commonly found in smaller Class I and Class II receiver hitches.
- Industrial and Construction Machinery: In construction, these pins are used to secure attachments to skid steers, compact tractors, and various small-scale machinery. They are also integral in scaffolding systems and temporary structural connections where quick assembly and disassembly are required without compromising safety.
- Marine Applications: While not primary, the yellow zinc plating provides a degree of protection in freshwater marine environments for boat trailers, dock equipment, or other light marine-related tasks, though frequent saltwater exposure would ideally necessitate stainless steel or hot-dip galvanized alternatives for extreme longevity.
- General Utility and DIY Projects: Beyond specialized industries, the pin's utility extends to myriad household and workshop applications, including securing gate hinges, temporary fixtures, custom fabrication, and lawn and garden equipment.
The inherent design allowing for a variety of sizes (as noted in the original description) underscores the adaptability of Buyers Products' engineering philosophy, catering to a broad spectrum of load requirements and interface dimensions.
Quality Assurance and Performance Standards
Buyers Products maintains stringent quality control measures throughout the manufacturing process of its hitch pins, from raw material sourcing to final finishing. Each stage, including the forging of 1040 steel, precision machining to achieve the specified dimensions, and the multi-step yellow zinc plating process, is meticulously monitored. This commitment to quality ensures that every hitch pin conforms to dimensional accuracy, material composition, and surface treatment efficacy standards.
While specific industry standards for hitch pins can vary by application (e.g., SAE J684 for trailer hitches specifies testing for drawbars and tongue weights, indirectly impacting pin requirements), the fundamental material and plating standards are rigorously applied. Adherence to ASTM specifications for steel and plating ensures predictable performance under various environmental and mechanical stresses. The robust nature of these pins is a direct result of these disciplined manufacturing practices, designed to deliver reliability and peace of mind to the end-user.
Installation, Maintenance, and Safety Protocols
Proper installation and routine maintenance are crucial for maximizing the service life and ensuring the safety of any hitch pin system. Users should always:
- Verify Compatibility: Ensure the pin's diameter and usable length precisely match the requirements of the receiving components. An ill-fitting pin can lead to excessive wear, instability, and potential failure.
- Proper Insertion: Insert the hitch pin fully through all components until the cotter pin hole is completely exposed.
- Secure Retention: Always install the cotter pin or retaining clip correctly through the designated hole. Verify that it is fully seated and locked, preventing accidental dislodgement.
- Regular Inspection: Periodically inspect the hitch pin for any signs of wear, bending, cracks, or significant corrosion. Pay particular attention to the area around the cotter pin hole and the pin shank. Also, check the cotter pin for fatigue or deformation.
- Lubrication: Applying a light coating of grease or anti-seize compound to the pin and receiver can facilitate easier insertion/removal and further protect against corrosion and galling, though it is not always strictly necessary given the zinc plating.
- Replacement: Replace any hitch pin or cotter pin that shows signs of damage, excessive wear, or deformation. Never attempt to repair a damaged pin, as its structural integrity may be compromised.
Adhering to these simple yet critical practices will ensure the continued safe and efficient operation of equipment reliant on this essential fastening component.
Conclusion: The Quintessential Solution for Secure Connections
The Buyers Products Yellow Zinc Plated Hitch Pin, with its 1/2-inch diameter and 4-1/4-inch usable length, embodies a synthesis of superior material science, precision engineering, and advanced protective coatings. Forged from robust 1040 carbon steel, it offers exceptional strength and fatigue resistance, designed to endure the demanding forces encountered in towing, agricultural, and industrial applications. The yellow zinc plating system provides an advanced barrier against corrosion, ensuring longevity and reliable performance even in harsh environmental conditions. Complemented by an ergonomic spring wire handle and a secure cotter pin, this product delivers both ease of use and uncompromising security. This hitch pin is not merely a fastening device; it is a critical safety component, meticulously engineered to provide dependable, long-lasting connections, reflecting Buyers Products' unwavering commitment to quality and functional excellence across its diverse product range.
