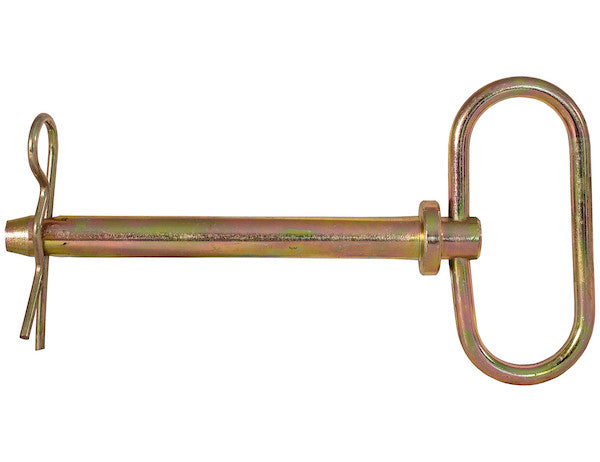

Buyers Products Hitch Pins come complete with a spring wire handle and cotter pin. Forged from 1040 steel, they are yellow zinc-plated for corrosion protection. Choose from a variety of sizes.
Specifications
| Pin Dia. (in.) | 5/8 |
|---|---|
| Usable Length (in.) | 4-1/4 |
Advanced Technical Overview: Yellow Zinc Plated Hitch Pins - Engineered for Durability and Performance
The Buyers Products Yellow Zinc Plated Hitch Pin, with its precise dimensions of 5/8 inch diameter and 4-1/4 inch usable length, represents a meticulously engineered component designed for critical fastening applications across various industrial, agricultural, construction, and recreational sectors. This product is not merely a simple fastening device; it is a synthesis of carefully selected materials, advanced manufacturing processes, and robust protective coatings, all optimized to deliver exceptional mechanical integrity, operational reliability, and extended service life in demanding environments. Understanding the technical specifications and design philosophy behind this hitch pin reveals its inherent value and superior performance characteristics.
At the core of this hitch pin's structural integrity is its material composition: 1040 steel. AISI 1040 steel is a medium-carbon steel known for its excellent balance of strength, hardness, and toughness, making it particularly suitable for components subjected to significant shear and bending stresses. With a nominal carbon content of 0.40%, 1040 steel exhibits higher tensile strength and yield strength compared to lower carbon steels, without compromising too much on ductility. This specific carbon content allows for effective heat treatment processes if desired, though for hitch pin applications, its as-forged properties are typically sufficient. Its manganese content further enhances strength and hardenability, while silicon acts as a deoxidizer and contributes to strength. The choice of 1040 steel ensures that the pin can withstand the dynamic loads and forces inherent in towing, connecting implements, or securing heavy equipment, minimizing the risk of deformation or catastrophic failure under design load conditions. This material's metallurgical properties contribute to its excellent fatigue resistance, a critical factor for components that endure repetitive stress cycles throughout their operational lifespan.
Further enhancing the mechanical characteristics of the 1040 steel is the manufacturing process of forging. Forging involves the application of localized compressive forces to shape metal while it is in a solid state, either hot or cold. For these hitch pins, hot forging is typically employed, where the steel is heated to a temperature above its recrystallization point. This process refines the grain structure of the steel, aligning the grains in the direction of the metal's flow. This aligned grain flow significantly improves the steel's anisotropic properties, enhancing its tensile strength, impact resistance, and fatigue life along the longitudinal axis, precisely where these attributes are most crucial for a hitch pin. Unlike machining from bar stock, which can interrupt internal grain structures, forging creates a continuous grain flow that follows the contours of the part, eliminating weak points and making the component far more resilient to sudden shocks and high-stress concentrations. The forging process compacts the material, eliminating internal voids or porosity that could otherwise act as stress risers, thereby producing a denser, more uniform, and ultimately stronger component capable of sustaining heavier loads and enduring harsher conditions than parts manufactured through casting or machining alone.
Beyond its intrinsic material strength, the longevity and functional performance of the hitch pin are significantly augmented by its protective coating: yellow zinc plating. Zinc plating is an electrochemical process where a thin layer of zinc is deposited onto the surface of the steel substrate. This layer serves a dual purpose in corrosion prevention. Firstly, it acts as a sacrificial coating. Zinc is electrochemically more active than steel; therefore, in the presence of an electrolyte (such as moisture), the zinc will preferentially corrode, protecting the underlying steel. This cathodic protection mechanism is highly effective in preventing red rust formation even if the zinc layer is scratched or slightly damaged. Secondly, the zinc layer provides a physical barrier, isolating the steel from corrosive elements like oxygen, water, and various chemicals. The "yellow" designation refers to the chromate conversion coating applied over the zinc layer. After the electroplating process, the zinc-plated parts undergo a chromating step, where they are dipped into a chemical solution containing hexavalent or trivalent chromium compounds. The yellow chromate not only imparts the distinctive golden-yellow appearance but, more importantly, enhances the corrosion resistance of the zinc layer itself. It forms a passive layer that significantly improves resistance to white rust (zinc corrosion products) and further extends the lifespan of the underlying steel. This multi-layered protection system ensures that the hitch pin maintains its structural integrity and aesthetic appeal even when exposed to adverse weather conditions, road salts, agricultural chemicals, and marine environments.
The specified dimensions of this hitch pin are critical for its intended applications. The 5/8-inch diameter is a standard size compatible with a wide array of hitch receivers, clevis mounts, and agricultural implements. This diameter is precisely engineered to fit snugly within corresponding receptacles, minimizing play and preventing excessive wear on both the pin and the receiving component. The shear strength of a pin is directly proportional to the square of its diameter, making accurate dimensional control paramount. A 5/8-inch pin is robust enough for medium to heavy-duty applications, providing substantial shear strength for securing trailers, implements, and attachments where significant pulling or pushing forces are applied. The precision manufacturing ensures that the pin diameter adheres to tight tolerances, facilitating smooth insertion and removal while maintaining a secure fit that prevents rattling and premature wear. The chosen diameter represents an optimal balance between material usage, manufacturing cost, and the required load-bearing capacity for its target applications, aligning with industry standards for various Classes of towing and agricultural equipment.
Equally crucial is the 4-1/4 inch usable length. This dimension refers to the effective length of the pin shaft that can pass through the components being secured. A sufficient usable length is vital to ensure that the pin fully engages all necessary components and allows for proper placement of the cotter pin or other retaining devices. In towing applications, this length must accommodate the thickness of the hitch receiver collar and the drawbar or coupler tongue. In agricultural or industrial settings, it needs to traverse multiple layers of metal, such as implement arms, brackets, or linkages. An adequate usable length prevents the pin from being inadvertently dislodged and ensures that the load is distributed evenly across the pin's full shear plane. The 4-1/4 inch length is versatile enough to accommodate common variations in component thickness, providing a secure and reliable connection without excessive protrusion that could create a snagging hazard. This dimension has been selected through careful consideration of common industry practices and component geometries, ensuring broad compatibility and safety across diverse applications.
The design of the hitch pin includes two essential ancillary components: a spring wire handle and a cotter pin. The spring wire handle is integral to the usability and safety of the hitch pin. Ergonomically designed, it provides a secure and comfortable grip for manual insertion and removal of the pin. The spring action ensures that the handle remains in an upright position, making it easily accessible and preventing it from flopping around or getting caught during operation. The robust construction of the wire handle, typically from high-strength spring steel, ensures its durability and resistance to deformation even under repetitive use in harsh environments. Its design facilitates quick and efficient connection and disconnection, which is particularly beneficial in scenarios requiring frequent changes of equipment or attachments. This simple yet effective feature significantly improves operational efficiency and user convenience.
The cotter pin is a critical safety mechanism, serving as a secondary retention device to prevent the unintentional disengagement of the hitch pin. Typically manufactured from spring steel or similar resilient alloys, the cotter pin is inserted through a pre-drilled hole near the end of the hitch pin's shaft. Its design, often a hairpin style, allows for easy insertion and removal while providing a secure lock. Once inserted, the cotter pin spreads open, creating a positive mechanical stop that prevents the hitch pin from vibrating loose or being pulled out under dynamic loads, shock, or accidental impact. This simple yet highly effective redundant fastening system is paramount for safety in all applications, preventing detached trailers, implements, or equipment, which could lead to severe accidents or damage. The integrity of the cotter pin's material and its secure fit within the hitch pin's bore are regularly verified during quality assurance procedures to ensure maximum reliability.
The applications for these Yellow Zinc Plated Hitch Pins are extensive due to their robust construction and protective finish. In the agricultural sector, they are indispensable for connecting various implements such as plows, tillers, planters, and trailers to tractors, enduring constant exposure to soil, moisture, and fertilizers. For construction, they are utilized to secure attachments to excavators, skid steers, and other heavy machinery, providing reliable connections for buckets, grapples, and specialized tools in dusty, abrasive, and often wet conditions. In the transportation and towing industry, these pins are the standard for securing trailer couplers to hitch receivers on trucks and SUVs, ensuring safe transit of boats, RVs, utility trailers, and commercial cargo. Their corrosion resistance makes them suitable for marine environments where salt spray and high humidity are prevalent, protecting boat trailers and docking equipment. Beyond these, they find use in industrial settings for securing machinery components, gates, scaffolding, and various other temporary or permanent fixtures where a strong, easily removable pin is required.
In summary, the Buyers Products Yellow Zinc Plated Hitch Pin, with its 5/8-inch diameter and 4-1/4-inch usable length, embodies a high standard of engineering and manufacturing excellence. The strategic selection of forged 1040 steel provides superior mechanical strength, toughness, and fatigue resistance. The yellow zinc plating with chromate conversion offers advanced, dual-mode corrosion protection, significantly extending the pin's operational life in corrosive environments. The precise dimensions ensure optimal fit and load distribution across a broad range of standard applications. Finally, the integration of a functional spring wire handle and a fail-safe cotter pin guarantees ease of use and critical security. This product is not merely a component but a foundational element of safety and efficiency, rigorously designed and manufactured to meet the rigorous demands of professional and recreational users alike, providing peace of mind through its unwavering reliability and durability.
