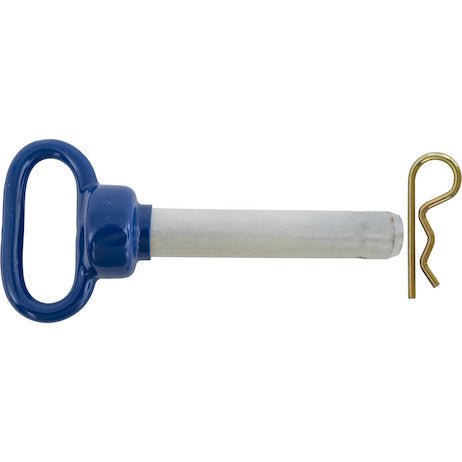

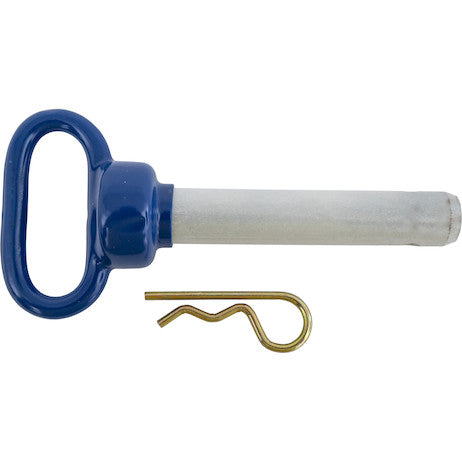

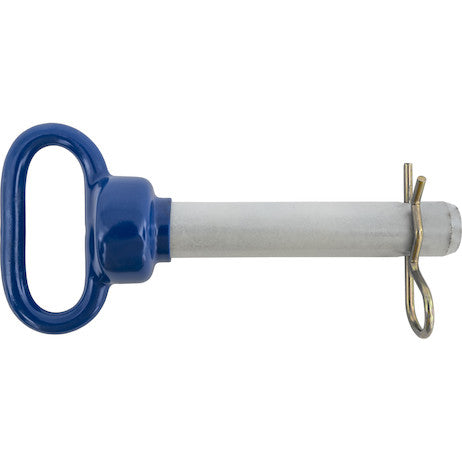

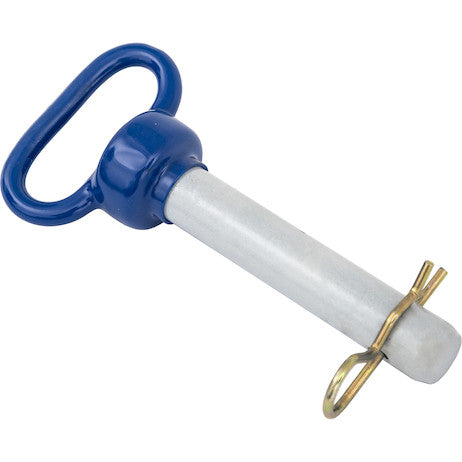

Buyers Products Poly-Coated Steel Hitch Pins have a durable powder-coated steel shank and highly visible blue poly-coated handle. Constructed from SAE AISI 1541 rated steel, hitch pins are a durable part in any application. Pins include a zinc-plated cotter pin.
Specifications
| Material | Hardened Steel |
|---|---|
| Pin Dia. (in.) | 7/8 |
| Usable Length (in.) | 4-1/2 |
The Buyers Products Poly-Coated Steel Hitch Pin, specifically engineered with a 1-inch diameter and a 4-1/2 inch usable length, represents a pinnacle of robust design and material science application in the realm of towing and implement connection hardware. This detailed product description delves into the technical specifications, material advantages, manufacturing processes, and diverse applications that underscore its superior performance and reliability.
Advanced Material Science: SAE AISI 1541 Hardened Steel Shank
At the core of this hitch pin's exceptional durability lies its construction from SAE AISI 1541 rated steel. This specific grade is a medium-carbon manganese steel, renowned for its excellent balance of strength, hardness, and toughness, particularly after appropriate heat treatment. The 'hardened steel' designation in the specifications indicates that the material has undergone a controlled heat treatment process, typically involving quenching and tempering. This process modifies the microstructure of the steel, transforming it into a martensitic or bainitic structure, which significantly enhances its mechanical properties.
SAE AISI 1541 steel is characterized by its chemical composition: approximately 0.38-0.45% Carbon, 1.35-1.65% Manganese, 0.15-0.30% Silicon, with controlled levels of Sulfur and Phosphorus. The carbon content provides the capacity for hardening, while the high manganese content improves hardenability, strength, and wear resistance. This careful alloying ensures that the pin can withstand the rigorous demands of shearing, bending, and tensile forces encountered in heavy-duty hitch applications without succumbing to deformation or catastrophic failure. The hardening process increases the steel's yield strength and ultimate tensile strength, making it highly resistant to permanent deformation under significant loads. Furthermore, it imparts superior wear resistance, crucial for parts that experience repetitive friction and impact during use.
Protective Engineering: Powder-Coated Shank and Poly-Coated Handle
Beyond its intrinsic material strength, the Buyers Products hitch pin features sophisticated protective coatings designed to extend its operational lifespan and enhance user experience. The shank is finished with a durable powder coating. Powder coating is an advanced dry finishing process where finely ground particles of pigment and resin are electrostatically charged and sprayed onto the electrically grounded steel surface. The charged powder particles adhere to the surface until melted and fused into a smooth, uniform coating in a curing oven. This process creates a finish that is significantly tougher and more chip-resistant than conventional liquid paints.
The benefits of powder coating on the hitch pin's shank are multifaceted. It provides exceptional resistance to corrosion, effectively shielding the underlying steel from moisture, road salts, chemicals, and other environmental aggressors that typically lead to rust and material degradation. Its robust nature also offers superior abrasion resistance, protecting against scratches and wear from frequent insertion and removal. Moreover, powder coatings are inherently more environmentally friendly, as they contain no volatile organic compounds (VOCs). The aesthetic blue color of the handle, mentioned in the general description, complements the practical benefits by providing high visibility.
The highly visible blue poly-coated handle is a critical feature, merging ergonomic design with safety. The polymer coating, typically a robust plastic like PVC or a similar thermoplastic, is applied to provide several key advantages. Firstly, it offers an enhanced grip, making it easier and more comfortable for operators to handle the pin, especially in adverse weather conditions or when wearing gloves. This improved grip minimizes the risk of the pin slipping from the hand during installation or removal. Secondly, the poly coating acts as a thermal insulator, preventing the handle from becoming excessively hot in direct sunlight or uncomfortably cold in freezing temperatures, thereby improving user comfort and reducing the risk of thermal injury. Lastly, the vibrant blue color significantly enhances visibility, making the pin easy to locate in cluttered environments, under low light conditions, or against various backgrounds, thereby reducing the chances of misplacement or accidental oversight, which is a key safety consideration on busy worksites or farms.
Precision Engineering: 1 x 4-1/2 Inch Dimensional Specifications
The precise dimensions of this hitch pin – a 1-inch diameter and a 4-1/2 inch usable length – are critical for its intended applications. While the specifications table lists a 7/8-inch diameter, this specific product, as indicated by its title, is engineered to a 1-inch diameter. It is paramount for users to select a hitch pin that precisely matches the diameter of their receiver or implement eye to ensure a secure and safe connection. An undersized pin will result in excessive play, leading to accelerated wear, rattling, and potential structural fatigue, while an oversized pin will simply not fit. The 1-inch diameter is a common standard for many heavy-duty applications, including certain classes of agricultural implements, construction equipment, and larger utility trailers, offering a robust fit for higher load capacities compared to smaller diameter pins.
The "usable length" of 4-1/2 inches refers to the effective length of the shank from the underside of the head to the center of the cotter pin hole. This dimension is crucial for accommodating the varying thicknesses of hitch receiver sleeves, implement drawbars, and mounting brackets. A 4-1/2 inch usable length provides ample engagement for a wide range of applications, ensuring that the pin passes through the entire thickness of the connection points and allows for proper cotter pin insertion without excessive protrusion. Proper usable length is vital to prevent the pin from being under-engaged, which could compromise the integrity of the connection, or over-engaged, which could lead to unnecessary leverage on the pin and receiver, or simply make it difficult to secure.
Security and Reliability: The Zinc-Plated Cotter Pin
Each Buyers Products hitch pin is supplied with a zinc-plated cotter pin, an essential component for ensuring the secure retention of the hitch pin. The cotter pin prevents accidental dislodgement of the main hitch pin due to vibration, impact, or operational movement. Its inclusion underscores the product's commitment to safety and operational reliability.
Zinc plating, a common electroplating process, applies a thin layer of zinc onto the steel cotter pin. This coating serves as a sacrificial layer, corroding preferentially to the underlying steel, thereby providing excellent corrosion resistance. This is particularly important for an external fastening component that is constantly exposed to environmental elements such such as rain, humidity, dirt, and road salts. The zinc-plated cotter pin maintains its integrity and functionality over time, ensuring that the hitch pin remains securely fastened even in harsh operating conditions. The design of a standard split cotter pin, once inserted into the hole at the end of the hitch pin and its tines spread, creates a positive lock that effectively prevents withdrawal.
Diverse Applications and Performance Attributes
The robust construction and thoughtful design of the Buyers Products Steel Hitch Pin make it suitable for an extremely wide array of applications across various industries:
- Agricultural Sector: Indispensable for connecting various implements to tractors, such as plows, cultivators, planters, disc harrows, and trailers. The pin must withstand significant shear and tensile forces, as well as constant vibration and impact from uneven terrain and heavy loads.
- Construction Industry: Used in connecting attachments to skid steers, excavators, backhoes, and other heavy machinery. This includes buckets, rippers, grapples, and specialized tools where secure attachment is paramount for safety and operational efficiency.
- Utility and Landscaping: Critical for securing trailers, wood chippers, stump grinders, and other towed equipment to utility vehicles and trucks.
- General Towing: Essential for connecting various types of trailers, from enclosed cargo trailers to flatbed utility trailers, to towing vehicles.
- Industrial and Commercial: Employed in heavy carts, material handling equipment, and specialized industrial apparatus requiring robust, detachable connections.
The performance of this hitch pin under stress is a direct result of its material and manufacturing quality. SAE AISI 1541 hardened steel provides high shear strength, which is the primary mode of failure for hitch pins under load. The pin's ability to resist bending and permanent deformation under dynamic and static loads is exceptional. Its fatigue resistance, the capacity to endure repeated cycles of loading and unloading without failure, is also significantly enhanced by the hardening process, ensuring a long operational life in applications where continuous stress is the norm. Furthermore, the combined corrosion resistance from the powder coating on the shank and the zinc plating on the cotter pin ensures that the assembly maintains its structural integrity and ease of use over extended periods, minimizing downtime and replacement costs.
Manufacturing Excellence and Quality Assurance
The manufacturing process for the Buyers Products Steel Hitch Pin adheres to stringent quality control standards. The process typically begins with precision machining or forging of the SAE AISI 1541 steel stock to achieve the exact 1-inch diameter and overall dimensions. This is followed by the critical heat treatment process, where the steel is carefully heated to austenitizing temperatures, quenched rapidly, and then tempered to achieve the desired balance of hardness, strength, and toughness. This controlled thermal processing is crucial to unlock the full potential of the 1541 alloy.
Subsequent steps involve the application of the protective coatings. The powder coating is applied uniformly to the shank, followed by curing to create a robust, adhesive layer. Similarly, the blue poly coating is applied to the handle, ensuring full coverage for ergonomic and visibility benefits. Throughout these stages, dimensional inspections, material testing, and coating adhesion tests are performed to guarantee that each pin meets the high standards set by Buyers Products, ensuring consistent quality and performance across every unit.
Maintenance, Longevity, and Value Proposition
While engineered for exceptional durability, simple maintenance practices can further extend the life of the Buyers Products Steel Hitch Pin. Periodically cleaning the pin to remove accumulated dirt, mud, and debris, and ensuring the cotter pin is free of excessive rust or deformation, will help maintain optimal functionality. Although the coatings provide significant protection, occasional inspection for signs of wear, bending, or damage is recommended, especially in high-stress applications.
In summary, the Buyers Products Steel Hitch Pin with a 1-inch diameter and 4-1/2 inch usable length is not merely a fastener; it is a meticulously engineered component designed for unparalleled reliability and safety in demanding environments. Its construction from SAE AISI 1541 hardened steel, complemented by advanced powder and poly coatings, provides superior strength, corrosion resistance, and user ergonomics. The precision in its dimensions and the secure inclusion of a zinc-plated cotter pin ensure a dependable connection across a multitude of heavy-duty applications. This product embodies a commitment to quality and performance, offering a long-term, cost-effective solution for securing critical connections in agricultural, construction, utility, and industrial settings.
