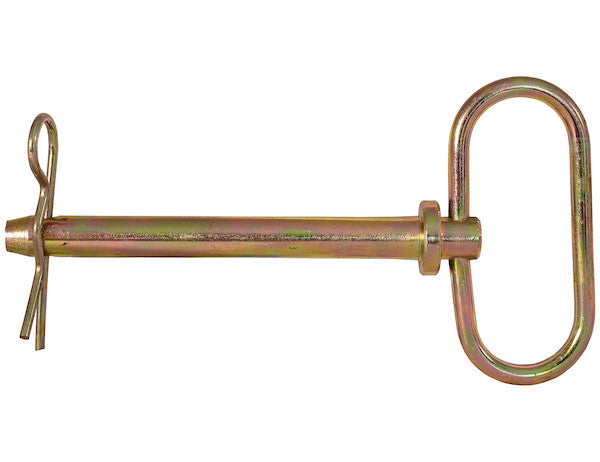

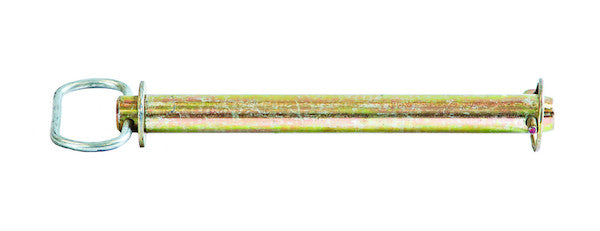

66129 - Hitch Pin Assembly - 1 Diameter x 9-1/2 Inch Usable Length

Buyers Products Hitch Pins come complete with a spring wire handle and cotter pin. Forged from 1040 steel, they are yellow zinc-plated for corrosion protection. Choose from a variety of sizes.

Specifications

The Buyers Products Hitch Pin Assembly, specifically designed with a 1-inch diameter and a 9-1/2 inch usable length, represents a pinnacle of engineering and material science tailored for demanding towing and industrial applications. This technical exposition delves into the intricate details of its construction, material properties, surface treatment, and operational advantages, underscoring its pivotal role in ensuring secure and reliable connections across diverse sectors.

Comprehensive Design and Assembly Architecture

A hitch pin assembly is more than just a simple fastener; it is a critical safety component that unites disparate elements of a towing or linkage system. The Buyers Products assembly is meticulously engineered, comprising three integral parts: the primary pin body, the spring wire handle, and the cotter pin. This holistic design ensures not only robust mechanical linkage but also facilitates ease of use and steadfast security.

The pin body, the central component, is characterized by its substantial 1-inch (25.4 mm) diameter. This dimension is not arbitrary; it signifies compatibility with heavy-duty receivers and implements, providing a substantial cross-sectional area crucial for resisting significant shear and bending stresses. The 9-1/2 inch (241.3 mm) usable length is equally critical, offering ample engagement for securing multiple components or thicker hitch eyes, ensuring full material contact and preventing premature wear or disengagement. This specific length is optimized for applications requiring considerable span, where standard pins might fall short, leading to unsafe connections.

The spring wire handle, thoughtfully integrated into the pin's design, provides an ergonomic and efficient means for insertion and removal. Fabricated from high-tensile spring steel, typically characterized by excellent elastic properties, this handle resists permanent deformation even after repeated manipulation. Its design minimizes the risk of pinched fingers and offers a secure grip, enhancing operational safety and user convenience. The cotter pin, the final element of the assembly, serves as a vital secondary locking mechanism. Once the main pin is inserted through the hitch components, the cotter pin passes through a pre-drilled hole near the end of the main pin, effectively preventing its accidental withdrawal under vibration, shock, or dynamic loading. Cotter pins are typically manufactured from materials like low-carbon steel or stainless steel, selected for their ductility and resistance to fatigue, ensuring reliable retention.

Material Science Deep Dive: 1040 Steel Foundation

The choice of 1040 steel for the primary pin body is a deliberate engineering decision, balancing strength, machinability, and cost-effectiveness for heavy-duty applications. 1040 steel is classified as a medium-carbon steel, with a nominal carbon content of 0.40%. Its chemical composition typically includes:

• Carbon (C): 0.37-0.44% - Provides hardness and tensile strength.
• Manganese (Mn): 0.60-0.90% - Enhances strength, hardness, and response to heat treatment, and acts as a deoxidizer.
• Silicon (Si): 0.10-0.30% - Increases strength and hardness, and is a deoxidizer.
• Sulfur (S): Max 0.05% - Typically considered an impurity, can reduce ductility and impact strength.
• Phosphorus (P): Max 0.04% - Similar to sulfur, generally kept low.

The medium carbon content makes 1040 steel significantly stronger and harder than low-carbon steels (like 1018) while retaining a good degree of ductility, making it less brittle than high-carbon steels. Forged from 1040 steel, as specified, is a critical manufacturing detail. Forging is a metalworking process that involves shaping metal using localized compressive forces. This process enhances the material's mechanical properties in several ways:

• **Grain Refinement:** Forging refines the grain structure of the steel, leading to a denser, more uniform microstructure. This eliminates porosity, voids, and segregation, common in cast materials.
• **Improved Grain Flow:** The forging process aligns the internal grain flow of the metal to follow the contours of the part, especially in areas of high stress. This optimized grain flow significantly improves the material's fatigue resistance, impact strength, and overall mechanical performance, making the pin exceptionally resistant to shear and bending forces encountered in hitch applications.
• **Enhanced Strength and Toughness:** By compacting the metal and eliminating internal defects, forging increases the material's tensile strength, yield strength, and toughness compared to equivalent non-forged components.

The typical mechanical properties of 1040 steel in its normalized (air-cooled after hot working) or as-forged condition, which is often sufficient for hitch pins, include:

• Tensile Strength: 69,000 psi (475 MPa) - 95,000 psi (655 MPa)
• Yield Strength: 48,000 psi (330 MPa) - 70,000 psi (485 MPa)
• Hardness (Brinell): 170-200 HB
• Elongation at Break: 12-25%

These properties ensure that the hitch pin can withstand the substantial static and dynamic loads inherent in towing, without permanent deformation or catastrophic failure. The inherent toughness of 1040 steel also provides excellent resistance to sudden impacts and vibrations, which are common in agricultural, construction, and transportation environments.

Advanced Corrosion Protection: Yellow Zinc Plating

The longevity and reliability of any outdoor mechanical component are heavily dependent on its ability to resist environmental degradation, primarily corrosion. The Buyers Products Hitch Pin Assembly employs a yellow zinc-plated finish, a robust and proven method for achieving superior corrosion protection.

Zinc plating, also known as electro-galvanization, is an electrochemical process where a thin layer of zinc is deposited onto the surface of the steel substrate. This creates a sacrificial barrier: zinc is more electrochemically active than steel, meaning it will corrode preferentially to protect the underlying steel even if the coating is scratched, a phenomenon known as cathodic protection. This mechanism is crucial for maintaining the structural integrity of the pin, especially in applications where minor abrasions or impacts are unavoidable.

Following the zinc plating, a yellow chromate conversion coating is applied. This post-treatment chemically reacts with the zinc layer to form a passive, amorphous film predominantly composed of zinc chromates and zinc oxides. The "yellow" color is indicative of the presence of hexavalent chromium compounds, which historically provided exceptional corrosion resistance. While modern environmental regulations are increasingly pushing for trivalent chromium alternatives (which typically result in clear or blue finishes), yellow chromate remains highly effective and widely used where maximum corrosion protection is paramount.

The benefits of yellow zinc plating are extensive:

• **Superior Corrosion Resistance:** Provides significantly enhanced resistance against rust and other forms of atmospheric corrosion, extending the service life of the pin in humid, wet, or saline environments.
• **Abrasion Resistance:** The chromate layer adds a degree of hardness to the zinc coating, making it more resistant to minor scratches and wear.
• **Aesthetic Appeal:** The distinctive yellow hue offers an easily identifiable and professional finish.
• **Friction Reduction:** The smooth, dense zinc layer can also slightly reduce friction during pin insertion and removal.

This dual-layer protection (zinc + chromate) ensures that the hitch pin maintains its functional and aesthetic integrity even when exposed to harsh weather conditions, road salts, agricultural chemicals, and industrial contaminants, making it a reliable choice for long-term outdoor use.

Dimensional Precision and Application Engineering

The specified dimensions – a 1-inch diameter and a 9-1/2 inch usable length – are critical parameters that dictate the pin's suitability for specific heavy-duty applications. The 1-inch diameter is widely recognized as a standard for Class III, IV, and V hitch receivers, agricultural implements, and industrial machinery where substantial load-bearing capacity is required. This robust diameter ensures maximum shear strength, which is the primary mode of failure for hitch pins under perpendicular loading. A larger diameter provides a larger cross-sectional area, directly proportional to the pin's ability to resist shearing forces without plastic deformation or fracture.

The 9-1/2 inch usable length is equally significant. This measurement defines the effective span over which the pin can securely fasten components. It is particularly advantageous in scenarios involving:

• **Multi-component Assemblies:** Securing multiple hitch plates, drawbars, or implement arms together, ensuring that all components are fully engaged and held taut.
• **Thick Materials:** Accommodating thick-walled hitch receivers or heavy-duty agricultural implements that require a longer pin to pass through and allow sufficient space for the cotter pin.
• **Offset Connections:** Providing flexibility for connections where components may not be perfectly aligned, or where a slight offset is part of the design.

Precise dimensional control during manufacturing is paramount. Adherence to tight tolerances ensures a snug fit within the corresponding hitch receiver or implement eye. An overly loose fit can lead to excessive play, premature wear on both the pin and the receiving component, and increased stress concentrations, ultimately compromising the connection's integrity. Conversely, an overly tight fit can make installation and removal difficult. Buyers Products’ commitment to manufacturing excellence ensures that these critical dimensions are consistently met, providing optimal fit and reliable performance.

Performance Engineering and Safety Considerations

The performance of a hitch pin is primarily judged by its ability to safely transfer forces between connected components. Key engineering performance metrics include:

• **Shear Strength:** As mentioned, this is paramount. The 1-inch diameter 1040 steel pin, especially in its forged condition, exhibits excellent shear strength. Under typical loading scenarios, the pin is subjected to forces acting perpendicular to its axis, attempting to cut or "shear" it. The high yield and tensile strength of 1040 steel, combined with the beneficial grain structure from forging, provide a substantial safety margin against shear failure.
• **Bending Strength:** While primarily designed for shear, hitch pins can also experience bending moments, particularly if the load is not perfectly aligned or if there is significant leverage. The material's modulus of elasticity and yield strength dictate its resistance to bending. 1040 steel offers a good balance, resisting permanent bending deformation under expected operational loads.
• **Fatigue Resistance:** Hitch pins in dynamic applications (e.g., towing over rough terrain, agricultural field work) are subjected to repetitive loading and unloading cycles. Fatigue failure, where a component fails under stresses below its static yield strength due to cumulative microscopic damage, is a significant concern. The refined grain structure from forging and the inherent properties of 1040 steel contribute to excellent fatigue resistance, ensuring long-term reliability.
• **Wear Resistance:** Constant movement and vibration between the pin and the hitch components can lead to abrasive wear. The hardened surface of the 1040 steel, coupled with the protective and somewhat lubricious nature of the zinc plating, helps to mitigate wear, extending the lifespan of both the pin and the mating parts.

Safety is intrinsically linked to performance. Proper selection of the hitch pin based on the required load capacity is crucial. While specific load ratings for this particular pin are not provided, its robust construction indicates suitability for heavy-duty applications. Users must always verify that the pin's strength exceeds the maximum anticipated load, factoring in dynamic forces and potential shock loads. Regular inspection of the hitch pin assembly is also vital. Users should look for signs of wear, deformation (bending or ovaling), corrosion, or damage to the cotter pin or spring handle. Any compromise to the pin's integrity warrants immediate replacement to prevent catastrophic failure and ensure operational safety.

Diverse Applications and Industry Adoption

The 1-inch diameter, 9-1/2 inch usable length hitch pin assembly is a versatile component indispensable across a multitude of industries due to its robust design and material specifications. Its capacity for heavy-duty engagement makes it a preferred choice in:

• **Agricultural Sector:** Used extensively for connecting various implements to tractors, such as plows, cultivators, planters, sprayers, and trailers. The demanding nature of farm work, involving heavy loads, rough terrain, and exposure to harsh weather and chemicals, necessitates a pin with exceptional strength and corrosion resistance.
• **Construction Industry:** Critical for securing attachments to heavy construction equipment like excavators, loaders, backhoes, and bulldozers. It also finds application in connecting modular scaffolding components, securing temporary structures, and facilitating material handling.
• **Towing and Transportation:** Essential for heavy-duty towing applications, including industrial trailers, cargo haulers, boat trailers, and recreational vehicles. The 1-inch diameter is common for Class IV and V hitches, designed for substantial gross trailer weights and tongue weights. The long usable length can accommodate various trailer tongues and multi-layered connections.
• **Industrial and Manufacturing:** Utilized in factory settings for moving heavy equipment, securing production jigs, and connecting specialized machinery. Its durability ensures reliable performance in rigorous industrial environments.
• **Utility and Municipal Fleets:** Employed by utility companies and municipal departments for connecting generators, chippers, log splitters, and other specialized equipment to service vehicles.
• **Marine Applications:** While direct exposure to saltwater environments requires specific marine-grade finishes (e.g., stainless steel), yellow zinc plating offers substantial protection for freshwater or intermittently exposed marine equipment, or for components not directly submerged.

The "variety of sizes" mentioned in the general description underscores Buyers Products' comprehensive offering, allowing customers to select the precise pin configuration to match their specific application requirements, ensuring optimal fit, function, and safety across their entire equipment fleet.

Manufacturing Excellence and Quality Assurance

Buyers Products' commitment to quality is evident in every aspect of this hitch pin assembly. The manufacturing process begins with the careful selection of high-grade 1040 steel. The forging process, as discussed, is meticulously controlled to ensure consistent grain structure and superior mechanical properties. Subsequent machining operations precisely define the 1-inch diameter and 9-1/2 inch usable length, along with the cotter pinhole, adhering to stringent dimensional tolerances. The spring wire handle is formed from high-quality spring steel and securely attached, while the cotter pin is engineered for reliable retention.

The final step, yellow zinc plating, is executed with advanced electroplating techniques to ensure a uniform, durable, and adherent coating that provides maximum corrosion resistance. Throughout the entire manufacturing chain, rigorous quality control protocols are implemented. These include:

• **Material Verification:** Incoming raw materials are inspected to confirm they meet chemical composition and mechanical property specifications.
• **In-Process Inspection:** Dimensional checks, visual inspections for forging defects, and surface finish assessments are performed at various stages of production.
• **Final Product Testing:** Finished pins undergo comprehensive inspections, including dimensional accuracy verification, plating thickness measurements, and visual checks for coating integrity. Destructive testing, such as shear strength tests, may also be performed on a sampling basis to validate performance.

This unwavering dedication to quality assurance ensures that every Buyers Products Hitch Pin Assembly meets or exceeds industry standards, providing customers with a reliable, durable, and safe product they can trust for their most critical applications.

Maintenance and Longevity

While engineered for durability, proper maintenance practices can further extend the lifespan and ensure the continued safe operation of the hitch pin assembly. Regular cleaning to remove dirt, debris, and corrosive substances can help preserve the zinc plating. Application of a thin layer of grease or anti-seize compound to the pin and the receiving hole can reduce friction, prevent galling, and offer an additional layer of corrosion protection, especially in infrequently disassembled connections. Routine visual inspections are crucial. Operators should look for:

• **Excessive Wear:** Any noticeable reduction in diameter, especially where the pin passes through components, indicates excessive wear and warrants replacement.
• **Deformation:** Bending, ovaling of the pin, or distortion of the cotter pinhole are signs of overloading or material fatigue.
• **Corrosion:** While yellow zinc plating offers excellent protection, prolonged exposure to extreme conditions can eventually lead to localized corrosion. Significant rust or pitting that compromises the pin's structural integrity is a clear indication for replacement.
• **Cotter Pin and Handle Integrity:** Ensure the cotter pin is not bent, corroded, or damaged, and that the spring wire handle is intact and functions correctly.

Adhering to these simple maintenance guidelines ensures that the Buyers Products Hitch Pin Assembly continues to perform optimally, safeguarding equipment and personnel through years of reliable service.

Conclusion

The Buyers Products Hitch Pin Assembly, with its 1-inch diameter and 9-1/2 inch usable length, stands as a testament to precision engineering, robust material selection, and advanced protective finishing. Forged from high-strength 1040 steel and shielded by durable yellow zinc plating, this assembly delivers unparalleled strength, corrosion resistance, and operational longevity. Its meticulously designed components—the robust pin body, the ergonomic spring handle, and the secure cotter pin—work in concert to provide a reliable and safe connection solution for a vast array of demanding applications across agriculture, construction, transportation, and general industry. By understanding the intricate technical specifications and the rigorous manufacturing processes that underpin this product, users can confidently deploy the Buyers Products Hitch Pin Assembly, knowing they are investing in a component engineered for maximum performance, safety, and durability, ensuring uninterrupted operation even in the most challenging environments.
