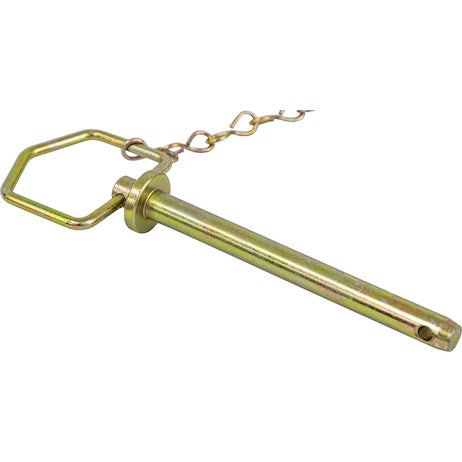

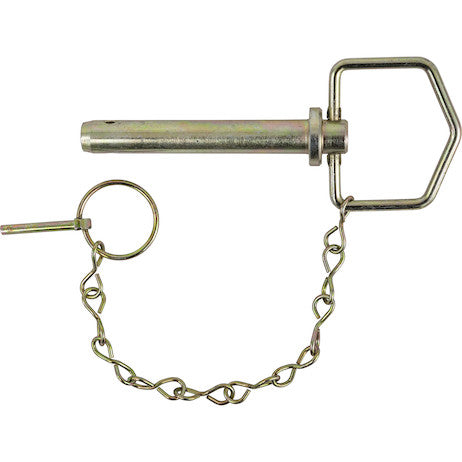

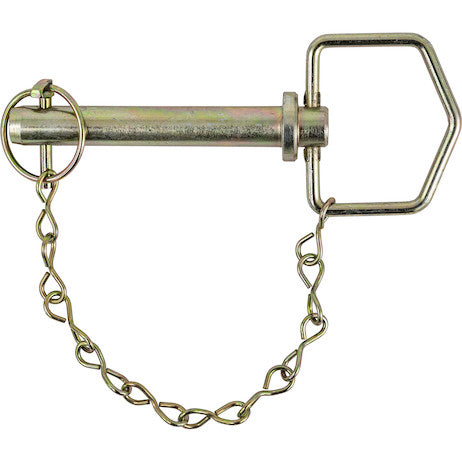

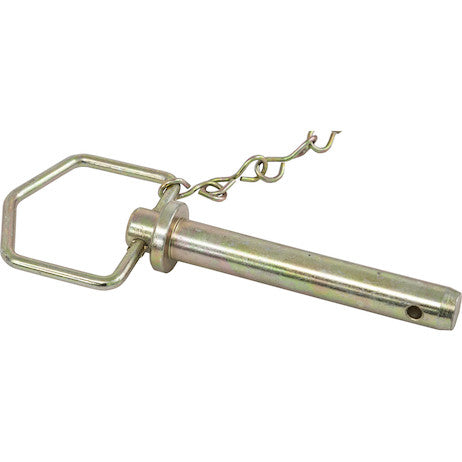

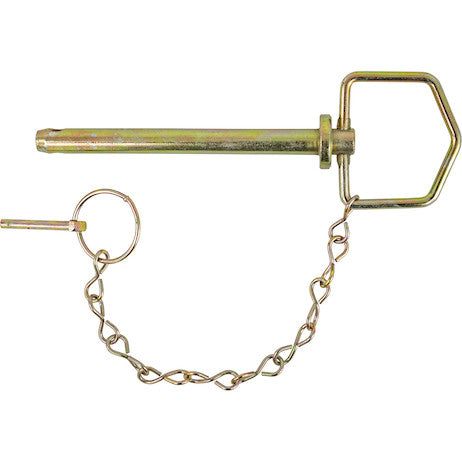

Buyers Products Hitch Pins come complete with Linch Pin and Chain. Forged from 1040 steel, they are yellow zinc-plated for corrosion protection. Choose from a variety of sizes.
Specifications
| Pin Dia. (in.) | 3/4 |
|---|---|
| Usable Length (in.) | 6-1/4 |
Technical Overview: Buyers Products Hitch Pin Assembly (3/4in x 6-1/4in)
This comprehensive technical description details the engineering, material science, and operational benefits of the Buyers Products Hitch Pin Assembly, specifically focusing on the 3/4-inch diameter pin with a 6-1/4-inch usable length. Designed for demanding applications across agricultural, construction, utility, and towing sectors, this assembly represents a robust solution for securely attaching implements, trailers, and various equipment components. Its integrated design, combining a high-strength forged steel pin, a robust linch pin, and a retention chain, ensures both operational reliability and enhanced safety in critical fastening scenarios.
Advanced Material Selection: Forged 1040 Carbon Steel
The core structural integrity of this hitch pin is derived from its primary material: 1040 carbon steel. This medium-carbon steel grade is specifically chosen for its advantageous balance of strength, hardness, and machinability, making it ideal for components subjected to significant shear and bending stresses. AISI 1040 steel typically contains 0.37-0.44% carbon, 0.60-0.90% manganese, and trace amounts of silicon, sulfur, and phosphorus. The carbon content is critical, as it directly influences the steel's hardness and tensile strength after heat treatment and forming processes.
The manufacturing process begins with forging, a crucial step that distinguishes this product from pins made through less rigorous methods. Forging involves shaping the metal while it is solid, through localized compressive forces, typically at elevated temperatures. This process refines the grain structure of the steel, aligning the grain flow with the pin's geometry. This optimized grain orientation significantly enhances the pin's mechanical properties, particularly its fatigue strength and impact resistance. Unlike casting or machining from bar stock, forging eliminates internal voids and porosity, resulting in a denser, more uniform metallurgical structure. This contributes to superior toughness and a higher resistance to crack initiation and propagation under dynamic loading conditions, which are prevalent in trailer hitches and implement connections.
The mechanical properties of forged 1040 steel are noteworthy. It typically exhibits a tensile strength ranging from 85,000 to 100,000 psi (586 to 690 MPa) and a yield strength of 50,000 to 70,000 psi (345 to 483 MPa). The specific hardness, often measured in Rockwell B (e.g., 85-95 HRB) or Brinell (e.g., 170-200 HB), further underscores its resistance to wear and deformation. These properties ensure that the 3/4-inch diameter pin can withstand substantial shear forces, which occur when loads are applied perpendicular to the pin's axis, and bending moments, which arise from unevenly distributed or off-center loads. The strategic use of 1040 steel, coupled with the forging process, provides a foundation of exceptional durability and reliability, minimizing the risk of catastrophic failure under intended operating conditions.
Precision Engineering and Dimensional Specifications
The specified dimensions of 3/4-inch diameter and 6-1/4-inch usable length are critical for ensuring proper fit, securement, and load transfer in various applications. The 3/4-inch diameter provides a substantial cross-sectional area, directly contributing to the pin's shear strength. According to fundamental principles of mechanics, the shear stress (τ) on a pin is calculated as the applied load (F) divided by the cross-sectional area (A) subjected to shear. For a 3/4-inch diameter pin, the cross-sectional area is approximately 0.4418 square inches. This area, combined with the material's inherent shear yield strength (typically 50-60% of tensile yield strength), dictates the maximum permissible shear load before plastic deformation or failure.
The 6-1/4-inch usable length refers to the effective length of the pin that can pass through the mating components (e.g., hitch receivers, implement eyes, clevises) and still allow sufficient protrusion for the linch pin to be securely installed. This length accommodates a broad range of attachment thicknesses, providing versatility for different equipment configurations. Precision in manufacturing ensures tight tolerances for both diameter and length, which are paramount for optimal performance. An excessively loose fit could lead to premature wear, increased stress concentrations due to dynamic impacts (often referred to as 'slop'), and potential rattling noise, while an overly tight fit would hinder ease of installation and removal. Buyers Products' commitment to quality ensures that these pins conform to industry standards for dimensional accuracy, facilitating seamless integration with standard hitch and implement interfaces.
Advanced Corrosion Protection: Yellow Zinc Plating
A critical attribute of the Buyers Products Hitch Pin is its advanced corrosion protection system, featuring yellow zinc plating. This surface treatment is a dual-layer protective coating applied through an electroplating process, followed by a chromate conversion coating.
Electroplating Process
The zinc plating process involves immersing the cleaned and pre-treated steel pin in an electrolytic bath containing zinc salts. An electrical current is passed through the bath, causing zinc ions to deposit onto the steel surface. This creates a uniform, adherent layer of pure zinc. The thickness of this zinc layer is precisely controlled to provide adequate sacrificial protection. Zinc is anodic to steel, meaning it will preferentially corrode when exposed to an electrolyte (e.g., moisture, saltwater, road chemicals), thereby protecting the underlying steel base metal. This sacrificial protection mechanism is highly effective in preventing rust and extending the service life of the component.
Yellow Chromate Conversion Coating
Following zinc plating, the pin undergoes a chromate conversion treatment, which forms a passive, complex layer on the zinc surface. The "yellow" designation typically indicates the use of hexavalent chromium compounds in traditional processes, known for imparting a distinct golden-yellow hue. However, modern environmental regulations often necessitate the use of trivalent chromium processes, which can also achieve a yellow appearance, sometimes referred to as "yellow iridescent," or a more subtle amber tone, while being significantly less hazardous. Regardless of the specific chromate chemistry (hexavalent vs. trivalent, which is becoming the industry standard for environmental compliance), the chromate layer serves several vital functions:
- Enhanced Corrosion Resistance: The chromate layer acts as a secondary barrier, significantly slowing down the rate at which the zinc layer corrodes, thereby extending the overall protection of the steel.
- Self-Healing Properties: Chromate coatings possess a unique self-healing capability. If the coating is scratched or minor damage occurs, chromate compounds can migrate to the damaged area, reforming a protective layer and maintaining corrosion resistance.
- Improved Adhesion: The chromate layer improves the adhesion of any subsequent coatings, though typically none are applied over this robust finish.
- Aesthetics and Identification: The distinctive yellow color provides a visually identifiable finish, often associated with durable, corrosion-resistant hardware.
The combination of zinc plating and chromate conversion offers superior protection against a wide array of environmental aggressors, including fresh water, saltwater, road salts, agricultural chemicals, and industrial pollutants. This multi-layered defense system significantly extends the lifespan of the hitch pin, reducing maintenance requirements and ensuring reliable performance in harsh outdoor conditions where standard untreated steel would rapidly succumb to rust and degradation.
The Linch Pin and Retention Chain System
Integral to the functionality and safety of the Buyers Products Hitch Pin is the accompanying linch pin and retention chain. This system is designed to provide immediate, secure locking of the main pin while preventing its loss during operation or transit.
The Linch Pin
A linch pin, also known as a quick-release pin, is a specialized fastener designed for rapid engagement and disengagement without the need for tools. Its typical design features a shank that passes through a hole in the main hitch pin, and a spring-loaded retaining wire or ring that snaps into a groove on the linch pin's shank, creating a secure closure. The linch pin itself is generally manufactured from a durable steel, often spring steel or a mild steel that is subsequently hardened and plated, ensuring it retains its shape and spring tension over time. The key attributes of the linch pin include:
- Security: The spring-action mechanism ensures a positive lock, preventing the main hitch pin from vibrating loose or accidentally disengaging under dynamic loads or impacts.
- Ease of Use: Despite its secure locking, the linch pin is designed for quick manual insertion and removal, streamlining attachment and detachment processes.
- Durability: Like the main hitch pin, the linch pin is engineered to withstand environmental exposure and repeated use, often featuring its own protective coating to resist corrosion.
The Retention Chain
The inclusion of a robust retention chain is a critical safety and convenience feature. This chain permanently attaches the linch pin to the main hitch pin (or directly to the equipment itself, depending on application preference). The primary function of the chain is to prevent the loss of the linch pin. Losing a linch pin during operation could lead to the main hitch pin disengaging, potentially causing serious equipment damage, injury, or loss of towed items. The chain is typically constructed from galvanized or zinc-plated steel, ensuring its own resistance to corrosion and mechanical wear. Its length is carefully calculated to allow for full range of motion during pin insertion and removal without snagging or undue tension, while remaining compact enough to avoid interference during operation. The attachment method, typically a secure crimped loop or welded link, ensures a reliable connection that withstands continuous vibration and tensile forces encountered in typical applications.
Versatile Applications and Performance in Diverse Environments
The 3/4-inch diameter, 6-1/4-inch usable length hitch pin assembly is engineered for a wide array of demanding applications:
- Agricultural Machinery: Essential for connecting various implements to tractors, such as plows, cultivators, sprayers, and trailers. The pins must endure heavy, oscillating loads and exposure to soil, fertilizers, and moisture.
- Construction Equipment: Utilized in connecting attachments to skid steers, excavators, and backhoes, as well as securing trailer hitches for moving equipment around job sites. These environments are characterized by abrasive materials, heavy impacts, and exposure to harsh weather.
- Utility and Landscaping Vehicles: Ideal for attaching spreaders, sweepers, and small trailers to utility vehicles and commercial mowers. They withstand continuous vibration and moderate loads.
- Towing Applications: Suitable for securing pintle hooks, ball hitches, and drawbars on light to medium-duty trailers, ensuring a safe and compliant connection for vehicles ranging from pickup trucks to commercial vans.
- Industrial and Manufacturing: Used in various non-standard fastening roles where quick, robust, and removable connections are required for jigs, fixtures, and material handling equipment.
In all these environments, the combination of high-strength forged 1040 steel and resilient yellow zinc plating ensures consistent performance, longevity, and resistance to the typical failure modes associated with lesser quality fasteners. The assembly excels where resistance to shear stress, bending fatigue, and environmental corrosion are paramount for operational continuity and safety.
Installation, Maintenance, and Safety Protocols
Proper installation and regular maintenance are critical to maximizing the lifespan and ensuring the safe operation of the hitch pin assembly.
- Installation: Always ensure the main hitch pin is fully inserted through all intended components, and that the linch pin is securely engaged in its designated hole or groove. Verify that the linch pin's spring mechanism has snapped into place, providing a positive lock. The retention chain should allow free movement but not interfere with equipment operation.
- Inspection: Routine visual inspections are recommended before each use. Check for signs of wear, deformation (e.g., bending, necking down), pitting corrosion, or cracks on the main pin. Inspect the linch pin for loss of spring tension, bending, or damage to its retaining mechanism. Verify the integrity of the retention chain for broken links or compromised attachment points. Any component showing significant wear or damage should be replaced immediately.
- Lubrication: While zinc plating provides excellent protection, light lubrication on the pin shank, especially in highly dynamic or corrosive environments, can further reduce wear and extend life, although it is not strictly necessary for corrosion protection.
- Load Limits: Adhere strictly to the manufacturer's specified load capacities for both the hitch pin and the equipment it is connecting. Overloading can lead to sudden, catastrophic failure, even with high-strength materials. The 3/4-inch diameter pin is designed for significant loads, but operating beyond its rated capacity compromises safety factors.
- Compatibility: Ensure the pin's diameter and usable length are compatible with the receiving components. An undersized pin will create excessive play and premature wear, while an oversized pin will not fit.
Conclusion
The Buyers Products Hitch Pin with Linch Pin and Chain, featuring a 3/4-inch diameter and 6-1/4-inch usable length, is a testament to precision engineering and material science. Its foundation in forged 1040 carbon steel provides exceptional mechanical strength and durability, resistant to the high shear and bending stresses typical of heavy-duty applications. The yellow zinc plating, a sophisticated two-stage corrosion protection system, ensures long-term resistance to environmental degradation, preserving both the functional integrity and aesthetic appeal of the component. Coupled with the intuitive and secure linch pin and retention chain system, this assembly offers an unparalleled combination of reliability, ease of use, and essential safety. For professionals demanding robust and dependable fastening solutions in the most challenging industrial, agricultural, and towing environments, this hitch pin represents an optimal choice, delivering consistent performance and peace of mind.
