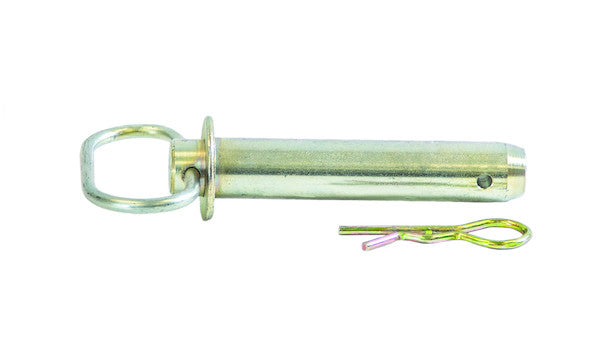

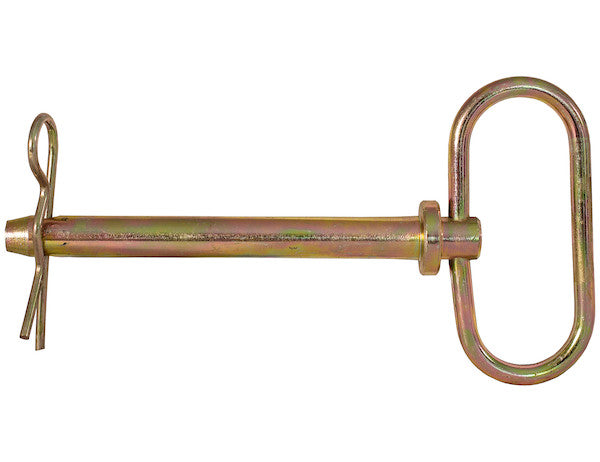

66155 - Hitch Pin Assembly - 1-1/4 Diameter x 5 Inch Usable Length

Buyers Products Hitch Pins come complete with a spring wire handle and cotter pin. Forged from 1040 steel, they are yellow zinc-plated for corrosion protection. Choose from a variety of sizes.

Specifications

Advanced Technical Overview: Precision-Engineered Hitch Pin Assembly

The Hitch Pin Assembly, specifically featuring a 1-1/4 inch diameter and a 4-1/8 inch usable length, represents a crucial component in myriad towing, agricultural, and industrial applications requiring secure and reliable mechanical connections. This product is meticulously engineered to provide exceptional strength, durability, and resistance to environmental degradation, ensuring long-term performance under rigorous operational conditions. Its design integrates advanced material science, precision forging, and robust surface treatment to meet and exceed the demands of heavy-duty use.

Material Science and Forging Excellence: The 1040 Steel Advantage

At the core of this hitch pin's superior performance is its material composition: 1040 steel. This medium-carbon steel grade is a preferred choice for components subjected to significant stress, wear, and shock loading due to its balanced mechanical properties. Chemically, 1040 steel typically contains 0.37-0.44% carbon, 0.60-0.90% manganese, with trace amounts of silicon, sulfur, and phosphorus. The carbon content is critical, imparting a favorable balance of strength and toughness. Compared to lower carbon steels (e.g., 1018), 1040 offers substantially higher tensile strength and hardness, making it ideal for applications where the pin is a primary load-bearing element. Conversely, while higher carbon steels (e.g., 1095) provide greater hardness, they often come with a reduction in ductility and toughness, which are vital for components experiencing dynamic and impact loads.

The choice of 1040 steel is further enhanced by the manufacturing process: forging. Forging is a metalworking technique that involves shaping metal through localized compressive forces, typically using a hammer or die. Unlike casting or machining from bar stock, forging rearranges the internal grain structure of the steel, aligning it with the shape of the part. This metallurgical phenomenon, known as "grain flow," significantly improves the material's mechanical properties. Specifically, forging:

• Enhances Strength: The aligned grain flow provides directional strength and toughness, concentrating strength where it is most needed to resist impact and fatigue.
• Improves Fatigue Resistance: Internal defects, porosity, and inclusions that can act as stress concentrators are minimized or eliminated, leading to superior resistance to cyclical loading and fatigue crack initiation.
• Increases Impact Resistance: The dense, uniform grain structure makes the material more resilient to sudden, powerful forces, preventing brittle fracture.
• Reduces Material Waste: Forging is a near-net-shape process, which minimizes the amount of material that needs to be removed via subsequent machining, offering economic and environmental benefits.

For a hitch pin, which routinely endures shear forces, bending moments, and torsional stresses, the benefits of forged 1040 steel are paramount. This combination ensures that the pin maintains its structural integrity and functional performance even under extreme load variations and adverse operating conditions, contributing directly to the safety and reliability of the connected equipment.

Advanced Corrosion Protection: Yellow Zinc Plating with Chromate Conversion

Environmental factors, particularly moisture, road salts, and chemical exposure, pose significant threats to the longevity and structural integrity of metallic components. To counteract these corrosive forces, this hitch pin assembly features a robust yellow zinc-plated finish. This multi-layer coating system is scientifically engineered to provide superior protection, extending the service life of the component and maintaining its aesthetic appeal.

The Electroplating Process:

Zinc plating, or electro-galvanization, is an electrochemical process where a thin layer of zinc is deposited onto the surface of the steel substrate. The pin is immersed in an electrolyte bath containing dissolved zinc ions, and an electric current is passed through the bath. This causes the positively charged zinc ions to migrate to the negatively charged steel surface, forming a uniform, adherent coating. The thickness of this zinc layer is carefully controlled to balance corrosion protection with dimensional tolerance and cost-effectiveness.

Sacrificial Protection Mechanism:

The primary mechanism by which zinc plating protects the underlying 1040 steel is galvanic or sacrificial corrosion. Zinc is a more electrochemically active metal than iron (steel). When the zinc coating is scratched or damaged, exposing the steel beneath, the zinc preferentially corrodes, acting as a sacrificial anode. This consumes the zinc layer while protecting the steel cathode, preventing the formation of rust and maintaining the structural integrity of the pin. This localized protection is highly advantageous in applications where abrasive wear or minor impacts might compromise the surface coating.

Yellow Chromate Conversion Coating:

Following the zinc plating, the pin undergoes a chromate conversion treatment, resulting in the characteristic yellow hue. This secondary chemical process applies a thin, gelatinous film, primarily composed of chromium compounds (hexavalent or trivalent, depending on environmental regulations), onto the zinc layer. The chromate layer serves several critical functions:

• Enhanced Corrosion Resistance: It forms a passive barrier that significantly slows down the corrosion rate of the zinc, thereby prolonging the sacrificial protection period.
• Self-Healing Properties: In the event of minor scratches to the chromate layer, the chromium compounds can migrate and reform the protective film, offering a degree of self-healing.
• Adhesion Promotion: The chromate layer improves the adhesion of subsequent coatings, such as paint or sealants, though typically not necessary for hitch pins.
• Aesthetic Identification: The yellow color is often associated with enhanced corrosion protection and can serve as a visual indicator of the coating's presence and quality.

The synergy between the zinc layer and the chromate conversion coating provides a level of corrosion protection far superior to that of unplated or plain zinc-plated steel. This ensures that the hitch pin maintains its functional integrity and appearance even when exposed to harsh outdoor environments, saline solutions, and various industrial chemicals, reducing the need for frequent replacement and mitigating safety risks associated with corroded components.

Precision Engineering and Component Integration

The effectiveness of a hitch pin assembly is not solely dependent on its base material and finish but equally on its precise dimensions and the synergistic integration of its constituent components. This assembly features a 1-1/4 inch diameter pin and a 4-1/8 inch usable length, meticulously designed for optimal fit and function in a wide array of receivers and couplers.

Pin Diameter (1-1/4 inch):

The 1-1/4 inch diameter is a critical dimensional specification, directly influencing the pin's shear strength and its compatibility with receiver tubes. This diameter is commonly associated with heavy-duty towing applications, typically Class III, IV, and V hitches, which are rated for Gross Trailer Weights (GTW) ranging from 5,000 lbs up to 17,000 lbs or more. A larger diameter pin distributes shear forces over a greater cross-sectional area, significantly increasing the load-bearing capacity and reducing localized stress concentrations. Engineers select this diameter to ensure that the pin can safely withstand the maximum rated shear loads and dynamic forces encountered during acceleration, braking, and maneuvering of heavy trailers and implements.

Usable Length (4-1/8 inch):

The usable length, measuring 4-1/8 inches, refers to the effective shaft length of the pin that can pass through the receiver and the coupler or implement attachment point. This dimension is crucial for ensuring full engagement and secure retention. A usable length of 4-1/8 inches is optimized to accommodate various wall thicknesses of receiver tubes and coupler components, preventing excessive protrusion that could snag or insufficient length that would prevent proper cotter pin installation. This precise length ensures that the pin can adequately span the connection points, providing a stable and robust link without compromising the integrity of the setup.

The Spring Wire Handle:

The integrated spring wire handle is a key feature enhancing user ergonomics and operational efficiency. Constructed from high-tensile spring steel, often with a complementary corrosion-resistant coating, the handle provides a firm and comfortable grip for insertion and removal. Its spring-loaded design ensures that it remains securely positioned, preventing accidental disengagement or loss during transit. The design prioritizes ease of manipulation, even with gloved hands, thereby improving operational safety and convenience.

The Cotter Pin:

The accompanying cotter pin serves as the essential secondary locking mechanism, preventing the hitch pin from inadvertently backing out or disengaging due to vibration, impact, or operational forces. Typically manufactured from spring wire (e.g., spring steel or stainless steel), the cotter pin is designed for quick and tool-free installation and removal. Its inherent spring tension holds it securely in the corresponding hole at the end of the main hitch pin. This two-stage locking system—the main pin securing the connection and the cotter pin securing the main pin—provides a redundant safety measure critical for heavy-duty applications, preventing catastrophic disconnection.

Engineering Principles and Performance Metrics

The design and material selection of this hitch pin assembly are deeply rooted in fundamental engineering principles aimed at maximizing safety, reliability, and longevity under demanding operational profiles. Several key performance metrics are critical in assessing its suitability:

• Shear Strength: This is perhaps the most critical parameter for a hitch pin. Shear strength quantifies the material's ability to resist forces acting parallel to its cross-section, tending to cut or shear it. For a pin under shear load, the 1-1/4 inch diameter of 1040 forged steel provides a substantial cross-sectional area and intrinsic material strength. The ultimate shear strength (USS) of 1040 steel can range from 70,000 to 90,000 psi (480 to 620 MPa), depending on its heat treatment state. The pin's design factors in a significant safety margin to ensure it can withstand peak dynamic shear loads without yielding or fracturing.
• Tensile Strength: While primarily under shear, hitch pins can experience tensile (pulling) forces, particularly if the connection points are misaligned or under severe impact. The 1040 forged steel offers excellent tensile strength, typically in the range of 90,000 to 110,000 psi (620 to 760 MPa), ensuring robust resistance to elongation or fracture under pull-out scenarios.
• Yield Strength: This metric indicates the point at which the material begins to deform plastically. A high yield strength is crucial to prevent permanent deformation of the pin, which could compromise its fit, function, or structural integrity. 1040 steel typically exhibits a yield strength of 55,000 to 80,000 psi (380 to 550 MPa), providing ample resistance to permanent bending or stretching under normal and even elevated loads.
• Fatigue Resistance: Hitch pins are subjected to repetitive, cyclical loading during towing operations. Vibrations, bumps, and changes in acceleration and braking induce fluctuating stresses. The forged grain structure of 1040 steel inherently provides superior fatigue resistance compared to cast or machined alternatives, significantly extending the operational lifespan by inhibiting the initiation and propagation of fatigue cracks.
• Hardness: Measured in Rockwell B or C scale, hardness indicates resistance to indentation and abrasive wear. While not excessive to maintain toughness, the hardness of 1040 steel contributes to the pin's ability to resist surface wear and maintain its critical dimensions over time, ensuring a consistent fit and reliable operation of the cotter pin.

Understanding these engineering metrics underscores the precision with which this hitch pin assembly has been designed to deliver optimal performance and safety in diverse, demanding applications.

Applications and Compatibility

The 1-1/4 inch diameter, 4-1/8 inch usable length hitch pin assembly is a versatile component indispensable across numerous sectors, owing to its robust construction and standardized dimensions. Its primary applications span:

• Vehicular Towing: This is the most common application. The pin is designed for securing hitch balls, drawbars, and various towing accessories into Class III, IV, and V receiver hitches on trucks, SUVs, and commercial vehicles. It is essential for towing utility trailers, boat trailers, RVs, car haulers, and heavy-duty equipment trailers. The 1-1/4 inch diameter aligns with the pinholes of these higher-capacity hitches, ensuring a secure connection for substantial loads.
• Agricultural Equipment: In the agricultural sector, these pins are used to connect implements such as plows, tillers, sprayers, and wagons to tractors and other farming machinery. The demanding, often off-road, environment of agriculture requires components that can withstand significant shock, vibration, and debris, making the forged 1040 steel and zinc plating particularly advantageous.
• Industrial and Construction Machinery: From connecting attachments to skid steers, forklifts, and excavators to securing temporary structures or heavy-duty linkages on construction sites, the pin's strength and durability are critical. It can be found in a variety of material handling equipment, ensuring the safe operation of heavy loads.
• Recreational and Utility Applications: Beyond mainstream towing, the pin can be used in specialized recreational vehicles, off-road equipment, and in utility applications where a strong, removable mechanical fastener is required, such as securing recovery points or attachment accessories.

Compatibility is paramount. The 1-1/4 inch pin diameter ensures a snug fit in corresponding 1-1/4 inch (or slightly larger, to allow for clearance) pinholes found in heavy-duty receiver tubes and implement coupling points. The 4-1/8 inch usable length is engineered to accommodate the typical combined thickness of receiver walls and attachment shanks, ensuring the cotter pin can be properly inserted without excessive play or insufficient engagement. Users must always verify the pinhole diameter and effective coupling thickness of their specific application to ensure optimal fit and maximum safety, adhering strictly to the load ratings of all components in the towing system.

Quality Assurance and Adherence to Industry Standards

The manufacturing of this Hitch Pin Assembly adheres to stringent quality control protocols and embodies the principles derived from relevant industry standards, ensuring a product that consistently performs reliably and safely. While specific certifications might vary, the design and production methodologies align with the spirit of widely recognized standards such as:

• SAE J684: This Society of Automotive Engineers standard outlines requirements for trailer hitches and coupling systems, including dimensional specifications and testing procedures. Although directly applicable to hitch components like receivers and balls, the performance characteristics of the pin must integrate seamlessly with these standards to ensure overall system integrity.
• ASTM International Standards: Materials like 1040 steel are produced and tested according to ASTM specifications (e.g., ASTM A29 for general requirements for hot-rolled and cold-finished carbon and alloy steel bars, and other standards defining mechanical properties and chemical composition). These standards ensure the consistency and quality of the raw material.
• ISO 9001 Principles: Reputable manufacturers often operate under quality management systems (QMS) compliant with ISO 9001. While not a product standard, adherence to ISO 9001 principles during manufacturing ensures consistent processes, traceability, and continuous improvement, leading to a higher quality end product.

Each stage, from material sourcing and forging to zinc plating and final assembly, undergoes rigorous inspection. This includes dimensional checks, material verification, coating thickness measurements, and functional testing of the complete assembly. This commitment to quality assurance is not merely a procedural step; it is a fundamental aspect that guarantees the pin's ability to withstand its rated loads, resist environmental degradation, and operate safely over its intended lifespan, thereby protecting equipment, cargo, and personnel.

Maintenance, Longevity, and Replacement Criteria

While designed for exceptional durability, proper maintenance and timely inspection are crucial for maximizing the longevity and ensuring the continued safe operation of any hitch pin assembly. The yellow zinc plating provides substantial corrosion resistance, but regular care can extend its effectiveness and identify potential issues before they become critical.

Maintenance Guidelines:

• Regular Cleaning: Periodically clean the pin and cotter pin to remove dirt, mud, road salt, and other contaminants. A simple rinse with water and mild soap, followed by drying, is usually sufficient.
• Lubrication: Applying a light coating of grease or rust-inhibiting lubricant to the pin shaft, especially before prolonged storage or use in wet environments, can further enhance corrosion protection and ease of insertion/removal.

Inspection Guidelines:

Before each use, a visual inspection of the hitch pin assembly is highly recommended:

• Corrosion: Check for significant rust formation, especially beyond superficial discoloration of the yellow zinc. Pitting or flaking of the coating could indicate compromise.
• Deformation: Inspect the pin for any signs of bending, cracking, or necking (reduction in diameter). Even slight deformation can drastically reduce the pin's load-bearing capacity and indicate that it has been subjected to stresses beyond its design limits.
• Wear: Examine the pin shaft for excessive wear marks, particularly in areas that contact the receiver or coupler. Significant material loss can reduce the pin's effective diameter and compromise the fit.
• Cotter Pin Integrity: Ensure the cotter pin is free from bends, cracks, or fatigue. It must maintain its spring tension to securely hold the main pin in place. If the cotter pin is damaged or easily dislodges, it must be replaced immediately.
• Handle Integrity: Verify that the spring wire handle is securely attached and free from damage, ensuring proper ergonomics and safe handling.

Replacement Criteria:

A hitch pin assembly should be replaced immediately if any of the following conditions are observed:

• Any sign of permanent deformation (bending, cracking).
• Significant material loss due to wear or corrosion that compromises its diameter or strength.
• Compromised cotter pin functionality (e.g., loss of tension, severe deformation, or breakage).
• Failure to fit securely or properly engage with the receiver/coupler.

Proactive maintenance and adherence to these inspection and replacement criteria are paramount for ensuring the operational safety and reliability of the towing or linking system, protecting both equipment and human lives.

Conclusion: Uncompromising Reliability for Demanding Applications

The Hitch Pin Assembly with a 1-1/4 inch diameter and 4-1/8 inch usable length stands as a testament to precision engineering and robust material selection. Forged from high-strength 1040 steel and fortified with a durable yellow zinc-plated finish, it delivers unparalleled mechanical integrity and exceptional resistance to environmental degradation. The integrated spring wire handle and reliable cotter pin complete an assembly engineered for secure, user-friendly operation and maximum safety.

This product is not merely a fastener; it is a critical safety component designed to perform flawlessly in the most demanding towing, agricultural, and industrial environments. Its meticulous design, adherence to engineering principles regarding shear and tensile strength, and superior fatigue resistance ensure that it can reliably withstand the dynamic stresses and harsh conditions intrinsic to heavy-duty applications. By choosing this expertly crafted hitch pin assembly, users invest in a solution that prioritizes durability, operational efficiency, and, most importantly, the uncompromising safety of their equipment and operations.
