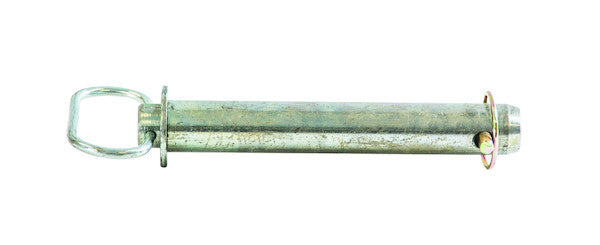

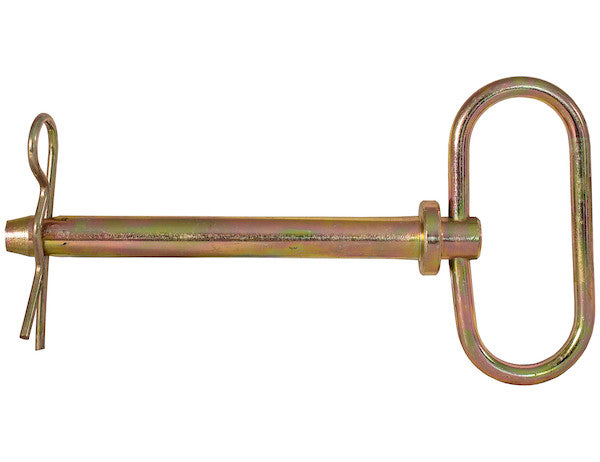

Buyers Products Hitch Pins come complete with a spring wire handle and cotter pin. Forged from 1040 steel, they are yellow zinc-plated for corrosion protection. Choose from a variety of sizes.
Specifications
| Pin Dia. (in.) | 1-1/4 |
|---|---|
| Usable Length (in.) | 9-7/8 |
Advanced Technical Overview: Hitch Pin Assembly - 1-1/4 Diameter x 9-7/8 Inch Usable Length
This document provides an in-depth technical examination of the Hitch Pin Assembly, specifically detailing the model with a 1-1/4 inch diameter and 9-7/8 inch usable length. Designed by Buyers Products, this assembly is engineered for robust performance in demanding towing and agricultural applications, where secure attachment and reliable operation are paramount. The following sections will delve into the material science, manufacturing processes, surface treatments, mechanical properties, and application considerations that define this critical component.
Material Selection and Metallurgy: 1040 Steel Forging
The foundation of this hitch pin's exceptional strength and durability lies in its material composition: 1040 medium carbon steel. This specific grade of steel is chosen for its superior balance of tensile strength, yield strength, and toughness, making it ideally suited for components subjected to high shear and bending stresses during operation. Unlike low carbon steels, 1040 steel contains a higher carbon content (approximately 0.37-0.44%), which significantly enhances its hardenability and overall mechanical properties after heat treatment and forming.
Chemical Composition (Typical for 1040 Steel):
- Carbon (C): 0.37 – 0.44%
- Manganese (Mn): 0.60 – 0.90%
- Silicon (Si): 0.10 – 0.30%
- Sulfur (S): Max 0.05%
- Phosphorus (P): Max 0.04%
The manganese content in 1040 steel plays a crucial role in improving its hot working characteristics and contributes to increased strength and hardness. Silicon acts as a deoxidizer during steelmaking and further enhances strength. Limiting sulfur and phosphorus is essential as these elements can lead to embrittlement, particularly impacting the steel's toughness and fatigue resistance, which are critical for a hitch pin's long-term performance.
Forging Process: Enhancing Grain Structure and Mechanical Integrity
The manufacturing process for these hitch pins involves forging. Forging is a metal forming process that involves shaping metal using localized compressive forces, typically applied via hammers or presses. This method is deliberately chosen over casting or machining from bar stock for several key advantages:
- Grain Flow Orientation: Forging refines the grain structure of the steel and aligns the grain flow with the pin's intended direction of maximum stress. This optimized grain flow results in significantly improved tensile strength, fatigue resistance, and impact toughness compared to cast or machined components where grain flow might be random or cut across by machining.
- Elimination of Internal Defects: The high compressive forces applied during forging effectively close up internal voids and porosity within the steel, leading to a denser, more homogenous material. This reduces the likelihood of stress concentrators and potential failure points.
- Work Hardening: The plastic deformation inherent in the forging process induces work hardening, further increasing the strength and hardness of the steel.
- Improved Toughness: Forging inherently produces a more robust and resilient component, better able to withstand shock loads and dynamic stresses common in towing applications.
The combination of 1040 steel and the forging process ensures that the hitch pin possesses the necessary structural integrity to safely connect heavy loads, resist bending under significant shear forces, and endure the repetitive stresses associated with vehicle movement and equipment operation.
Corrosion Protection: Yellow Zinc Plating
A critical aspect of any outdoor mechanical component is its resistance to environmental degradation, particularly corrosion. The Buyers Products Hitch Pin Assembly features a yellow zinc-plated finish, a widely recognized and effective method for enhancing corrosion protection. This section details the process and benefits of yellow zinc plating.
Electrolytic Zinc Plating Process:
The zinc plating process typically involves:
- Surface Preparation: The forged 1040 steel pin undergoes thorough cleaning, degreasing, and acid pickling to remove scale, rust, and contaminants. A clean surface is paramount for optimal adhesion of the zinc layer.
- Electroplating: The cleaned pin is immersed in an electrolytic bath containing zinc salts. An electric current is passed through the bath, causing zinc ions to deposit onto the surface of the steel pin. The thickness of the zinc layer is carefully controlled to meet specification requirements.
- Chromate Conversion Coating: Following zinc deposition, the part is subjected to a chromate conversion treatment. For a yellow finish, a hexavalent or trivalent chromium solution is used. This process reacts with the zinc layer to form a passive, amorphous film that significantly enhances the corrosion resistance of the zinc. The characteristic yellow color is a result of the specific chromate formulation used. While hexavalent chromates traditionally provided superior corrosion resistance, evolving environmental regulations have led to increased adoption of trivalent chromate systems, which offer comparable performance with reduced environmental impact.
Benefits of Yellow Zinc Plating:
- Sacrificial Protection: Zinc is a more electrochemically active metal than steel. In the presence of moisture and oxygen, the zinc layer preferentially corrodes, thereby protecting the underlying steel substrate. This "sacrificial" or galvanic protection is highly effective even if small areas of the zinc coating are scratched or compromised.
- Barrier Protection: The zinc layer, in conjunction with the chromate conversion coating, forms a physical barrier that prevents corrosive elements (water, salts, atmospheric pollutants) from reaching the steel surface.
- Enhanced Longevity: Yellow zinc plating significantly extends the service life of the hitch pin, especially in outdoor environments where exposure to rain, road salt, and humidity is common. This reduces maintenance requirements and replacement frequency.
- Aesthetic Appeal: The yellow chromate finish provides a distinct, professional appearance that aids in product identification and quality assurance.
Assembly Components: Spring Wire Handle and Cotter Pin
The hitch pin assembly is a complete system, including not only the main pin but also essential retention mechanisms: a spring wire handle and a cotter pin. These components are integral to the functionality, ease of use, and security of the assembly.
Spring Wire Handle: Ergonomics and Security
The integrated spring wire handle is designed for practical utility. Its primary functions include:
- Ease of Grip and Manipulation: The handle provides a convenient grip for inserting and removing the hitch pin, even when wearing gloves or operating in adverse conditions. Its design allows for quick and secure handling.
- Enhanced Security: In some designs, the spring wire handle may incorporate features that actively retain the cotter pin or provide an additional layer of security against accidental disengagement, though its primary role is user interface.
- Durability: Typically manufactured from high-tensile spring steel, the handle is designed to withstand repeated flexing and environmental exposure, often with its own protective coating to match or complement the pin's finish.
Cotter Pin: The Primary Retention Mechanism
The cotter pin is the critical component that prevents the hitch pin from inadvertently disengaging from the receiver or implement connection point. Its design and material properties are crucial for reliable performance.
- Material: Cotter pins are commonly made from low-carbon steel (e.g., 1008 or 1010 steel) or stainless steel for corrosion resistance. For the Buyers Products assembly, it is designed to be compatible with the robust 1040 steel pin, likely utilizing a galvanized or similarly protected steel.
- Design Principle: The cotter pin passes through a pre-drilled hole near the end of the hitch pin, acting as a positive mechanical lock. Once inserted, its tines are bent or spread apart to prevent withdrawal. This simple yet effective mechanism ensures that the hitch pin remains securely in place under dynamic loads, vibrations, and movements typical of towing operations.
- Security: The cotter pin prevents longitudinal movement of the hitch pin, which could otherwise lead to detachment of the towed implement or trailer. Its presence is non-negotiable for safe operation.
The combination of the main pin, spring wire handle, and cotter pin creates a cohesive and highly functional assembly, designed for both operational efficiency and uncompromising safety.
Dimensional Specifications and Application Context
The specific dimensions of this hitch pin assembly—1-1/4 inch diameter and 9-7/8 inch usable length—are precisely engineered for compatibility with a range of heavy-duty towing and agricultural equipment. Understanding these dimensions in context is crucial for proper selection and safe operation.
Pin Diameter: 1-1/4 Inches
The 1-1/4 inch (31.75 mm) diameter signifies this as a heavy-duty hitch pin, intended for applications involving significant tensile, shear, and bending loads. Common applications for this diameter include:
- Agricultural Implements: Connecting large plows, cultivators, disc harrows, trailers, and other heavy-duty agricultural machinery to tractors. The robust diameter ensures the pin can withstand the substantial forces exerted during field operations.
- Construction Equipment: Securing attachments on skid steers, compact track loaders, mini excavators, and other construction machinery, where reliability under harsh conditions is essential.
- Heavy-Duty Towing: For large utility trailers, boat trailers, or industrial equipment trailers utilizing appropriately sized pintle hitches or receiver tubes. While often associated with agriculture, certain heavy-duty commercial towing applications may also utilize pins of this diameter.
- Industrial Machinery: Various industrial applications requiring secure, high-strength temporary or semi-permanent connections.
The substantial diameter minimizes deflection and ensures a high shear strength, crucial for maintaining the integrity of the connection under extreme dynamic stresses.
Usable Length: 9-7/8 Inches
The usable length, measuring 9-7/8 inches (approximately 250.8 mm), refers to the effective length of the pin that can pass through the hitch receiver, drawbar, or implement eye and still allow for the insertion of the cotter pin. This generous length accommodates:
- Thick Drawbars and Receivers: Many heavy-duty agricultural tractors and construction machines feature thick drawbars or multiple stacked attachment plates, requiring a longer pin to pass through all components and secure the connection.
- Multiple Component Stacking: The length allows for the secure attachment of implements that may have multiple pivot points or require spacers between the tractor and implement.
- Versatility: A longer usable length provides greater versatility, allowing the pin to be used across a wider range of equipment with varying component thicknesses.
It is imperative that the usable length is sufficient to fully penetrate the mating components and allow the cotter pin to be inserted correctly. Insufficient usable length can lead to an insecure connection and potential catastrophic failure.
Performance Characteristics and Safety Considerations
The design and material specifications of this hitch pin assembly contribute directly to its performance characteristics and inherent safety. Understanding these aspects is vital for users and engineers alike.
Mechanical Strength and Load Bearing Capacity:
The 1040 forged steel provides excellent mechanical properties:
- Tensile Strength: The ability to withstand pulling forces without fracturing. Forged 1040 steel exhibits high tensile strength, ensuring the pin can resist stretching under load.
- Yield Strength: The point at which the material begins to deform permanently. The pin is designed to operate well within its elastic limit under rated loads, preventing permanent bending or distortion.
- Shear Strength: The resistance to forces acting parallel to the surface, which is the primary mode of stress for a hitch pin. The 1-1/4 inch diameter combined with the high shear strength of 1040 forged steel allows the pin to safely transfer significant shear loads between connected components.
- Impact Toughness: The ability to absorb energy and deform plastically without fracturing under sudden impact. Forging enhances this property, which is crucial for dynamic applications where shock loads are common.
Fatigue Resistance:
Hitch pins are subjected to repetitive loading and unloading cycles, which can lead to fatigue failure over time. The forged grain structure of 1040 steel significantly improves the pin's fatigue resistance compared to other manufacturing methods. This ensures a longer operational lifespan and enhanced reliability, even under continuous use.
Environmental Durability:
The yellow zinc plating provides a robust defense against corrosion, ensuring that the pin maintains its structural integrity and aesthetic appeal even when exposed to harsh environmental conditions, including moisture, dirt, chemicals, and road salts. This extends the functional life of the component and reduces premature wear or failure due to rust.
Safety Protocols and Best Practices:
While the hitch pin is engineered for high performance, proper usage and maintenance are critical for safety:
- Correct Sizing: Always match the hitch pin diameter and usable length to the specific receiver and implement eye dimensions. An ill-fitting pin can lead to excessive wear, play, or catastrophic failure.
- Cotter Pin Use: The cotter pin must always be correctly inserted and secured (tines spread) to prevent accidental disengagement. Never operate equipment without a properly secured cotter pin.
- Regular Inspection: Periodically inspect the hitch pin for signs of wear, bending, cracks, or excessive corrosion. Replace the pin immediately if any damage is observed. Inspect the cotter pin for fatigue or damage and replace if necessary.
- Load Limits: Ensure the combined weight of the towed implement/trailer and its cargo does not exceed the rated capacity of the hitch pin, drawbar, and towing vehicle.
- Cleanliness: Keep the pin and receiver free from dirt, debris, and rust to ensure smooth insertion and proper function.
Conclusion
The Hitch Pin Assembly from Buyers Products, with its 1-1/4 inch diameter and 9-7/8 inch usable length, represents a meticulously engineered component designed for superior performance in heavy-duty applications. The strategic selection of 1040 medium carbon steel, coupled with the precision forging process, ensures exceptional mechanical strength, impact toughness, and fatigue resistance. The application of yellow zinc plating provides a highly effective and durable layer of corrosion protection, extending the product's operational lifespan in challenging outdoor environments.
The inclusion of a user-friendly spring wire handle and a robust cotter pin completes the assembly, guaranteeing secure attachment and ease of operation. This detailed technical overview underscores the commitment to quality, safety, and reliability inherent in the design and manufacturing of this essential towing and agricultural component. By adhering to proper selection criteria, installation procedures, and ongoing maintenance, users can expect consistent, dependable performance from this high-quality hitch pin assembly.
