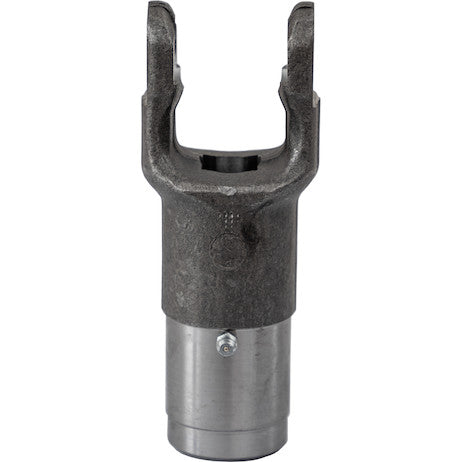

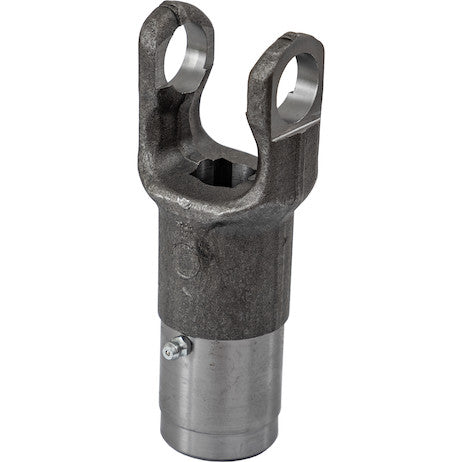

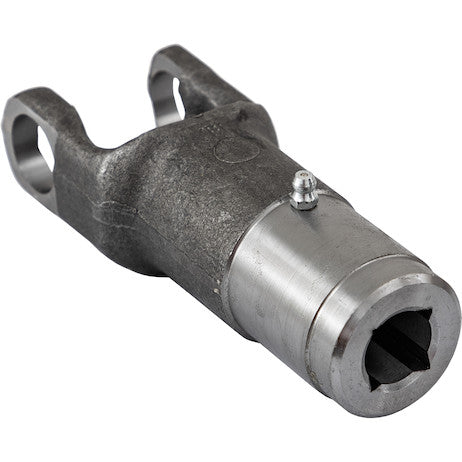

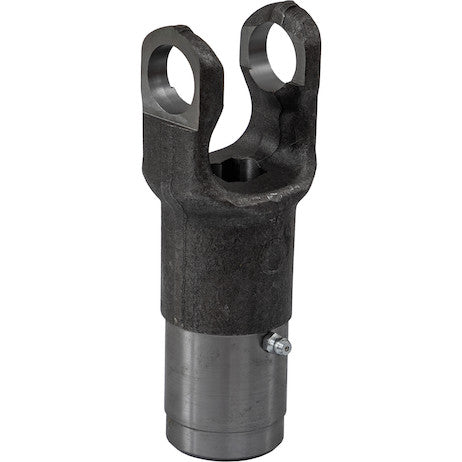

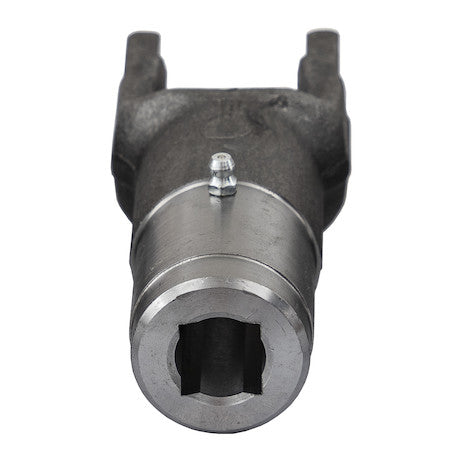

7312 - H7 Series Slip Yoke 3/4 Inch Square Bore

Buyers Products H7 Series Slip Yoke is a strong, durable component for your flexible coupling needs. The yoke works best with other driveline components from Buyers Products and is compatible with medium duty driveline components from other major manufacturers. It comes in a variety of bore sizes and shapes to work with your system. The slip yoke is made of forged steel to provide strength and durability. It works with the NB7A U-Joint to provide smooth and continuous torque transfer. The H7 Series End Yoke is perfect for medium duty applications with the ability to handle up to 800 inch pounds of torque at 1,000 RPM (12 HP).

Specifications

The Buyers Products H7 Series Slip Yoke with a 3/4 Inch Square Bore represents a critical component in the engineering of reliable and efficient power transmission systems, specifically designed for applications demanding robust performance in dynamic medium-duty environments. This meticulously engineered slip yoke serves as an essential flexible coupling, facilitating the smooth and continuous transfer of rotational force while accommodating crucial axial movement within a driveline. Its design, anchored in precision engineering and high-grade material selection, ensures superior operational longevity and unwavering performance even under challenging conditions.

Fundamental Role of the Slip Yoke in Driveline Dynamics: A slip yoke is a specialized driveline component that provides a spline connection allowing for changes in driveline length. This axial movement is indispensable in systems where the distance between the power source (e.g., transmission, PTO) and the driven component (e.g., differential, implement) can vary. Such variations typically occur due to suspension travel in vehicles, or the articulation and relative movement of connected machinery. Without a slip yoke, these length changes would induce significant compressive or tensile stresses on the driveline, leading to premature wear, component failure, and potentially dangerous operational instability. The H7 Series Slip Yoke masterfully mitigates these stresses, preserving the integrity of the entire driveline system and extending the lifespan of connected components.

Advanced Material Science: High-Strength Cast Steel Construction: The durability and strength of the H7 Series Slip Yoke are fundamentally derived from its construction using high-quality Cast Steel. While other manufacturing processes exist, cast steel is selected for its exceptional ability to form intricate geometries necessary for yoke design while maintaining high tensile strength and ductility. Unlike cast iron, cast steel offers significantly greater resistance to impact and fatigue, making it highly suitable for applications subjected to variable loads and dynamic stresses. The metallurgical composition of the cast steel used in the H7 series is carefully controlled to achieve optimal mechanical properties, including a favorable balance of hardness for wear resistance and toughness for impact absorption. This ensures the yoke can withstand the rigorous demands of power transmission, resist torsional forces, and maintain structural integrity over extended operational periods. Rigorous quality control processes, including metallurgical analysis and non-destructive testing, are applied during manufacturing to ensure consistent material quality, absence of defects, and adherence to stringent performance benchmarks. This commitment to material excellence is paramount to the yoke's ability to consistently deliver up to 800 inch-pounds of torque at 1,000 RPM.

Precision Engineering: The 3/4 Inch Square Bore Advantage: A defining feature of this particular H7 Series Slip Yoke is its 3/4 Inch Square Bore. This geometric configuration is a highly effective method for transmitting rotational torque, particularly in applications where simplicity, robustness, and positive engagement are prioritized. Unlike splined connections which rely on multiple precisely machined teeth, the square bore provides a direct, form-fit connection with a corresponding square shaft. This design inherently resists rotational slip, ensuring that all applied torque is efficiently transferred from the shaft to the yoke. The absence of a keyway, as indicated by the specifications, further underscores the efficacy of the square bore for direct torque transfer, eliminating a potential point of shear failure often associated with keyed connections. The 3/4-inch dimension is standardized for compatibility across a wide range of medium-duty machinery, including various types of agricultural equipment, industrial mixers, PTO (Power Take-Off) drive shafts on smaller utility vehicles, and specialized hydraulic equipment. The precise machining of this square bore is critical; even minute deviations can lead to backlash, premature wear, or inefficient power transfer. Buyers Products employs advanced manufacturing techniques to ensure the bore dimensions are held to tight tolerances, guaranteeing optimal fit and performance with compatible square shafts.

Key Dimensions and Their Functional Significance: The detailed specifications of the H7 Series Slip Yoke reveal critical dimensions that dictate its fitment and operational characteristics within a driveline assembly. The Center Line to End of Hub of 5.000 inches is a crucial measurement for driveline designers and installers. This dimension defines the distance from the centerline of the U-joint cross (where the bearing caps seat) to the outermost end of the slip yoke's hub. Accurate consideration of this length is vital for calculating overall driveline length, ensuring proper shaft overlap for axial travel, and preventing interference with other components. Similarly, the Hub Diameter of 1.563 inches is fundamental to the structural integrity of the yoke. This diameter provides the necessary mass and strength around the bore and the U-joint connection point, distributing stress effectively and resisting deformation under torsional loads. It also ensures proper seating within mating components, such as bearing retainers or protective sleeves. The combination of these precise dimensions allows for seamless integration into existing driveline designs or for new system constructions, underscoring the component's adaptability and engineered compatibility.

Integrated Lubrication System for Enhanced Longevity: Recognizing that proper lubrication is paramount for the extended lifespan and optimal performance of any dynamic mechanical component, the H7 Series Slip Yoke incorporates a dedicated lubrication system. It features a 1/4-28 TAPERED Lubricator Thread, strategically positioned at the '3' o'clock location (relative to the U-joint centerline). This standardized grease fitting allows for easy and efficient replenishment of lubricant into the slip yoke assembly. In a slip yoke, lubrication primarily serves to reduce friction between the mating surfaces of the bore and the shaft, facilitating smooth axial movement and minimizing wear. It also helps to prevent corrosion and ingress of contaminants. The tapered thread design ensures a secure, leak-free connection for grease guns, promoting effective grease retention within the component. Regular lubrication, as per manufacturer recommendations and application demands, is critical. Neglecting this maintenance aspect can lead to accelerated wear of the square bore, increased operational noise, reduced axial movement capability, and ultimately, premature failure of the slip yoke and potentially other driveline components. Buyers Products emphasizes the importance of a consistent preventative maintenance schedule, leveraging this integrated lubrication point to ensure maximum operational uptime and component durability.

Optimized Performance for Medium Duty Applications: The H7 Series Slip Yoke is meticulously engineered for medium duty applications, a classification that defines its performance envelope and intended use cases. This designation signifies its robust construction capable of enduring sustained operational stresses, yet optimized for cost-effectiveness compared to heavy-duty counterparts. The specified performance metric of handling up to 800 inch pounds of torque at 1,000 RPM (equivalent to approximately 12 HP or 1.69 kW at 1000 RPM) positions it perfectly for a wide array of industrial, agricultural, and utility vehicle drivelines. Examples include power take-off (PTO) shafts for small to medium-sized agricultural implements (e.g., hay balers, fertilizer spreaders, post-hole diggers), auxiliary drive systems on commercial trucks, material handling equipment (e.g., conveyor drives, lift gate mechanisms), and various types of stationary industrial machinery. The capacity to transmit 800 in-lbs of torque at a rotational speed of 1,000 RPM indicates a substantial capability for consistent power delivery under typical operating conditions for this class of equipment. This performance rating is a testament to the combined strength of the cast steel material, the precise square bore design, and the overall structural integrity of the H7 series architecture. Users are advised to select components with a safety factor, ensuring the application's peak torque and speed requirements remain comfortably within the specified limits to guarantee optimal lifespan and prevent overstressing.

Seamless Compatibility and System Integration: A cornerstone of the H7 Series Slip Yoke's utility is its exceptional compatibility profile. While optimally designed to integrate with other driveline components from Buyers Products, fostering a cohesive and synergistic system, it is also engineered for broad compatibility with medium duty driveline components from other major manufacturers. This interoperability provides significant flexibility for equipment designers and maintenance professionals, allowing for easy replacement or upgrade within diverse existing systems. When integrated with Buyers Products’ own ecosystem, users benefit from engineered assurances of fitment, performance matching, and simplified sourcing. The specified compatibility with the NB7A U-Joint is a prime example of this deliberate design for optimal system performance. The yoke's ears are precisely dimensioned to securely house the bearing caps of the NB7A U-Joint, ensuring correct alignment and robust retention under dynamic loads. This specific pairing is crucial for minimizing vibration, maximizing the efficiency of torque transfer, and prolonging the life of both the universal joint and the slip yoke. When considering integration with components from other manufacturers, it is essential to verify dimensional compatibility, torque ratings, and lubrication specifications to ensure a safe and effective assembly. Buyers Products’ commitment to industry standards facilitates this cross-brand compatibility, making the H7 Series a versatile choice.

Manufacturing Excellence and Quality Assurance: The manufacturing of the H7 Series Slip Yoke adheres to stringent quality control protocols, reflecting Buyers Products’ unwavering commitment to engineering excellence. The casting process for the steel material is meticulously monitored, from raw material inspection and melt composition analysis to mold integrity and cooling rates, to ensure the formation of a homogeneous, defect-free structure. Subsequent machining operations for the 3/4 inch square bore, the hub, and the U-joint ear dimensions are performed on state-of-the-art CNC equipment, guaranteeing precision and repeatability. Each slip yoke undergoes comprehensive inspection, including dimensional verification, surface finish assessment, and often, non-destructive testing (NDT) methods to detect any internal flaws. This multi-stage quality assurance process ensures that every H7 Series Slip Yoke meets the demanding performance specifications and industry standards for durability and reliability. The Plain Finish of the yoke provides a robust, uncoated surface, allowing for further treatment by the end-user (e.g., painting for corrosion resistance in specific environments) or for applications where an uncoated surface is acceptable or preferred. This finish is indicative of a component designed for functional integrity, where cosmetic aspects are secondary to mechanical performance and longevity in challenging industrial or mobile environments.

Installation, Maintenance, and Operational Best Practices: Proper installation and diligent maintenance are critical to realizing the full potential and extended lifespan of the H7 Series Slip Yoke. During installation, it is imperative to ensure precise alignment of the driveline components, minimizing angularity and ensuring the square shaft seats fully and smoothly within the 3/4 inch square bore. Any binding or misalignment can induce excessive stresses, leading to premature wear or catastrophic failure. The slip yoke should be free to move axially without excessive resistance. Regular inspection for signs of wear, such as increased backlash in the square bore, corrosion, or damage to the U-joint connection points, is highly recommended. As previously highlighted, consistent lubrication through the 1/4-28 TAPERED lubricator thread is non-negotiable. The type of grease should be appropriate for the operating temperatures and loads of the application, typically a high-quality, extreme-pressure (EP) grease. Adherence to a preventative maintenance schedule, considering factors like operational hours, environmental conditions, and load cycles, will significantly contribute to the reliability and longevity of the entire driveline system. By upholding these best practices, operators can ensure that the H7 Series Slip Yoke continues to deliver dependable, high-performance torque transfer throughout its operational life.

Conclusion: The H7 Series Slip Yoke – A Benchmark in Medium-Duty Power Transmission: In summary, the Buyers Products H7 Series Slip Yoke with a 3/4 Inch Square Bore stands as a testament to advanced engineering and robust manufacturing. Designed for the rigorous demands of medium-duty applications, its high-strength cast steel construction, precision-machined 3/4-inch square bore, and integrated lubrication system collectively ensure unparalleled strength, durability, and reliable torque transfer. With its capacity to handle up to 800 inch pounds of torque at 1,000 RPM, seamless compatibility with the NB7A U-Joint, and broad interoperability within the industry, this slip yoke offers an optimal solution for systems requiring dynamic length compensation and unwavering power delivery. It exemplifies Buyers Products’ commitment to providing dependable, high-performance driveline components that meet and exceed the expectations of professionals across diverse industrial and mobile sectors. Choosing the H7 Series Slip Yoke means investing in a component engineered for peak efficiency, extended service life, and enduring reliability.
