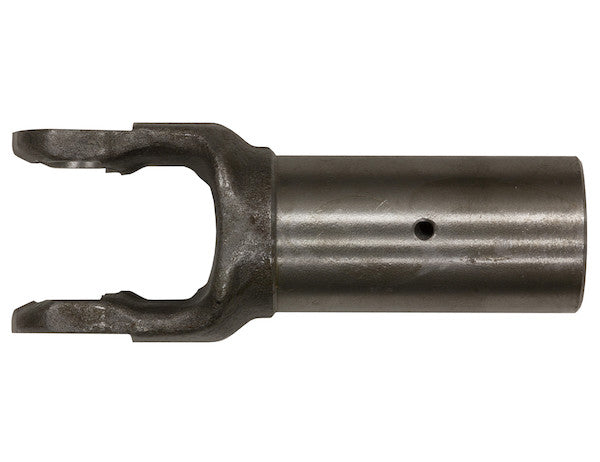

73163 - H7 Series Slip Yoke 1-1/4 Inch Round Bore With 5/16 Inch Keyway

Buyers Products H7 Series Slip Yoke is a strong, durable component for your flexible coupling needs. The yoke works best with other driveline components from Buyers Products and is compatible with medium duty driveline components from other major manufacturers. It comes in a variety of bore sizes and shapes to work with your system. The slip yoke is made of forged steel to provide strength and durability. It works with the NB7A U-Joint to provide smooth and continuous torque transfer. The H7 Series End Yoke is perfect for medium duty applications with the ability to handle up to 800 inch pounds of torque at 1,000 RPM (12 HP).

Specifications

H7 Series Slip Yoke: Precision Engineering for Medium-Duty Driveline Applications

The Buyers Products H7 Series Slip Yoke, specifically featuring a 1-1/4 inch round bore with a 5/16 inch keyway, represents a pinnacle of precision engineering tailored for the rigorous demands of medium-duty power transmission systems. As a critical component within a driveline assembly, this slip yoke is meticulously designed to facilitate smooth and continuous torque transfer while accommodating the inevitable axial length variations that occur during vehicle operation or dynamic machinery movement. Its robust construction and adherence to exacting dimensional specifications underscore its reliability and performance in a wide array of industrial and commercial applications.

Driveline systems are inherently dynamic, subjected to constant changes in load, speed, and geometric alignment. The primary function of a slip yoke is to allow for the telescopic movement required as suspension systems articulate or as the relative distance between connected components fluctuates. Without this critical allowance, the driveline shaft would be subjected to excessive compressive or tensile stresses, leading to premature bearing failure, U-joint binding, or even catastrophic shaft rupture. The H7 Series Slip Yoke's design incorporates an optimized internal spline mechanism (implied by its interaction with a shaft and U-joint, even if not explicitly detailed in the provided specs), enabling precisely controlled axial movement while maintaining full rotational engagement. This meticulous balance of flexibility and rigidity is fundamental to the longevity and operational efficiency of any driveline system.

The H7 Series is engineered with a steadfast commitment to durability, recognizing that medium-duty applications, while not always operating at extreme maximum capacities, still demand consistent performance under sustained stress. The choice of high-grade cast steel as the primary material for this slip yoke, as detailed in the specifications, is a deliberate engineering decision. Cast steel offers a compelling combination of desirable mechanical properties, including high tensile strength, excellent yield strength, and superior fatigue resistance, especially when compared to other casting alloys like ductile iron, which might be suitable for lower stress applications. The casting process allows for complex geometries to be formed efficiently, ensuring optimal stress distribution throughout the component. Furthermore, high-grade cast steel can be heat-treated to enhance its microstructure, leading to improved hardness, wear resistance, and overall toughness. This material selection ensures that the H7 Series Slip Yoke can withstand the cyclical loading, torsional forces, and occasional shock loads inherent in medium-duty power transmission environments, thereby providing an extended service life and reducing maintenance requirements.

The precise dimensional characteristics of this particular H7 Series Slip Yoke are central to its functionality and compatibility. The 1-1/4 inch round bore is a standard size, meticulously machined to ensure a snug yet sliding fit with corresponding driveline shafts. The round bore type signifies a conventional, concentric interface, facilitating straightforward integration into standard driveline configurations. This specific diameter is carefully chosen to accommodate common shaft sizes found in medium-duty trucks, agricultural machinery, construction equipment, and various industrial power take-off (PTO) systems, ensuring broad applicability and ease of replacement. The precision of this bore is crucial; any deviations could lead to concentricity issues, resulting in imbalance, vibration, and accelerated wear on associated bearings and seals.

Complementing the bore is the integral 5/16 inch keyway. The keyway is an essential feature for transmitting torque positively from the shaft to the slip yoke, preventing relative rotation between the two components. A keyway provides a robust mechanical interlock, superior to friction fits alone, especially under high torsional loads or sudden reversals of direction. The specified 5/16 inch size is proportioned to the shaft diameter and expected torque loads, ensuring sufficient shear strength in the key itself. The location of the keyway, indicated as "Keyway at 2," typically refers to its angular position relative to a reference point on the hub (e.g., a clock face orientation when viewed from the end). This precise angular placement can be critical for assembly orientation, balance, or clearance within tight driveline envelopes. The accuracy of the keyway machining – both its width and depth – is paramount to ensure a tight, backlash-free fit with the corresponding key, which in turn minimizes stress concentrations and enhances the overall durability of the power transmission path.

Beyond the bore and keyway, other dimensional specifications further illustrate the meticulous engineering of the H7 Series Slip Yoke. The "Center Line to End of Hub" measurement of 5.000 inches is a critical parameter for driveline designers and installers. This dimension helps determine the overall length of the driveline assembly, influencing factors such as operating angles, required slip travel, and potential interference with surrounding chassis or equipment components. An accurate center-to-end dimension ensures proper component spacing and minimizes the need for shimming or custom fabrication during installation. The "Hub Diameter" of 2.000 inches dictates the external profile of the yoke's hub section. This dimension is crucial for mating with other driveline components, particularly the universal joint, and for ensuring adequate clearance within the system. A sufficiently robust hub diameter also contributes to the bending stiffness and torsional strength of the yoke, effectively managing the stresses transmitted from the shaft and universal joint. The "Plain" finish indicates a standard machined surface without additional coatings, which is appropriate for components that operate within a lubricated environment and do not require specialized corrosion protection beyond inherent material properties.

Effective lubrication is fundamental to the longevity and efficient operation of any driveline component, and the H7 Series Slip Yoke is designed with this principle in mind. The inclusion of a lubricator fitting, specified as a 1/4-28 TAPERED thread and located "at 4" (again, likely an angular position for optimal accessibility), ensures that routine maintenance is straightforward and effective. This tapered thread design provides a secure and leak-free connection for standard grease guns, facilitating the periodic introduction of lubricant into the slip yoke's splined interface. Lubrication is paramount for several reasons: it minimizes friction between mating spline teeth, reducing wear and heat generation; it provides a protective barrier against corrosion and contamination; and it helps to dampen minor vibrations. Regular application of the appropriate grease, as recommended by manufacturers, is a simple yet vital maintenance procedure that significantly extends the operational lifespan of the slip yoke and the entire driveline assembly, preventing costly premature failures due to spline wear or corrosion-induced binding.

The H7 Series Slip Yoke is designed for synergistic performance with the NB7A U-Joint, forming a cohesive and highly effective power transmission system. Universal joints are essential for accommodating angular misalignment between driving and driven shafts, allowing for continuous power transfer even when shafts are not perfectly collinear. The NB7A U-Joint is specifically matched in terms of strength and dimensional compatibility with the H7 Series Slip Yoke, ensuring a seamless interface. When paired, this combination effectively manages both angular and axial driveline movements, providing a flexible coupling solution that minimizes stress on shafts, bearings, and other powertrain components. The integrated design approach, where components are engineered to work together, results in a driveline assembly that exhibits reduced vibration, smoother operation, and enhanced durability over systems pieced together from disparate, unverified components.

Performance metrics are a critical indicator of a component's capabilities, and the H7 Series Slip Yoke is rated to handle up to 800 inch-pounds of torque at 1,000 RPM, equating to approximately 12 horsepower. These figures firmly establish its classification within medium-duty applications. Torque, measured in inch-pounds, represents the rotational force that the yoke can reliably transmit, while RPM (revolutions per minute) indicates the rotational speed. The corresponding horsepower (HP) is a derived value, representing the rate at which work is done. An 800 inch-pound torque rating signifies that the H7 Series is capable of sustaining substantial rotational loads, making it suitable for applications where consistent power delivery is crucial, such as auxiliary drives, PTO systems on utility vehicles, or light industrial machinery. It is imperative for engineers and operators to select components that meet or exceed the maximum anticipated operational loads, including peak torque demands and duty cycles, to ensure a sufficient safety factor and prevent mechanical fatigue or instantaneous failure. The H7 Series' conservative rating provides a margin of safety for demanding medium-duty tasks, ensuring reliable operation without exceeding material stress limits.

Proper installation and ongoing maintenance are crucial for maximizing the performance and longevity of the H7 Series Slip Yoke. Installation should always be performed by qualified personnel, adhering to manufacturer guidelines and industry best practices. Key considerations include ensuring proper shaft alignment, verifying correct slip travel clearance, and confirming that the key and keyway engagement is secure and free of excessive play. Any misalignment during installation can introduce unintended stresses, leading to accelerated wear or vibration. Once installed, routine maintenance, primarily consisting of periodic lubrication through the provided grease fitting, is non-negotiable. The frequency of lubrication will depend on the operating conditions, environment, and specific lubricant recommendations, but typically involves a visual inspection and re-greasing at specified intervals. Regular inspection for signs of wear, such as fretting corrosion on splines, unusual noise, or excessive backlash, can help identify potential issues before they escalate into major failures, allowing for timely intervention and preventative maintenance.

In conclusion, the Buyers Products H7 Series Slip Yoke with its 1-1/4 inch round bore and 5/16 inch keyway is a robust, technically superior component designed to meet the rigorous demands of medium-duty driveline applications. Its construction from high-grade cast steel, precision-machined dimensions, integrated lubrication system, and demonstrated torque handling capabilities exemplify an unwavering commitment to quality and performance. When paired with compatible universal joints like the NB7A, it forms a reliable, long-lasting solution for flexible power transmission. This slip yoke represents an optimal choice for engineers and operators seeking dependable components that deliver consistent performance, minimize downtime, and contribute to the overall efficiency and safety of their machinery and vehicles.
