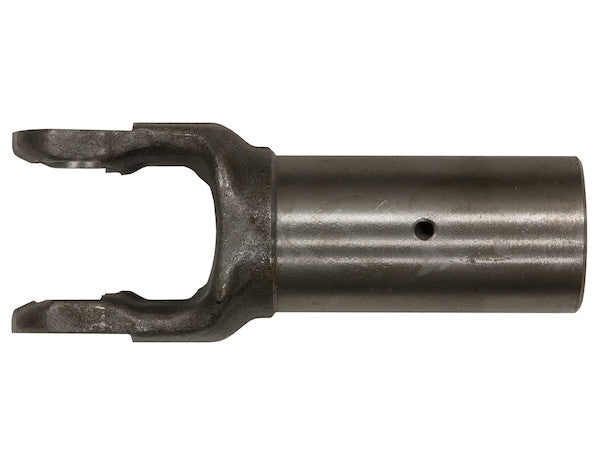

7322 - H7 Series Slip Yoke 7/8 Inch Square Bore

Buyers Products H7 Series Slip Yoke is a strong, durable component for your flexible coupling needs. The yoke works best with other driveline components from Buyers Products and is compatible with medium duty driveline components from other major manufacturers. It comes in a variety of bore sizes and shapes to work with your system. The slip yoke is made of forged steel to provide strength and durability. It works with the NB7A U-Joint to provide smooth and continuous torque transfer. The H7 Series End Yoke is perfect for medium duty applications with the ability to handle up to 800 inch pounds of torque at 1,000 RPM (12 HP).

Specifications

Advanced Technical Overview: Buyers Products H7 Series Slip Yoke with 7/8 Inch Square Bore

The Buyers Products H7 Series Slip Yoke, specifically designed with a 7/8 inch square bore, represents a critical component in the engineering of robust and adaptable driveline systems. This component is meticulously crafted to facilitate torque transmission while accommodating dynamic length variations inherent in many mechanical applications. Its design and material selection underscore a commitment to durability, operational efficiency, and system longevity, particularly within medium-duty operational parameters.

Fundamental Role of the Slip Yoke in Driveline Dynamics

A slip yoke is an integral part of a driveline system, designed to manage the axial motion that occurs between power transmitting components. In a typical driveline, such as those found in vehicles with conventional suspension systems or industrial machinery with articulating sections, the distance between the transmission output shaft and the differential input shaft can fluctuate. These fluctuations are primarily due to suspension travel, frame flex, and operational vibrations. Without a mechanism to absorb these changes, rigid coupling would lead to excessive stress on U-joints, bearings, and shafts, resulting in premature wear, potential component failure, and significant operational instability.

The H7 Series Slip Yoke resolves this challenge by allowing the driveshaft to lengthen and shorten freely while continuously transmitting rotational power. This is achieved through its telescopic design, where the yoke splines mate with corresponding splines on an output shaft (often from a transmission or transfer case). The 7/8 inch square bore variant is engineered for shafts featuring a square profile, a common configuration in specific industrial, agricultural, or power take-off (PTO) applications where rotational indexing, anti-rotation, or robust power delivery via a square shaft is paramount.

Material Science: Forged Steel for Enhanced Performance

The primary description highlights the H7 Series Slip Yoke as being "made of forged steel to provide strength and durability." Forging is a manufacturing process that involves shaping metal using localized compressive forces. This process fundamentally alters the grain structure of the steel, aligning the grain flow with the component's contours, thereby enhancing its mechanical properties significantly. In contrast to cast steel (which is also a robust material, and listed in the specifications table as the material, indicating a potential product variation or a general category for "heavy-duty steel"), forged steel typically exhibits superior characteristics critical for high-stress driveline components.

• Tensile Strength: Forged steel possesses a higher ultimate tensile strength, meaning it can withstand greater pulling forces before fracturing. In a driveline, this translates to enhanced resistance against torsional loads and sudden shock inputs.
• Yield Strength: This refers to the stress level at which material begins to deform plastically. A higher yield strength in forged steel ensures the slip yoke maintains its structural integrity and dimensional stability under operational stresses, preventing permanent deformation that could lead to imbalance or misalignment.
• Fatigue Resistance: Driveline components are subjected to continuous cyclic loading. Forged steel's refined grain structure provides excellent fatigue resistance, making the H7 Series Slip Yoke exceptionally resilient to stress cycles that could otherwise initiate and propagate cracks over time, significantly extending its operational lifespan.
• Impact Resistance: The forging process eliminates internal voids, porosity, and shrinks that can be present in cast parts, making the forged component denser and more homogeneous. This results in superior impact resistance, crucial for applications where the driveline may encounter sudden load changes or external impacts.
• Durability and Longevity: The combination of these enhanced mechanical properties contributes directly to the overall durability and longevity of the slip yoke, reducing maintenance requirements and improving system reliability.

While the specification table lists "Cast Steel" under material, the product description emphasizes "forged steel" for its strength and durability attributes. This indicates that the design principles and performance expectations align with the benefits of advanced metallurgical processing to ensure the component meets rigorous operational demands. The inherent strength of the H7 Series, whether forged or high-grade cast steel, is engineered to reliably transmit power under challenging conditions.

Precision Engineering of the 7/8 Inch Square Bore

The defining characteristic of this specific H7 Series Slip Yoke is its 7/8 inch square bore. The bore's dimensions and geometry are critical for achieving a precise, secure, and efficient coupling with a corresponding square shaft. A square bore is often selected in applications where positive rotational engagement is essential, providing inherent anti-rotation capabilities without relying solely on friction or secondary locking mechanisms. This is particularly advantageous in machinery where high torque needs to be transmitted reliably and accurately, or where indexing of rotational position is a design requirement.

The manufacturing process for the square bore demands high precision to ensure minimal backlash and optimal spline engagement. Proper fitment minimizes wear on both the slip yoke and the mating shaft, prevents vibration, and ensures smooth, continuous torque transfer. A tightly toleranced square bore maximizes the contact area, distributing stress evenly across the mating surfaces and preventing localized stress concentrations that could lead to premature failure.

System Integration and Compatibility

The H7 Series Slip Yoke is engineered for seamless integration within a broader driveline ecosystem. Its stated compatibility with "other driveline components from Buyers Products" signifies a design philosophy focused on holistic system performance. Utilizing components from a single manufacturer ensures dimensional consistency, material compatibility, and optimized performance characteristics across the entire driveline assembly. This reduces the complexity of sourcing and mitigates potential interoperability issues.

Furthermore, its compatibility with "medium duty driveline components from other major manufacturers" highlights its adherence to industry standards and common dimensional specifications. This flexibility is crucial for repair, maintenance, and custom fabrication, allowing end-users to integrate the H7 Series Slip Yoke into diverse existing systems. This broad compatibility extends its utility across various sectors, including municipal vehicles, agricultural equipment, construction machinery, and specialized industrial applications.

A specific and crucial interaction is with the NB7A U-Joint. A universal joint (U-joint) is a mechanical coupling that transmits rotational power between two shafts that are at an angle to each other. The NB7A U-Joint is designed to complement the H7 Series Slip Yoke, ensuring that the angular flexibility required in a driveline is provided without compromising torque transmission efficiency. The precise geometry and load rating of the NB7A U-Joint are matched to the H7 Series Slip Yoke to create an optimized driveline segment capable of handling dynamic angular misalignments while maintaining smooth and continuous power flow.

Performance Specifications: Medium Duty Capability

The H7 Series Slip Yoke is rated for "medium duty applications with the ability to handle up to 800 inch pounds of torque at 1,000 RPM (12 HP)." Understanding these specifications is paramount for proper application and system design.

• Torque (800 inch-pounds): Torque is the rotational force applied to an object. 800 inch-pounds (in-lb) is a measure of the maximum twisting force the slip yoke can reliably withstand and transmit. To contextualize, 800 in-lb is approximately 66.67 foot-pounds (ft-lb). This rating is critical for selecting the appropriate driveline component for applications where specific levels of rotational force are generated by the engine or motor and need to be transferred to the driven components. Exceeding this torque rating can lead to plastic deformation or catastrophic failure of the yoke.
• Rotational Speed (1,000 RPM): Revolutions Per Minute (RPM) quantifies the speed at which the component rotates. 1,000 RPM indicates the maximum continuous operating speed for which the slip yoke is designed. Operating consistently above this speed can induce excessive centrifugal forces, leading to imbalance, increased vibration, and accelerated wear on bearings and seals.
• Horsepower (12 HP): Horsepower (HP) is a unit of power, representing the rate at which work is done. It is directly related to torque and RPM by the formula: HP = (Torque in in-lb × RPM) / 63,025. For 800 in-lb and 1,000 RPM, the calculated horsepower is indeed approximately 12.7 HP, confirming the stated 12 HP rating is consistent with the torque and RPM specifications. This power rating provides a comprehensive metric for assessing the yoke's suitability for various engine/motor outputs.

The designation "medium duty" positions this slip yoke for a wide array of applications that require reliable power transmission without the extreme demands of heavy-duty industrial or off-highway machinery. Typical medium-duty scenarios include:

• Utility vehicles and municipal trucks (e.g., street sweepers, small dump trucks).
• Agricultural implements requiring moderate power take-off.
• Smaller construction equipment (e.g., compact loaders, trenchers).
• Material handling equipment.
• Specialized industrial machinery where 12 HP power transfer at 1,000 RPM is within operational limits.

Proper selection based on these parameters ensures that the slip yoke operates within its design envelope, maximizing efficiency, safety, and longevity.

Detailed Physical and Dimensional Specifications

The table provides precise dimensional specifications crucial for engineering design and installation:

• Center Line to End of Hub (5.000 in.): This measurement is vital for driveline length calculations. It defines the distance from the centerline of the U-joint cross (where the U-joint trunnions seat) to the outermost end of the slip yoke's hub. Accurate measurement ensures proper driveline phasing, prevents bottoming out during compression, and maintains sufficient engagement during extension, all critical for preventing vibration and premature wear.
• Hub Diameter (1.625 in.): The hub diameter refers to the external diameter of the cylindrical section of the slip yoke. This dimension is crucial for fitting into seals, bearing housings, or other retaining components within the driveline system. A precise hub diameter ensures proper sealing to prevent contamination and lubricant loss, and adequate clearance for dynamic movement.
• Finish (Plain): A "plain" finish typically indicates that the component is supplied without any additional surface coatings, such as paint, powder coat, or specialized rust inhibitors beyond standard manufacturing oils. This allows end-users the flexibility to apply their own protective coatings or to integrate the component into systems where a specific surface treatment is not required or will be applied post-assembly.
• Lubricator at (3): This specification likely refers to the clock position (e.g., 3 o'clock when viewed from the end) of the grease zerk (lubricator fitting). This information is important for accessibility during maintenance and ensures that the zerk is positioned optimally for convenient lubrication without interference from other driveline components or vehicle chassis.
• Lubricator Thread (1/4-28 TAPERED): This indicates the specific thread size and type for the grease fitting. A 1/4-28 tapered thread is a standard fitting type, ensuring compatibility with common grease guns and zerk fittings. The tapered thread creates a secure, leak-free seal for the grease nipple, facilitating efficient lubrication of the internal splines and reducing friction and wear between the slip yoke and the mating shaft. Regular lubrication is paramount for extending the life of the slip yoke, especially given the constant axial movement and torsional stresses it undergoes.

Installation and Maintenance Best Practices

Optimal performance and longevity of the H7 Series Slip Yoke are heavily dependent on correct installation and diligent maintenance. During installation, proper driveline phasing is critical. This involves ensuring that the U-joints at both ends of the driveshaft are correctly aligned to minimize vibration and maintain constant angular velocity, preventing non-uniform rotation and premature wear. The 5.000-inch centerline to end of hub dimension is vital here for calculating the overall driveline length to avoid excessive compression or extension. Additionally, torque specifications for attaching the slip yoke to the U-joint (via U-bolts or straps) must be strictly adhered to.

Regular maintenance, primarily lubrication via the 1/4-28 tapered lubricator fitting, is non-negotiable. Grease applied through this fitting travels into the internal spline engagement area, reducing friction, preventing corrosion, and flushing out contaminants. The "lubricator at 3" clock position is designed for ease of access during these routine service intervals. Periodic inspection for signs of wear, such as excessive play, corrosion, or spline damage, will also help prevent unexpected failures and extend the operational life of the driveline system.

Quality Assurance and Reliability

Buyers Products is known for its commitment to engineering high-quality, durable components. The H7 Series Slip Yoke is a testament to this philosophy, manufactured under stringent quality control protocols. Each component undergoes rigorous testing to ensure it meets the specified performance criteria for torque, RPM, and durability. The selection of forged steel (or high-grade cast steel, depending on specific production batch or variant) and precision machining of the 7/8 inch square bore and hub dimensions contribute significantly to the product's overall reliability. This dedication to quality ensures that the H7 Series Slip Yoke provides consistent, dependable service in its intended medium-duty applications, minimizing downtime and maximizing productivity for the end-user.

Conclusion

The Buyers Products H7 Series Slip Yoke with a 7/8 inch square bore is a technically advanced and robust solution for flexible coupling requirements in medium-duty driveline applications. Its construction from high-strength material, precision-engineered bore, and optimized design for accommodating axial movement make it an indispensable component for transmitting up to 800 inch-pounds of torque at 1,000 RPM. Engineered for compatibility with the NB7A U-Joint and other industry-standard components, and supported by critical dimensional specifications and an accessible lubrication system, this slip yoke offers exceptional durability, reliable performance, and ease of maintenance. Its technical specifications and design features position it as a superior choice for engineers and operators seeking a dependable and long-lasting driveline component for demanding medium-duty machinery and vehicles.
