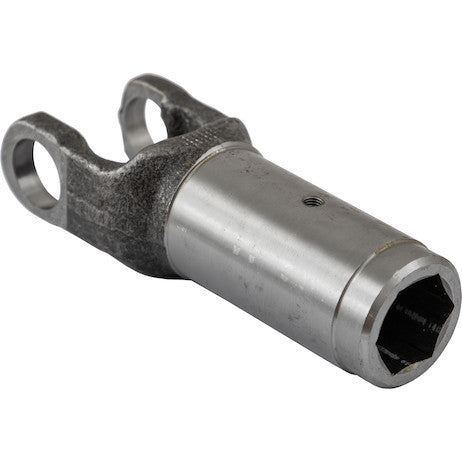

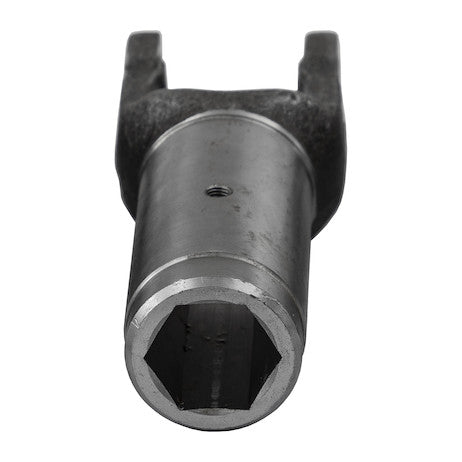

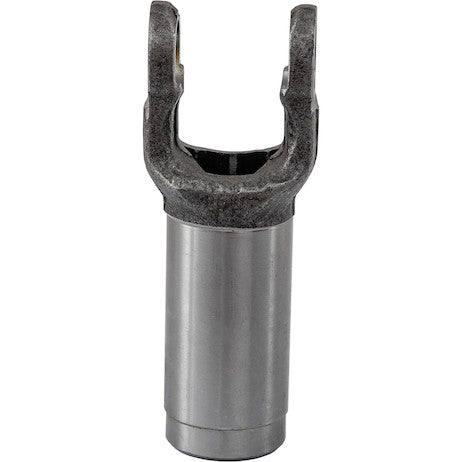

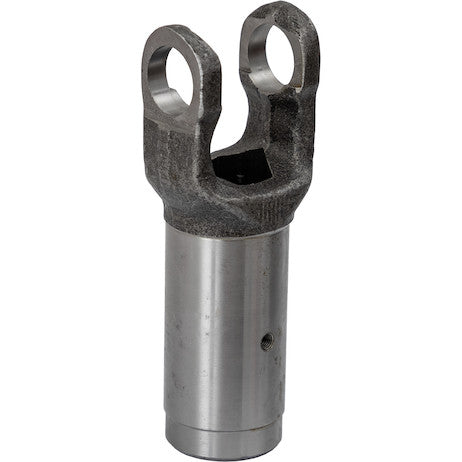

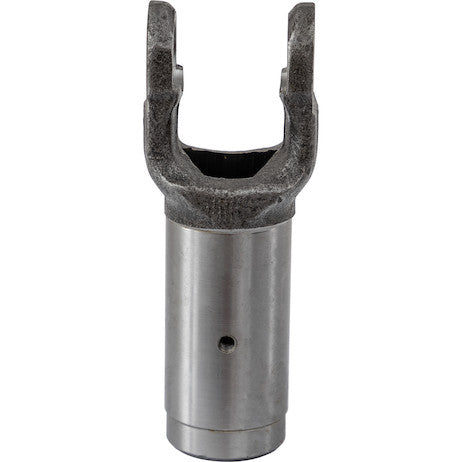

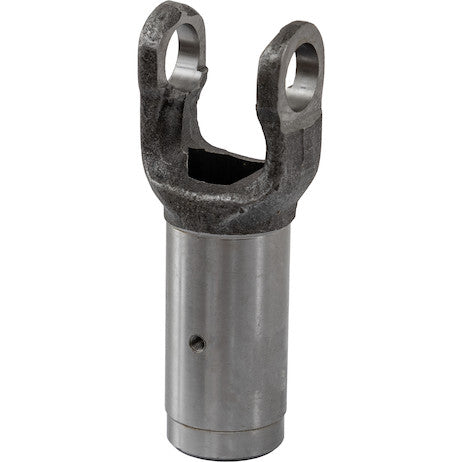

7332 - H7 Series Slip Yoke 1-1/8 Inch Hex Bore

Buyers Products H7 Series Slip Yoke is a strong, durable component for your flexible coupling needs. The yoke works best with other driveline components from Buyers Products and is compatible with medium duty driveline components from other major manufacturers. It comes in a variety of bore sizes and shapes to work with your system. The slip yoke is made of forged steel to provide strength and durability. It works with the NB7A U-Joint to provide smooth and continuous torque transfer. The H7 Series End Yoke is perfect for medium duty applications with the ability to handle up to 800 inch pounds of torque at 1,000 RPM (12 HP).

Specifications

Technical Overview: H7 Series Slip Yoke with 1-1/8 Inch Hex Bore

The Buyers Products H7 Series Slip Yoke, featuring a precisely engineered 1-1/8 inch hex bore, represents a critical component in the mechanical transmission of rotational power within various medium-duty driveline systems. This component is specifically designed to facilitate dynamic shaft length adjustments and accommodate minor angular misalignments, thereby ensuring continuous, smooth, and efficient torque transfer in demanding operational environments. Its robust construction and adherence to rigorous engineering standards position it as an indispensable element for applications requiring both durability and precision in power take-off (PTO) or driveline configurations.

Core Functionality and Engineering Principles of Slip Yokes

A slip yoke is a specialized type of universal joint component that is integral to driveline systems where axial movement is required. Its primary function is to permit changes in driveline length, which commonly occur due to suspension travel, chassis flex, or operational shifts in machinery. Without a slip yoke, these length variations would induce severe stresses on the driveline components, leading to premature wear, binding, or catastrophic failure. The H7 Series Slip Yoke excels in this role by providing a smooth, low-friction mechanism for shaft extension and retraction, while simultaneously maintaining a secure connection for torque transmission.

The fundamental principle involves a splined or, in this case, a hexagonal shaft engaging with a corresponding bore within the yoke. This allows the yoke to slide axially along the shaft while remaining rotationally locked. The H7 Series, with its specific design parameters, ensures optimal engagement and minimal backlash, which are critical for preventing drivetrain vibrations and ensuring a consistent power flow. Its design integrates considerations for both linear and rotational forces, providing a balanced solution for dynamic driveline applications.

Detailed Analysis of the 1-1/8 Inch Hex Bore

The choice of a 1-1/8 inch hex bore for this H7 Series slip yoke is a deliberate engineering decision that offers distinct advantages in specific application contexts. Unlike traditional spline configurations, a hexagonal bore provides a highly positive, self-aligning engagement with a mating hex shaft. This design facilitates several operational benefits:

• High Torque Transfer Efficiency: The large surface area contact between the hex bore and a matching hex shaft allows for efficient distribution of torsional loads, minimizing stress concentrations and maximizing the amount of torque that can be reliably transmitted. This is particularly advantageous in applications where shock loads or intermittent high torque demands are present.
• Reduced Wear and Longevity: The robust engagement of a hex profile inherently reduces localized stress points compared to certain spline designs, leading to decreased wear rates over extended operational periods. This contributes significantly to the overall longevity and reduced maintenance requirements of the driveline system.
• Simplified Installation and Maintenance: Hexagonal profiles are often easier to align and engage during assembly, reducing installation time and complexity. The self-centering nature of the hex bore also contributes to easier servicing and component replacement.
• Enhanced Structural Integrity: The uniform distribution of material around the hex bore contributes to the structural integrity of the yoke, making it highly resistant to deformation under severe torsional or bending loads.

The precision machining of the 1-1/8 inch dimension ensures a tight, yet functional, fit with industry-standard hex shafts, preventing excessive play that could lead to vibrations or accelerated wear. This precise tolerance is a hallmark of the H7 Series' commitment to performance and reliability.

Material Science and Manufacturing: Cast Steel Durability

The H7 Series Slip Yoke is manufactured from high-grade cast steel, a material renowned for its exceptional balance of strength, ductility, and machinability, making it ideal for components subjected to significant mechanical stress and dynamic loading. Cast steel offers several advantages in the production of driveline components:

• Superior Strength-to-Weight Ratio: Cast steel provides excellent tensile strength and yield strength, allowing the yoke to withstand substantial torque and bending loads without excessive material thickness, optimizing the component's weight.
• Excellent Fatigue Resistance: Components in driveline systems are constantly subjected to cyclical loading, which can lead to fatigue failure. Cast steel, when properly engineered and processed, exhibits high fatigue endurance, ensuring prolonged service life under repetitive stress conditions.
• Damping Properties: The microstructure of cast steel can absorb and dissipate vibrational energy, contributing to smoother operation and reduced noise, which is beneficial for both equipment longevity and operator comfort.
• Complex Geometries and Cost-Effectiveness: Casting allows for the production of intricate shapes and features, such as the yoke's ears and hub, in a single, homogeneous piece. This manufacturing process can be highly efficient for large-volume production, contributing to the product's overall cost-effectiveness without compromising performance.

The casting process involves melting steel and pouring it into a mold shaped like the desired yoke. After solidification, the casting undergoes finishing processes, which may include machining of critical surfaces like the bore and U-joint bores, and potentially heat treatment to further enhance its mechanical properties such as hardness and toughness. This meticulous manufacturing approach ensures that each H7 Series Slip Yoke meets stringent quality and performance criteria, delivering consistent reliability in the field.

Performance Metrics: Torque Capacity and Medium Duty Applications

The H7 Series Slip Yoke is rated for medium-duty applications, capable of handling up to 800 inch-pounds of torque at 1,000 RPM, which translates to approximately 12 horsepower. This specification is crucial for selecting the appropriate component for a given application and understanding its operational envelope.

• Understanding Torque and RPM: Torque is the rotational force that causes an object to rotate, measured here in inch-pounds. RPM (revolutions per minute) indicates the rotational speed. The stated torque capacity is a dynamic rating, signifying the maximum continuous load the yoke can sustain under specific operating conditions without premature failure.
• Power Calculation: The relationship between torque, RPM, and horsepower (HP) is fundamental. The given 800 inch-pounds at 1,000 RPM equates to roughly 12 HP, indicating its suitability for power transmission in machinery with moderate power output requirements.
• Definition of Medium Duty: Medium-duty applications typically encompass a wide range of industrial, agricultural, and commercial equipment that require robust power transmission but do not operate under the extreme loads found in heavy-duty environments. Examples include smaller agricultural tractors, certain types of industrial conveyors, auxiliary power units on commercial vehicles, and various PTO-driven implements.
• Factors Influencing Capacity: The actual working capacity of the yoke can be influenced by several factors beyond its nominal rating, including ambient temperature, lubrication quality, frequency of shock loads, and the presence of misalignment. Designers should consider these factors and apply appropriate safety margins during system integration.

The robust design and material selection of the H7 Series ensure that it can reliably perform within this medium-duty spectrum, providing dependable service life and consistent power delivery.

Dimensional Precision and System Integration

Key dimensions of the H7 Series Slip Yoke are engineered for precise fitment and optimal system integration:

• Center Line to End of Hub (5.000 inches): This measurement is critical for calculating overall driveline length and ensuring proper universal joint alignment. The precise 5.000-inch dimension allows engineers to accurately specify shaft lengths and clearances, preventing issues such as bottoming out or over-extension of the slip mechanism. It dictates the working length of the driveline when the yoke is fully engaged, influencing critical driveline angle calculations.
• Hub Diameter (1.750 inches): The hub diameter is essential for proper bearing support, sealing, and overall structural integrity of the yoke. This dimension dictates the size of the sealing components (e.g., dust caps, grease seals) and plays a role in the torsional rigidity of the yoke, particularly in the area where it connects to the shaft. A precisely controlled hub diameter ensures secure fitment of ancillary components and contributes to the yoke's resistance against bending moments.

These precise dimensions underscore the engineering focus on ensuring seamless compatibility and optimal mechanical performance when integrating the H7 Series Slip Yoke into diverse driveline assemblies. Such dimensional accuracy is paramount for maintaining driveline balance, minimizing vibrations, and ensuring long-term operational reliability.

Compatibility with NB7A U-Joints and Broader Driveline Systems

A critical aspect of the H7 Series Slip Yoke's design is its direct compatibility with the NB7A U-Joint. This specific pairing is engineered to provide a cohesive and high-performing flexible coupling solution:

• NB7A U-Joint Specifications: The NB7A U-Joint is a standardized component typically characterized by specific bearing cup diameters and cross dimensions, ensuring it fits precisely within the H7 Series yoke ears. This standardization allows for predictable performance and interchangeability. The combined system is designed to provide smooth and continuous torque transfer across varying operating angles, effectively mitigating torsional vibrations and absorbing minor misalignments inherent in dynamic driveline systems.
• System Integration: The H7 Series Slip Yoke is not only designed to work seamlessly with other Buyers Products driveline components but also boasts compatibility with medium-duty driveline components from other major manufacturers. This broad compatibility offers significant flexibility for equipment designers and maintenance professionals, simplifying parts procurement and system upgrades. The standardized interfaces ensure that the H7 Series can be readily incorporated into existing driveline architectures without extensive modifications.

This commitment to compatibility underscores Buyers Products' understanding of the varied ecosystem of industrial and commercial driveline applications, providing a versatile and reliable solution.

Lubrication and Maintenance Protocols

Proper lubrication is paramount for the longevity and efficient operation of any slip yoke. The H7 Series is designed with a specific lubrication point to facilitate regular maintenance:

• Lubricator Placement (at 3): The lubricator, or grease fitting, is strategically positioned at the "3 o'clock" orientation (relative to a specific reference point on the yoke). This placement is often chosen for ease of access during routine maintenance, ensuring that the lubricator can be reached even in confined spaces, facilitating regular greasing.
• Lubricator Thread (1/4-28 TAPERED): The inclusion of a standard 1/4-28 tapered thread grease fitting allows for easy connection of conventional grease guns. The tapered thread ensures a secure, leak-proof connection, preventing grease loss during the lubrication process.
• Importance of Lubrication: Regular application of appropriate grease is essential to minimize friction between the hex bore and mating shaft, prevent fretting corrosion, and flush out contaminants. Lubrication ensures the smooth axial movement of the slip yoke, which is crucial for accommodating driveline length changes without binding or excessive wear. It also contributes to heat dissipation and corrosion protection of the internal surfaces.
• Maintenance Best Practices: Adherence to recommended lubrication schedules, using the specified type and grade of lubricant, and visually inspecting the yoke for signs of wear or damage during maintenance intervals are critical for maximizing the service life of the H7 Series Slip Yoke.

Finish and Environmental Protection

The H7 Series Slip Yoke features a "Plain" finish. This designation typically implies that the component is supplied without an applied protective coating such as paint or galvanization. The implications of a plain finish include:

• Direct Material Exposure: The surface of the cast steel is directly exposed. While cast steel possesses inherent corrosion resistance to some degree, a plain finish means it is more susceptible to surface corrosion (e.g., rust) in humid or corrosive environments compared to coated parts.
• Customization Potential: A plain finish offers flexibility for end-users or equipment manufacturers to apply their own protective coatings (e.g., paint, powder coat) that may be specific to their operational environment or aesthetic requirements. This allows for tailoring the component's protection to the precise conditions it will encounter.
• Cost Efficiency: Omitting a factory-applied finish can sometimes contribute to a more cost-effective product, especially if the final system will undergo a unified finishing process.

For applications where the yoke will be exposed to significant moisture, road salts, or aggressive chemicals, the application of a suitable corrosion-resistant coating post-installation is highly recommended to extend its functional lifespan and maintain aesthetic integrity.

Applications Across Industries

The robust design, specific bore configuration, and medium-duty rating of the H7 Series Slip Yoke make it exceptionally well-suited for a diverse array of applications across various industries:

• Agricultural Machinery: Used in PTO drives for implements such as cultivators, balers, sprayers, and mixers, where varying terrain and suspension travel necessitate flexible driveline connections.
• Industrial Equipment: Integrated into conveyors, material handling systems, forestry equipment, and stationary power transmission units where dynamic length adjustments and reliable torque transfer are essential.
• Commercial Vehicles: Found in the drivelines of medium-duty trucks, utility vehicles, and specialized commercial equipment that require robust power transmission components.
• Construction Equipment: Applicable in certain mobile construction machinery where dynamic forces and potential for driveline length changes are present.

In each of these sectors, the H7 Series Slip Yoke provides a dependable solution for power transmission, ensuring operational continuity and mechanical efficiency.

Quality Assurance and Engineering Excellence

Buyers Products maintains a steadfast commitment to engineering excellence and stringent quality control throughout the manufacturing process of the H7 Series Slip Yoke. Each component is produced to exacting standards, undergoing critical inspections to ensure dimensional accuracy, material integrity, and performance reliability. This dedication to quality ensures that the H7 Series Slip Yoke consistently meets or exceeds the demanding expectations of industrial and commercial applications, providing users with a reliable and long-lasting driveline solution. The design adheres to recognized industry standards for driveline components, reflecting a deep understanding of mechanical engineering principles and real-world operational requirements.

Conclusion

The H7 Series Slip Yoke with a 1-1/8 inch Hex Bore stands as a testament to precision engineering and robust construction. Its cast steel composition, coupled with the functional advantages of a hex bore, provides a high-strength, durable, and reliable solution for medium-duty power transmission. Optimized for compatibility with NB7A U-Joints and boasting a carefully calibrated torque capacity, this component is designed to ensure smooth, continuous torque transfer while accommodating essential driveline length variations. With meticulous attention to dimensional accuracy, integrated lubrication features, and broad application versatility, the H7 Series Slip Yoke offers an exceptional balance of performance, durability, and ease of maintenance for critical driveline applications across numerous industrial and commercial sectors. It represents an intelligent investment in the long-term operational efficiency and reliability of any system it is integrated into.
