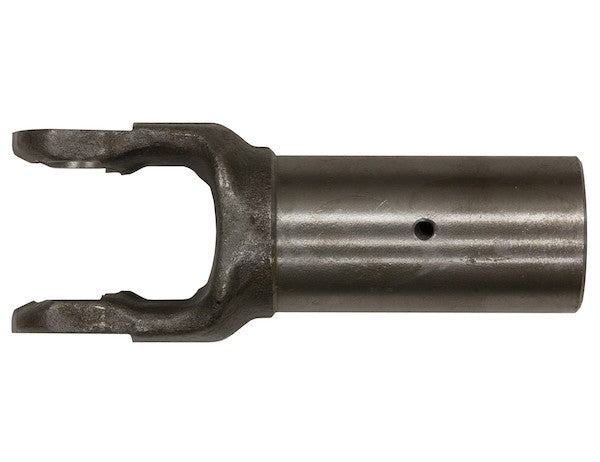

7351 - H7 Series Slip Yoke 1-1/4 -6 Inch Spline Bore

Buyers Products H7 Series Slip Yoke is a strong, durable component for your flexible coupling needs. The yoke works best with other driveline components from Buyers Products and is compatible with medium duty driveline components from other major manufacturers. It comes in a variety of bore sizes and shapes to work with your system. The slip yoke is made of forged steel to provide strength and durability. It works with the NB7A U-Joint to provide smooth and continuous torque transfer. The H7 Series End Yoke is perfect for medium duty applications with the ability to handle up to 800 inch pounds of torque at 1,000 RPM (12 HP).

Specifications

Buyers Products H7 Series Slip Yoke: Precision Engineering for Medium-Duty Driveline Applications

The Buyers Products H7 Series Slip Yoke, specifically featuring a 1-1/4 -6 inch spline bore, represents a critical component in the intricate mechanics of a vehicle's driveline system. Engineered for robust performance in medium-duty applications, this slip yoke is a testament to precision manufacturing and material science, designed to ensure efficient, continuous, and reliable torque transfer under dynamic operating conditions. This extended technical description delves into the fundamental principles of slip yoke functionality, the superior attributes of the H7 Series, and its significant contribution to driveline integrity and operational longevity.

Understanding the Imperative Role of a Slip Yoke in Drivelines

A driveline's primary function is to transmit rotational power from the transmission or transfer case to the drive axle(s). However, this transmission of power is rarely static. Vehicles, especially those operating in demanding medium-duty environments, experience continuous fluctuations in driveline length due to suspension travel, chassis flex, and varying load conditions. Without a mechanism to accommodate these axial movements, the driveline components would be subjected to severe compressive or tensile stresses, leading to premature wear, vibrational issues, or catastrophic failure. This is where the slip yoke becomes indispensable.

A slip yoke is a specialized coupling designed to allow axial movement (telescoping action) while simultaneously transmitting torque. It typically features an internally splined bore that mates with an externally splined output shaft from the transmission or a driveshaft stub. This splined interface permits the driveshaft to lengthen and shorten as the vehicle's suspension articulates, ensuring that the universal joints (U-joints) operate within their optimal angular parameters and preventing undue stress on other driveline components. The Buyers Products H7 Series slip yoke, with its 1-1/4 -6 inch spline bore, is precisely engineered to fulfill this critical role, offering a robust and meticulously manufactured solution for accommodating such dynamic variations.

Advanced Material Science and Manufacturing Excellence: The Foundation of H7 Series Durability

The longevity and reliability of any driveline component are directly proportional to the quality of its materials and manufacturing processes. The H7 Series Slip Yoke is constructed from high-strength steel, a deliberate choice to withstand the rigorous demands of torque transmission and dynamic loads. While general specifications might refer to "Cast Steel," the initial product description highlights "forged steel" for strength and durability. Forging, a process that involves shaping metal through localized compressive forces, refines the material's grain structure, eliminating porosity and voids. This results in a superior metallurgical structure with enhanced strength-to-weight ratio, improved fatigue resistance, and exceptional impact toughness, all critical attributes for a component subjected to cyclic stresses and potential shock loads within a driveline system. This advanced material engineering ensures that the H7 Series can consistently perform without succumbing to fatigue cracking or structural deformation over its operational lifespan.

Beyond material selection, the manufacturing precision applied to the H7 Series is paramount. Modern machining techniques are employed to ensure the precise dimensions, concentricity, and surface finish required for optimal performance. These manufacturing controls are vital for minimizing backlash, reducing vibrational tendencies, and promoting smooth operation throughout the component's service life.

Detailed Analysis of the H7 Series Specifications and Their Functional Implications

Each specification of the H7 Series Slip Yoke contributes to its overall performance and suitability for medium-duty applications. A thorough understanding of these parameters is essential for proper selection and integration into a driveline system:

Bore Dia/Width (in.): 1.250 -6 SP. and Bore Type: Spline

The "1.250 -6 SP." notation signifies a bore diameter of 1.250 inches designed to accommodate an externally splined shaft with 6 splines. The spline bore type is critical for several reasons:

• Efficient Torque Transfer: Splines provide a positive, multi-point engagement, distributing torque over a larger surface area compared to single keyways. This minimizes stress concentrations and enhances the efficiency of power transmission.
• Axial Movement: The splined interface allows for smooth, low-friction axial movement (slip) of the yoke along the mating shaft, accommodating changes in driveline length without disengagement or binding.
• Precision Fit: The specific spline count and diameter (1-1/4 -6 inch) are standardized to ensure precise mating with corresponding shafts. Accurate spline geometry and tight tolerances are essential to minimize backlash, which can lead to excessive wear, noise, and vibration. The H7 Series is engineered with these tolerances in mind, ensuring a robust and reliable connection.

Center Line to End of Hub: 5.000 inches

This dimension specifies the distance from the centerline of the universal joint bearing caps (where the U-joint sits) to the extreme end of the slip yoke's hub. This measurement is crucial for driveline length calculations and proper shaft engagement. An accurate "Center Line to End of Hub" dimension ensures that the slip yoke provides sufficient spline engagement at all points of suspension travel, preventing spline disengagement under maximum extension and preventing bottoming out under maximum compression. A 5.000-inch dimension provides ample engagement for typical medium-duty applications, ensuring operational integrity across the expected range of motion.

Finish: Plain

A "plain" finish typically refers to the absence of an applied coating or treatment beyond standard manufacturing processes. This allows end-users the flexibility to apply specific coatings or paints if required for environmental protection, aesthetic matching, or integration into a custom finishing process without the need for pre-treatment removal. While plain, the underlying material (forged/high-strength steel) is inherently robust.

Hub Diameter: 1.750 inches

The hub diameter refers to the external diameter of the cylindrical portion of the slip yoke that houses the internal splines and interfaces with potential dust boots or seals. A 1.750-inch hub diameter signifies a robust design, providing ample material thickness around the splined bore to withstand torsional stresses and external impacts. It also contributes to the overall rigidity and structural integrity of the component, supporting the internal spline mechanism and ensuring concentricity.

Lubricator at: 3 and Lubricator Thread: 1/4-28 TAPERED

Proper lubrication is paramount for the longevity and smooth operation of any slip yoke. The "Lubricator at: 3" refers to the orientation of the grease fitting, typically indicating its position relative to the yoke ears (e.g., at a 3 o'clock position when viewed from the end). This specific placement is chosen for ease of access during maintenance cycles. The "1/4-28 TAPERED" thread is a standard size for grease fittings (Zerk fittings). The tapered thread design ensures a secure, leak-proof seal when the fitting is installed, critical for retaining grease within the splined interface. Regular lubrication prevents metal-to-metal contact, significantly reduces friction, minimizes wear, dissipates heat, and flushes out contaminants, thereby extending the service life of the slip yoke and mating shaft.

Material: Cast Steel (Note: Product description states "forged steel")

As noted, there is an apparent distinction between "forged steel" mentioned in the general description and "Cast Steel" in the specifications. Regardless of the exact processing, Buyers Products employs high-quality engineered steel alloys for the H7 Series. When referring to "Cast Steel" in a specification table, it implies a high-strength, ductile iron or steel alloy formulated to provide exceptional mechanical properties suitable for demanding driveline applications. These materials are selected for their inherent strength, toughness, and resistance to impact and fatigue, crucial for components transmitting significant torque and subject to dynamic loads. Buyers Products' commitment ensures that the chosen material, whether forged or cast, meets rigorous performance criteria for reliability and durability.

Series: H7

The "H7 Series" designation is Buyers Products' internal classification for a family of slip yokes designed for specific application parameters, in this case, medium-duty requirements. This series ensures consistency in design philosophy, material quality, and performance characteristics across all components within the H7 range, guaranteeing compatibility and predictable performance when integrating with other H7 series or equivalent components.

Integration with NB7A U-Joint for Seamless Torque Transfer

The H7 Series Slip Yoke is specifically designed to work in conjunction with the NB7A U-Joint. This synergistic pairing is fundamental to achieving "smooth and continuous torque transfer." A universal joint (U-joint) accommodates angular misalignment between rotating shafts. When combined with a slip yoke that manages axial displacement, the entire driveline system can effectively handle both angular and axial variations simultaneously. The NB7A U-Joint, being a compatible component, ensures that the bearing caps fit perfectly within the yoke ears, providing a secure and precise connection. The robust design of both the slip yoke and the U-joint ensures that torque is transmitted efficiently across varying angles and lengths, minimizing vibration and maximizing operational efficiency.

Performance Metrics: 800 Inch-Pounds of Torque at 1,000 RPM (12 HP)

These performance metrics quantify the H7 Series Slip Yoke's capability and define its suitability for "medium duty applications."

• 800 Inch-Pounds of Torque: Torque is the rotational force transmitted by the component. 800 inch-pounds (approximately 66.67 ft-lbs) represents a significant rotational force capacity, indicating the H7 Series can handle the demands of various medium-duty vehicles and industrial equipment. This capacity is a direct result of the robust material selection and precision engineering.
• 1,000 RPM: Rotational speed (Revolutions Per Minute) is critical, as driveline components generate heat and experience dynamic stresses proportional to their operating speed. The H7 Series is rated to perform reliably at speeds up to 1,000 RPM, which is typical for many medium-duty applications, particularly those involving auxiliary power take-off (PTO) systems or lower-speed industrial machinery.
• 12 HP (Horsepower): Horsepower is a measure of power, which is the rate at which work is done (Torque multiplied by RPM). The 12 HP rating at 1,000 RPM serves as a practical benchmark for the component's power handling capability. It demonstrates the balance between torque capacity and speed that the H7 Series is engineered to maintain, confirming its suitability for applications where this level of power transmission is required.

These specifications collectively indicate that the H7 Series Slip Yoke is engineered to endure consistent operational stresses within its designated medium-duty envelope, providing confidence in its performance and longevity.

Versatility and Compatibility in Medium-Duty Applications

The H7 Series Slip Yoke's design emphasizes versatility and broad compatibility. While optimized to work seamlessly with other Buyers Products driveline components, its adherence to common industry standards ensures interchangeability with medium-duty driveline components from other major manufacturers. This flexibility simplifies parts sourcing, maintenance, and system integration for fleet operators and equipment manufacturers. Medium-duty applications encompass a broad spectrum of vehicles and machinery, including:

• Light to medium commercial trucks (e.g., delivery vans, utility trucks, service vehicles)
• Agricultural equipment (e.g., smaller tractors, specialized farm implements)
• Industrial machinery (e.g., conveyor systems, material handling equipment, auxiliary power units)
• Specialty vehicles (e.g., sweepers, certain off-road vehicles, construction support equipment)
• Power Take-Off (PTO) shafts for various applications

In these diverse environments, the H7 Series Slip Yoke consistently delivers reliable performance, accommodating the dynamic length changes inherent in such operations.

Commitment to Quality and Performance

Buyers Products' commitment to quality is evident in every aspect of the H7 Series Slip Yoke. From the selection of high-strength materials and the precision of manufacturing processes to rigorous quality control measures, every step is geared towards producing a component that exceeds industry expectations. The result is a slip yoke that offers:

• Exceptional Durability: Engineered to withstand the rigors of continuous use in demanding environments, ensuring a long operational life.
• Reliable Performance: Consistent torque transfer, minimal vibration, and smooth axial movement contribute to overall driveline efficiency and reduced wear on associated components.
• Reduced Downtime: The robust construction and proven reliability translate into fewer maintenance issues and less vehicle or equipment downtime.
• Cost-Effectiveness: While an initial investment, the longevity and dependable performance of the H7 Series lead to lower total cost of ownership over the product's lifespan.

Conclusion

The Buyers Products H7 Series Slip Yoke with a 1-1/4 -6 inch spline bore is more than just a component; it is a precisely engineered solution for critical driveline applications. Its robust construction from high-strength steel, meticulous manufacturing tolerances, and thoughtful design features like effective lubrication provision, ensure superior performance. With a demonstrable capacity to handle up to 800 inch-pounds of torque at 1,000 RPM, it stands as an exemplary choice for medium-duty driveline systems requiring uncompromising reliability and smooth, continuous torque transfer. By choosing the H7 Series, users invest in a product designed for longevity, efficiency, and the highest standards of operational integrity.
