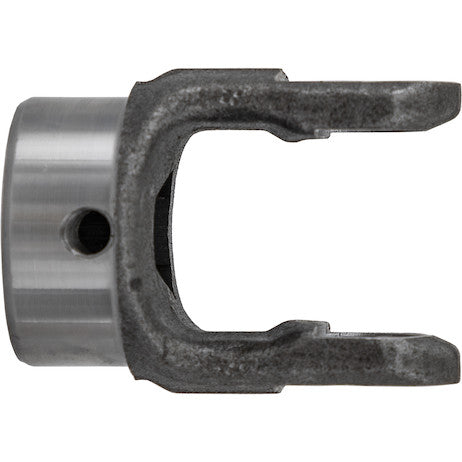

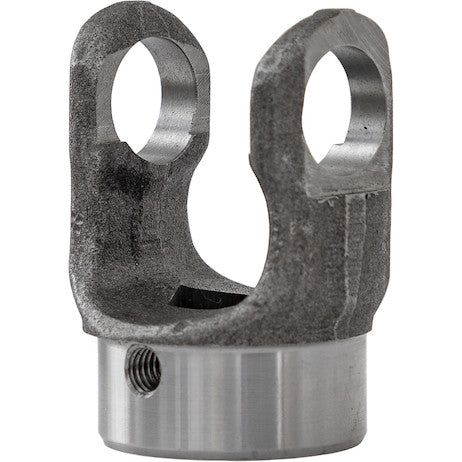

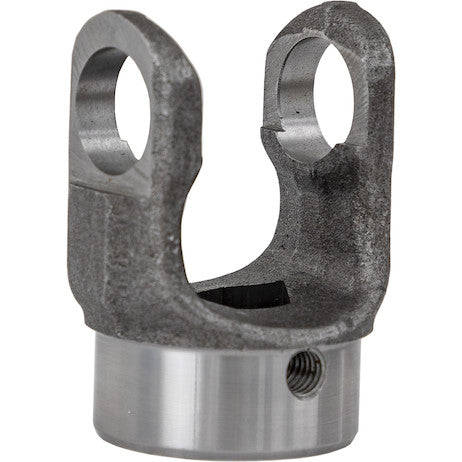

74282 - H7 Series End Yoke 7/8 Inch Hex Bore

Buyers Products H7 Series End Yoke with Hex Bore is a strong, durable component for your flexible coupling needs. The yoke is compatible with other major manufacturers' medium duty driveline components. It comes in a variety of bore sizes and shapes to work with your system. The yoke is made of forged steel for strength and durability. It works with Buyers Products NB7A U-joints to provide smooth and continuous torque transfer. The H7 Series End Yoke is perfect for medium duty applications with the ability to handle up to 800 inch pounds of torque at 1,000 RPM (12 HP).

Specifications

Advanced Technical Overview: Buyers Products H7 Series End Yoke with 7/8 Inch Hex Bore

The Buyers Products H7 Series End Yoke, featuring a 7/8 inch Hex Bore, represents a critical component in the engineering of robust and efficient power transmission systems. Engineered for demanding medium-duty applications, this end yoke is designed to seamlessly integrate with a broad spectrum of driveline architectures, providing superior torque transfer and long-term operational reliability. Its meticulous design and material selection ensure that it meets the rigorous performance expectations of industrial, agricultural, and mobile equipment sectors.

Understanding the Role of an End Yoke in Power Transmission

An end yoke serves as a fundamental linkage in a driveline system, facilitating the connection between a rotating shaft (such as a PTO shaft, hydraulic pump drive, or auxiliary input shaft) and a universal joint (U-joint). Its primary function is to transmit rotational motion and torque from one component to another while accommodating angular misalignment inherent in many mechanical systems. The design of the end yoke, particularly its bore type and dimensional specifications, directly influences the efficiency, durability, and vibrational characteristics of the entire driveline. A well-engineered end yoke ensures smooth power delivery, minimizes wear on adjacent components, and mitigates detrimental harmonic vibrations.

Design and Material Excellence: Forged Steel Construction

Central to the H7 Series End Yoke's formidable strength and durability is its construction from forged steel. Forging is a metal forming process that involves shaping metal using localized compressive forces, typically performed with hammers or presses. This process is superior to casting or machining from bar stock for critical components like end yokes due to several inherent advantages:

• Enhanced Grain Structure: Forging refines the metal's grain structure, aligning the grain flow with the component's contours. This continuous grain flow enhances the material's resistance to fatigue, impact, and shear stresses, critical for components subjected to dynamic loads.
• Superior Strength-to-Weight Ratio: Forged components typically exhibit higher tensile strength, yield strength, and ductility compared to their cast counterparts. This allows for the design of robust parts without excessive weight, optimizing system efficiency.
• Reduced Internal Defects: The forging process eliminates internal voids, porosity, and shrinkage defects commonly found in castings. This results in a much denser, more homogenous material, significantly improving reliability and service life.
• Improved Wear Resistance: The compacted grain structure of forged steel contributes to superior wear resistance, an essential attribute for driveline components that experience constant rotational friction and stress.

The selection of forged steel for the H7 Series End Yoke underscores a commitment to engineering integrity, ensuring that the component can withstand the substantial torsional and bending stresses associated with medium-duty applications, thereby extending the operational lifespan of the entire driveline system.

Hex Bore Configuration: Precision Torque Transfer

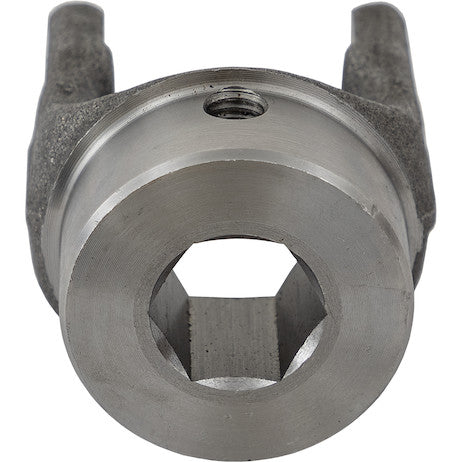

The H7 Series End Yoke features a 7/8 inch Hex Bore, a design choice specifically tailored for applications requiring positive, non-slip torque transmission. The hexagonal bore mates directly with a correspondingly shaped hexagonal shaft, eliminating the need for traditional keyways and their associated stress concentrations. The advantages of a hex bore include:

• Optimized Torque Distribution: The multi-flat contact surface of a hex bore distributes torsional loads more evenly across a larger area compared to a single keyway, reducing localized stress points and minimizing the risk of shaft or bore deformation.
• Self-Centering Capability: Hexagonal connections inherently offer a degree of self-centering, which can simplify assembly and contribute to smoother operation, particularly in applications where some rotational alignment tolerance is permissible.
• Reduced Backlash: When properly fitted, hex bores provide a tighter, more precise fit than some other shaft-to-hub connections, leading to reduced backlash and improved responsiveness in power transmission.
• Enhanced Robustness: The absence of a keyway, which can act as a stress riser, improves the overall fatigue life of both the shaft and the yoke, particularly under fluctuating or reversing loads.

The 7/8 inch bore diameter/width indicates the measurement across opposing flats of the hexagon. This precise dimension ensures compatibility with standard 7/8 inch hex shafts, facilitating straightforward interchangeability and system integration. The specification "Keyway At: Hex" and "Keyway Size (in.): -" further reinforces that the hexagonal profile itself serves as the primary mechanism for keying and torque transfer, without an additional, separate keyway slot. This design simplifies machining, enhances strength, and reduces potential failure points.

Dimensional Specifications and Their Functional Significance

Understanding the detailed dimensions of the H7 Series End Yoke is crucial for proper system design, integration, and maintenance:

• Center Line to End of Hub (2.50 inches): This measurement is vital for determining the overall length of the driveline assembly and ensuring adequate clearance within the machinery. It represents the distance from the center of the U-joint cross (the centerline of the universal joint pins) to the outermost face of the yoke's hub. This dimension directly impacts the working angle capability and overall driveline geometry.
• End of Hub to Centerline of Set Screw Hole (0.625 inches): This specification precisely locates the set screw relative to the end of the hub. It is critical for ensuring that the set screw engages effectively with the shaft, providing secure retention and preventing axial movement. Proper set screw engagement is paramount for maintaining system integrity under vibrational and torsional stresses.
• Hub Diameter (2.00 inches): The external diameter of the yoke's hub is an indicator of its structural integrity and material volume supporting the bore. A robust hub diameter provides the necessary strength to resist bending moments and stresses transferred from the shaft, particularly where the set screw is applied. It also dictates clearance requirements within the equipment chassis.
• Set Screw Size (3/8-16) and Location (At 4): The inclusion of a 3/8-16 set screw provides an additional layer of security, locking the end yoke onto the hex shaft. The 3/8-16 threading indicates a coarse thread with 16 threads per inch, providing strong engagement. The "At 4" designation for the set screw location likely refers to its angular position relative to a reference point on the yoke (e.g., 4 o'clock if viewed from the end), which can be important for assembly alignment or accessibility. The set screw's function is to prevent axial slippage and assist in maintaining rotational engagement, particularly under dynamic conditions or minor clearances.

Performance Envelope: Medium Duty Applications and Torque Capacity

The H7 Series End Yoke is specifically engineered for "medium duty applications," a classification that encompasses a broad range of industrial and mobile equipment requiring consistent power transmission under moderate loads. This includes, but is not limited to, agricultural implements such as mowers, spreaders, and small to medium PTO-driven machinery; industrial conveyors, mixers, and pumps; and various auxiliary drives on construction equipment. It's designed for scenarios where continuous operation and resilience are key, without the extreme load profiles of heavy-duty earthmoving or primary propulsion systems.

With the capacity to handle up to 800 inch-pounds of torque at 1,000 RPM (equivalent to 12 HP), this end yoke demonstrates a significant performance capability within its class. To elaborate:

• Torque (800 inch-pounds): Torque is the rotational force that causes an object to rotate. 800 inch-pounds signifies the maximum torsional load the yoke is designed to transmit reliably. This figure is critical for matching the yoke to the power output of the driving mechanism and the resistance of the driven load.
• Rotational Speed (1,000 RPM): Revolutions Per Minute (RPM) denotes the rate of rotation. The torque capacity is often specified at a particular RPM because the power transmitted is a function of both torque and speed (Power = Torque x RPM / Constant). Operating beyond the specified RPM with maximum torque can lead to excessive heat, vibration, and premature wear.
• Horsepower (12 HP): Horsepower (HP) is a unit of power, representing the rate at which work is done. 12 HP at 1,000 RPM is the equivalent power output capability of the yoke. This conversion provides an alternative metric for system designers to ensure compatibility with their motor or engine specifications.

These performance parameters are based on rigorous testing and engineering calculations, providing a reliable benchmark for designers to ensure that the H7 Series End Yoke is appropriately specified for the operational demands of their machinery. Exceeding these limits can lead to material fatigue, deformation, or catastrophic failure, underscoring the importance of careful component selection.

Compatibility and Integration

A key attribute of the H7 Series End Yoke is its broad compatibility. It is explicitly designed to be interchangeable with other major manufacturers' medium-duty driveline components, offering flexibility in system design, repair, and replacement. This adherence to industry standards minimizes proprietary restrictions, making it easier for users to source compatible parts and integrate the yoke into existing systems. Crucially, its proven compatibility with Buyers Products NB7A U-joints ensures a harmonious and efficient coupling solution. The synergistic performance of matched components from the same manufacturer often leads to optimal torque transfer, reduced vibration, and extended service life, as these components are designed to work together under specified tolerances and performance characteristics. The 15-degree joint angle specified for the H7 Series refers to the maximum operational angle that the universal joint connected to this yoke can effectively and continuously sustain without excessive wear or detrimental power loss. Understanding this angle is vital for designing driveline systems with proper geometry, preventing critical angles that lead to high heat and accelerated component degradation.

Finish and Environmental Considerations

The "Plain" finish of the H7 Series End Yoke typically denotes that the component is supplied without additional surface coatings such as paint, plating, or galvanization. This plain finish is often preferred for several reasons:

• Cost-Effectiveness: It eliminates the additional manufacturing steps and costs associated with applying a finish.
• Weldability: A plain steel surface is generally easier to weld, which might be a consideration if the yoke is to be integrated into a fabricated assembly where welding is required.
• Application Specifics: In many enclosed or lubricated driveline environments, or where components are frequently replaced, a protective coating may not be deemed necessary. Furthermore, the user may apply their own specialized coating or paint to match the aesthetics or environmental protection requirements of their specific equipment.

While the plain finish is robust, engineers should consider the operational environment. For applications in highly corrosive or exposed conditions, additional surface treatment or corrosion protection measures may be advisable to ensure long-term integrity.

Applications and Industry Relevance

The H7 Series End Yoke with a 7/8 inch Hex Bore is ideally suited for a diverse array of medium-duty power transmission applications across multiple industries:

• Agriculture: Essential for PTO (Power Take-Off) drive shafts on numerous implements such as rotary tillers, balers, seeders, and sprayers, where reliable torque transfer from the tractor to the implement is paramount. The hex bore is particularly common in agricultural PTO applications due to its robust engagement and ease of connection.
• Industrial Machinery: Found in various industrial settings for driving conveyor belts, agitators, mixers, pumps, fans, and small processing equipment where consistent, medium-level power is required.
• Construction Equipment: Used in auxiliary drives for concrete mixers, portable generators, small compaction equipment, and other specialized construction tools.
• Grounds Care Equipment: Employed in larger commercial lawn mowers, chippers, and shredders that utilize PTO or direct shaft drives.
• Specialty Vehicles: Incorporated into the drivelines of custom-built vehicles, utility trucks, and other mobile platforms requiring robust power transmission to various auxiliary functions.

Its inherent strength, precise manufacturing, and specific bore configuration make it a preferred choice for applications demanding both performance and durability.

Installation and Maintenance Considerations

Proper installation is paramount to leveraging the full potential and lifespan of the H7 Series End Yoke. Key considerations include:

• Shaft Preparation: Ensure the mating hex shaft is clean, free of burrs, and within specified dimensional tolerances for a snug fit.
• Alignment: Maintain proper driveline alignment to minimize working angles and reduce undue stress on the U-joint and yokes. The 15-degree joint angle is a critical parameter here.
• Set Screw Torque: The 3/8-16 set screw must be torqued to the manufacturer's specified value to ensure secure retention without overstressing the hub material. Use of a thread-locking compound may be advisable for applications subject to high vibration.
• Lubrication: While the yoke itself typically does not require lubrication, ensure the associated U-joint and other driveline components are adequately lubricated per their respective maintenance schedules.
• Regular Inspection: Periodically inspect the end yoke for signs of wear, cracks, corrosion, or deformation. Pay close attention to the bore interface and the set screw engagement area. Early detection of issues can prevent catastrophic failure and costly downtime.

Conclusion

The Buyers Products H7 Series End Yoke with a 7/8 inch Hex Bore stands as a testament to precision engineering and robust manufacturing practices. Its forged steel construction, optimized hex bore design, and carefully specified dimensions collectively ensure exceptional strength, durability, and reliable torque transfer in demanding medium-duty applications. By seamlessly integrating with industry-standard components, particularly Buyers Products NB7A U-joints, this end yoke offers a highly effective and versatile solution for power transmission challenges across a broad spectrum of industries. Specifying the H7 Series End Yoke means investing in a component designed for longevity, operational efficiency, and minimized downtime, upholding the critical performance standards expected in modern mechanical systems.
