Buyers Products NPT Grease Fittings are available in various configurations to fit your application's requirements. They are sold in multiples of 100.
Specifications
| Angle | 0 |
|---|---|
| Ball Check (y/n) | Yes |
| Finish | Zinc Plated |
| Material | Carbon Steel |
| Overall Size | 1.250 |
| Thread Size | 1/8 NPT |
| Type | Threaded |

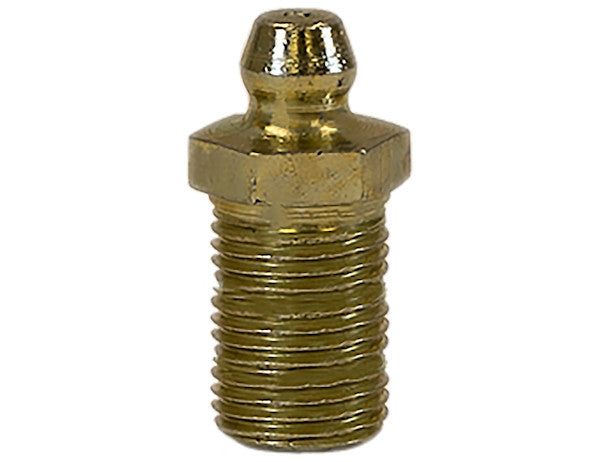

Advanced Technical Overview: 1/8 Inch NPT Straight Grease Fittings with Extended 1-1/4 Inch Thread
This detailed technical description provides an in-depth analysis of the 1/8 Inch NPT Straight Grease Fittings, distinguished by their substantial 1-1/4 Inch long thread. Designed for demanding industrial, commercial, and heavy-duty applications, these fittings embody precision engineering, material robustness, and functional reliability essential for optimal machinery lubrication. Manufactured from high-quality carbon steel and protected by a durable zinc-plated finish, each fitting incorporates a critical ball check mechanism, ensuring unidirectional grease flow and contamination prevention. Sold in multiples of 100, these units are specifically configured to meet the rigorous requirements of professional maintenance and operational longevity.
Precision Engineering: The 1/8 Inch NPT Standard
At the core of this product's design is the 1/8 Inch National Pipe Taper (NPT) thread standard. NPT is the most widely adopted standard for tapered threads used in general-purpose applications in North America, renowned for creating pressure-tight seals without the need for additional gaskets or O-rings when properly installed. The tapered design means that the male and female threads physically wedge together, forming an interference fit that seals against leaks. The 1/8 NPT designation refers to the nominal pipe size, which does not directly correspond to the thread's physical diameter but rather to the standard pipe size it is intended to connect to. In practical terms, a 1/8 NPT male thread will have a major diameter of approximately 0.405 inches (10.29 mm) at the largest point and progressively taper along its length. The threads per inch (TPI) for 1/8 NPT are standardized at 27. This fine thread pitch contributes to a more secure and robust connection, capable of withstanding the high pressures typically encountered in lubrication systems. The integrity of an NPT connection is paramount in grease systems, where pressures can easily exceed several thousand PSI during operation. Proper application of thread sealant, such as PTFE tape or a suitable pipe thread compound, is essential to fill any helical leak paths and achieve a truly leak-free connection, especially critical in high-pressure hydraulic and pneumatic systems where these fittings might be employed.
Configuration and Accessibility: Straight (0-Degree Angle) Design
The straight (0-degree angle) configuration of these grease fittings is a fundamental aspect of their functional utility. A straight fitting ensures that the lubrication point is accessed directly along its axis, providing a linear path for grease injection. This design is highly advantageous in numerous scenarios where direct, unobstructed access to the bearing or component is available. Straight fittings offer the simplest and most direct connection for grease guns, minimizing potential flow restrictions and ensuring efficient lubricant delivery. Their compact profile, in terms of angular projection, makes them suitable for applications with limited clearance around the lubrication point, provided the axis of approach is open. While angled fittings (e.g., 45-degree or 90-degree) offer flexibility for difficult-to-reach areas, the straight fitting excels in situations demanding straightforward, robust, and often high-volume grease delivery. The absence of bends or complex geometries within the fitting minimizes internal pressure drops and turbulence, contributing to more effective and consistent lubrication cycles. The choice of a straight fitting often reflects an application where the component requiring lubrication is readily accessible from a particular direction, allowing for quick and efficient maintenance procedures without requiring specialized adapters or contortions of the grease gun.
Enhanced Engagement: The 1-1/4 Inch Long Thread Feature
A distinguishing characteristic of these grease fittings is their exceptional 1-1/4 inch long thread. This extended thread length, corresponding to the "Overall Size" specification of 1.250 inches, provides significantly more thread engagement compared to standard grease fittings. The implications of this elongated thread are profound for stability, security, and resistance to wear. In applications where the receiving boss or port has a thicker wall, or where deeper thread penetration is required for mechanical integrity, this feature is invaluable. Increased thread engagement means a greater surface area for load distribution, dramatically reducing the risk of thread stripping, especially under repetitive connection and disconnection of grease guns, or in environments subject to vibration and dynamic stresses. Furthermore, the extended thread length facilitates the secure installation of these fittings into less-than-ideal tap holes or softer materials, where a standard thread might offer insufficient purchase. It allows for a more robust and permanent installation, diminishing the likelihood of loosening over time and ensuring a consistent and reliable pathway for lubricant. This enhanced mechanical engagement is a critical factor in extending the service life of both the fitting and the component it is installed into, particularly in heavy machinery and structural applications where fittings are subjected to substantial mechanical forces and operational demands.
Material Science: High-Strength Carbon Steel Construction
The selection of carbon steel as the primary construction material for these grease fittings underscores their design for durability and performance in demanding environments. Carbon steel is an alloy of iron and carbon, known for its excellent mechanical properties, including high tensile strength, yield strength, and hardness. These properties are critical for grease fittings, which must withstand significant internal hydraulic pressures during grease injection, as well as external mechanical stresses from handling, vibration, and impact. The typical carbon content in the range used for such components ensures a good balance between strength and machinability. The inherent toughness of carbon steel provides resistance to fracturing and deformation, crucial for maintaining the structural integrity of the fitting throughout its operational life. Furthermore, carbon steel offers a cost-effective solution without compromising on the fundamental requirements of strength and longevity for industrial applications. Its ability to maintain structural integrity under a wide range of operating temperatures makes it suitable for diverse climates and operational conditions, from frigid outdoor environments to heated industrial settings. The use of carbon steel forms the foundational strength upon which the fitting’s long-term reliability is built, ensuring that it can consistently perform its function of delivering lubricant under pressure.
Corrosion Protection: Zinc Plated Finish
To augment the inherent strength of carbon steel, these grease fittings are treated with a zinc-plated finish. Zinc plating is a sacrificial coating process widely employed to protect steel components from corrosion. In this electrochemical process, a thin layer of zinc is deposited onto the surface of the carbon steel. Zinc acts as a sacrificial anode; in the presence of moisture and oxygen, the zinc corrodes preferentially to the steel, thus protecting the underlying ferrous metal. This passive protection significantly extends the lifespan of the fitting by preventing rust and other forms of oxidation that could compromise its functionality or aesthetic appearance. Beyond its cathodic protection properties, zinc plating also provides a barrier effect, physically shielding the steel from corrosive agents. The finish typically offers a bright, clean appearance that is often desirable for identification and integration into machinery aesthetics. The durability of zinc plating is sufficient for most indoor and moderately aggressive outdoor environments, significantly delaying the onset of red rust. For applications in highly corrosive environments, such as marine or chemical processing, while zinc plating offers a baseline protection, more specialized coatings or materials like stainless steel might be considered. However, for the vast majority of industrial and automotive applications where these fittings are used, the zinc plating provides a robust and cost-effective layer of defense against environmental degradation, ensuring reliable performance over time.
Functional Integrity: The Integrated Ball Check Valve
A critical functional element of these grease fittings is the integrated ball check valve. This mechanism is essential for maintaining the integrity of the lubrication system and preventing undesirable outcomes. The ball check valve consists of a small, hardened steel ball seated against an orifice, typically held in place by a light spring. During the lubrication process, when grease is injected under pressure from a grease gun, the force of the incoming grease overcomes the spring tension, unseating the ball and allowing grease to flow into the bearing or component. Once the pressure from the grease gun is removed, the spring, aided by any residual back pressure from the lubricated component and atmospheric pressure, forces the ball back onto its seat, creating a seal. The primary functions of this ball check mechanism are twofold:
- Preventing Backflow: It ensures that grease, once injected, does not leak back out of the fitting. This is crucial for maintaining the lubricant fill level within the bearing and preventing premature degradation of the component due due to insufficient lubrication.
- Excluding Contaminants: The sealed orifice, when the ball is seated, acts as a barrier against the ingress of dirt, dust, moisture, and other environmental contaminants. This is vital for protecting sensitive bearings and components from abrasive wear and corrosion, which can be accelerated by impurities introduced during operation or maintenance.
Application Spectrum Across Industries
The robust design and specific features of these 1/8 Inch NPT Straight Grease Fittings with an extended 1-1/4 Inch thread make them indispensable across a wide array of heavy-duty and industrial sectors. Their primary role is to facilitate the efficient and controlled introduction of lubricants into mechanical components, thereby reducing friction, wear, and heat, and extending operational life.
- Construction Equipment: From excavators and bulldozers to cranes and loaders, construction machinery operates under extreme loads and harsh environmental conditions. The deep-threaded design ensures secure installation into thick-walled chassis components and pivot points, while the carbon steel and zinc plating resist impact and environmental degradation.
- Agricultural Machinery: Tractors, harvesters, planters, and other farm implements require regular lubrication to withstand dust, moisture, and continuous operation. These fittings provide reliable access points, even for components with significant housing thickness.
- Mining Operations: Equipment used in mining, such as conveyor systems, crushers, and heavy-duty vehicles, are subject to abrasive dust, corrosive minerals, and immense pressure. The extended thread length ensures optimal engagement in heavy-duty enclosures, and the robust construction stands up to severe operating conditions.
- Industrial Manufacturing: Production lines, heavy presses, robotics, and material handling systems often feature numerous lubrication points. The straight configuration allows for easy, consistent access in many industrial setups, supporting scheduled preventive maintenance.
- Commercial Transportation: Heavy-duty trucks, trailers, and specialized commercial vehicles rely on these fittings for chassis lubrication, steering components, and suspension systems, where the added thread engagement provides superior vibration resistance.
- Marine Applications (Protected Areas): While direct saltwater exposure might call for stainless steel, these zinc-plated fittings can be used in protected marine applications (e.g., inside engine compartments, within structural elements not directly exposed to seawater spray) where their robust design offers reliable lubrication access.
Installation and Maintenance Best Practices
Proper installation and routine maintenance are paramount to realizing the full benefits of these grease fittings.
- Thread Preparation: Before installation, ensure the female NPT port is clean and free of debris. For NPT threads, the use of a suitable thread sealant, such as PTFE (Teflon) tape or a liquid pipe thread compound, is highly recommended. Apply sealant only to the male threads, starting a few threads back from the end to prevent sealant from entering the lubrication system.
- Correct Tools: Use an appropriately sized wrench or socket that fits snugly over the hexagonal base of the fitting. Avoid using pliers or adjustable wrenches that can mar the fitting or apply uneven torque.
- Torque Specification: Due to the tapered nature of NPT threads, it is crucial to tighten the fitting until a secure, leak-free seal is achieved, but without overtightening. Overtightening can deform the threads, leading to stress concentrations, potential cracking of the female port, or thread stripping. Hand-tighten, then apply an additional 1 to 2 turns with a wrench, or follow specific torque recommendations if provided by the equipment manufacturer. The extended thread length allows for more forgiving installation into certain materials, but care is still necessary.
- Lubrication Procedure: Connect a compatible grease gun to the fitting. Ensure a firm connection to prevent grease leakage around the coupler. Pump grease slowly and steadily until resistance is felt or until fresh grease purges from the bearing seal, indicating full lubrication.
- Regular Inspection: Periodically inspect fittings for signs of damage, corrosion, or blockage. A damaged or corroded fitting can hinder proper grease flow or become a point of contaminant ingress.
- Replacement: Replace any damaged, clogged, or non-functional fittings immediately. Grease fittings are wear items and their proper function is critical to machine health.
Quality Assurance and Performance Standards
The manufacturing process for these grease fittings adheres to stringent quality control standards to ensure consistent performance and reliability. Key aspects of quality assurance include:
- Material Certification: Verification of carbon steel composition to meet specified mechanical properties.
- Dimensional Accuracy: Precise machining of the 1/8 NPT threads and the overall 1-1/4 inch length to ensure perfect fit and optimal thread engagement. This includes maintaining critical tolerances for thread pitch, major diameter, and taper.
- Surface Finish: Quality checks for the zinc plating to ensure uniform thickness, adhesion, and corrosion resistance performance according to relevant industry standards (e.g., ASTM B633 for electrodeposited coatings of zinc on iron and steel).
- Ball Check Functionality: Each fitting's ball check valve is tested to confirm proper sealing under pressure and reliable opening for grease flow, often involving air or fluid pressure tests to verify leak-proof operation.
- Pressure Resistance: Although not always individually tested, the design and material selection ensure the fittings are capable of withstanding typical grease gun pressures, often rated to several thousand PSI.
Economic and Operational Advantages
Investing in high-quality grease fittings like these offers substantial economic and operational advantages:
- Extended Equipment Lifespan: Proper lubrication facilitated by reliable fittings dramatically reduces wear on moving parts, significantly extending the operational life of expensive machinery.
- Reduced Downtime: Consistent and effective lubrication prevents unexpected failures, thereby minimizing unplanned maintenance and costly operational interruptions.
- Lower Maintenance Costs: Fewer component failures translate to reduced expenditures on replacement parts, labor, and emergency repairs. Efficient lubrication also means less frequent, though thorough, maintenance interventions.
- Improved Safety: Well-maintained machinery with properly functioning lubrication systems operates more predictably and safely, reducing the risk of mechanical failures that could lead to accidents.
- Enhanced Operational Efficiency: Components lubricated effectively run smoother, consume less energy due to reduced friction, and maintain optimal performance specifications, contributing to overall productivity.
- Long-Term Value: The durability of carbon steel, the protection of zinc plating, and the enhanced engagement of the long thread ensure these fittings offer long-term value, resisting wear and corrosion for extended periods.
Conclusion
The 1/8 Inch NPT Straight Grease Fittings with a 1-1/4 Inch long thread represent a superior choice for professional applications requiring robust, reliable, and durable lubrication access points. Their precise 1/8 NPT threading, direct straight configuration, and especially the extended thread length offer unparalleled installation security and resistance to operational stresses. Constructed from high-strength carbon steel and protected by a zinc-plated finish, they are built to withstand challenging environments and high-pressure lubrication demands. The integrated ball check valve is a critical feature, ensuring effective grease retention and contaminant exclusion. These fittings are an indispensable component for maintaining the health and extending the operational life of heavy machinery across construction, agriculture, mining, manufacturing, and commercial transport sectors. Sold conveniently in multiples of 100, they provide a bulk solution for demanding industrial needs, embodying precision, reliability, and long-term performance.
