Buyers Products Storage Tanks with Legs are a convenient and portable storage solution for non-flammable liquids such as potable water and agricultural and industrial chemicals. Produced from pure, medium density polyethylene, the tanks have UV-inhibiting stabilizers so you can store liquids outdoors for longer periods of time. They have a maximum contact operating temperature of 110??F. The translucent tanks have a sleek, low profile design featuring visible gallon and liter markings for quickly assessing the amount of liquid inside, plus molded-in channels for secure tie-down using saddle straps. They have a built-in bulkhead fitting for easy siphoning and an easy-tighten cap with a wide opening for quick fill-ups.
Specifications
| Control Type | Tank Only |
|---|---|
| Height (in.) | 39.00 |
| Length (in.) | 72.00 |
| Material | Polyethylene |
| Mount Style | Strap |
| Port Size (in.) | 2 |
| Tank Capacity (gal.) | 325.00 |
| Tank Shape | Round Ends with Legs |
| Width (in.) | 38.00 |

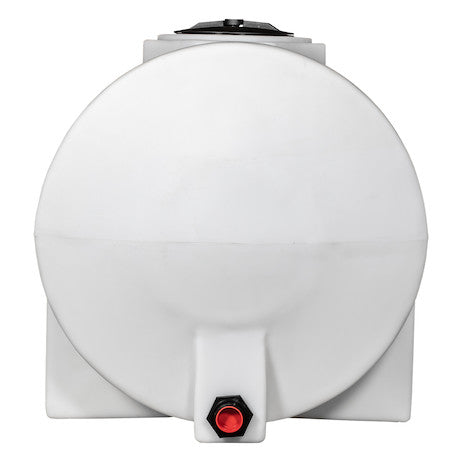

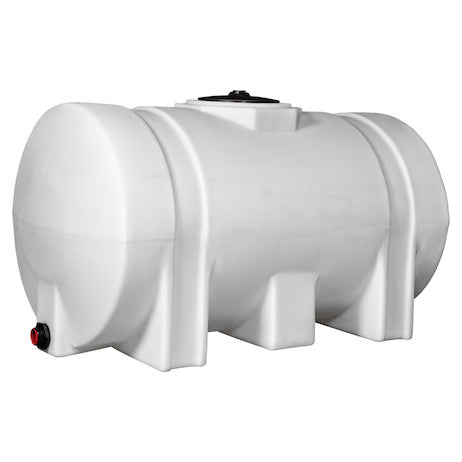

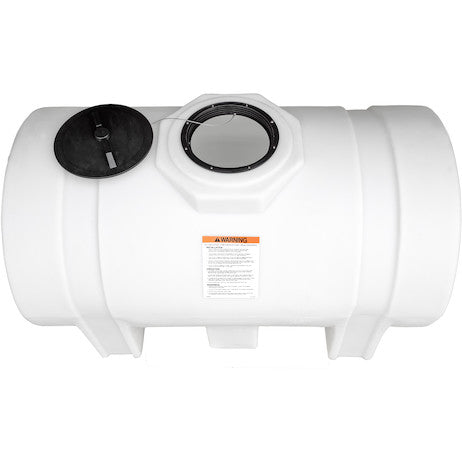

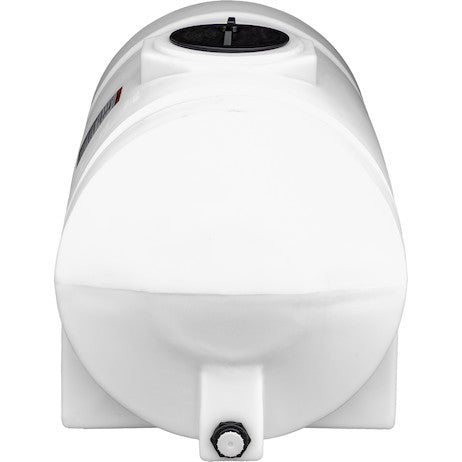

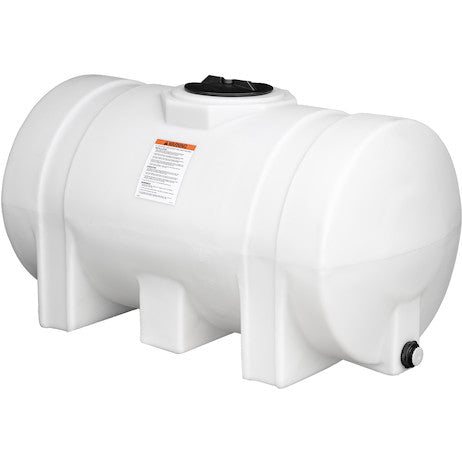

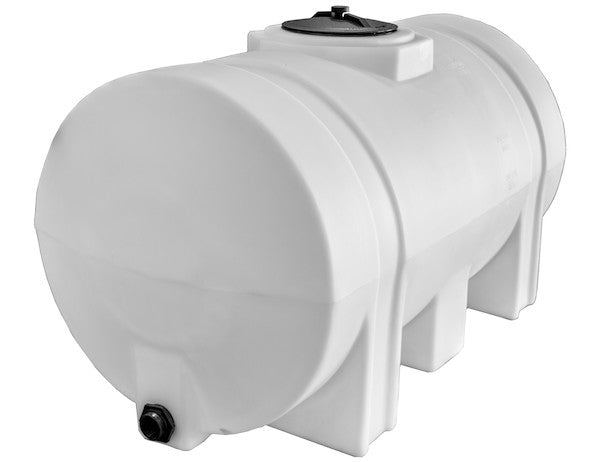

Advanced Technical Overview: 325 Gallon Storage Tank with Integrated Legs
The 325 Gallon Storage Tank with Legs, measuring 72x38x39 inches, represents a meticulously engineered solution for the efficient and secure containment of diverse non-flammable liquids across a multitude of professional applications. This product is designed to meet the rigorous demands of sectors such as agriculture, industrial operations, construction, and emergency services, where reliable, durable, and easily deployable liquid storage is paramount. Its design integrates advanced material science with practical, user-centric features, ensuring optimal performance and longevity in challenging environments.
At the core of this tank's superior performance is its construction from pure, medium-density polyethylene (MDPE). MDPE is a high-performance thermoplastic polymer known for its excellent balance of properties, making it an ideal choice for liquid storage applications. Characterized by a density range typically between 0.926 and 0.940 g/cm³, MDPE offers a unique combination of stiffness, impact strength, and environmental stress crack resistance (ESCR). This inherent robustness significantly reduces the risk of rupture or degradation even under mechanical stress or fluctuating temperatures, which is a critical consideration for both static storage and mobile applications. The "pure" designation signifies that the material is virgin-grade, free from contaminants or recycled content that could compromise its structural integrity or chemical compatibility, especially crucial when storing potable water or sensitive agricultural chemicals.
The manufacturing process, likely rotational molding (rotomolding), is integral to the tank's monolithic and seamless construction. Rotomolding ensures uniform wall thickness throughout the tank, eliminating weak points often associated with welded or fabricated designs. This process allows for the creation of complex shapes, such as the integrated legs and tie-down channels, directly into the tank body, enhancing structural integrity and reducing the need for additional, potentially vulnerable components. The result is a single-piece unit that boasts exceptional leak resistance and long-term durability, minimizing maintenance requirements and maximizing operational uptime.
A critical technical enhancement for outdoor deployment is the incorporation of UV-inhibiting stabilizers directly into the MDPE resin. Ultraviolet (UV) radiation from sunlight can cause photodegradation in many plastics, leading to embrittlement, discoloration, and eventual structural failure. The specialized UV inhibitors act by absorbing or reflecting harmful UV rays, preventing them from breaking down the polymer chains. This protection significantly extends the tank's service life when exposed to direct sunlight, making it a reliable solution for outdoor storage without requiring additional protective coverings or frequent replacement. This feature directly translates into a lower total cost of ownership over the tank's lifespan.
Thermal stability is another key engineering consideration. The tank is rated for a maximum contact operating temperature of 110°F (approximately 43.3°C). This specification is crucial for ensuring the integrity of the polyethylene material and the safety of the stored liquids. Exceeding this temperature can lead to a reduction in the material's mechanical properties, such as tensile strength and rigidity, potentially compromising the tank's structural integrity or accelerating material degradation. This temperature rating aligns with the requirements for most non-flammable agricultural and industrial chemicals, as well as potable water storage, under typical ambient conditions.
The physical dimensions of 72 inches in length, 38 inches in width, and 39 inches in height are precisely engineered to provide a substantial 325-gallon capacity while maintaining a sleek, low-profile design. This low-profile characteristic is not merely aesthetic; it serves a vital functional purpose by lowering the tank's center of gravity. A lower center of gravity significantly enhances stability, particularly during transport on trailers or truck beds, reducing the risk of tipping or shifting. This is an essential safety feature for mobile liquid transfer operations. The optimized footprint also allows for more efficient space utilization in storage areas, vehicles, or within processing plants.
A defining characteristic of this model is its integrated leg design. Unlike tanks that require external stands or flat-bottom designs, the molded-in legs provide inherent elevation and stability. This elevation offers several distinct advantages: it facilitates easy access underneath the tank for cleaning and inspection, prevents direct contact with potentially corrosive or uneven ground surfaces, and, crucially, allows for gravity-fed dispensing. The elevated position also enhances compatibility with forklift access, enabling safer and more efficient repositioning of the full or empty tank within operational sites. The "Round Ends with Legs" shape further contributes to structural strength by distributing hydrostatic pressure more evenly, minimizing stress concentrations.
For operational efficiency and liquid management, the translucent nature of the MDPE material, combined with clearly visible gallon and liter markings, is invaluable. This feature allows operators to quickly and accurately ascertain the current liquid volume without the need for external gauges or opening the tank. This direct visual assessment aids in inventory control, prevents overfilling or running dry, and ensures precise measurement for mixing agricultural chemicals or other solutions. The dual unit markings (gallons and liters) cater to diverse measurement standards and user preferences, enhancing the tank's global usability.
Security during transport is addressed through the provision of molded-in channels specifically designed for the secure attachment of saddle straps. These channels are integrally formed into the tank's structure, providing robust anchor points that are resistant to deformation or failure under dynamic loading conditions. The use of saddle straps, which conform to the tank's curved profile, ensures even pressure distribution and maximum gripping force, preventing lateral or longitudinal movement during transit. This adherence to securement best practices is critical for compliance with transportation regulations and for safeguarding personnel and property.
The built-in bulkhead fitting represents a significant functional enhancement, simplifying fluid transfer operations. A bulkhead fitting is a specialized plumbing component designed to create a leak-proof penetration through the wall of a container, allowing for the connection of external piping, hoses, pumps, or other accessories. The inclusion of a 2-inch port size is a strategic choice, offering a versatile interface compatible with a wide range of standard industrial and agricultural plumbing components. This generous port size also facilitates higher flow rates for siphoning, filling, or draining, thereby improving operational efficiency. The robust construction of the fitting, often from chemical-resistant polypropylene, ensures long-term integrity and compatibility with the stored liquids.
Ease of use is further exemplified by the easy-tighten cap with a wide opening. The wide aperture (likely 8-10 inches in diameter for a tank of this capacity) significantly simplifies the filling process, minimizing splash-back and spillage, and allowing for faster replenishment. This design also facilitates interior inspection and cleaning, which is vital for maintaining liquid purity, especially when storing potable water or when switching between different types of agricultural chemicals. The "easy-tighten" mechanism ensures a reliable, leak-proof seal that can be achieved without specialized tools, enhancing user convenience and preventing contamination or loss of contents during storage or transport.
The versatility of this 325-gallon tank extends to a broad spectrum of non-flammable liquid applications. For potable water storage, the pure MDPE material is inherently safe and non-leaching, ensuring that stored water remains untainted and suitable for consumption. This makes the tank an indispensable asset for remote worksites, temporary camps, emergency water supply, and agricultural spraying where a clean water source is critical. In agricultural contexts, the tank is ideal for holding liquid fertilizers, herbicides, pesticides, and other crop protection agents. The chemical resistance of MDPE is well-suited for many agrochemicals, although compatibility should always be verified for specific formulations. The translucent design and accurate markings are particularly useful for precise mixing and application rates, optimizing chemical usage and minimizing environmental impact.
Beyond agriculture, industrial applications range from storing process water, cooling fluids, and cleaning solutions to certain mild acids and bases within the MDPE's chemical compatibility spectrum. The robust construction and UV stabilization make it suitable for various outdoor industrial settings, while the integrated legs simplify integration into existing plant infrastructure or mobile service vehicles. Construction sites benefit from reliable storage for water needed for concrete mixing, dust suppression, or equipment washing. The tank's portability and durability also make it an excellent choice for disaster relief efforts, providing essential water or other liquid supplies to affected areas.
In summary, the 325 Gallon Storage Tank with Legs is not merely a container but a highly engineered, robust, and versatile liquid management system. Its construction from pure, UV-stabilized medium-density polyethylene, coupled with its intelligent design features such as integrated legs, molded tie-down channels, accurate volume markings, and convenient filling and draining mechanisms, provides a superior solution for a wide array of professional liquid storage and transport needs. Its adherence to high technical specifications ensures long-term reliability, operational efficiency, and a significant return on investment for businesses requiring uncompromising liquid containment solutions.
