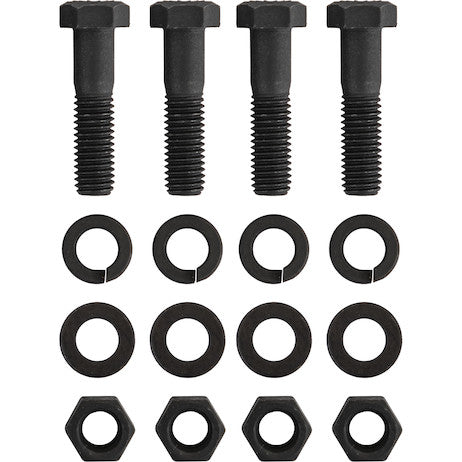

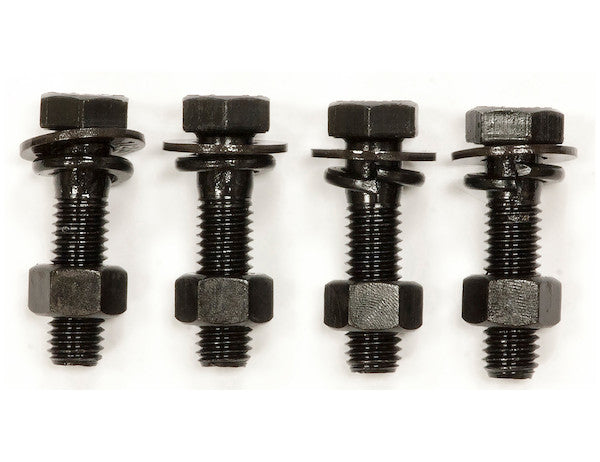

Buyers Products Pintle/Combination Hitch Mounting kit is for BH8, PH5, PH8, and PH15 series hitches. It includes: (4) 1/2 in. x 2 in. Grade 8 cap screws, (4) 1/2 in. Grade 8 hex nuts, (4) 1/2 in. heavy lock washers, and (4) /12 in. flat washers.
Specifications
| Color | Black |
|---|---|
| Finish | Black Oxide |
| Material | Carbon Steel |
In the realm of heavy-duty towing and industrial applications, the integrity of a hitch assembly is paramount, directly influencing operational safety and efficiency. The Buyers Products Pintle/Combination Hitch Mounting Kit represents a meticulously engineered solution designed to meet the rigorous demands of securing high-capacity hitches, specifically the BH8, PH5, PH8, and PH15 series. This comprehensive kit provides the critical fastening components necessary to establish a robust and reliable connection between the hitch and its mounting surface. Understanding the technical specifications, material science, and engineering principles behind each component is essential for appreciating the superior performance and unwavering reliability offered by this product.
At the core of this mounting kit are the four 1/2 inch x 2 inch Grade 8 cap screws. These fasteners are not mere bolts; they are precision-engineered components designed to withstand extreme tensile and shear forces. The designation "Grade 8" is a critical indicator of their superior mechanical properties, adhering to the Society of Automotive Engineers (SAE) J429 standard. A Grade 8 bolt is manufactured from medium carbon alloy steel, which undergoes a specialized heat treatment process involving quenching and tempering. This process transforms the material's microstructure, imparting exceptional hardness, strength, and toughness. Specifically, Grade 8 bolts boast a minimum tensile strength of 150,000 pounds per square inch (psi) and a minimum yield strength of 130,000 psi. In comparison, a common Grade 5 bolt offers significantly lower values, highlighting the substantial leap in performance. The 1/2 inch nominal diameter of these cap screws ensures substantial cross-sectional area to resist shear forces, while the 2-inch length provides adequate thread engagement and clamping length for the specified hitch series. The threads are typically coarse (UNC - Unified National Coarse) for enhanced strength, ease of assembly, and resistance to stripping. The manufacturing process of Grade 8 bolts is tightly controlled, often involving cold forging of the head and rolling of the threads after heat treatment to further enhance fatigue resistance and thread integrity. The black oxide finish applied to these cap screws is not just for aesthetics; it provides a thin, durable layer of iron oxide (Fe3O4) that enhances corrosion resistance, minimizes light reflection, and provides a degree of lubricity to reduce galling during installation, especially when subjected to high torque. This finish also ensures dimensional stability, as it does not significantly alter the fastener's critical dimensions, preserving the engineered fit and function.
Complementing the Grade 8 cap screws are the four 1/2 inch Grade 8 hex nuts. The pairing of a Grade 8 bolt with a corresponding Grade 8 nut is fundamental to achieving the intended clamping force and preventing thread stripping under the high loads characteristic of heavy-duty towing. An inferior grade nut, when used with a Grade 8 bolt, would become the weakest link in the fastening system, leading to premature failure. Grade 8 hex nuts, conforming to SAE J995 standards for nut properties, are also manufactured from medium carbon alloy steel and undergo the same rigorous heat treatment process as the bolts. This ensures that the nut's proof load strength is equivalent to or greater than the bolt's tensile strength, allowing the bolt to reach its full load-bearing capacity without the nut's threads deforming or stripping. The hexagonal shape of the nut provides multiple wrenching surfaces, facilitating efficient and secure tightening. Just like the cap screws, these nuts also feature a black oxide finish, providing the same benefits of corrosion resistance, aesthetic consistency, and reduced friction during assembly. The design of these nuts is crucial for distributing the clamping force effectively over the contact area, ensuring that the bolt preload is maintained, which is vital for the dynamic nature of hitch applications where vibrations and varying loads are common. The precise threading within the nut, typically class 2B, ensures a snug fit with the bolt's threads, maximizing contact area and minimizing the potential for movement under stress.
The kit also includes four 1/2 inch heavy lock washers. These components play a crucial role in maintaining the preload of the fastener assembly, effectively counteracting loosening forces induced by vibration, thermal expansion and contraction, and dynamic shocks inherent in towing operations. A "heavy" lock washer is distinguished from a standard split lock washer by its increased material thickness and wider cross-section, which translates to greater spring tension and improved load distribution. Manufactured from hardened spring steel, these washers are designed to elastically deform when tightened, providing a continuous spring force against the nut. This spring action serves two primary functions: first, it maintains friction between the nut and the bearing surface, resisting counter-rotation; and second, it compensates for minor relaxation in the joint, such as embedment or creep, thus helping to preserve the initial clamping force. When tightened, the sharp edges of the split lock washer bite into both the nut and the mounting surface, creating a mechanical lock that resists loosening. The 1/2 inch designation ensures proper fit with the 1/2 inch diameter fasteners. The material choice of spring steel, often heat-treated to achieve specific hardness levels (e.g., Rockwell C40-50), is critical for its elastic recovery properties. Without effective locking mechanisms like heavy lock washers, even properly torqued fasteners can succumb to dynamic forces, leading to joint failure, component separation, and potential safety hazards. In high-vibration environments like those encountered by pintle hitches, the inclusion of heavy-duty lock washers is not merely an accessory but a critical engineering requirement to ensure joint stability over extended periods of operation.
Finally, the kit incorporates four 1/2 inch flat washers. While seemingly simple, flat washers perform several vital functions in a bolted joint. Their primary purpose is to distribute the clamping load over a wider area, thereby reducing the localized stress on the component material (in this case, the hitch and its mounting plate). This prevents damage such as galling, marring, or embedding of the nut or bolt head into softer materials, which could compromise the joint's integrity over time. By providing a smooth, consistent bearing surface, flat washers also reduce friction during tightening, allowing for a more accurate application of torque and thus a more consistent preload. This is particularly important for achieving precise torque specifications required for Grade 8 fasteners. Additionally, flat washers can act as spacers, provide insulation, or bridge oversized holes. For this hitch mounting application, their role in load distribution and surface protection is paramount, ensuring that the high clamping forces generated by the Grade 8 fasteners are evenly spread, preventing stress concentrations that could lead to material fatigue or deformation of the hitch or mounting structure. Manufactured from carbon steel, these flat washers are robust enough to withstand the compression forces without deforming or failing. Their black color, likely achieved through a black oxide finish or a similar coating, ensures visual consistency with the other components and offers a degree of corrosion resistance.
The selection of carbon steel as the base material for all components in this mounting kit is a testament to its excellent balance of strength, machinability, and cost-effectiveness. The specific grades of carbon steel used for Grade 8 fasteners are typically medium carbon alloy steels, which, when properly heat-treated, exhibit exceptional mechanical properties. The heat treatment process of quenching and tempering is a cornerstone of Grade 8 fastener production. Quenching involves rapidly cooling the steel from an elevated temperature, typically in oil or water, to produce a very hard but brittle microstructure called martensite. This is then followed by tempering, where the steel is reheated to a lower temperature and held for a specific period, which reduces brittleness and increases toughness, while retaining high strength. This precise control over the metallurgical structure is what differentiates Grade 8 from lower-grade fasteners, allowing it to withstand the extreme stresses encountered in heavy-duty applications. The black oxide finish is a chemical conversion coating process where the steel surface reacts with an oxidizing salt solution at elevated temperatures. This creates a uniform layer of magnetite (Fe3O4), which is integral to the substrate rather than being a deposited layer. This results in no significant dimensional change to the fastener, which is critical for maintaining engineered tolerances, and offers good abrasion resistance in addition to corrosion protection in mild environments. It also provides a pleasing aesthetic that blends well with industrial equipment.
The application of this mounting kit to Buyers Products BH8, PH5, PH8, and PH15 series pintle/combination hitches underscores its specialized design. Pintle hitches are renowned for their strength and durability, particularly in heavy-duty towing, off-road, agricultural, construction, and military contexts. They are designed to accommodate lunette eyes, providing a robust, articulated connection suitable for trailers that experience significant vertical and lateral movement. Combination hitches expand on this by integrating both a pintle hook and a standard ball hitch, offering versatility for various trailer types. The very nature of these applications involves high dynamic loads, shock loads, and continuous vibration, which demand a fastening system that can maintain its integrity under relentless stress. The engineered combination of Grade 8 cap screws, Grade 8 hex nuts, heavy lock washers, and flat washers in this kit is precisely formulated to provide the required clamping force, joint stability, and fatigue resistance essential for these demanding environments. Using anything less than Grade 8 hardware for such applications could lead to catastrophic failure, resulting in equipment damage, cargo loss, and severe safety risks.
Proper installation practices are as critical as the quality of the components themselves. The use of a calibrated torque wrench is imperative to apply the manufacturer-specified torque for the 1/2 inch Grade 8 fasteners. This ensures that the optimal preload is achieved, which is the internal tension within the bolt that creates the clamping force holding the joint together. Insufficient torque can lead to a loose joint that is prone to fatigue failure, while excessive torque can overstress the bolt, potentially causing it to yield or fracture. Following the specific torque recommendations provided by the hitch manufacturer or general engineering guidelines for 1/2-inch Grade 8 bolts is non-negotiable for safe and reliable operation. Furthermore, all fastener components should be clean and free of debris, and threads should be engaged smoothly to prevent cross-threading or binding. Regular inspection of the hitch mounting hardware for signs of wear, corrosion, or loosening is also a critical part of a comprehensive maintenance regimen, ensuring ongoing safety and performance.
In conclusion, the Buyers Products Pintle/Combination Hitch Mounting Kit is an exemplar of engineering excellence, specifically curated for the arduous demands of heavy-duty towing with BH8, PH5, PH8, and PH15 series hitches. Each component – from the high-strength, heat-treated 1/2 inch x 2 inch Grade 8 cap screws and their matching Grade 8 hex nuts, to the critical heavy lock washers and load-distributing flat washers – is chosen for its specific role in creating an unyielding, resilient, and safe fastening system. The sophisticated material science, including the precise heat treatment of carbon steel and the protective black oxide finish, ensures durability and resistance to the harsh conditions encountered in industrial and commercial environments. This kit provides not just parts, but a meticulously designed solution that upholds the highest standards of safety, operational efficiency, and longevity, making it an indispensable choice for professionals who demand uncompromising reliability from their equipment. Investing in this genuine mounting kit is an investment in the integrity of your towing operations and the safety of your personnel and cargo.
