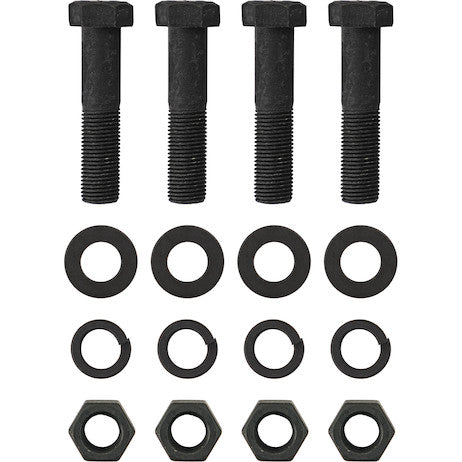

Buyers Products Pintle/Combination Hitch Mounting kit is for use with BH10 and PH20 series hitches. It includes: (4) 9/16 in. x 2-1/2 in. Grade 8 cap screws, (4) 9/16 in. Grade 8 hax nuts, and (4) 1/2 in. heavy lock washers.
Specifications
| Color | Natural |
|---|---|
| Finish | Zinc Plated Clear |
| M.G.T.W. (lbs) | - |
| M.V.L. (lbs) | - |
| Material | Carbon Steel |
The Buyers Products Mounting Kit for Pintle/Combination Hitches (specifically BH10 and PH20 series) represents a critical investment in the operational safety, structural integrity, and long-term reliability of heavy-duty towing applications. This meticulously engineered hardware package transcends mere fasteners, embodying a carefully curated selection of components designed to withstand the extreme dynamic loads, vibrations, and environmental stresses inherent in commercial and industrial towing. Understanding the technical specifications and the rationale behind each component's inclusion is paramount for professionals seeking to optimize their towing systems.
At the core of this mounting kit are the (4) 9/16 inch x 2-1/2 inch Grade 8 cap screws, complemented by (4) 9/16 inch Grade 8 hex nuts and (4) 9/16 inch heavy lock washers. Additionally, a crucial safety pin with chain is included, a vital element often overlooked but fundamental to the secure operation of pintle mechanisms. This comprehensive ensemble ensures that the hitch is affixed to the mounting structure with uncompromising strength and resistance to loosening, forming a robust connection that is the bedrock of safe towing.
The Unyielding Strength of Grade 8 Fasteners
The designation "Grade 8" for both the cap screws and hex nuts is not merely a label; it signifies adherence to stringent mechanical property requirements defined by standards such as SAE J429 for bolts and ASTM A563 for nuts. Grade 8 fasteners are manufactured from medium carbon alloy steel, which undergoes a rigorous heat treatment process of quenching and tempering. This process transforms the microstructure of the steel, imparting exceptional tensile strength, yield strength, and hardness, making them suitable for the most demanding structural applications where failure is not an option.
Mechanical Properties of Grade 8
- Tensile Strength: Grade 8 cap screws boast a minimum tensile strength of 150,000 pounds per square inch (psi). This metric represents the maximum stress a material can withstand while being stretched or pulled before breaking. For heavy towing, where sudden jerks and continuous pulling forces are exerted, this high tensile strength is indispensable.
- Yield Strength: With a minimum yield strength of 130,000 psi, these fasteners can endure substantial stress before experiencing permanent deformation. This is crucial for maintaining the integrity of the bolted joint under heavy, sustained loads without compromising the hitch's alignment or attachment.
- Proof Load: The proof load for Grade 8 bolts is typically 120,000 psi. This is the maximum axial tensile load that a bolt can withstand without exhibiting permanent elongation. It's a critical indicator of the fastener's ability to maintain its clamping force over time.
- Hardness: Grade 8 fasteners typically exhibit a Rockwell C hardness range of C33-C39. This hardness contributes to their wear resistance and their ability to resist deformation under high bearing stresses when tightened.
These properties stand in stark contrast to lower grades, such as Grade 5 (which has a tensile strength of 120,000 psi) or Grade 2 (approximately 74,000 psi). The elevated strength of Grade 8 components is a non-negotiable requirement for pintle/combination hitches, which are regularly subjected to dynamic shock loads, repetitive stresses, and significant shear forces. Utilizing anything less than Grade 8 in such applications would introduce unacceptable risks of fastener elongation, yielding, or catastrophic shear failure, jeopardizing both the towed equipment and operational safety.
Cap Screw Specifications: 9/16 in. x 2-1/2 in.
The specified dimensions of 9/16 inch diameter and 2-1/2 inch length for the cap screws are engineered to provide optimal engagement and clamping force for the BH10 and PH20 series hitches. The 9/16 inch nominal diameter offers a substantial cross-sectional area, directly correlating to higher shear and tensile load capacities. The 2-1/2 inch length is selected to ensure adequate thread engagement through the hitch's mounting flange and the associated structural members, while allowing for the proper seating of the hex nut and lock washer. The threads are typically coarse thread (UNC - Unified National Coarse), which offers several advantages in heavy-duty applications: greater resistance to stripping during installation, faster assembly, and a larger allowance for plating or minor thread damage compared to fine threads. The hex head design ensures robust wrenching capability, allowing for the application of high torque without cam-out or damage to the fastener head.
9/16 in. Grade 8 Hex Nuts
The inclusion of Grade 8 hex nuts is equally vital. In a bolted joint, the weakest link dictates the overall strength of the assembly. Therefore, pairing Grade 8 bolts with Grade 8 nuts ensures that the entire fastening system performs to the highest mechanical standards. A lower-grade nut would be prone to thread stripping under the high clamping forces exerted by a Grade 8 bolt, rendering the superior strength of the bolt redundant. The standard hex configuration of these nuts facilitates easy and secure engagement with conventional wrenches, enabling precise torque application essential for achieving and maintaining the intended clamping force.
Ensuring Joint Integrity: Heavy Lock Washers
The (4) 9/16 inch heavy lock washers are a critical component for maintaining the integrity of the bolted joint in high-vibration and dynamic load environments. Their primary function is to resist the loosening of the nut under operational stresses. While specific types of "heavy lock washers" can vary, in this context, it commonly refers to robust split lock washers or high-strength conical spring washers designed for substantial load retention.
Functionality of Lock Washers
- Vibration Resistance: Towing operations expose the hitch assembly to constant vibration, which can lead to the gradual rotation and loosening of nuts over time. Lock washers provide an anti-rotation feature.
- Spring Action: A split lock washer, when compressed, exerts a spring force that helps maintain tension in the bolted joint. The sharp edges of a split lock washer are designed to bite into both the nut and the mating surface, providing a frictional resistance to rotation.
- Compensation for Settlement: Over time, components within a joint can settle or embed, leading to a loss of initial clamping force. Lock washers, particularly those with spring characteristics, can help compensate for some degree of settlement, preserving a portion of the initial tension.
- Increased Bearing Surface (for some types): While not their primary function, some heavy washers can also help distribute the load over a larger bearing surface, reducing localized stress on the bolted components.
The "heavy" designation implies a more substantial cross-section or specialized material, enabling the washer to exert a greater spring force and maintain its locking action under more severe conditions than standard lock washers. For safety-critical applications like pintle hitches, where dynamic forces are prevalent, the role of these washers in preventing fastener back-off is indispensable for sustained operational safety.
The Crucial Redundancy: Safety Pin with Chain
A detail of paramount importance for any pintle hook system is the safety pin with chain. While not directly part of the structural mounting of the hitch to the vehicle, this component is integral to the secure operation of the pintle hook mechanism itself, preventing accidental disengagement of the trailer coupling. The safety pin is designed to pass through a designated aperture in the pintle hook, effectively locking the hook's jaw in the closed position, thereby securing the lunette ring of the trailer.
Safety Pin Functionality
- Accidental Disengagement Prevention: The primary role of the safety pin is to provide a mechanical lockout against the inadvertent opening of the pintle hook, which could occur due to severe bumps, vibrations, or even operational errors.
- Visual Confirmation: The presence of the pin provides a clear visual indicator that the pintle hook is properly secured.
- The Chain: The integrated chain serves a vital purpose: it prevents the loss of the safety pin. In an environment where small but critical components can easily be misplaced or dropped, the chain ensures the pin remains tethered to the hitch, always available for re-engagement or storage when not in use. This simple feature enhances operational readiness and reduces downtime associated with lost components.
The material for the safety pin is typically a high-strength steel, often case-hardened or through-hardened, to resist shear forces and wear. Its design is straightforward yet effective, providing a reliable secondary retention mechanism that is mandatory for safe towing practices.
Material and Finish: Carbon Steel with Zinc Plated Clear
The components of this mounting kit are fabricated from Carbon Steel, a material chosen for its excellent balance of strength, ductility, and cost-effectiveness. Carbon steel, particularly in its alloyed and heat-treated forms as seen in Grade 8 fasteners, provides the necessary structural integrity to withstand the substantial forces involved in heavy-duty towing. Its inherent toughness allows it to absorb impacts and resist fracture under dynamic loading conditions.
Zinc Plated Clear Finish
The "Zinc Plated Clear" finish applied to the carbon steel components is a critical protective measure against environmental degradation. Zinc plating is an electrochemical process that deposits a thin layer of zinc onto the surface of the steel. This provides several key benefits:
- Corrosion Resistance: Zinc acts as a sacrificial coating. In the presence of moisture and oxygen, zinc corrodes preferentially to the underlying steel, thereby protecting the steel substrate from rust and oxidation. This is particularly important for components exposed to outdoor elements, road salts, chemicals, and general atmospheric corrosion.
- Galvanic Protection: Even if the zinc coating is scratched or chipped, exposing the steel, the surrounding zinc will continue to provide cathodic protection to the steel, preventing rust from forming at the exposed site for a period.
- Enhanced Durability: The plating provides a harder surface, offering some degree of abrasion resistance and extending the service life of the fasteners.
- Clear Chromate Passivation: The "clear" aspect refers to a subsequent chromate conversion coating applied over the zinc. This passivation layer significantly enhances the corrosion resistance of the zinc layer itself, making it more durable and aesthetically appealing by preventing "white rust" (zinc oxide) formation and giving it a bright, clean appearance. It also helps to resist fingerprinting and minor scratches.
This protective finish ensures that the mounting kit maintains its structural integrity and aesthetic quality over prolonged periods of exposure to harsh operating conditions, minimizing maintenance requirements and maximizing the operational lifespan of the hitch assembly.
Optimizing Performance: Installation and Maintenance Protocols
Even the highest quality components require proper installation and diligent maintenance to perform optimally and ensure safety. For the Buyers Products Pintle/Combination Hitch Mounting Kit, adherence to best practices is crucial.
Torque Specifications
The most critical aspect of installation is the application of the correct torque to the Grade 8 fasteners. Proper torque ensures that the bolts are pre-tensioned to a specific level, creating a clamping force that holds the hitch securely in place. Under-torquing can lead to insufficient clamping force, allowing the joint to loosen under vibration and dynamic loads, potentially causing fatigue failure of the fasteners or the hitch itself. Over-torquing can stretch the bolt beyond its elastic limit, causing permanent deformation (yielding) or even fracture during installation or early in service. It can also damage the threads of the nut or the mating surfaces.
Users must consult the specific torque recommendations provided by Buyers Products for the BH10 and PH20 series hitches. In the absence of specific values for the hitch, standard torque charts for Grade 8, 9/16 inch fasteners with coarse threads should be consulted, typically involving lubricating the threads and using a calibrated torque wrench to achieve accurate tension. The recommended torque values will typically be substantial, reflecting the high strength of Grade 8 materials.
Proper Assembly and Sequence
Ensure that all mating surfaces are clean, free of debris, paint, or rust, which could interfere with proper seating and clamping force. Install the fasteners in a systematic sequence, often a crisscross pattern, to ensure even distribution of clamping force across the mounting flange. Initially snug all fasteners, then proceed with the final torque application in stages (e.g., 50%, 75%, 100% of final torque) to ensure uniform tension.
Routine Inspection
Regular inspection is paramount for any safety-critical towing component. Operators should routinely check the mounting kit components for:
- Looseness: Periodically re-check the torque of the nuts. Any signs of loosening indicate a need for immediate re-torqueing and investigation.
- Corrosion: While zinc plated, severe damage or prolonged exposure can lead to localized corrosion.
- Deformation: Look for bent bolts, crushed washers, or any signs of material fatigue or stretching.
- Thread Damage: Inspect exposed threads for nicks, galling, or stripping.
- Safety Pin Condition: Ensure the safety pin is present, straight, and fully engaged. Check the chain for integrity.
Replacement Guidelines
Fasteners are not eternal. They are subject to fatigue, wear, and corrosion. If any component of the mounting kit shows signs of damage, deformation, severe corrosion, or excessive wear, it must be replaced immediately with an identical, genuine Buyers Products component. Never reuse fasteners that have been stretched or yielded, as their mechanical properties will be compromised. The cost of replacing a few fasteners is negligible compared to the potential consequences of a hitch failure.
Application Specificity and Uncompromised Safety
This mounting kit is specifically designed for Buyers Products BH10 and PH20 series pintle and combination hitches. This targeted compatibility ensures that all dimensions, material strengths, and component specifications are precisely matched to the design and performance requirements of these particular hitch models. The BH10 and PH20 series hitches are engineered for heavy-duty applications, and this mounting kit is the appropriate complement to ensure their full rated capacity and safety features are realized.
While the M.G.T.W. (Maximum Gross Trailer Weight) and M.V.L. (Maximum Vertical Load) are not specified for the mounting kit itself (as these are attributes of the hitch), it is understood that the mounting hardware is a foundational element that enables the hitch to achieve and sustain its rated capacities. The integrity of the mounting components directly impacts the ability of the hitch to carry the intended loads without compromise. In essence, the strength of the hitch is only as good as the strength of its mounting system.
Utilizing high-quality, Grade 8 mounting hardware like this kit is not just good practice; it's a fundamental safety requirement in heavy-duty towing. The consequences of fastener failure in a towing application can range from equipment damage to severe accidents, making the investment in premium mounting hardware an absolute necessity for anyone involved in commercial hauling, construction, agriculture, or any other demanding towing scenario. This kit reflects Buyers Products' commitment to providing components that meet or exceed industry standards for strength, durability, and operational safety, reinforcing their reputation as a trusted supplier of towing and truck accessories.
